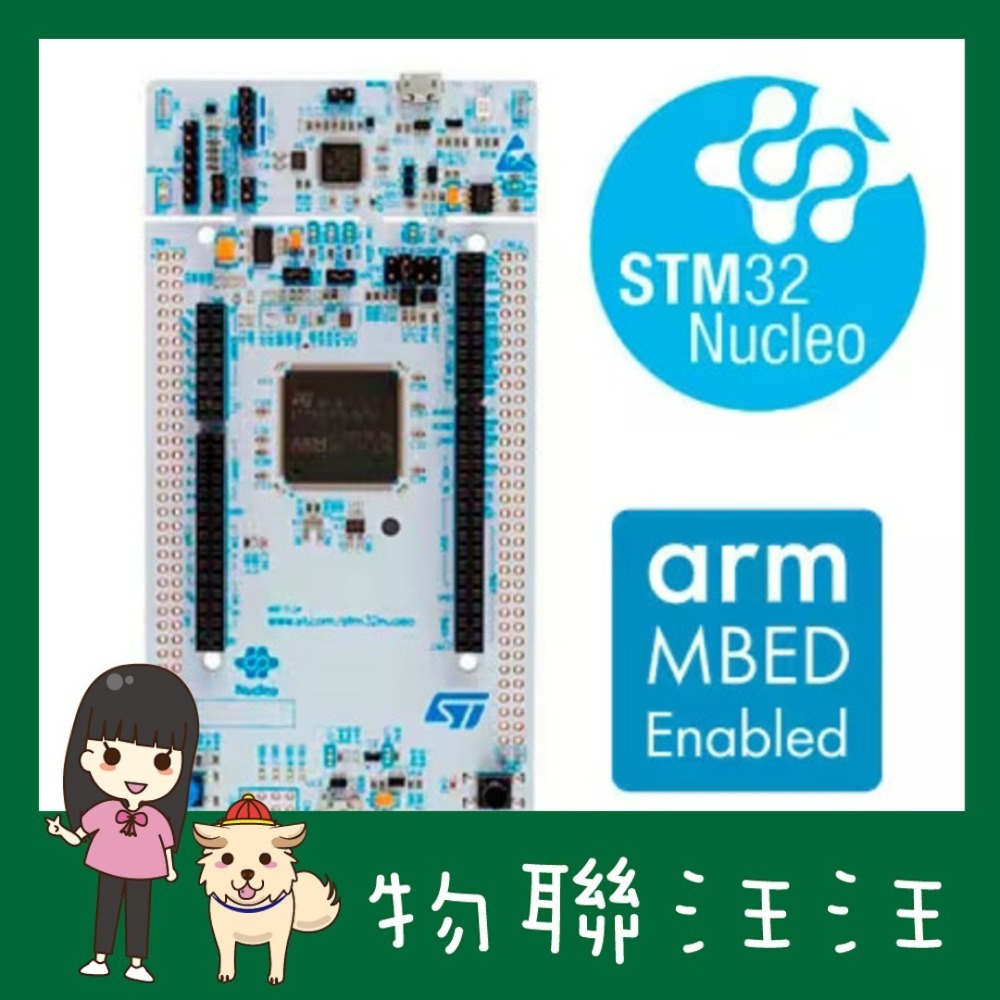

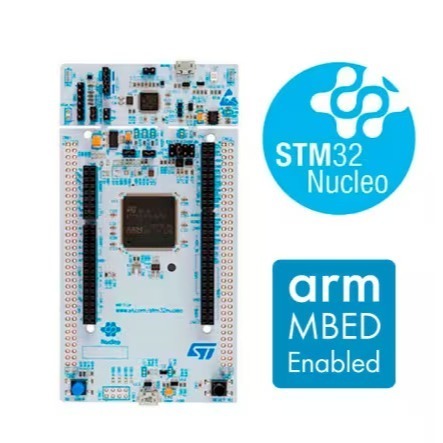

[物聯汪汪] 含稅附發票~ ST 原廠 NUCLEO-L4A6ZG STM32L4A6ZG 開發板

商品編號:P0510711548092 原始貨號:P0510711548092

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 1,120
$ 1,190
預計出貨天數3天
規格
  • 主板
  • 主板+Debug線
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/nucleo-l4a6zg.html [ https://www.st.com/en/evaluation-tools/nucleo-l4a6zg.html ]  料號:NUCLEO-L4A6ZG


Description

The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ST Zio connector, which extends the ARDUINO® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.



All features

  • Common features
    • STM32 microcontroller in an LQFP144, TFBGA225, or VFBGA264 package
    • 3 user LEDs
    • 1 user push-button and 1 reset push-button
    • 32.768 kHz crystal oscillator
    • Board connectors:
      • SWD
      • ST morpho expansion connector
    • Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
  • Features specific to some of the boards (refer to the ordering information section of the data brief for details)
    • External or internal SMPS to generate Vcore logic supply
    • Ethernet compliant with IEEE-802.3-2002
    • USB Device only, USB OTG full speed, or SNK/UFP (full-speed or high-speed mode)
    • Board connectors:
      • ARDUINO® Uno V3 connector or ST Zio expansion connector including ARDUINO® Uno V3
      • Camera module FPC
      • MIPI20 compatible connector with trace signals
      • USB with Micro-AB or USB Type-C®
      • Ethernet RJ45
    • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
