[物聯汪汪] 含稅附發票~ B-CAMS-IMX 用於 STM32 板的相機模組

商品編號:P0510711395698 原始貨號:P0510711395698

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 3,680
$ 3,900
預計出貨天數6
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/b-cams-imx.html [ https://www.st.com/en/evaluation-tools/b-cams-imx.html ]  料號:B-CAMS-IMX


Description

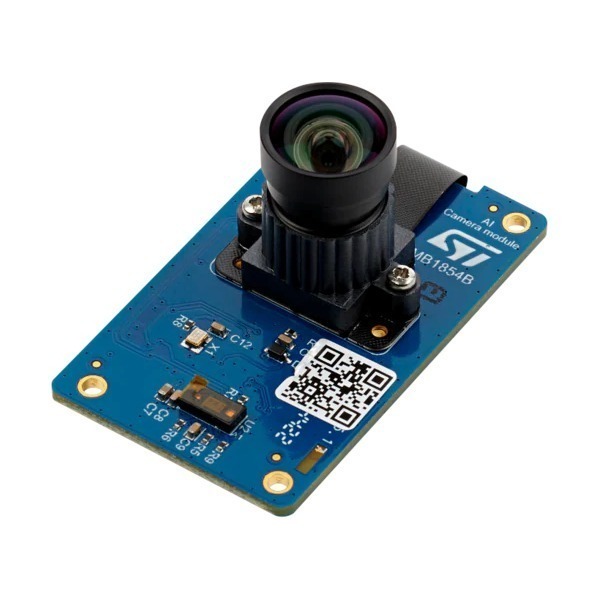

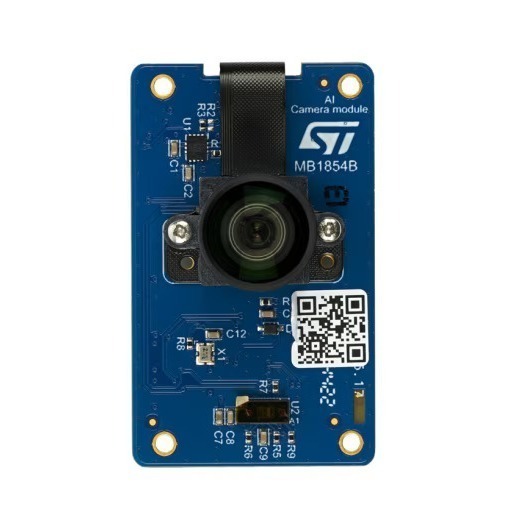

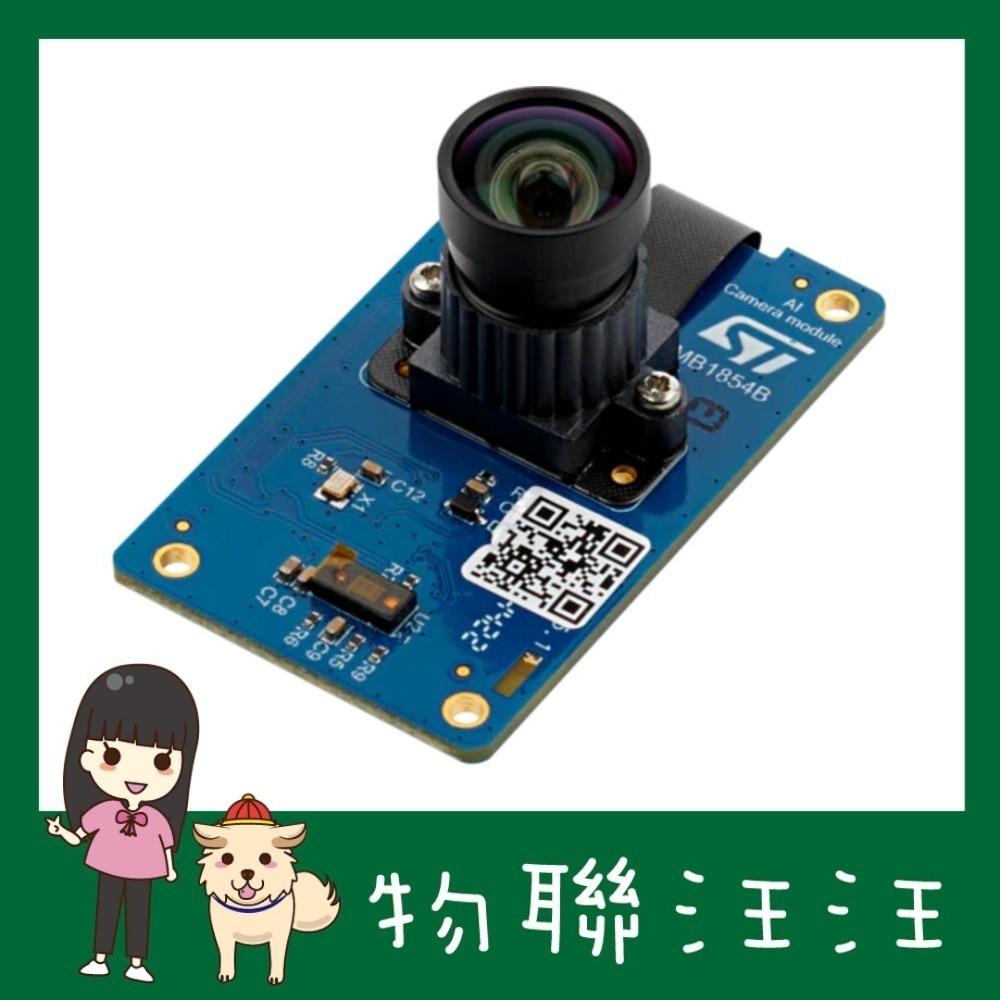

The B-CAMS-IMX camera module provides a compelling hardware set to handle multiple computer vision scenarios and use cases. It features a high-resolution 5‑Mpx RGB CMOS image sensor, an inertial motion unit, and a Time‑of‑Flight sensor. It can be used with any STM32 boards featuring a MIPI CSI-2® interface with a 22‑pin FFC connector to enable full-featured computer vision on STM32 microcontrollers and microprocessors easily.

All features

  • Camera module accessory board (MB1854) including:
    • Dual-lane MIPI CSI-2® data output supporting Sony 5‑Mpx RGB CMOS image sensor
    • M12 × 0.5 lens holder for a variety of commercially available, ready‑to‑use M12 lenses
    • Supplied M12 lens: Manual focus, 87° FOV
    • Inertial motion unit
    • Multizone direct Time‑of‑Flight sensor
    • 3.3 V power
    • Board connector:
      • 0.5 mm‑pitch, 22‑pin flexible flat cable (FFC) connector
    • 22‑pin flexible flat cable
