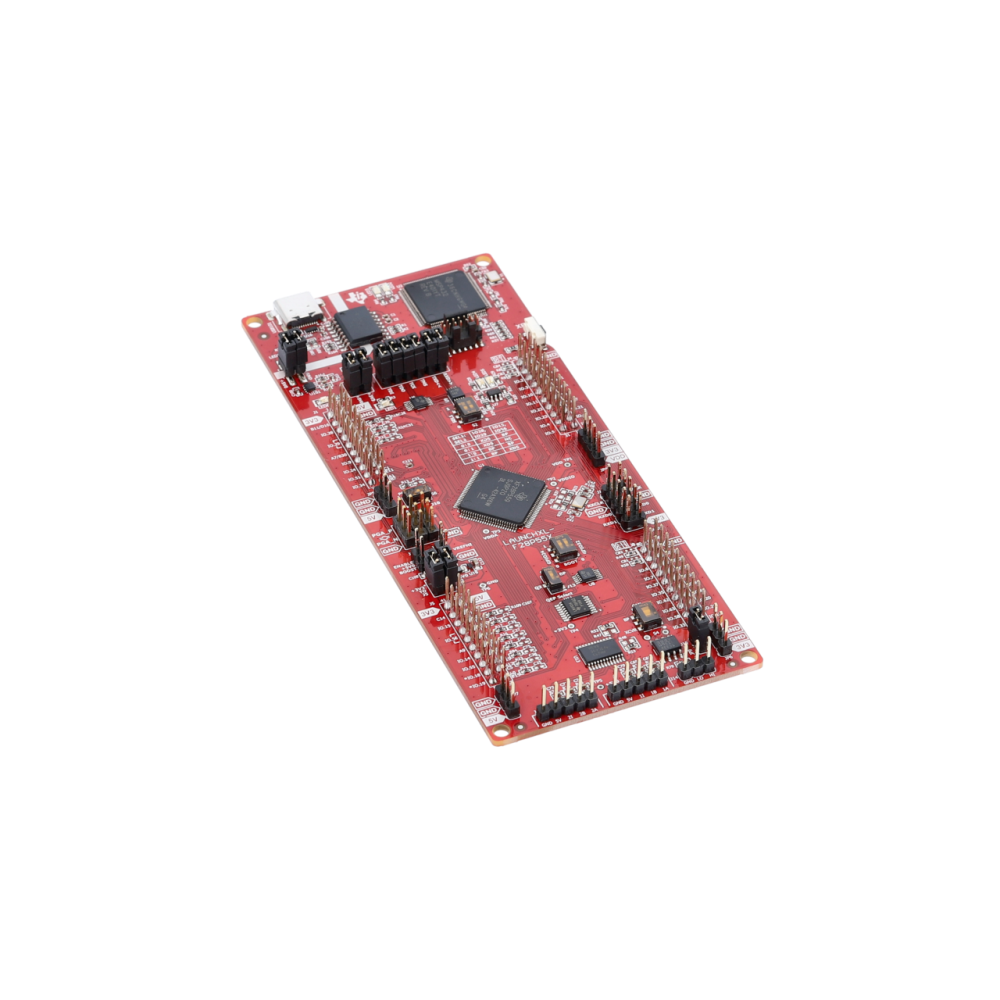

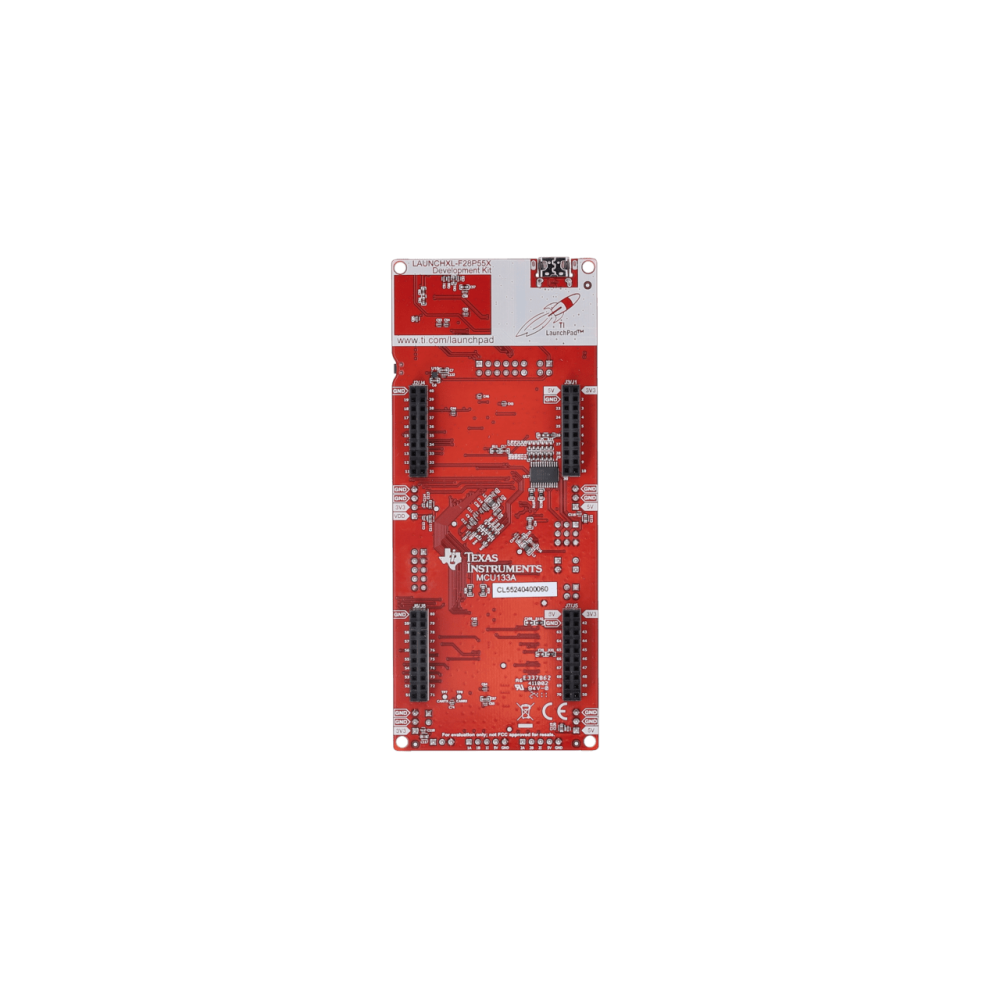

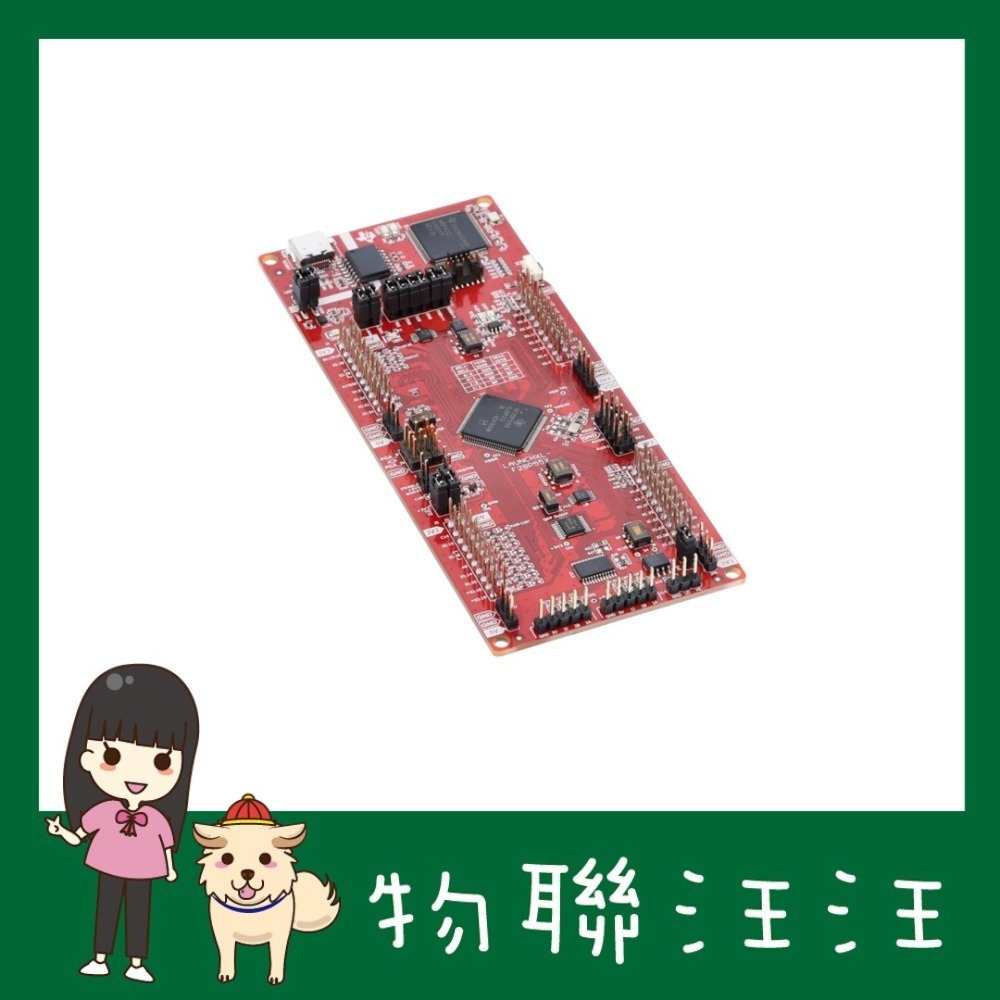

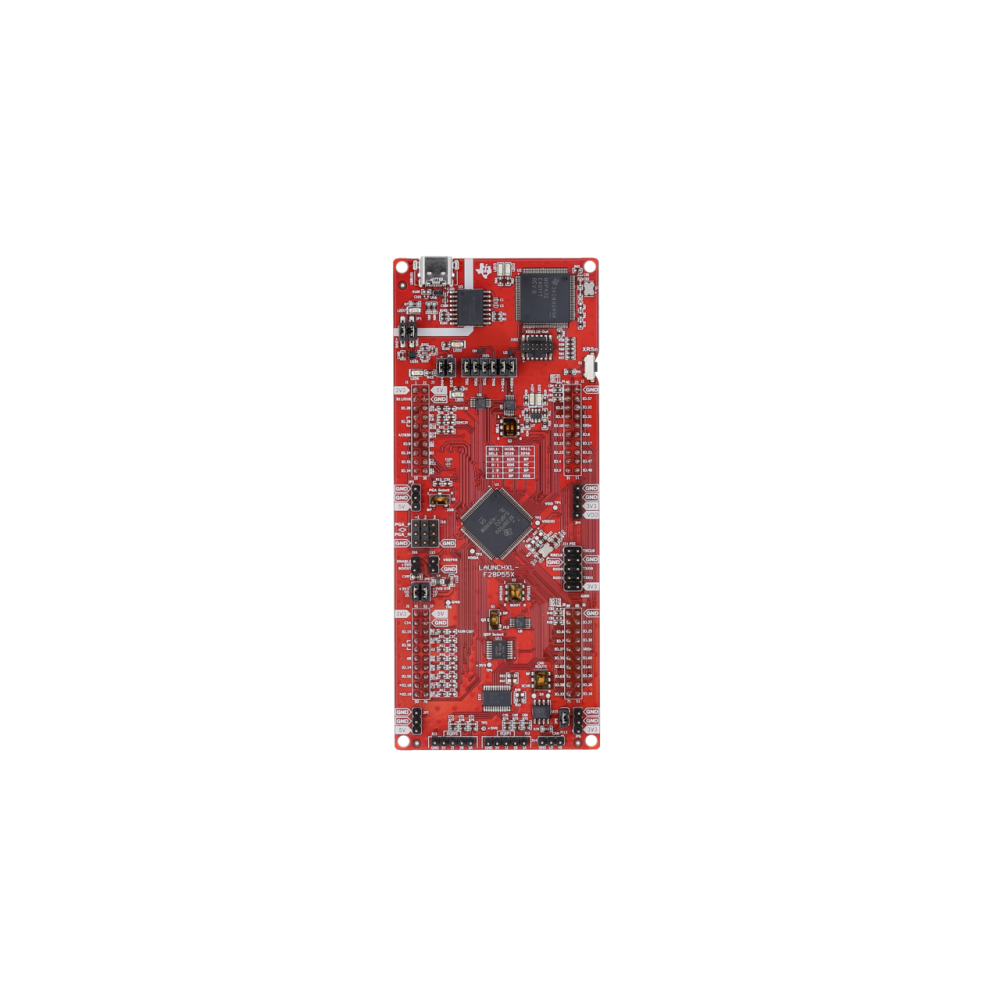

[物聯汪汪] 含稅附發票~ TI原廠 LAUNCHXL-F28P55X 開發板 C2000™ MCU F28P55X

商品編號:P0510711329322 原始貨號:P0510711329322

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 1,350
$ 1,430
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.ti.com/tool/LAUNCHXL-F28P55X [ https://www.ti.com/tool/LAUNCHXL-F28P55X ]  料號:LAUNCHXL-F28P55X


Description & features



LAUNCHXL-F28P55X is a low-cost development board for TI C2000™ real-time microcontrollers series of F28P55x devices. Ideal for initial evaluation and prototyping, it provides a standardized and easy to use platform to develop your next application. This extended version LaunchPad™ developement kit offers extra pins for development and supports the connection of two BoosterPack™ plug-in modules. As part of the vast TI MCU LaunchPad ecosystem, it is also cross-compatible with a broad range of plug-in modules.

Features
  • TMS320F28P550SJ9: 150 MHz C28x CPU with FPU and TMU, 150 MHz CLA, CLB, 1088 KB Flash, 5x 12-bit ADC, 24x PWM channels, 2x CANFD (MCAN), 3x encoder modules (eQEP), 3x PGAs, FSI, UART, and more
  • On-board XDS110 debug probe for real-time debug and flash programming
  • 80-pin LaunchPad leveraging the BoosterPack ecosystem
  • Three PGA interface connectors
  • On-board CAN transceiver and connector
  • Two encoder interface (eQEP) connectors
  • FSI interface connector

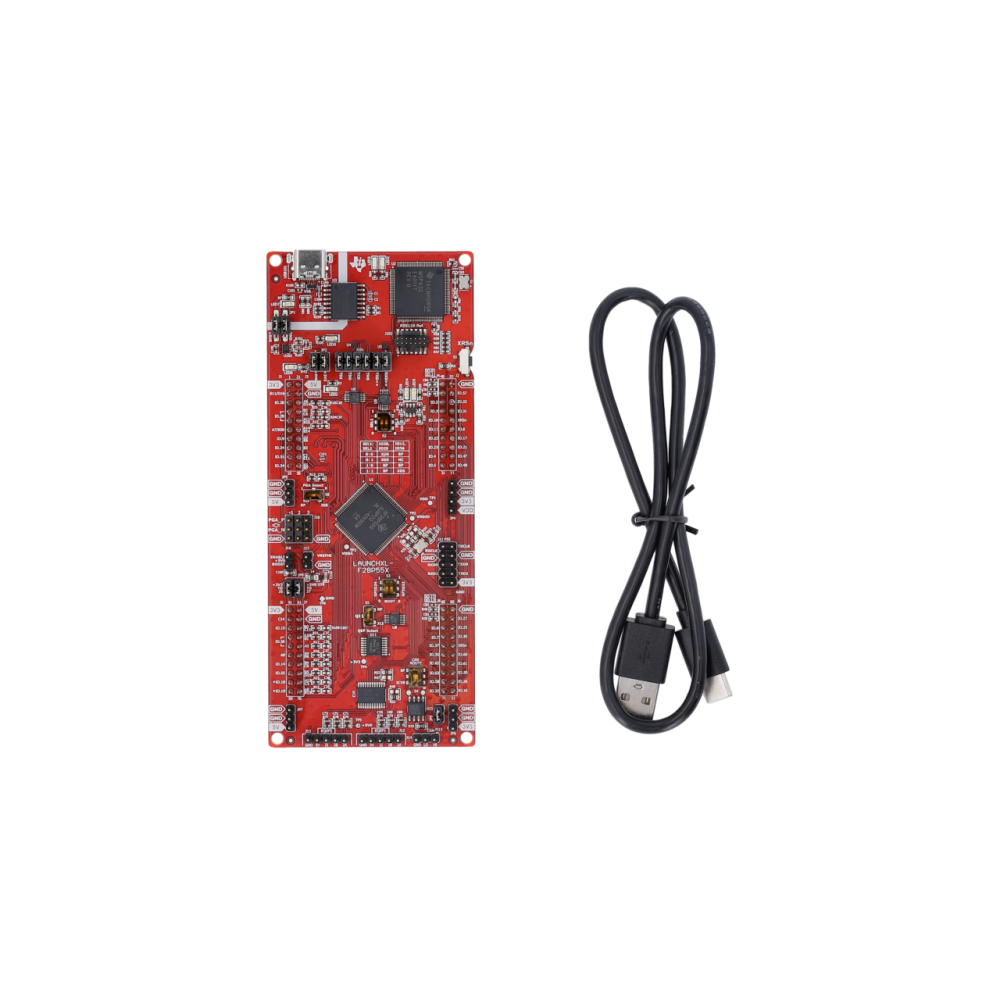

What's included



  • C2000™ real-time MCU F28P55X LaunchPad development board
  • USB Type-A male to USB Type-C™ male cable
  • LaunchPad pinout map

Supported products

C2000 real-time microcontrollers
TMS320F28P550SG [ https://www.ti.com/product/TMS320F28P550SG ] — C2000™ 32-bit MCU with 150MHz 512KB flash C28x + CLA, five ADCs, CLB, AES and NPU TMS320F28P550SJ [ https://www.ti.com/product/TMS320F28P550SJ ] — C2000™ 32-bit MCU with 150MHz 1.1MB flash C28x + CLA, five ADCs, CLB, AES and NPU TMS320F28P559SJ-Q1 [ https://www.ti.com/product/TMS320F28P559SJ-Q1 ] —Automotive C2000™ 32-bit MCU with 150MHz 1.1MB flash C28x + CLA, five ADCs, CLB, AES and NPU
