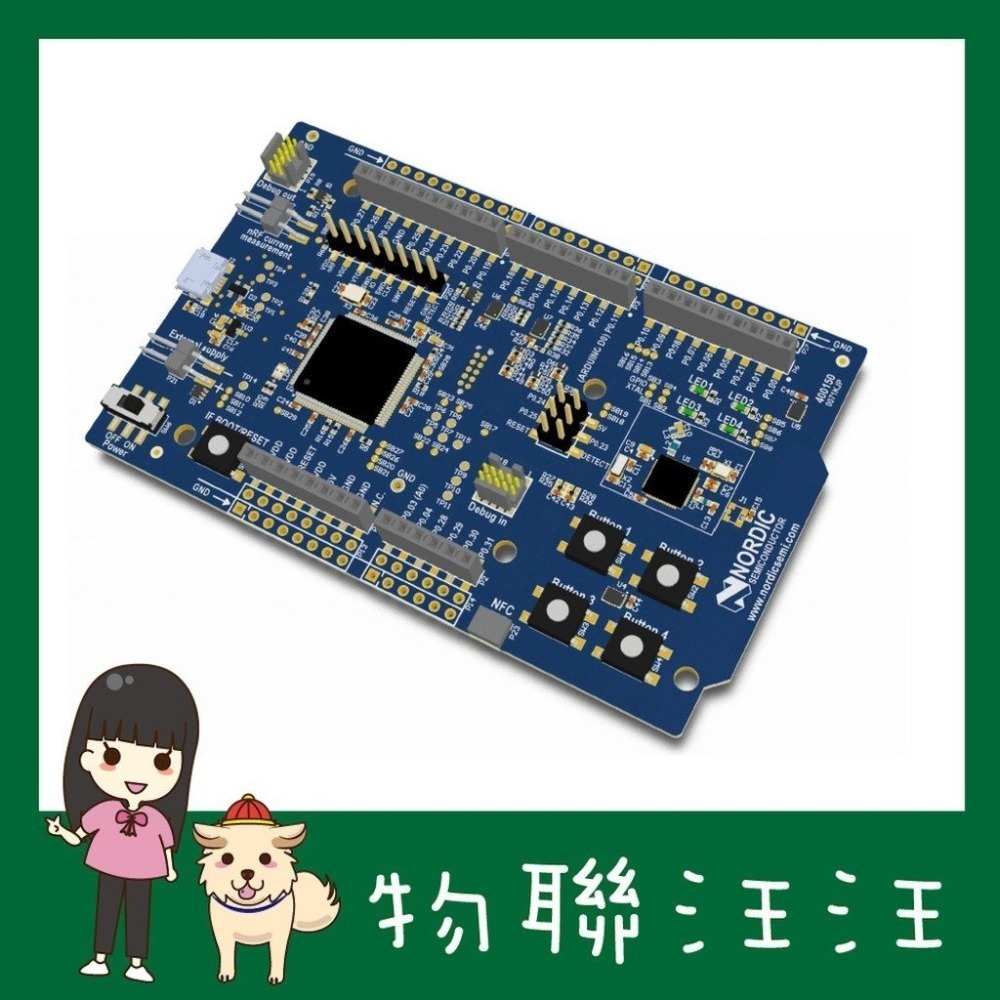

[物聯汪汪] 附發票~PCA1004 nRF52832 NRF52-DK 開發板適用nRF52805 nRF52810

商品編號:P0510709679260 原始貨號:P0510709679260

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 1,650
$ 1,750
預計出貨天數3
規格
  • 主板
  • 主板+Micro USB線
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.nordicsemi.com/Software-and-tools/Development-Kits/nRF52-DK [ https://www.nordicsemi.com/Software-and-tools/Development-Kits/nRF52-DK ]  料號:nRF52-DK


溫馨提示

  • 本商品為專用於雛形研發實驗之非隨插即用的射頻模組,並非通用終端產品。故須經具備相關知識之專業人士(如:工程師、研究師生、或創客)撰寫程式、燒錄、焊接、外接天線等二次加工,或須與主機板連接使用等方式,始具備訊號傳輸功能,非屬電信管制射頻器材。
  • 專業人士在購買前敬請詳閱商品說明與原廠規格書,始可用於您自己的原型設計中自行實驗與實作完整通訊功能。
  • 商品本身初始無任何預設應用或功能,故一般消費者上電後無法直接使用,切勿購買。

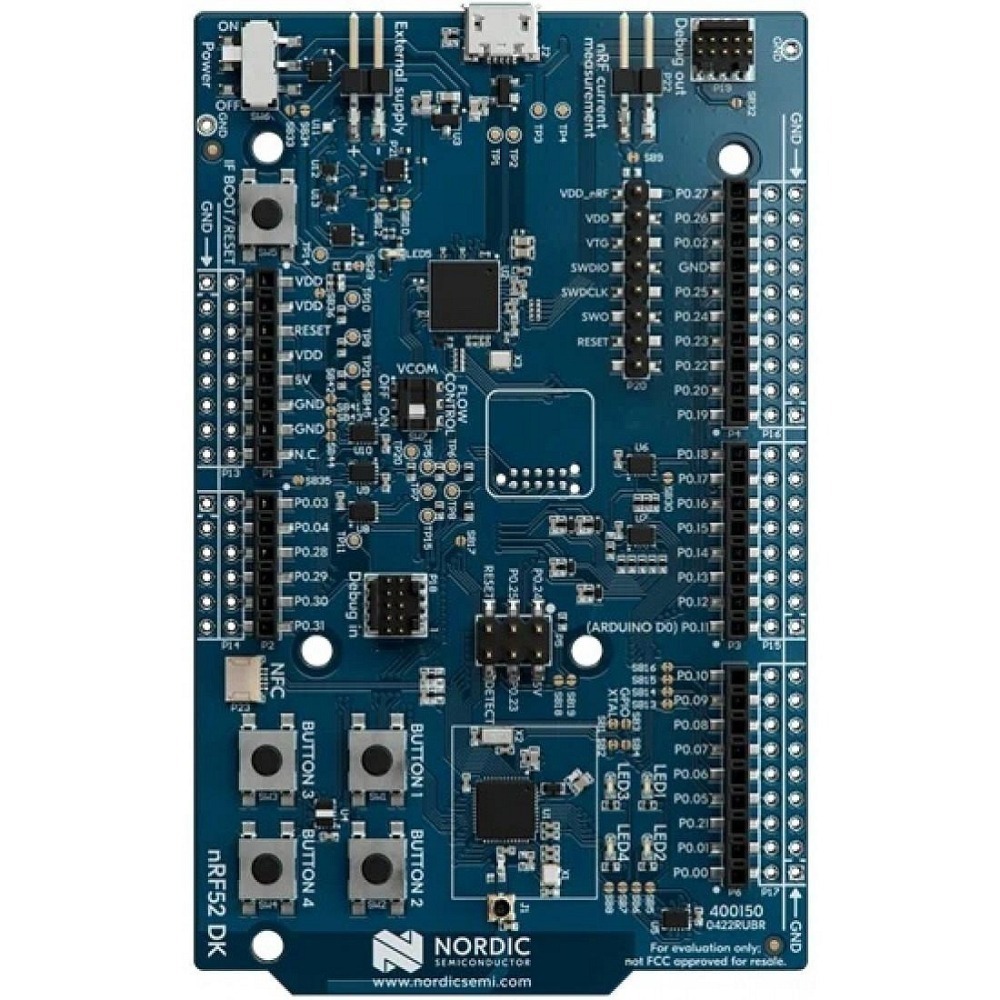

Bluetooth Low Energy and Bluetooth mesh development kit for the nRF52810 and nRF52832 SoCs

The nRF52 DK is a versatile single board development kit for Bluetooth Low Energy, Bluetooth mesh, NFC, ANT and 2.4 GHz proprietary development on the nRF52805, nRF52810 and nRF52832 SoCs.

It facilitates development exploiting all features of the nRF52805, nRF52810 and nRF52832 SoCs. It includes an NFC antenna that quickly enables utilization of the NFC-A tag peripheral on the nRF52832. All GPIOs are available via edge connectors and headers, and 4 buttons and 4 LEDs simplify output and input from and to the SoC.

It is Arduino Uno Revision 3 compatible, making it possible to mount 3rd-party shields with ease. It comes with an on-board SEGGER J-Link debugger allowing programming and debugging both the on-board SoC and external SoCs through the debug out header. It also interfaces directly with the Power Profiler Kit [ https://www.nordicsemi.com/Software-and-tools/Development-Tools/Power-Profiler-Kit ]  and the Power Profiler Kit II [ https://www.nordicsemi.com/Software-and-tools/Development-Tools/Power-Profiler-Kit-2 ] .

It can be powered by USB, but also includes a CR2032 battery holder, enabling in-field testing of prototypes.

SEGGER Embedded Studio, Keil, GCC and IAR IDEs and toolchains are supported, see IDEs and Toolchains [ https://www.nordicsemi.com/Software-and-tools/Development-Tools/IDEs-and-Toolchains ]  for more information.

The box includes an nRF52 DK board, an NFC antenna and a CR2032 battery. Hardware layout and schematics are available.

Download nRF52 DK product brief [PDF] [ https://www.nordicsemi.com/-/media/Software-and-other-downloads/Product-Briefs/nRF52-DK-product-brief.pdf?la=en&hash=01C23BC9A39B642EF150702065B7673E430EBE05 ]


Develop

with the nRF52805, nRF52810 and nRF52832 SoCs

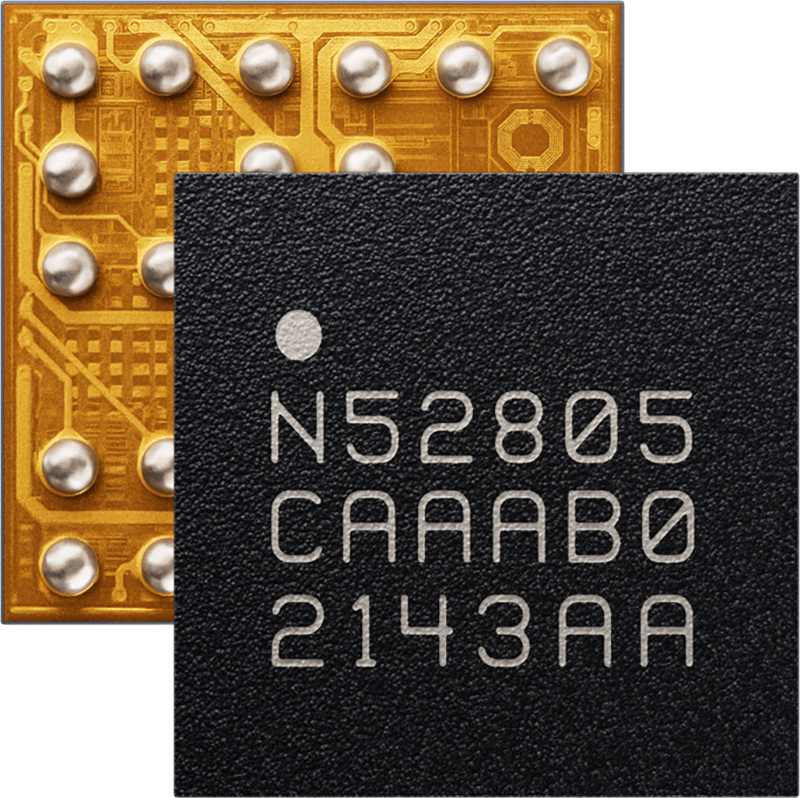

nRF52805 SoC

Bluetooth 5.2 SoC supporting Bluetooth Low Energy

64 MHz Cortex-M4
192 KB Flash, 24 KB RAM
2.4 GHz transceiver
2 Mbps, 1 Mbps
Bluetooth Low Energy
+4 dBm TX power
128-bit AES
UART, SPI, TWI
12-bit ADC
Read more

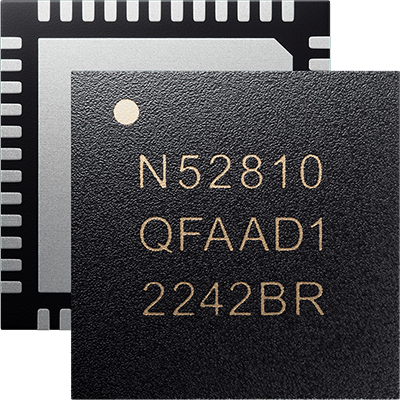

nRF52810 SoC

Bluetooth 5.2 SoC supporting Bluetooth Low Energy

64 MHz Cortex-M4
192 KB Flash, 24 KB RAM
2.4 GHz transceiver
2 Mbps, 1 Mbps
Bluetooth Low Energy
+4 dBm TX power
128-bit AES
UART, SPI, TWI, PDM
PWM
12-bit ADC
Read more

nRF52832 SoC

Versatile Bluetooth 5.2 SoC supporting Bluetooth Low Energy, Bluetooth mesh and NFC

64 MHz Cortex-M4 with FPU
512/256 KB Flash, 64/32 KB RAM
2.4 GHz transceiver
2 Mbps, 1 Mbps
Bluetooth Low Energy
Bluetooth mesh
+4 dBm TX power
128-bit AES
UART, SPI, TWI, PDM, I2S
PWM
12-bit ADC
NFC-A
Read more

Relevant SDKs

Click to read more

nRF5 SDK

The Bluetooth LE and ANT software development kit

The nRF5 SDK is a high quality, thoroughly tested software development kit to accelerate your software development efforts for the nRF52 and nRF51 Series SoCs. It contains hundreds of useful firmware modules and examples to assist in building your application.

Read more

nRF Connect SDK

nRF Connect SDK is a common software development kit for cellular IoT and short-range wireless, on the nRF9160 SiP, the nRF5340 SoC and all nRF52 Series SoCs.


Read more

nRF5 SDK for Mesh

The nRF5 SDK for mesh is ideal for developing applications that use Bluetooth mesh networks . It is a richly featured SDK for building sophisticated solutions with Bluetooth mesh.


Read more



nRF5 SDK for HomeKit

The nRF5 SDK for HomeKit combined with the nRF52 Series wireless SoCs provide developers with a unique solution for HomeKit products that meets all requirements on size, power consumption and performance.


Read more

See less - [ https://www.nordicsemi.com/Software-and-tools/Development-Kits/nRF52-DK ]

Development tools



nRF Connect for Desktop

nRF Connect for Desktop is a cross-platform framework for development applications. It contains applications for testing Bluetooth Low Energy and LTE links, power optimization, programming and more.


Read more

nRF Connect for Mobile

nRF Connect for Mobile is a powerful generic mobile tool that allows you to scan and explore your Bluetooth Low Energy devices and communicate with them. Also supports DFU and Eddystone.


Read more

nRF Connect for Cloud

Cloud-based connect, develop and deployment solution for cellular IoT and Bluetooth Low Energy


Read more



nRF Sniffer for Bluetooth LE

nRF Sniffer for Bluetooth LE is a useful tool for learning about and debugging Bluetooth Low Energy applications.

Allowing you to see what's happening on-air, nRF Sniffer for Bluetooth LE provides a near real-time display of Bluetooth LE packets.

This helps you identify and fix issues quickly during the development phase.
Read more
