[物聯汪汪] 含稅附發票~ 32F072BDISCOVERY STM32F072B-DISCO 帶三軸感測器開發板

商品編號:P0510709672877 原始貨號:P0510709672877

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 500
$ 530
預計出貨天數3
規格
  • 主板
  • 主板+Debug線
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/32f072bdiscovery.html [ https://www.st.com/en/evaluation-tools/32f072bdiscovery.html ]  料號:STM32F072B-DISCO


Description

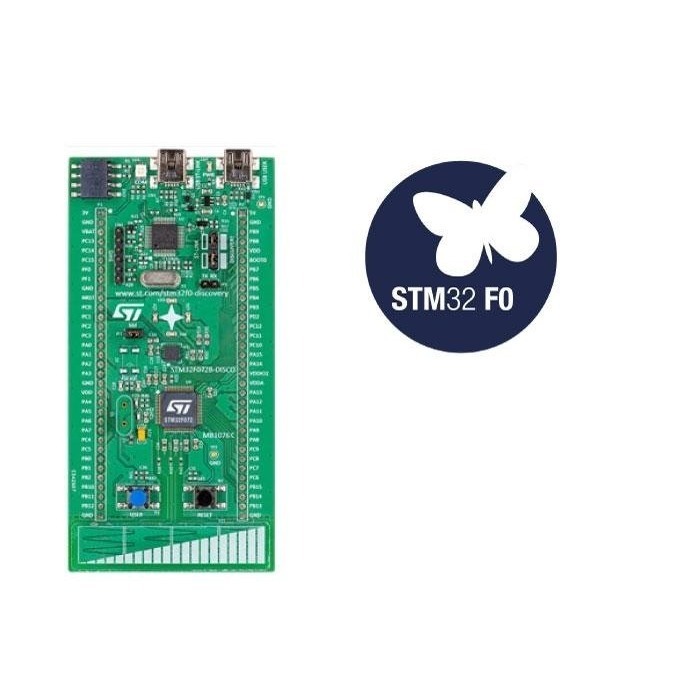

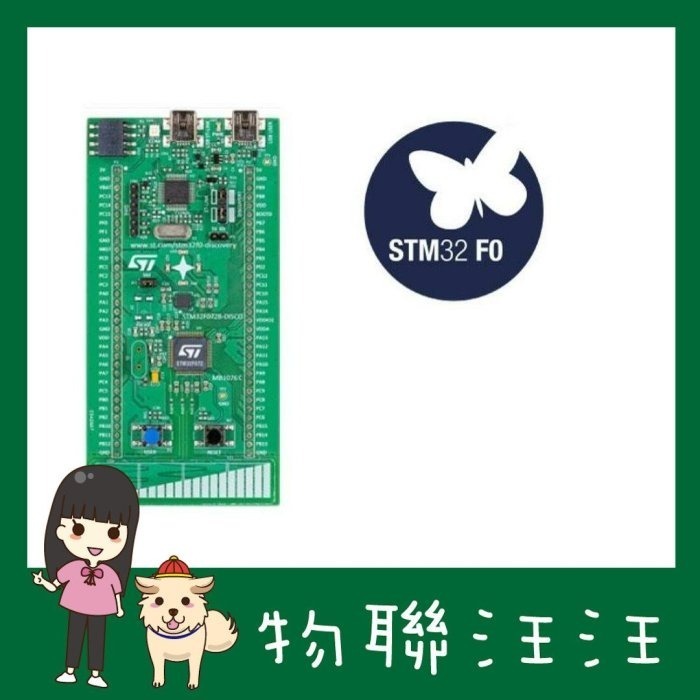

The 32F072BDISCOVERY Discovery kit helps users to discover the STM32F072RB, which has the full set of features available in the STM32F0 Series, and to develop their applications easily. It includes everything required for beginners and experienced users to get started quickly. Based on the STM32F072RBT6 microcontroller, it includes an ST-LINK/V2 embedded debug tool interface, an ST MEMS gyroscope, LEDs, push-buttons, linear touch sensor, touch keys, RF EEPROM connector and a USB Mini-B connector.



All features

  • STM32F072RBT6 microcontroller featuring 128 Kbytes of Flash memory, 16 Kbytes of SRAM in an LQFP64 package
  • USB FS with Mini-B connector
  • I3G4250D ST MEMS motion sensor 3-axis digital output gyroscope
  • One linear touch sensor or four touch keys
  • Six LEDs:
    • LD1 (red/green) for USB communication
    • LD2 (red) for 3.3 V power on
    • Four user LEDs: LD3 (red), LD4 (orange), LD5 (green) and LD6 (blue)
  • Two push-buttons (user and reset)
  • RF EEPROM daughterboard connector
  • Extension header for LQFP64 I/Os for quick connection to a prototyping board and easy probing
  • On-board ST-LINK/V2 with switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
  • Flexible power supply options:
    • USB bus or external 5 V supply voltage
  • Power supply output for external applications: 3 V and 5 V
  • Comprehensive free software including a variety of examples, part of STM32CubeF0 or STM32SnippetsL0 packages or STSW-STM32139 for legacy Standard Libraries usage
