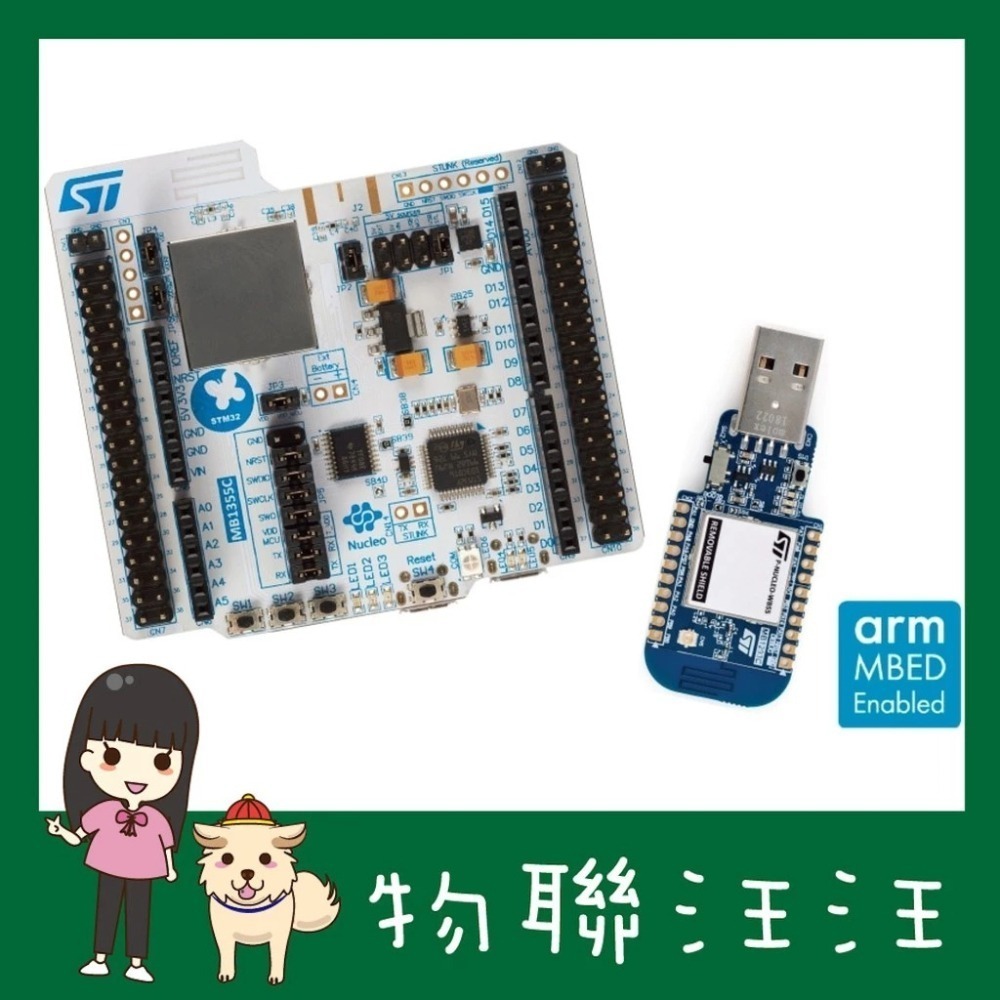

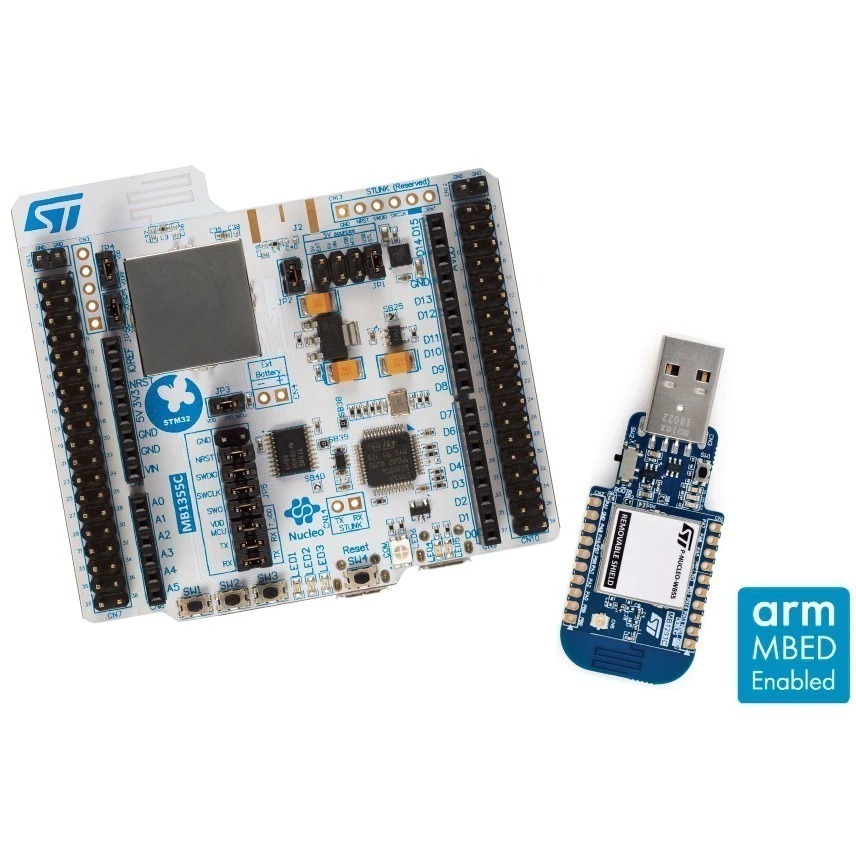

[物聯汪汪] 含稅附發票~ P-NUCLEO-WB55 STM32WB 帶 USB dongle 開發板

商品編號:P0510709575085 原始貨號:P0510709575085

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 3,255
$ 3,450
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/p-nucleo-wb55.html [ https://www.st.com/en/evaluation-tools/p-nucleo-wb55.html ]  料號:P-NUCLEO-WB55


溫馨提示

  • 本商品為專用於雛形研發實驗之非隨插即用的射頻模組,並非通用終端產品。故須經具備相關知識之專業人士(如:工程師、研究師生、或創客)撰寫程式、燒錄、焊接、外接天線等二次加工,或須與主機板連接使用等方式,始具備訊號傳輸功能,非屬電信管制射頻器材。
  • 專業人士在購買前敬請詳閱商品說明與原廠規格書,始可用於您自己的原型設計中自行實驗與實作完整通訊功能。
  • 商品本身初始無任何預設應用或功能,故一般消費者上電後無法直接使用,切勿購買。

Description

The P-NUCLEO-WB55 pack is a multi-protocol wireless and ultra-low-power device embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy (BLE) SIG specification v5.0 and with IEEE 802.15.4-2011.



All features

  • Nucleo68
    • STM32WB microcontroller in a VFQFPN68 package
    • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
    • Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
    • Three user LEDs
    • Three user buttons and one reset button
    • Board connector: USB user with Micro-B
    • Board expansion connectors:
      • Arduino™ Uno V3
      • ST morpho
    • Integrated PCB antenna or footprint for SMA connector
    • Flexible power-supply options: ST-LINK USB VBUS or external sources
    • On-board socket for CR2032 battery
    • On-board ST-LINK/V2-1 debugger/programmer with USB re- enumeration capability: mass storage, virtual COM port and debug port
    • Comprehensive free software libraries and examples available with the STM32Cube Expansion Package
    • Support of a wide choice of Integrated Development Environments (IDEs), including IAR™, Keil®, GCC-based IDEs, Arm® Mbed™
  • USB dongle
    • STM32WB microcontroller in UFQFPN48 package
    • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
    • Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
    • Switch for boot management
    • User push button
    • Three user LEDs
    • Integrated PCB antenna or UFL connector
