詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/stm32u5a9j-dk.html [ https://www.st.com/en/evaluation-tools/stm32u5a9j-dk.html ] 料號：STM32U5A9J-DK

Key Benefits

Support for the NeoChrom GPU

2.5D Accelerator with massive hardware optimizations for rich UIs on STM32, fully integrated in X-CUBE-TOUCHGFX. Learn more [ https://blog.st.com/neochrom-gpu/ ] .

Description

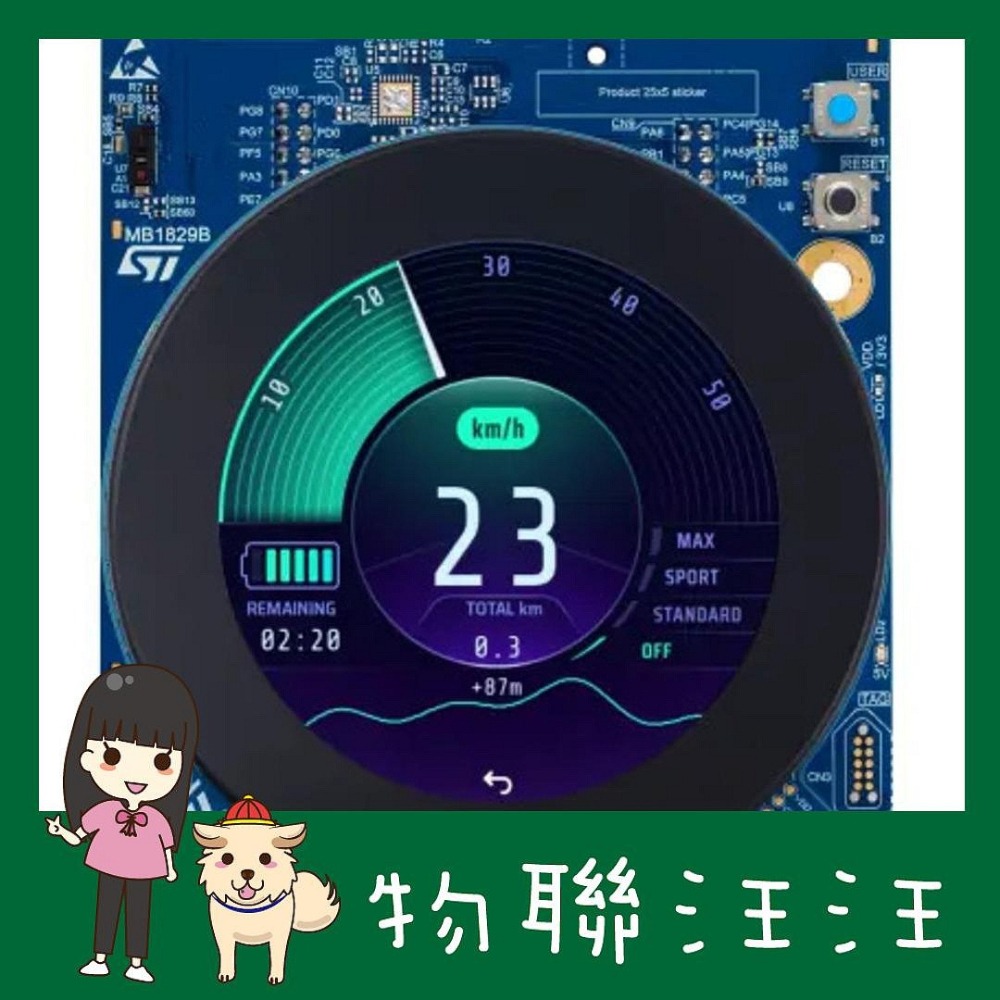

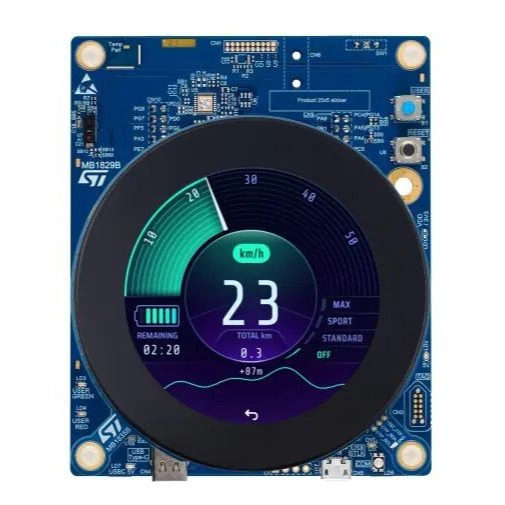

The STM32U5x9J-DKx Discovery kits (order codes STM32U5A9J-DK and STM32U5G9J-DK1) are complete demonstration and development platforms for the STM32U5x9NJH6Q microcontrollers, featuring an Arm^® Cortex^®‑M33 core with Arm^® TrustZone^®.

[ https://www.st.com/en/evaluation-tools/stm32u5a9j-dk.html# ]

Leveraging the innovative ultra-low-power oriented features, 3 Mbytes of embedded SRAM for STM32U5G9NJH6Q or 2.5 Mbytes for STM32U5A9NJH6Q, 4 Mbytes of embedded flash memory, and rich graphics features, the STM32U5x9J-DKx Discovery kits enable users to easily prototype applications with state-of-the-art energy efficiency, as well as provide stunning and optimized graphics rendering with the support of specific graphic features associated with each microcontroller.

The full range of hardware features available on the board helps users to enhance their application development by an evaluation of all the peripherals such as a 2.47‑inch RGB 480 × 480 pixels TFT round LCD module with MIPI DSI^® interface and capacitive touch panel, USB Type-C^® HS, Octo‑SPI flash memory device, Hexadeca‑SPI PSRAM memory device, eMMC flash memory device, Time-of-Flight and gesture detection sensor, temperature sensor, 20‑pin audio MEMS connector (for STM32U5G9J-DK1), and two 2.54 mm pitch double-row flexible expansion connectors for easy prototyping with daughterboards for specific applications (USART, LPUART, two SPIs, SAI, three I2C, SDMMC, ADCs, timers, and GPIOs).

The STM32U5x9J-DKx Discovery kits integrate an STLINK-V3E embedded in-circuit debugger and programmer for the STM32 microcontroller with a USB Virtual COM port bridge and comes with the STM32CubeU5 MCU Package, which provides an STM32 comprehensive software HAL library as well as various software examples.

All features
- Ultra-low-power STM32U5x9NJH6Q microcontroller based on the Arm^® Cortex^®‑M33 core with Arm^® TrustZone^®, featuring 4 Mbytes of flash memory, 3 Mbytes of SRAM for STM32U5G9NJH6Q or 2.5 Mbytes for STM32U5A9NJH6Q, and SMPS in a TFBGA216 package
- 2.47＂ RGB 480 × 480 pixels TFT round LCD module with 16.7M color depth, with MIPI DSI^® 2‑data lane interface and capacitive touch panel
- USB Type-C^® with USB 2.0 HS interface, sink only
- Low‑power system designed for VDD at 1.8 V only
- MEMS sensors from STMicroelectronics
  Time‑of‑Flight and gesture-detection sensor
  Temperature sensor
- 512‑Mbit Octo‑SPI NOR flash memory
- 512‑Mbit Hexadeca‑SPI PSRAM
- 4‑Gbyte eMMC flash memory
- Two user LEDs
- User and reset push-buttons
- Board connectors:
  USB ST-LINK Micro-B
  USB Type-C^®
  Two double-row 2.54 mm pitch expansion connectors for additional peripherals prototyping
  Audio MEMS daughterboard expansion (for STM32U5G9J-DK1)
  MIPI10
  Tag‑Connect™ 10‑pin footprint
- Flexible power-supply options: ST-LINK USB V_BUS, USB connector, or external sources
- On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32CubeU5 MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE
