詳盡技術資料請見原廠或供應商 https://www.ti.com/tool/LP-EM-CC2340R5 [ https://www.ti.com/tool/LP-EM-CC2340R5 ] 料號：LP-EM-CC2340R5

溫馨提示

須搭配 LP-XDS110ET 或 LP-XDS110 連接至開發機台使用。

Description & features

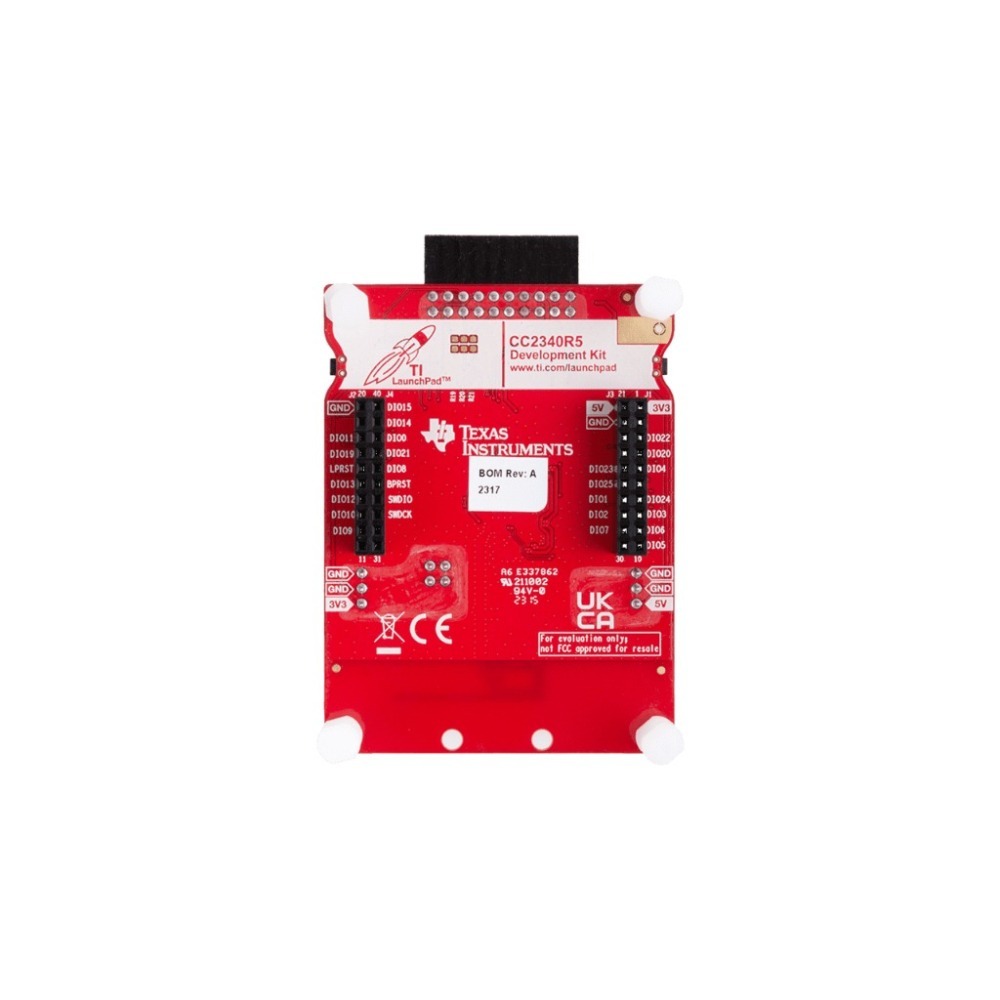

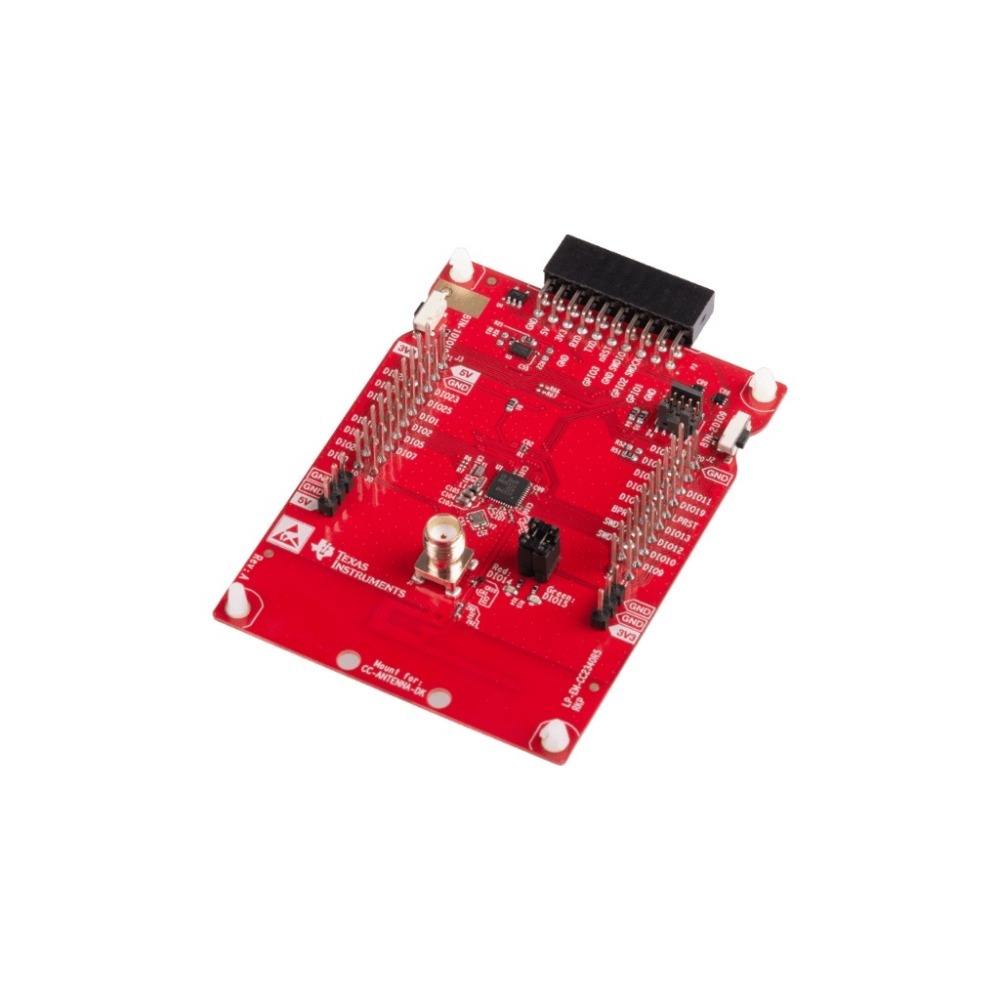

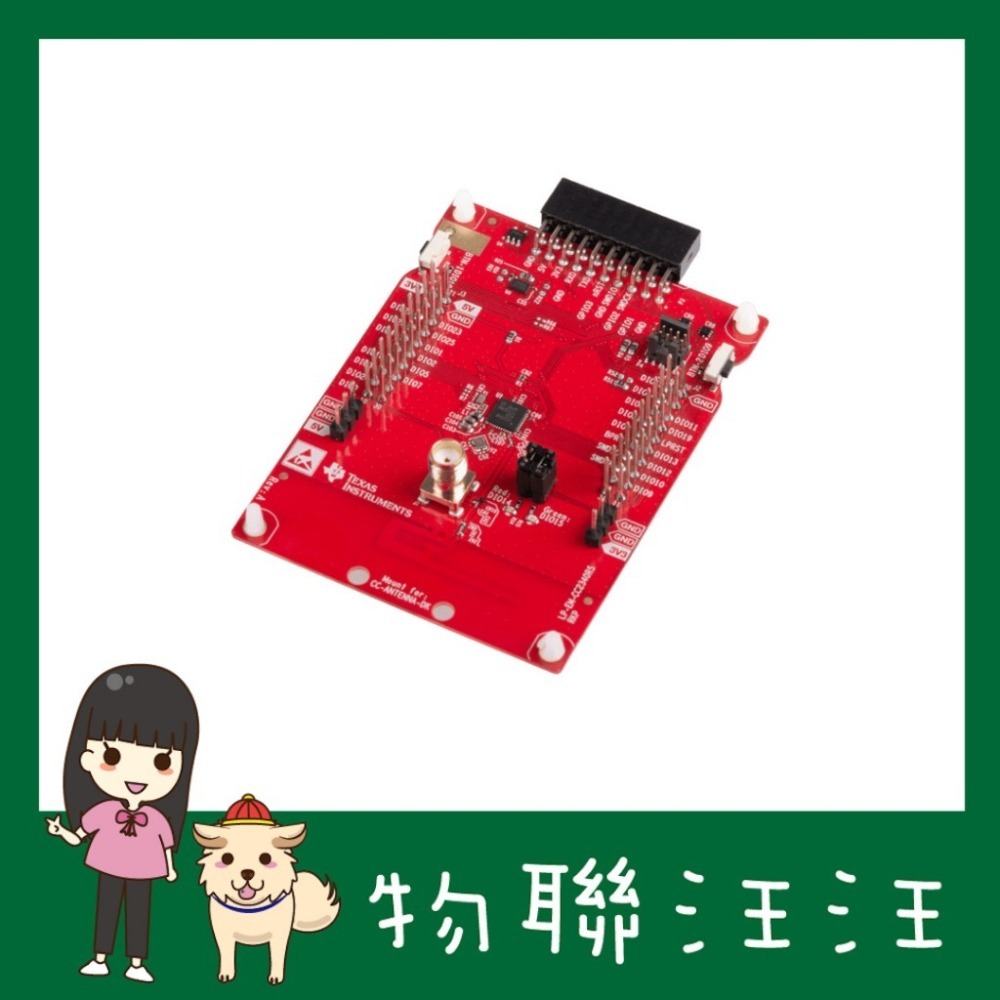

This LaunchPad development kit is used to speed up development with the SimpleLink Bluetooth Low Energy MCU with support for Bluetooth 5 Low Energy (LE), and 2.4-GHz proprietary protocols. Software support is provided by the SimpleLink Low Power F3 software development kit (SDK).

Features

Access all I/O signals with the BoosterPack™ plug-in module connectors
Connect your LaunchPad development kit to your smartphone using TI SimpleLink Connect
LP-XDS110ET or LP-XDS110 debugger (sold separately) required for software development and RF evaluation

What＇s included

10-pin flat ribbon cable for JTAG connection
2-wire socket-to-socket cable
Quick start guide

Supported products

Low-power 2.4-GHz products

CC2340R5 [ https://www.ti.com/product/CC2340R5 ] —SimpleLink™ 32-bit Arm® Cortex®-M0+ Bluetooth® Low Energy wireless MCU with 512-kB flash

詳盡技術資料請見原廠或供應商 https://www.ti.com/tool/LP-XDS110ET [ https://www.ti.com/tool/LP-XDS110ET ] 料號：LP-XDS110ET

Description & features

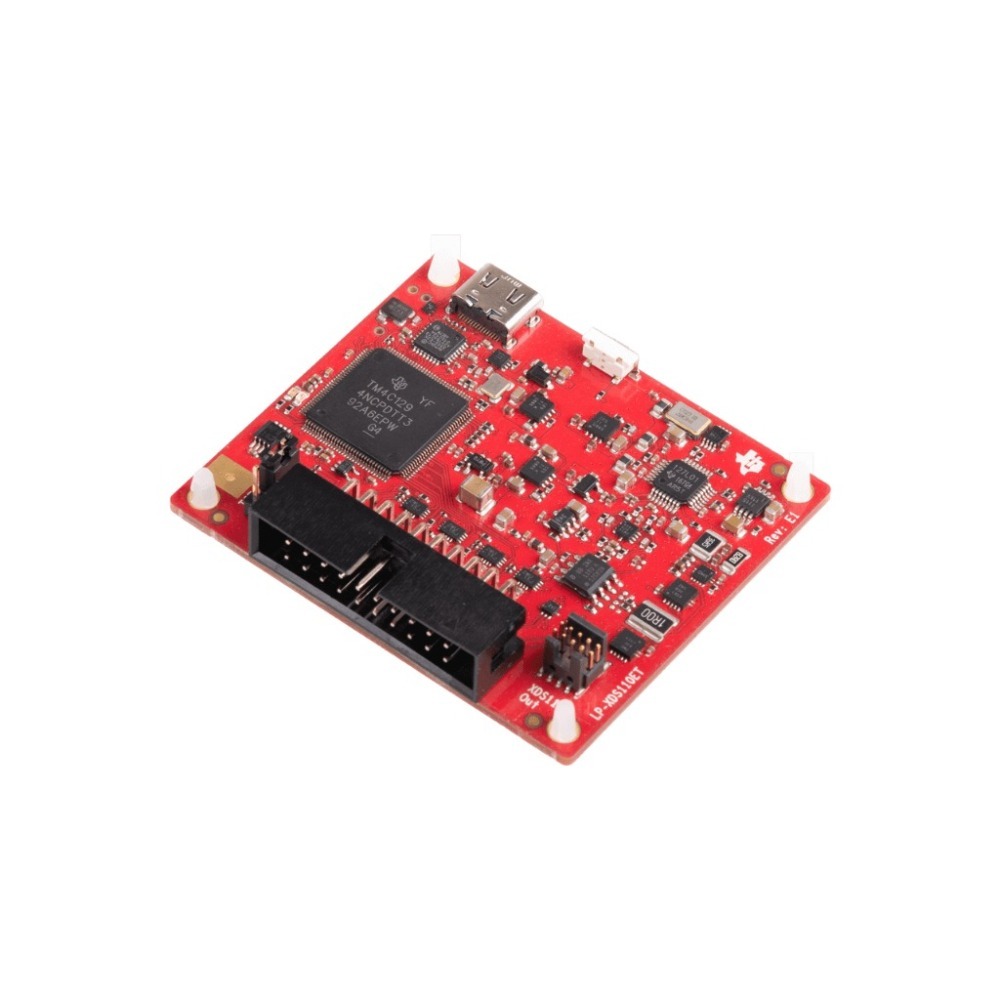

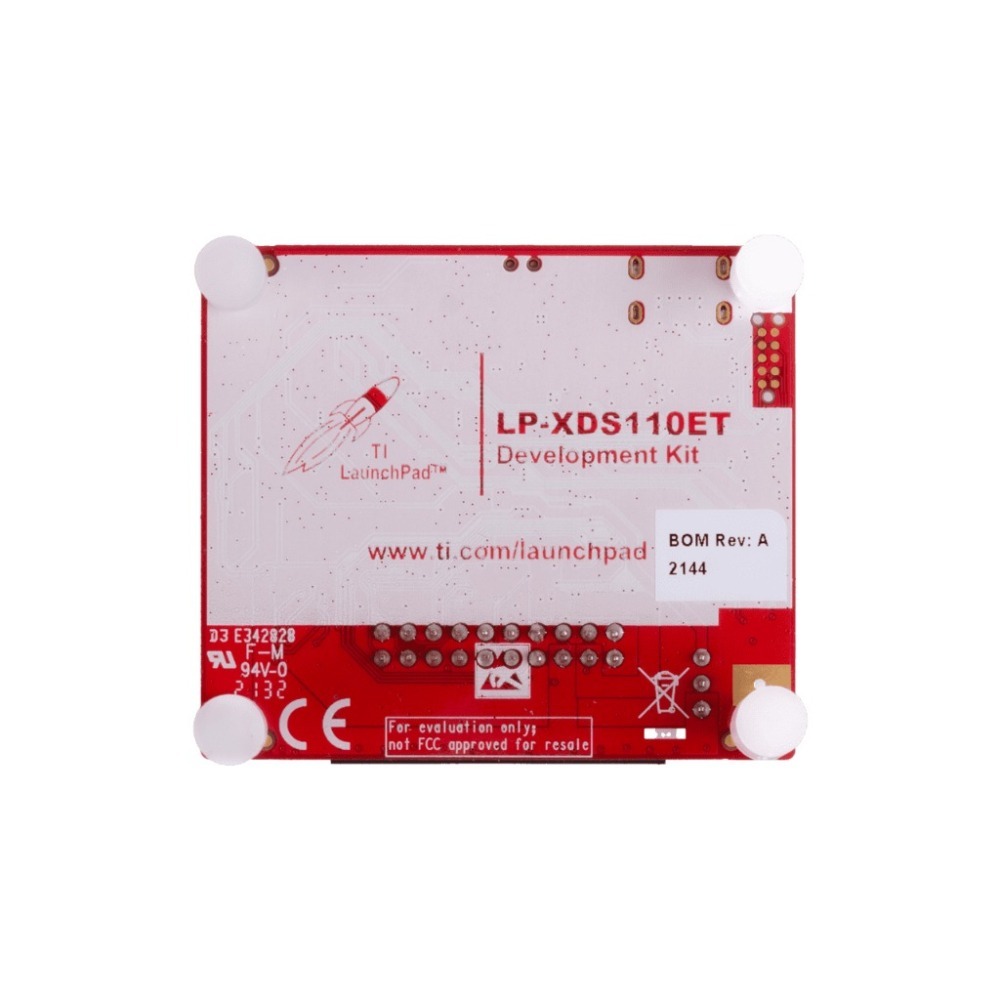

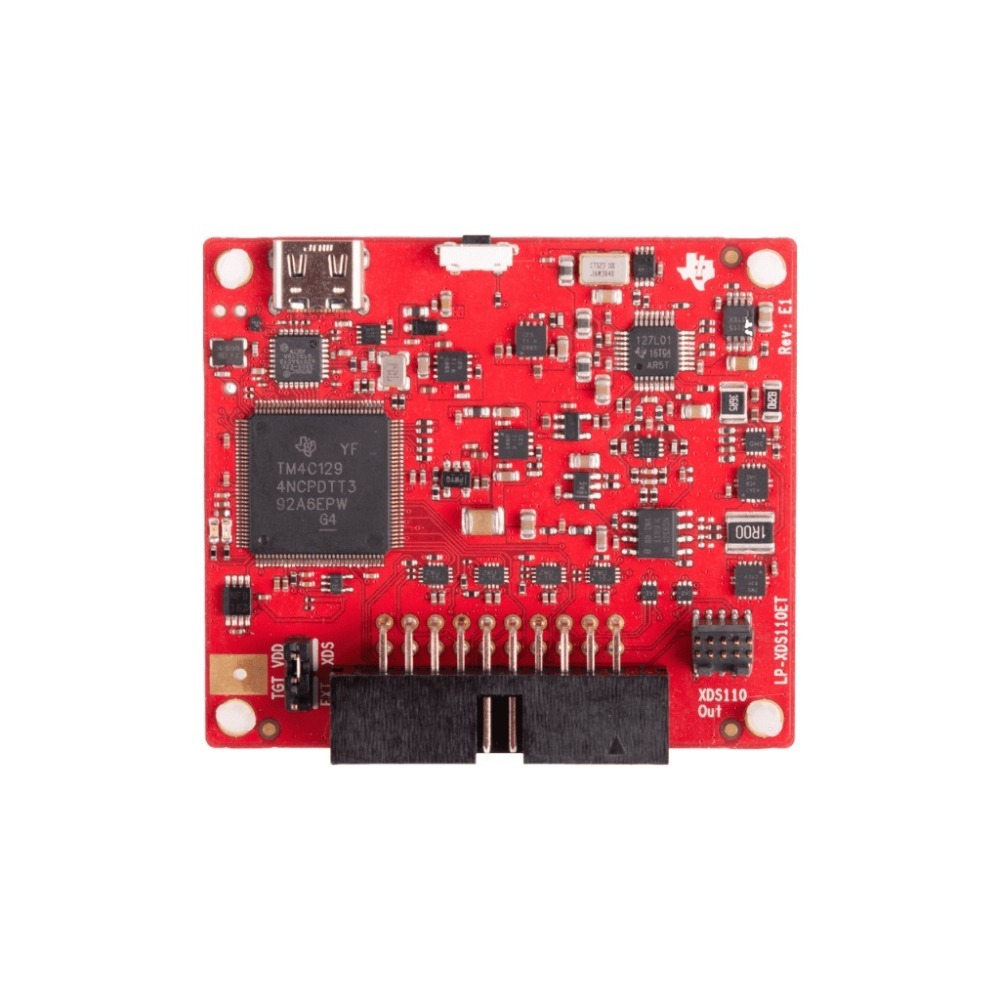

The LP-XDS110ET LaunchPad development kit debugger is a tool to program and debug Texas Instruments (TI) microcontrollers, microprocessors and DSP XDS-compatible devices. The LP-XDS110ET has been designed to connect directly to split Launchpad development kits via the 20-pin edge connector, however they can also be used to debug other LaunchPad development kits and XDS-compatible devices using the XDS110 out connector. The LP-XDS110ET has added circuitry for power measurements to support EnergyTrace™ software.

Features

Plug & play with split LaunchPad development kit designs using 20-pin edge connector
10-pin XDS110 out connector
USB-C to power debugger and communicate with host computer
UART serial port
Power profiling uisng EnergyTrace++

What＇s included

LaunchPad development kit
USB-A to USB-C cable
Quick start guide

Supported products

Arm Cortex-M4 MCUs

MSP432E401Y [ https://www.ti.com/product/MSP432E401Y ] —SimpleLink™ 32-bit Arm Cortex-M4F MCU with ethernet, CAN, 1MB Flash and 256kB RAM

Low-power 2.4-GHz products

CC2340R5 [ https://www.ti.com/product/CC2340R5 ] —SimpleLink™ 32-bit Arm® Cortex®-M0+ Bluetooth® Low Energy wireless MCU with 512-kB flash

Sub-1 GHz wireless MCUs

CC1314R10 [ https://www.ti.com/product/CC1314R10 ] — SimpleLink™ Arm® Cortex®-M33 Sub-1 GHz wireless MCU with 1-MB flash and up to 296 kB of SRAM CC1354P10 [ https://www.ti.com/product/CC1354P10 ] — SimpleLink™ Arm® Cortex®-M33 multiband wireless MCU with 1-MB flash, 296-KB SRAM & integrated PA CC1354R10 [ https://www.ti.com/product/CC1354R10 ] —SimpleLink™ Arm® Cortex®-M33 multiband wireless MCU with 1-MB flash and up to 296-KB SRAM
