[物聯汪汪] 含稅附發票~ ST25DV04K X-NUCLEO-NFC04A1 擴充板具 Arduino UNO插座

商品編號:P0510708113503 原始貨號:P0510708113503

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 500
$ 530
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/ecosystems/x-nucleo-nfc04a1.html [ https://www.st.com/en/ecosystems/x-nucleo-nfc04a1.html ]  料號:X-NUCLEO-NFC04A1


溫馨提示

商品為藍色擴充板,不含底部 Nucleo 開發板。



Description

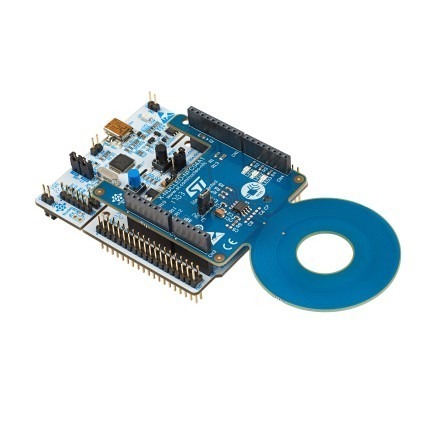

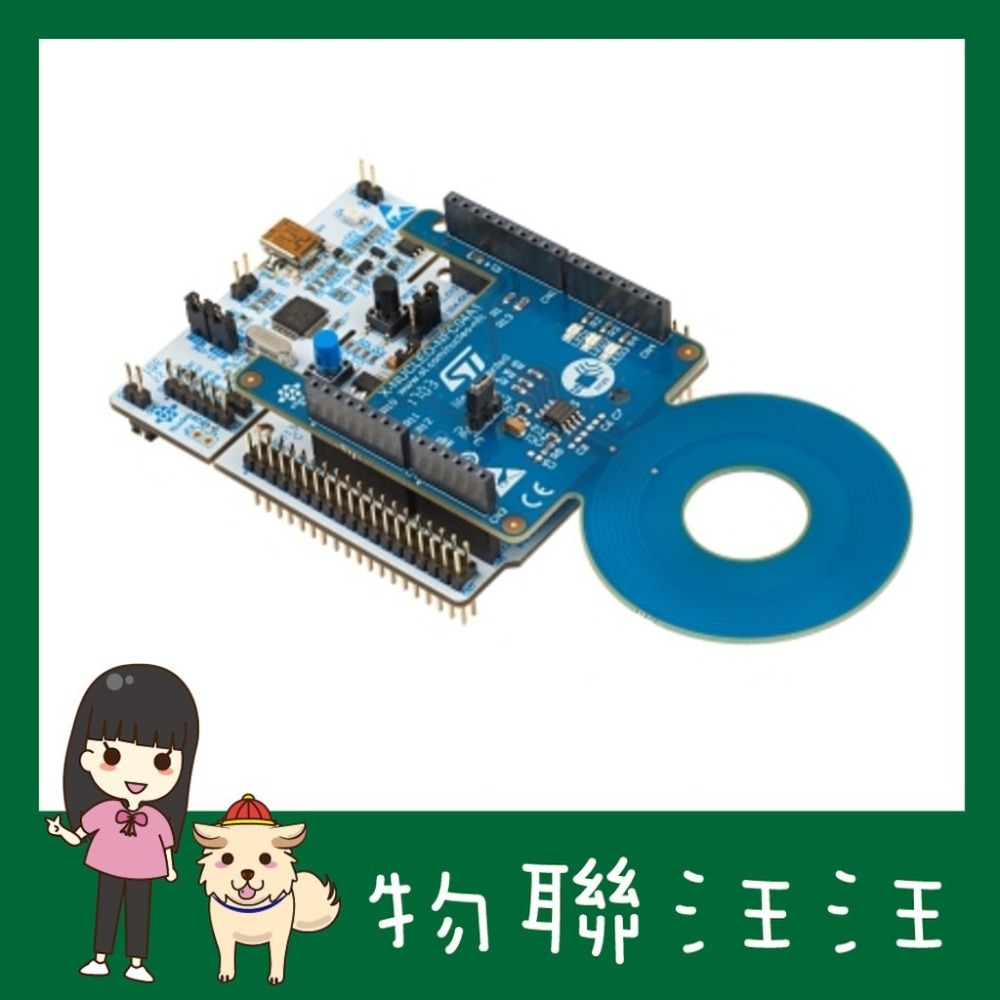

The X-NUCLEO-NFC04A1 dynamic NFC/RFID tag IC expansion board is based on the ST25DV04K NFC Type V/RFID tag IC with a dual interface 4 Kbits EEPROM that also features an I²C interface. It can be powered by the pin of Arduino connector or directly by the received carrier electromagnetic field. The X-NUCLEO-NFC04A1 expansion board is compatible with the Arduino™ UNO R3 connector pin assignment and can easily be plugged onto any STM32 Nucleo board. Various expansion boards can also be stacked to evaluate different devices operating together with the dynamic NFC tag. The board also features an antenna with a 54 mm ISO 24.2 diameter, single layer, copper etched on PCB.



All features

  • Expansion board based on the ST25DV04K dynamic NFC/RFID tag for STM32 Nucleo
  • Up to 4-Kbit memory with NDEF support
  • 54 mm diameter, single layer circular antenna
  • Compatible with STM32 Nucleo boards
  • Equipped with Arduino™ UNO R3 connector
  • Self-powered or powered through the Arduino™ UNO R3 connectors
  • Three general purpose LEDs
  • Scalable solution, capable of cascading multiple boards for larger systems
  • Free comprehensive development firmware library and example for ST25DV04K, compatible with STM32Cube firmware
  • FCC and IC verified
  • RoHS compliant
