詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/RF-Explorer-ISM-Combo-PLUS-Slim-p-4162.html [ https://www.seeedstudio.com/RF-Explorer-ISM-Combo-PLUS-Slim-p-4162.html ] 料號：114991829

溫馨提示

RF-Explorer 原廠資料及下載區位於 https://j3.rf-explorer.com/downloads [ https://j3.rf-explorer.com/downloads ] ，現在已經有簡體中文使用手冊及豐富的說明文件，韌體終身可以更新修正 bugs。Windows / Mac / Linux / Raspberry Pi 等各種平台都有應用軟體支援，並且還有觸控版本！您還可以自行撰寫序列埠程式與主機溝通以便進行自動化控制，無線電波測量儀器普遍價格居高不下，RF-Explorer 系列絕對是您最好的投資！

這系列機種使用簡易、機體強固，請留意下列幾點，可以確保不受電磁波影響導致損害：

安裝天線後勿在高電磁場區域內使用，也不要近距離靠近手機（半公尺到一公尺內）。
單頻段機種防護耐受力較差，可以考慮加購 Poewr Limiter 以便防護強烈電磁突波。
不使用時請將天線卸除。

我司備有替換電池，如果有需要的客戶可以洽詢。

PRODUCT DETAILS

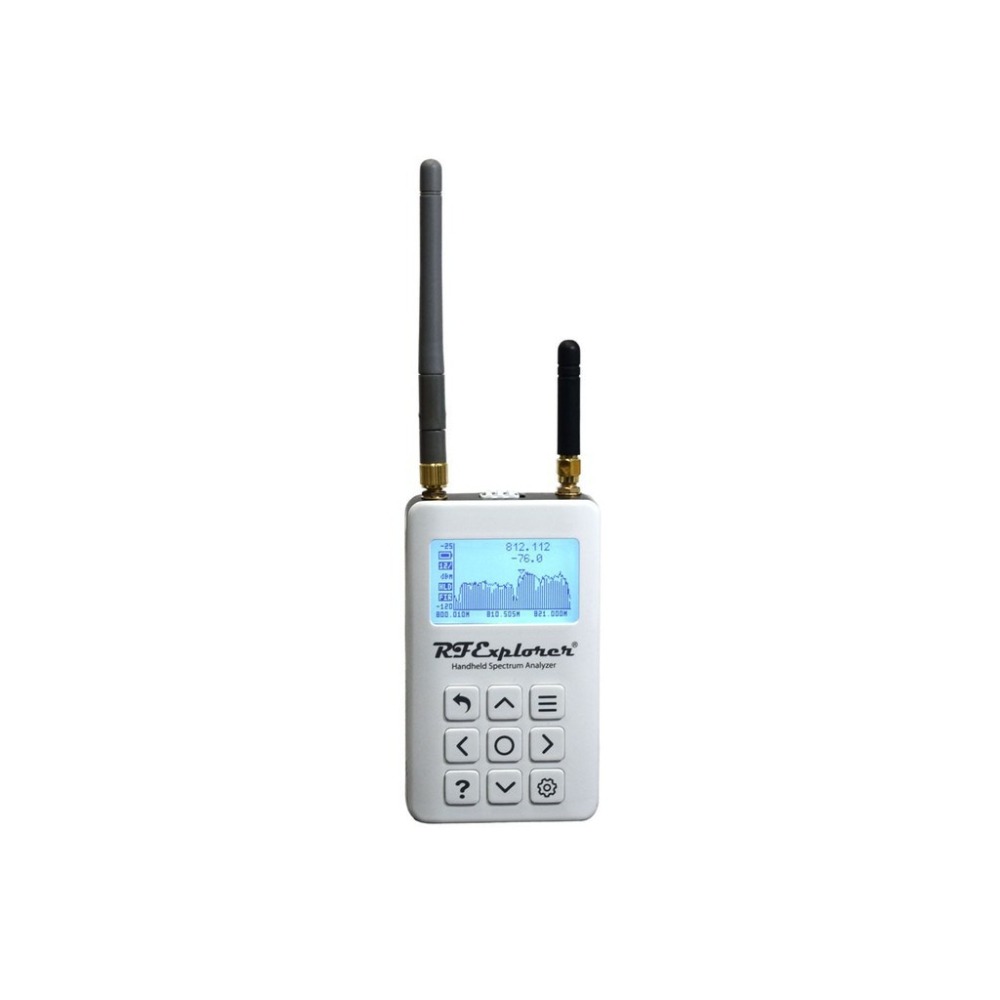

RF Explorer ISM COMBO+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz, and 2.35GHZ to 2.55GHz for scanning the popular 2.4GHz band.

The new SLIM design offers an outstanding robust enclosure, a more convenient USB connector on the side and larger internal battery capacity.

Compared to the baseline ISM COMBO model, the new PLUS includes a higher frequency range in the sub-1GHz band, more sensitivity and higher RF Generator power output in the 2.4GHz band.

Features

Internal LNA amplifier and selectable attenuator in the sub-1GHz band.
Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
High frequency support for 2.4GHz band starting at 2.35GHz and covering up to 2.55GHz.
New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
Excellent performance to diagnose and generate signals in the 2.4GHz ISM band.
Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
Ideal choice for HAM bands from 160meters to 33cm.

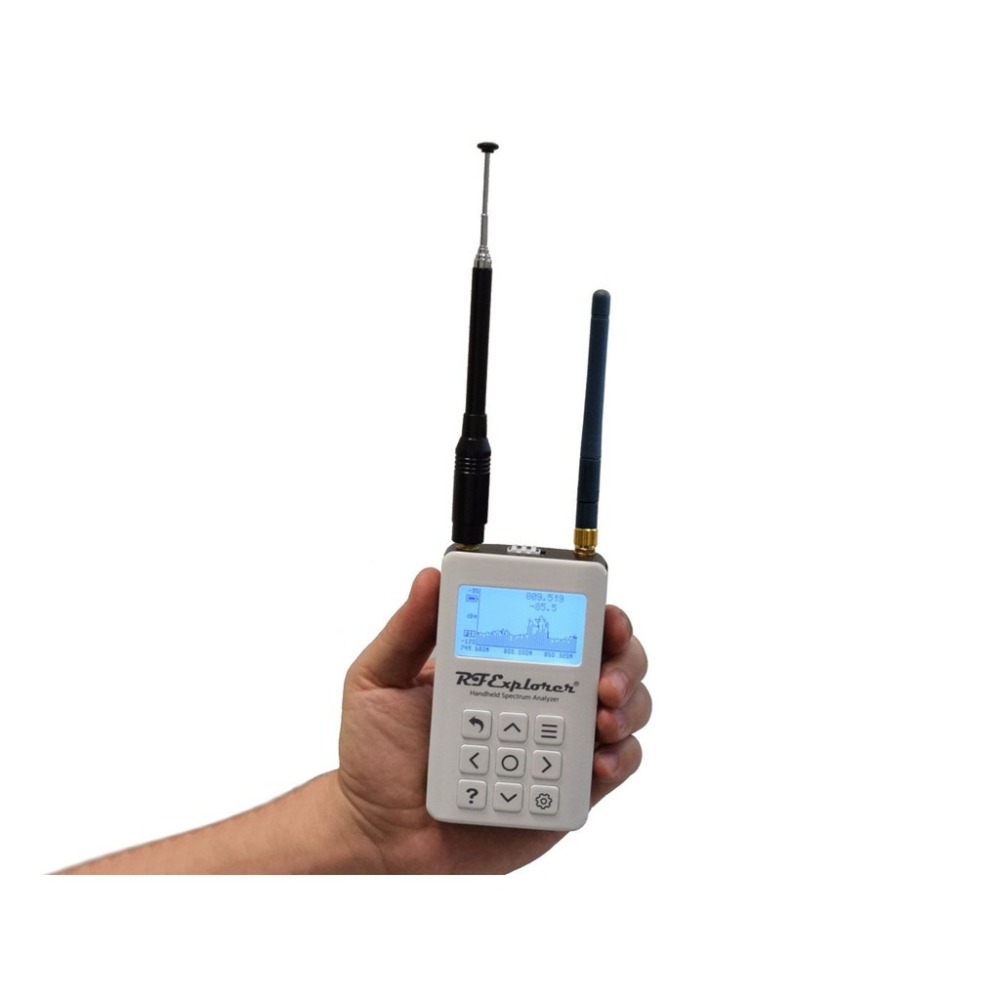

Pocket size and light weight
Solid metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Specification

Frequency band:
- Left connector: 0.05 – 960MHz
- Right connector: 2350 – 2550MHz
Frequency span:
- Left connector: 0.1 – 960MHz
- Right connector: 2 – 85MHz
Internal selectable LNA 25dB gain with the left connector
Internal selectable Attenuator 30dB with the left connector
Signal generator covering up to +11dBm output power with the right connector.
Wifi Analyzer for the 2.4GHz band
Graphics LCD 128x64 pixels, great visibility outdoors
Support included for Windows, Linux and MacOS X
Backlight for great visibility indoor
Internal Lithium Ion 1800mA/h rechargeable battery
Standard SMA 50 ohms connector
Wideband 144/433MHz dual band telescopic antenna included
UHF 400-900MHz rubber duck articulated antenna included
2.4GHz whip antenna included
Amplitude resolution: 0.5dBm
Dynamic range: -125dBm to 10dBm
Absolute Max input power: +30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-2dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz

Note

RF Explorer is a very sensitive spectrum analyzer, specially designed to detect signals with aerial antenna. For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggest

using a RF Explorer Power Limiter. More details at

www.rf-explorer.com/PLIMITER [ https://www.rf-explorer.com/PLIMITER ]

Part List

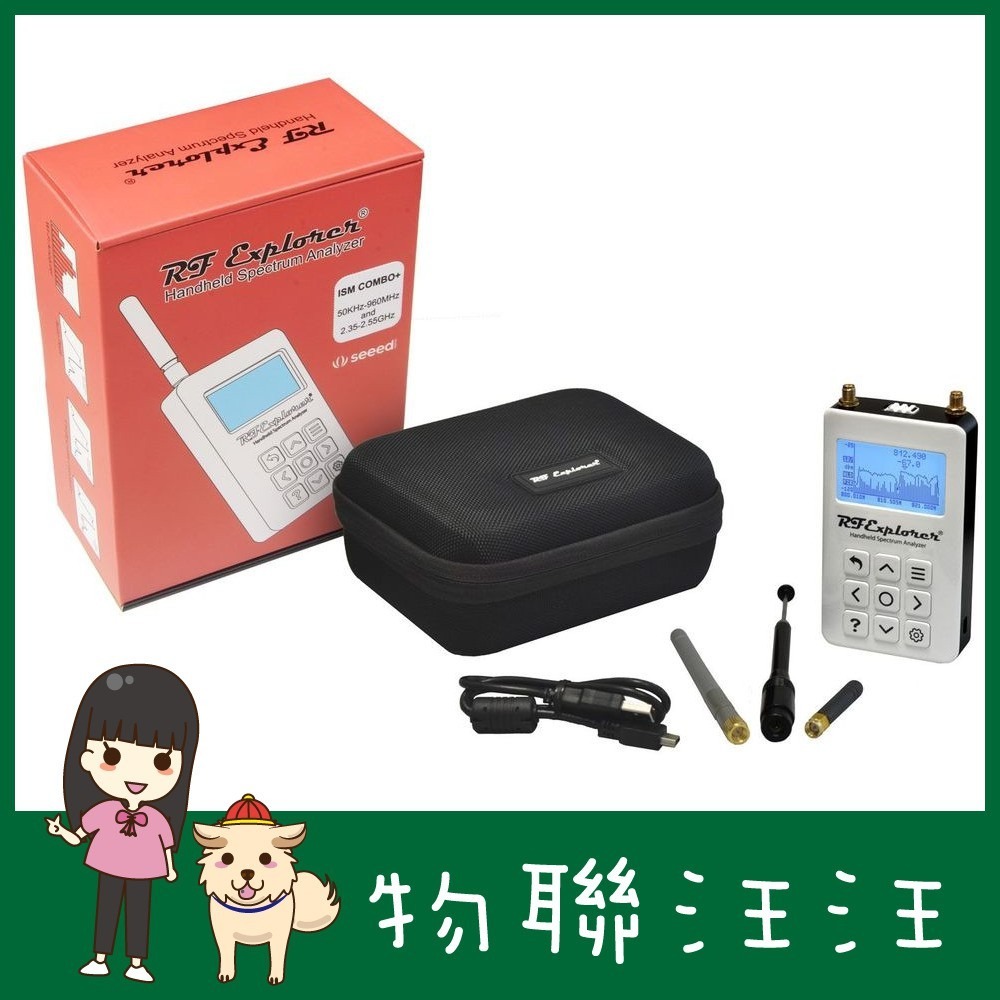

1 x Spectrum Analyzer
1 x Mini USB cable
1 x Dual band 144/430MHz Telescopic antenna
1 x UHF 400-900Mhz antenna
1 x 2.4GHz whip antenna
1 x EVA case

ECCN/HTS

HSCODE	9030401000
USHSCODE	9030400000
UPC

LEARN AND DOCUMENTS

Documentations

Datasheet: https://www.rf-explorer.com/ISMCOMBOP [ https://www.rf-explorer.com/ISMCOMBOP ]

User manual: www.rf-explorer.com/manual [ https://www.rf-explorer.com/manual ]

Getting started: www.rf-explorer.com/start [ https://www.rf-explorer.com/start ]

Software: www.rf-explorer.com/download [ https://www.rf-explorer.com/download ]

Support: support.rf-explorer.com [ https://support.rf-explorer.com/ ]

Learn

[Others] RF Explorer Youtube Channel [ https://www.youtube.com/rfexplorer ]

You can find helpful videos on this youtube channel to get started with your RF Explorer!

[Others] RF Explorer Facebook Page [ https://www.facebook.com/rfexplorer ]

The official Facebook Page of RF Explorer. You can stay up to date with the guides posting on the RF Explorer Facebook page.

[Blog] Introducing RF Explorer Spectrum Analyzer Product Family [ https://www.seeedstudio.com/blog/2019/08/01/introducing-rf-explorer-spectrum-analyzer-product-family/ ]

This blog talks about what is an RF Explorer Spectrum Analyzer, the RF Explorer Spectrum Analyzer Product Family, and a comparison of different models.

[Documentation] Full comparison of RF Explorer: Find the Right RF Explorer for Your Wireless Project [ https://j3.rf-explorer.com/menu-models ]

The official introduction of all RF Explorer models. A Comparison chart is also included.

[Documentation] RF Explorer Articles and FAQ [ https://j3.rf-explorer.com/articles-faq ]

Official articles and FAQ collection. Our RF specialist have prepared the answer for all questions you might have!

[Project] RF Explorer 6G widespan 600MHz demo [ https://www.youtube.com/watch?v=gehvbkSBKjQ#action=share ]

This is a brief demo, simple display of RF Explorer for Windows tool working at 6GHz with a variable span up to 600MHz

[Documentation] Getting Started with RF Explorer Spectrum Analyzer [ https://www.rf-explorer.com/start ]

On this starting page, you can get everything you need to get your Spectrum Analyzer up and running. All documents, software downloads, and firmware upgrade details are available.
