PRODUCT DETAILS
Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name ＂XIAO＂ here represents its half feature ＂Tiny＂, and the other half will be ＂Puissant＂.

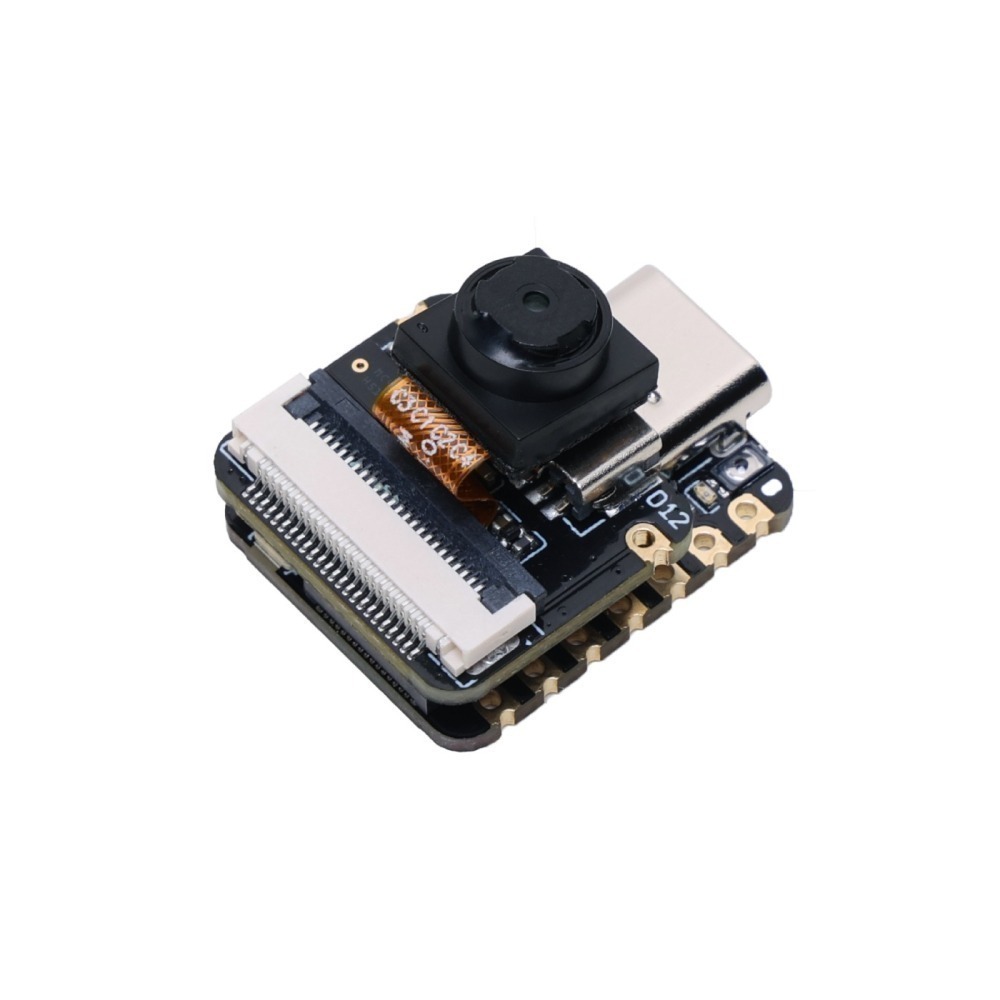

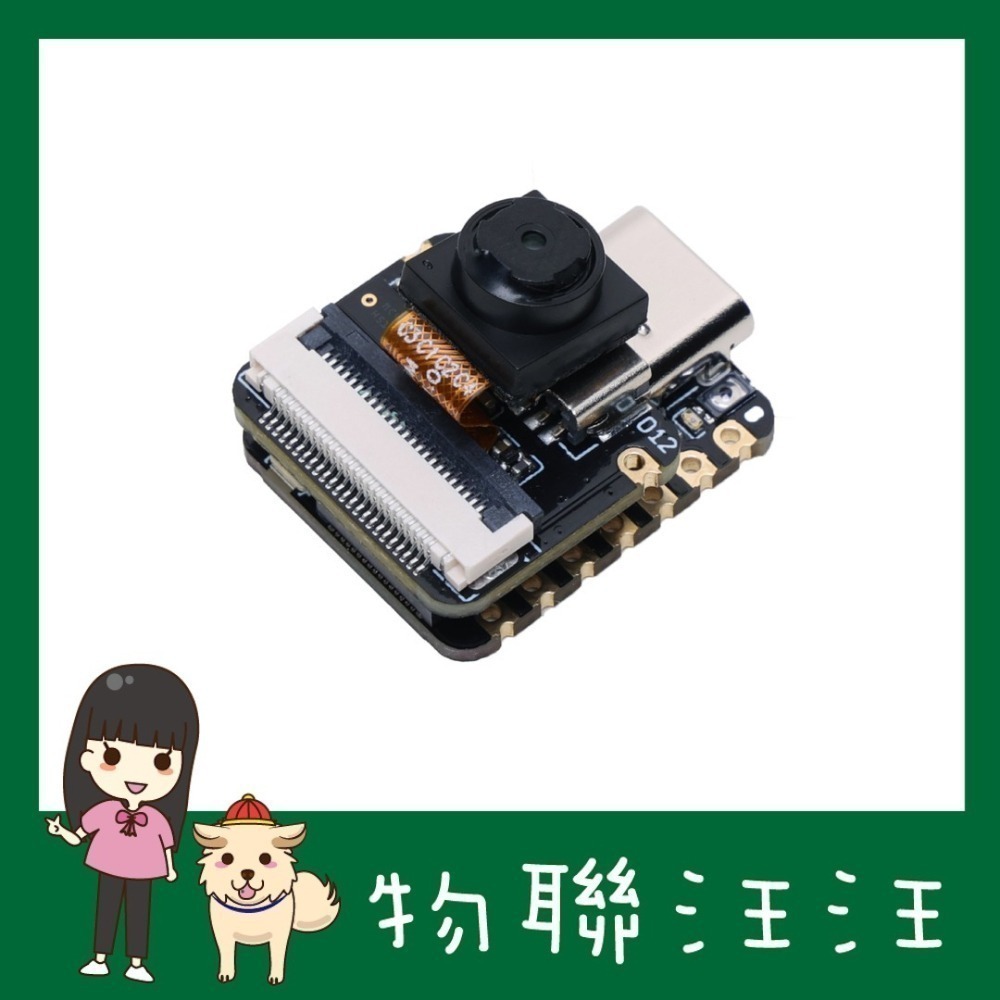

Seeed Studio XIAO ESP32S3 Sense integrates a camera sensor, digital microphone, and SD card support. Combining embedded ML computing power and photography capability, this development board can be your great tool to get started with intelligent voice and vision AI.
Feature
- Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported
- Advanced Functionality: Detachable OV2640 camera sensor for 1600*1200 resolution, compatible with OV5640 camera sensor, integrating additional digital microphone [ https://files.seeedstudio.com/wiki/XIAO-BLE/mic-MSM261D3526H1CPM-ENG.pdf ]
- Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory
- Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna
- Thumb-sized Compact Design: 21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices
Description
Seeed Studio XIAO ESP32S3 Sense is built around a highly-integrated, Xtensa processor ESP32-S3R8 SoC, which supports 2.4GHz WiFi and low-power Bluetooth® BLE 5.0 dual-mode for multiple wireless applications. It has lithium battery charge management capability.
As the advanced version of Seeed Studio XIAO ESP32S3, this board comes with a plug-in OV2640 camera sensor for displaying full 1600*1200 resolution. The base of it is even compatible with OV5640 for supporting up to 2592*1944 resolution. The digital microphone is also carried with the board for voice sensing and audio recognition.
With powerful SoC and built-in sensors, this development board has 8MB PSRAM and 8MB FLASH on the chip, an additional SD card slot for supporting up to 32GB FAT memory. These allow the board for more programming space and bring even more possibilities into embedded ML scenarios.
Being a number to the Seeed Studio XIAO family, the board deservedly maintains the classic thumb-sized form-factor design and elegant productization of single-sided components mounting.
Please be noted that the pins are not included in this product. If you require the pins, please visit the following page [ https://www.seeedstudio.com/XIAO-Series-7-Pin-Male-Header-5-pcs-p-5460.html ] to make a purchase.
Starter Kit with free Course for all Electronics Neophytes and Enthusiasts
Seeed Studio has provided the Grove Starter Kit along with free and detailed courses for you quickly get started with microcontrollers and electronics, regarding all the Seeed Studio XIAO boards, promising you a great learning experience.
Not only programming but also electronics knowledge is not required, you will be taken step by step, from understanding the basic concepts to exercising the simple projects individually, finally being able to build complex, interesting, wearable projects on your own, owing a practical electronic product prototype from the course.
You can have access to the Seeed Studio Grove ecosystem by connecting it to the compatible Seeed Studio XIAO expansion board. We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Get started and explore the infinite possibilities of the Seeed Studio XIAO series!
Application
- Image processing
- Speech Recognition
- Video Monitoring
- Wearable devices
- Smart Homes
- Health monitoring
- Education
- Low-Power(LP) networking
- Rapid prototyping
Specification
Item | Seeed Studio XIAO ESP32S3 [ https://www.seeedstudio.com/XIAO-ESP32S3-p-5627.html?queryID=f3869eee35014b262c24788ff7836196&objectID=5627&indexName=bazaar_retailer_products ] | Seeed Studio XIAO ESP32S3 Sense [ https://www.seeedstudio.com/XIAO-ESP32S3-Sense-p-5639.html?queryID=be6f53c7ae317f6cbbc28f0668fb03df&objectID=5639&indexName=bazaar_retailer_products ] |
Processor | ESP32-S3R8 Xtensa LX7 dual-core,32-bit processor that operates at up to 240 MHZ | |
Wireless | Complete 2.4GHz Wi-Fi subsystem BLE: Bluetooth 5.0, Bluetooth mesh | |
Built-in Sensors | / | oV2640 camera sensor for 1600*1200 Digital Microphone |
Memory | On-chip 8M PSRAM & 8MB Flash | On-chip 8M PSRAM & 8MB Flash |
lnterface | 1x UART,1x IIC,1x llS,1x SPl,11xGPIOs (PWM)，9x ADC,1x User LED,1x Charge LED 1x Reset button,1x Boot button | 1x UART,1x lIC,1x lIS,1x SPI,11x GPIOs (PWM),9xADC，1x User LED, 1x Charge LED,1x B2B Connector(with 2 additional GPIOs) 1x Reset button, 1x Boot button |
Dimensions | 21 x 17.5mm | 21 x 17.5 x 15mm (with expansion board) |
Power
| Input voltage (Type-C): 5V lnput voltage (BAT): 4.2V | |
Circuit operating Voltage (ready to operate): - Type-C:5V@19mA - BAT: 3.8V@22mA | Circuit operating Voltage (ready to operate): -Type-C: 5V@38.3mA - BAT: 3.8V@43.2mA (with expansion board) | |
/ | Webcam Web application: - Type-C: - - Photo moment: 5V/341mA - - Photo moment: 3.8V/304mA | |
/ | Microphone recording & SD card writing:- Type-C: - - Peak power consumption: 5V/89.6mA - Battery: - - Peak power consumption: 3.8V/108mA | |
Charging battery current：100mA | Charging battery current：100mA | |
Low Power Consumption Model (Supply Power: 3.8V) | Modem-sleep Model:~ 25mA Light-sleep Model: ~ 2 mA Deep Sleep Model:~14 μA | Modem-sleep Model: ~44mA Light-sleep Model: ~5mA Deep Sleep Model: ~3mA |
Wi-Fi Enabled Power Consumption | Active Model: ~ 100 mA | Active Model: ~ 110 mA (with expansion board) |
BLE Enabled Power Consumption | Active Model: ~85 mA | Active Model: ~ 102 mA (with expansion board) |
Working Temperature | -40°C ~65°C | |
Note
There are two additional GPIO on the plug-in camera sensor board linking to the microphone. If you want to apply these two external IO, the microphone should not be used at the same time.
Hardware Overview
Pinout
Part List

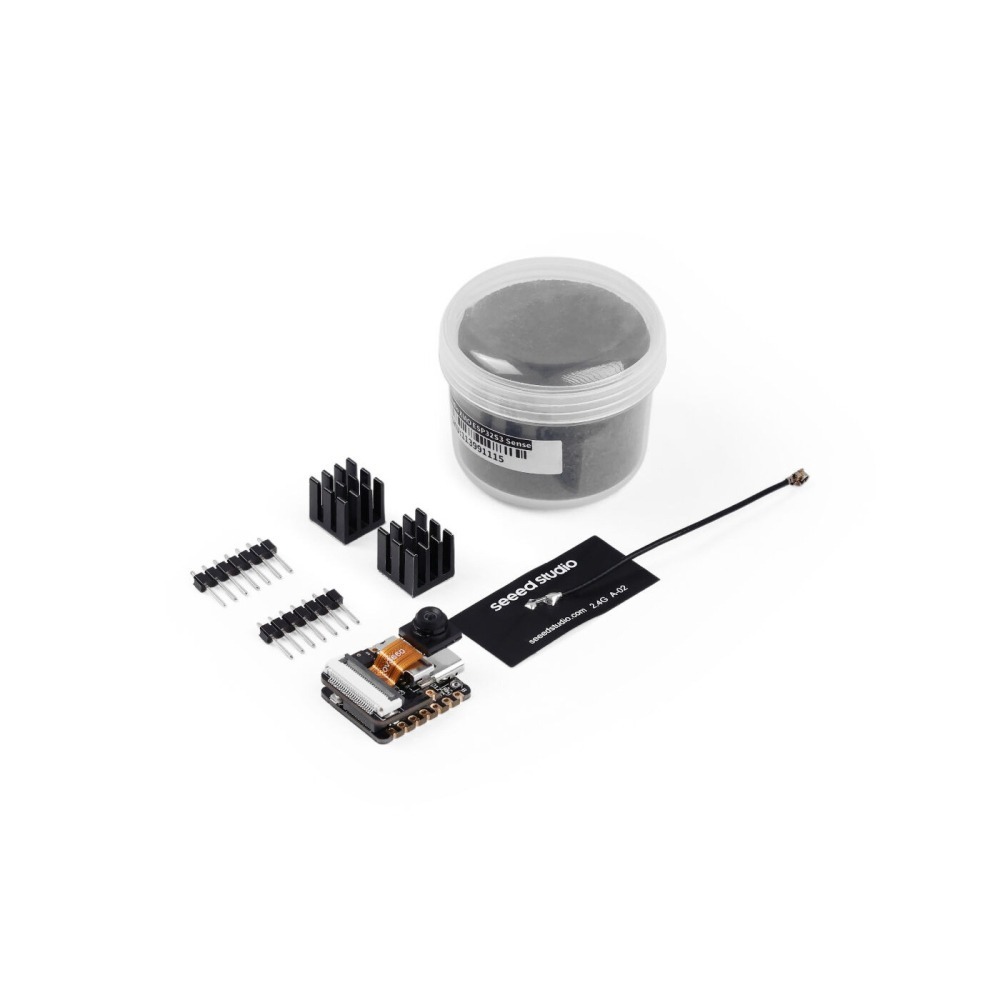

XIAO ESP32S3 | x1 |

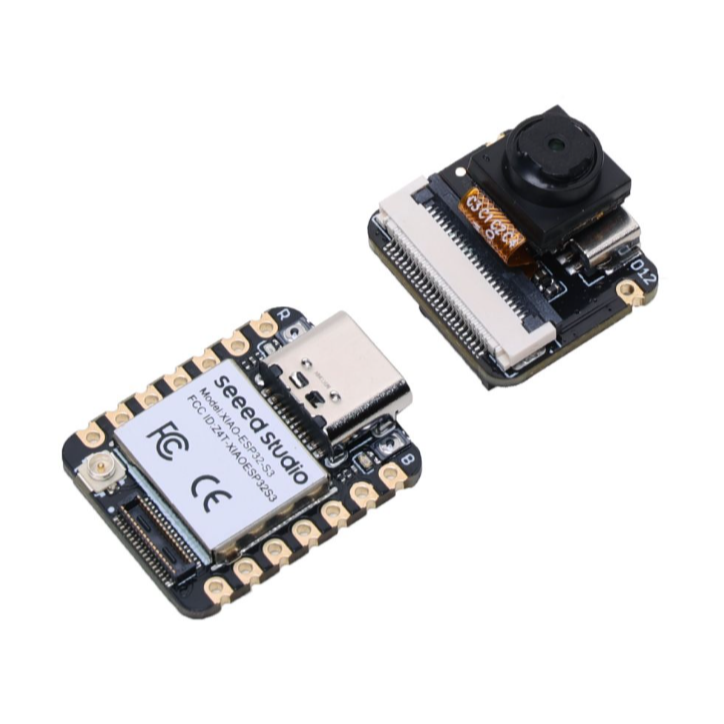

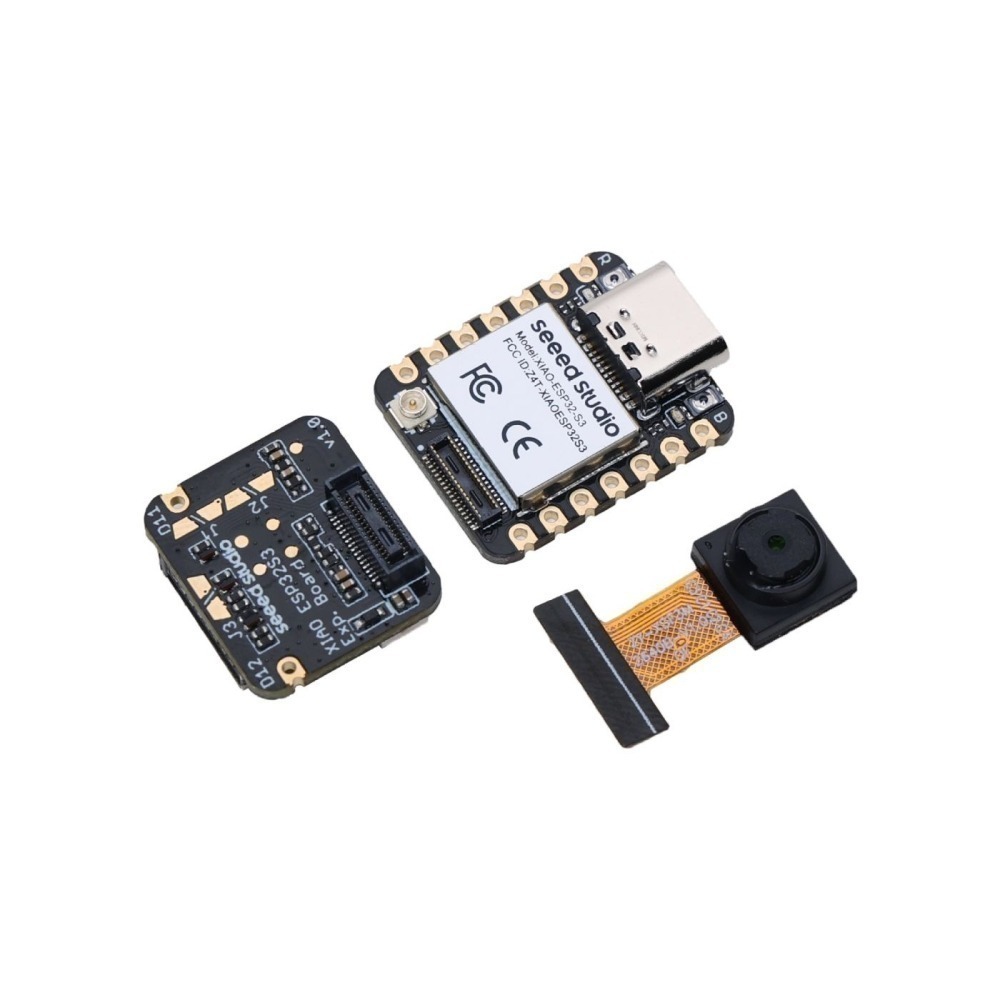

Plug-in camera sensor board | x1 |

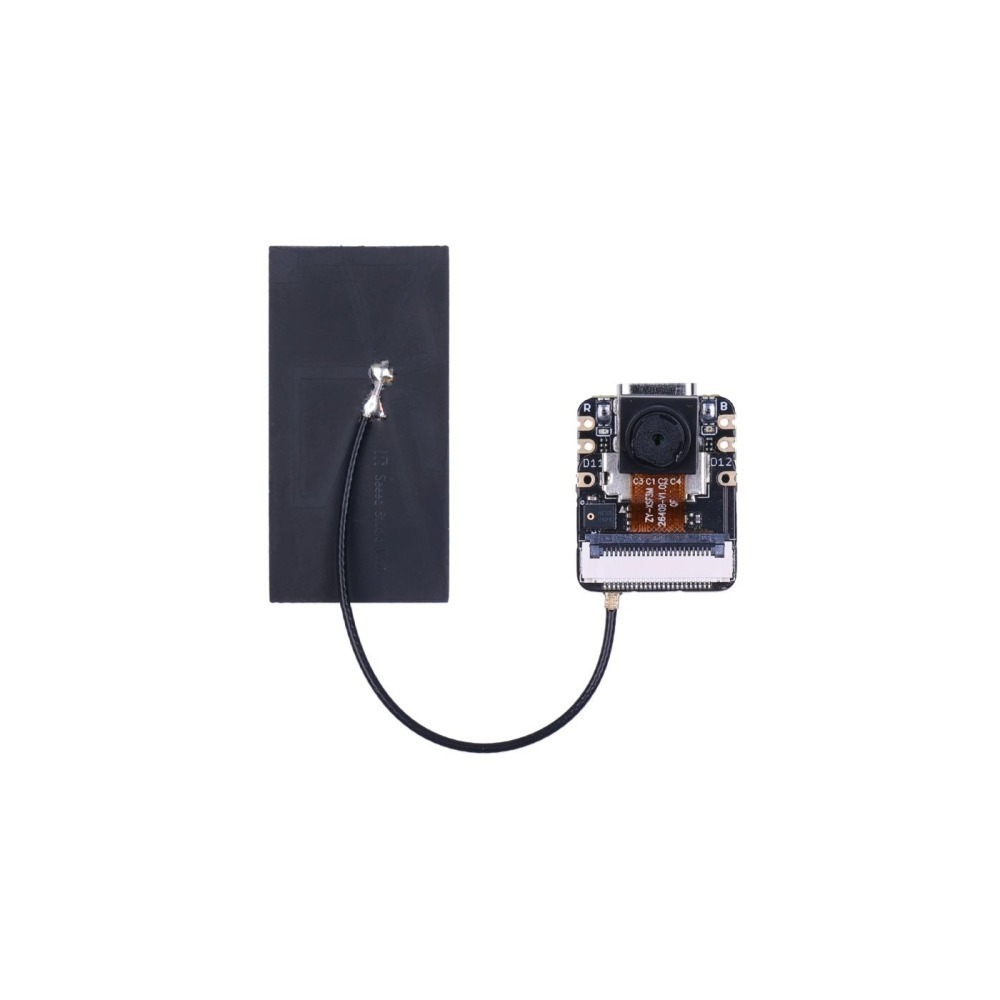

Antenna | x1 |
