[物聯汪汪] 含稅附發票~ 樹莓派 Raspberry Pi Pico CAN 擴充套件板(透過 UART)長距離通訊

商品編號:P0510705946318 原始貨號:P0510705946318

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 650
$ 690
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.waveshare.net/shop/Pico-CAN-A.htm [ https://www.waveshare.net/shop/Pico-CAN-A.htm ]  料號:WS-20240




Pico CAN 擴充套件板

可使 Pico 獲得可靠的長距離通訊



產品特性

  • 板載 Raspberry Pi Pico 介面,適用於 Raspberry Pi Pico 系列主機板
  • 採用 E810-TTL-CAN01 模組,使用 UART 即可完成 CAN 的通訊
  • 支援透明轉換、透明帶標識轉換和協議模式轉換三種轉換方式
  • 提供完善的配套資料手冊 (Raspberry Pi Pico C/C++ 和 MicroPython 等示例程式)


產品引數


工作電壓3.3VCAN 收發器E810-TTL-CAN01
通訊介面UART通訊速率300~921600bps


基於樹莓派 Pico 介面設計

適用於 Raspberry Pi Pico 系列主機板、焊接排母,可直接連線到 Pico 主機板

本產品不含 Raspberry Pi Pico [ /shop/Raspberry-Pi-Pico.htm ] ,如有需要,請另行購買




資源簡介

  1. E810-TTL-CAN01 模組



  2. 模組工作指示燈



  3. 模組狀態指示燈

    工作模式:以 1Hz 頻率閃爍

    指令配置模式,以 5Hz 頻率閃爍

  4. 收發指示燈



  1. 電阻選擇

    ON:連線 120R 匹配電阻

    OFF:斷開 120R 匹配電阻 (預設)

  2. CAN 收發埠



  3. 電源選擇



  4. 串列埠選擇

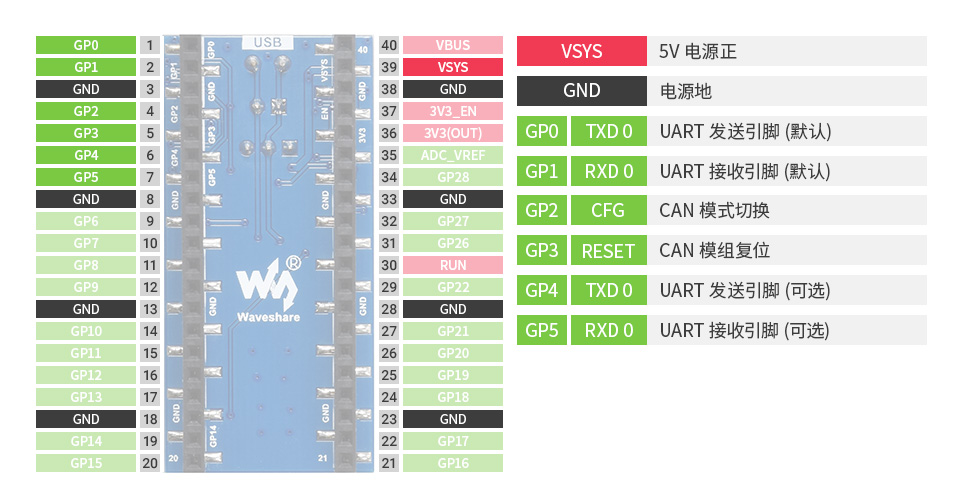

介面定義

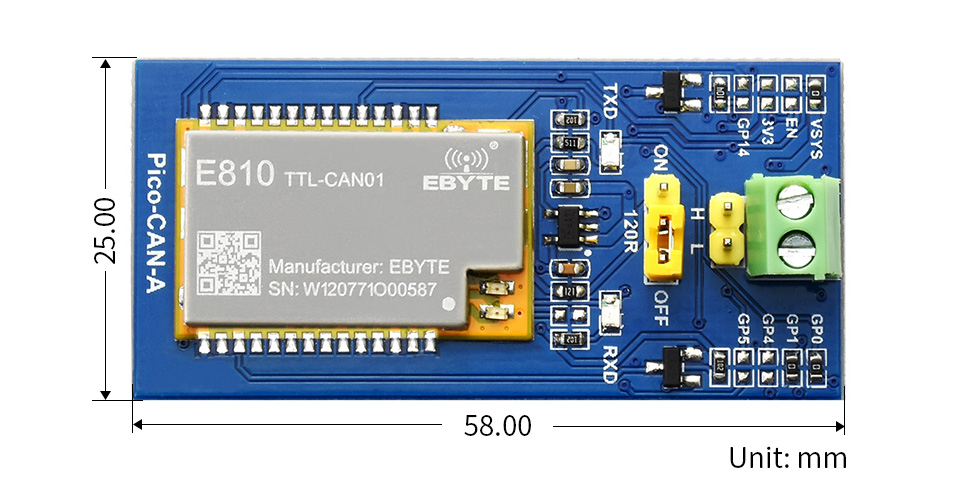

產品尺寸




Pico 教學視訊

(更多視訊,持續更新中……)

 [ http://pico.wiki/index.php/2021/04/27/getting-started-with-raspberry-pi-pico-basic-intro.html ]

 [ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-gpio.html ]

 [ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-pwm.html ]

 [ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-adc.html ]

 [ http://pico.wiki/index.php/2021/05/28/getting-started-with-raspberry-pi-pico-uart.html ]

 [ http://pico.wiki/index.php/2021/06/08/getting-started-with-raspberry-pi-pico-i2c.html ]

 [ https://pico.wiki/index.php/2021/06/09/getting-started-with-raspberry-pi-pico-spi.html ]

 [ https://pico.wiki/index.php/2021/07/19/getting-started-with-raspberry-pi-pico-pio.html ]




資料及服務

  • 認準微雪正品
  • 專業技術支援
  • 豐富的資料教程
  • 使用者手冊
  • 電路原理圖
  • 示例程式
  • 開發資料

(例程資料以連結中實際給出的為準)




配置清單

Pico-CAN-A × 1
