詳盡技術資料請見原廠或供應商 https://www.waveshare.net/shop/Pico-Motor-Driver.htm [ https://www.waveshare.net/shop/Pico-Motor-Driver.htm ] 料號:WS-19764

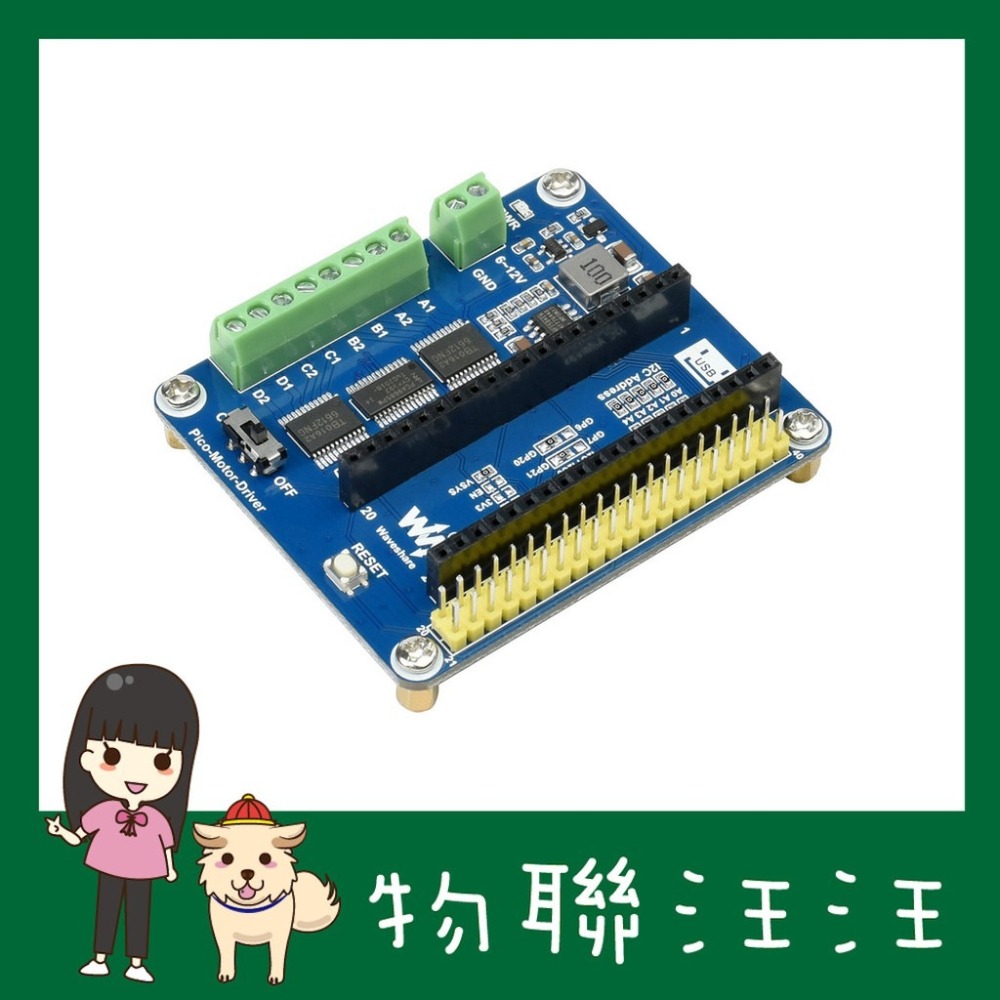

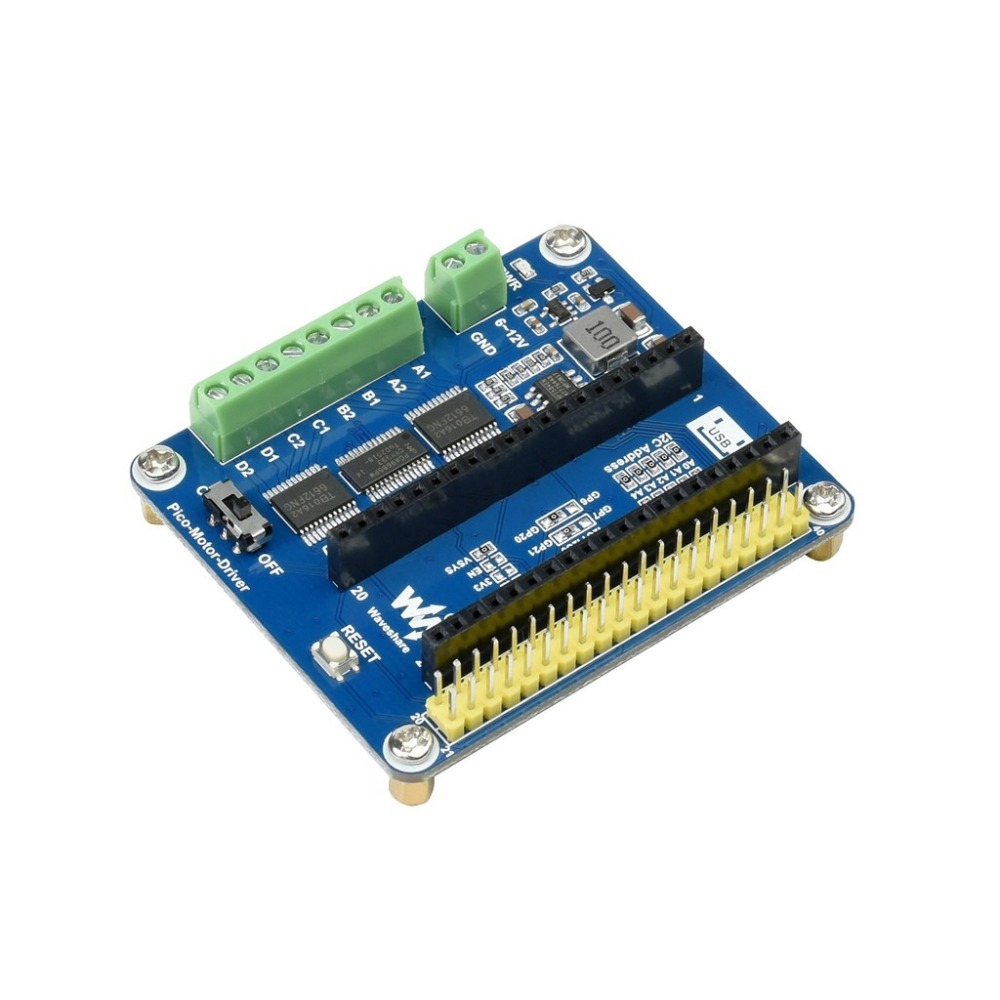

Pico 電機驅動擴充套件板
適合用於兩驅或四驅小車驅動
產品特性
- 板載 Raspberry Pi Pico 介面,適用於 Raspberry Pi Pico 系列主機板
- I2C 介面控制,可以通過改變 5 個地址跳線來實現可切換 32 個不同的 I2C 地址
- 板載 PCA9685 晶片,可輸出 12 位硬體 PWM 控制電機轉速
- 板載 TB6612FNG 雙 H 橋電機驅動晶片,工作高效,不易發熱
- 板載 5V 穩壓晶片,輸出可達 3A 電流,可通過 VIN 端子接入電池供電
- 引出 Pico 未佔用的引腳,方便擴充套件
- 提供完善的配套資料手冊 (Raspberry Pi Pico C/C++ 和 MicroPython 等示例程式)
產品引數
工作電壓 | 6~12V (VIN 端子) | 邏輯電壓 | 3.3V |
---|---|---|---|
PWM 驅動晶片 | PCA9685 | 電機驅動晶片 | TB6612FNG |
控制介面 | I2C | 產品尺寸 | 65 × 56mm |
基於樹莓派 Pico 介面設計
適用於 Raspberry Pi Pico 系列主機板、焊接排母,可直接連線到 Pico 主機板

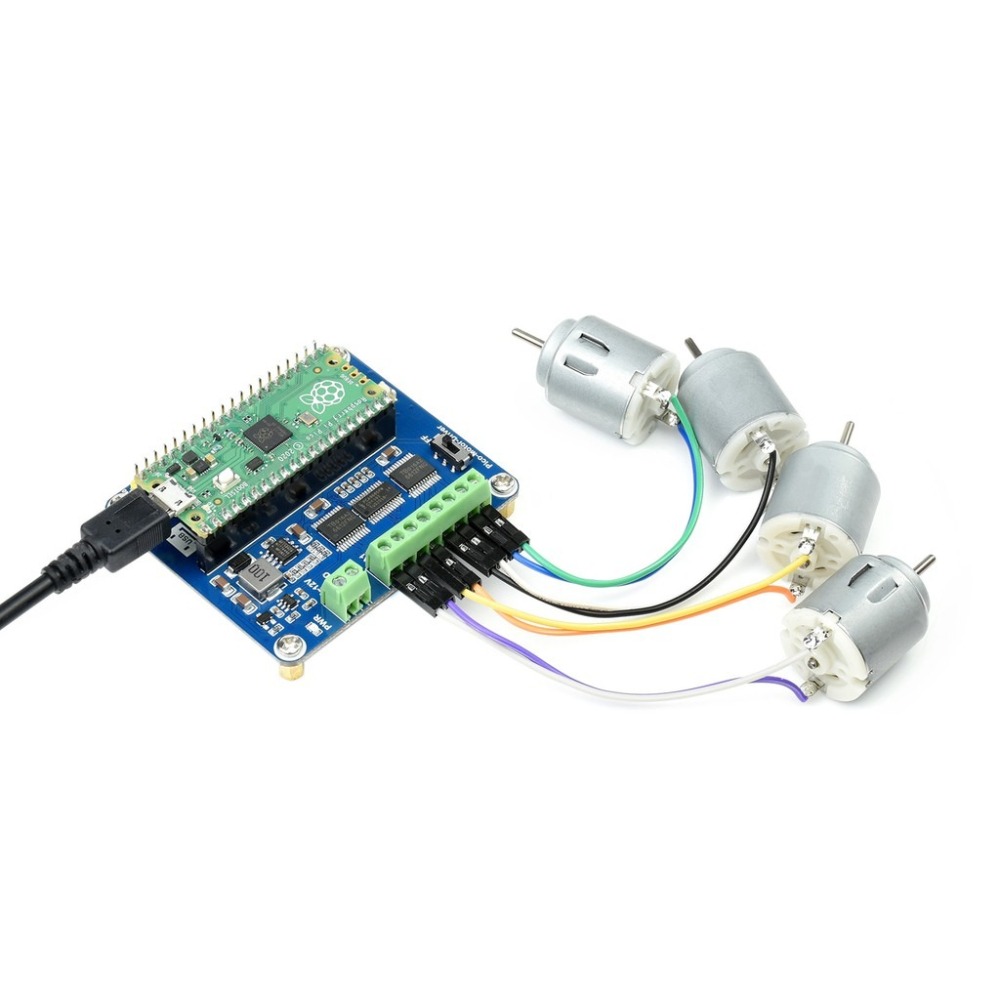

板載 4 路直流電機介面
本產品不含 Raspberry Pi Pico [ /shop/Raspberry-Pi-Pico.htm ] 、140直流電機 [ /shop/140-DC-Motor.htm ] ,如有需要,請另行購買
板載 5V 穩壓晶片

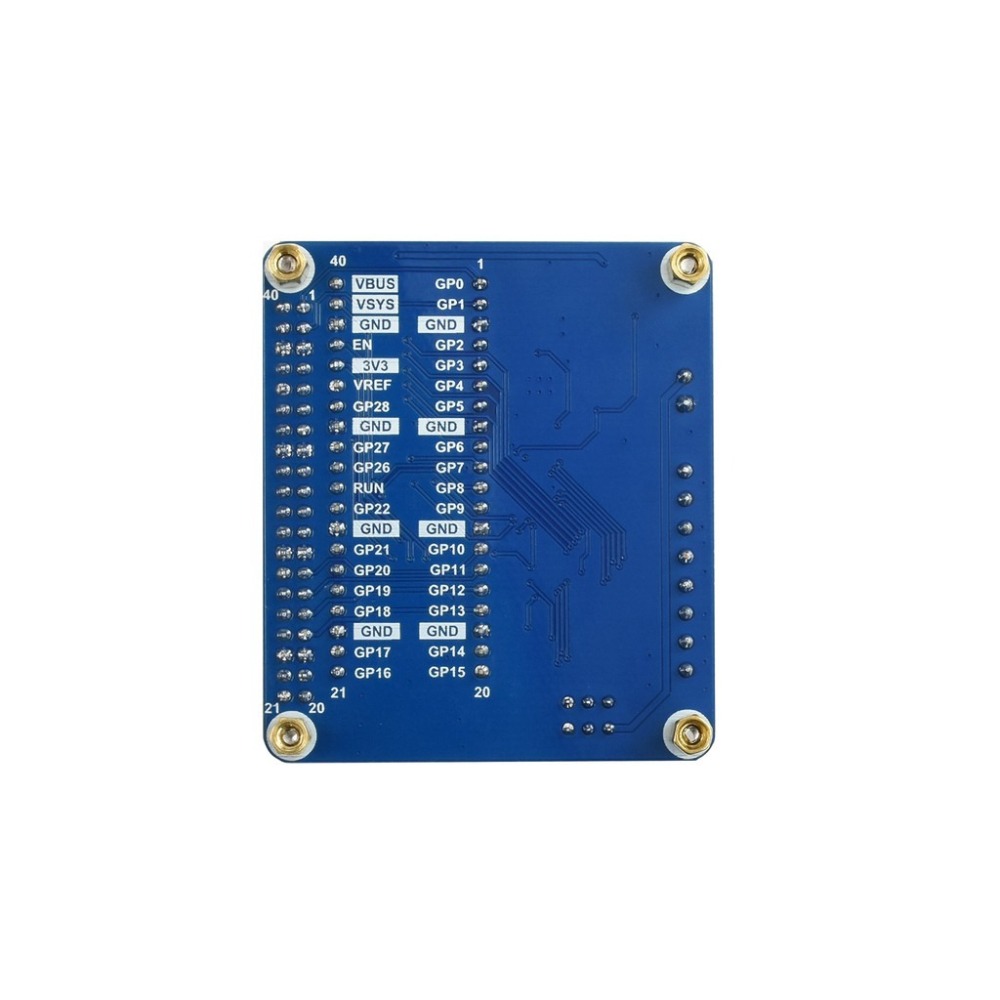

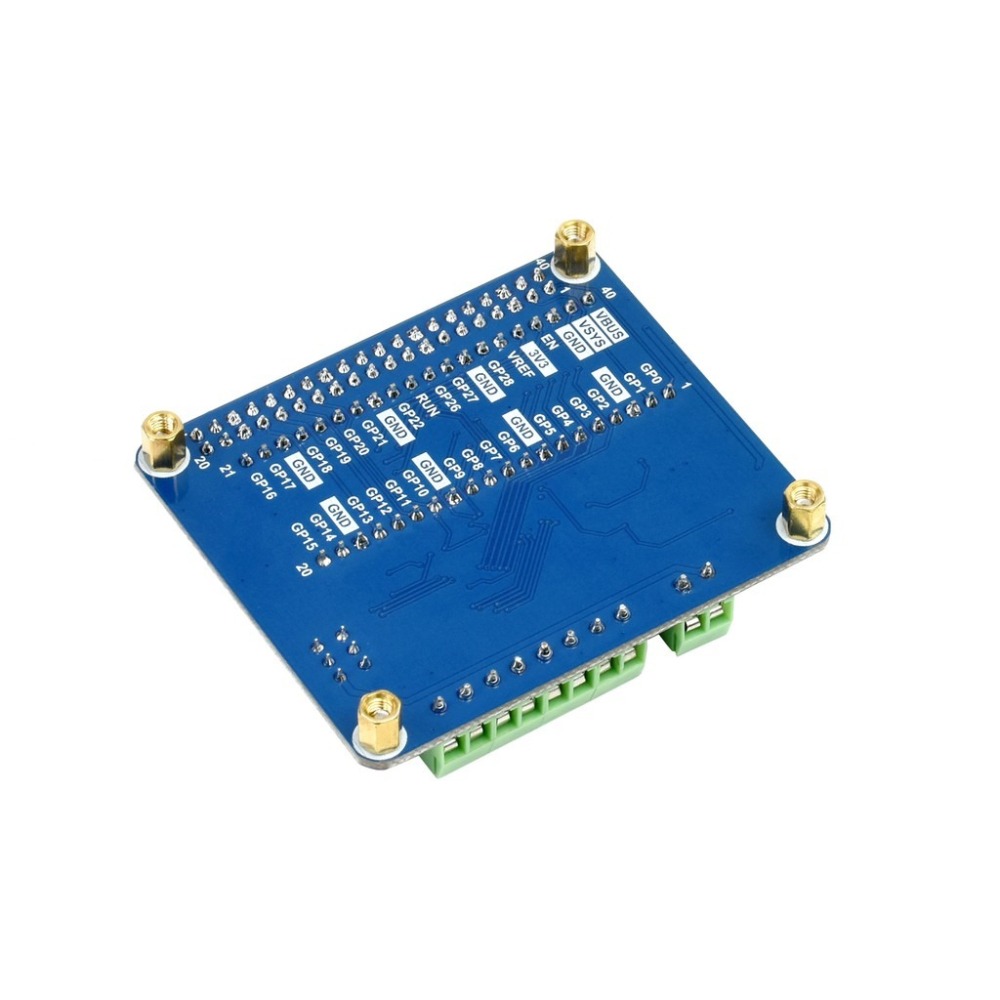

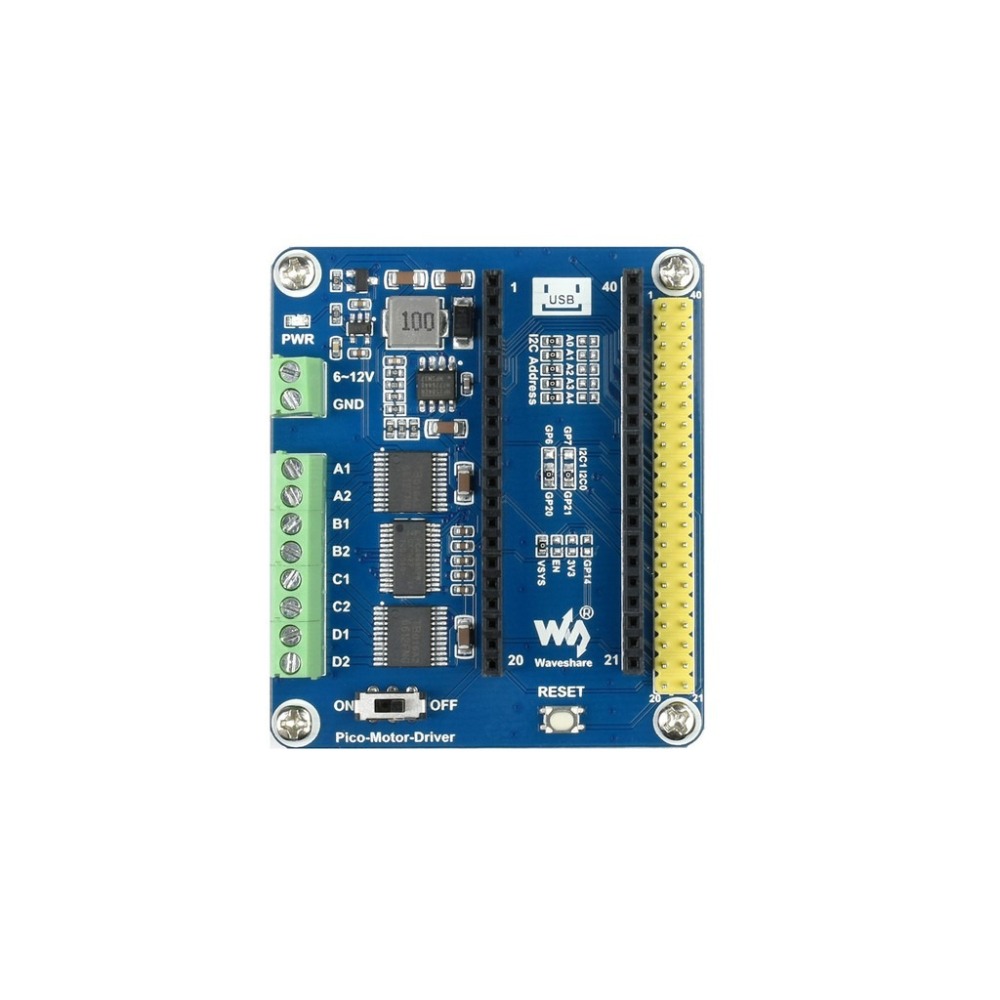

介面定義
產品尺寸
Pico 教學視訊
(更多視訊,持續更新中……)
[ http://pico.wiki/index.php/2021/04/27/getting-started-with-raspberry-pi-pico-basic-intro.html ]
[ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-gpio.html ]
[ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-pwm.html ]
[ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-adc.html ]
[ http://pico.wiki/index.php/2021/05/28/getting-started-with-raspberry-pi-pico-uart.html ]
[ http://pico.wiki/index.php/2021/06/08/getting-started-with-raspberry-pi-pico-i2c.html ]
[ https://pico.wiki/index.php/2021/06/09/getting-started-with-raspberry-pi-pico-spi.html ]
[ https://pico.wiki/index.php/2021/07/19/getting-started-with-raspberry-pi-pico-pio.html ]
資料及服務
- 認準微雪正品
- 專業技術支援
- 豐富的資料教程
- 使用者手冊
- 電路原理圖
- 示例程式
- 開發資料
(例程資料以連結中實際給出的為準)
資料路徑:www.waveshare.net/wiki/Pico-Motor-Driver [ http://www.waveshare.net/wiki/Pico-Motor-Driver ]
