*****本商品不含Raspberry Pi 5 主板, 另Pi 4 無連接頭, 故不適用本商品!!!
詳盡技術資料請見原廠或供應商 https://www.raspberrypi.com/products/active-cooler/ [ https://www.raspberrypi.com/products/active-cooler/ ] 料號:SC1148

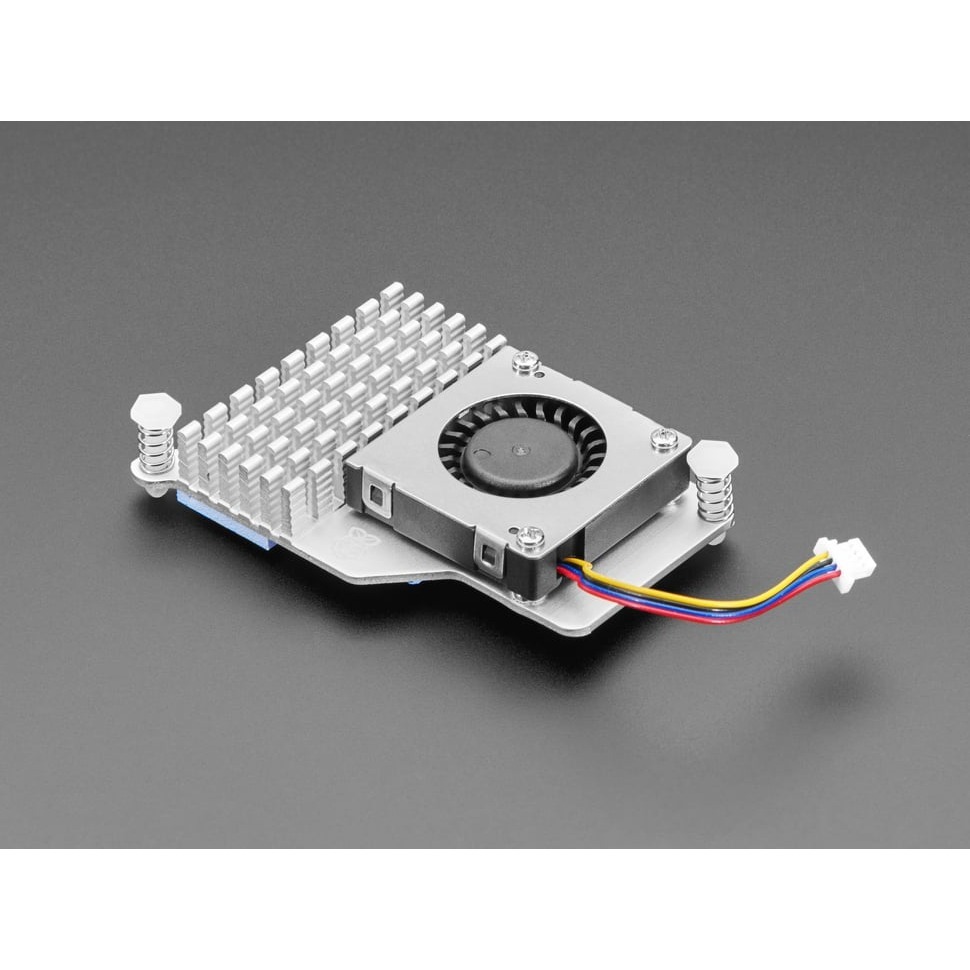

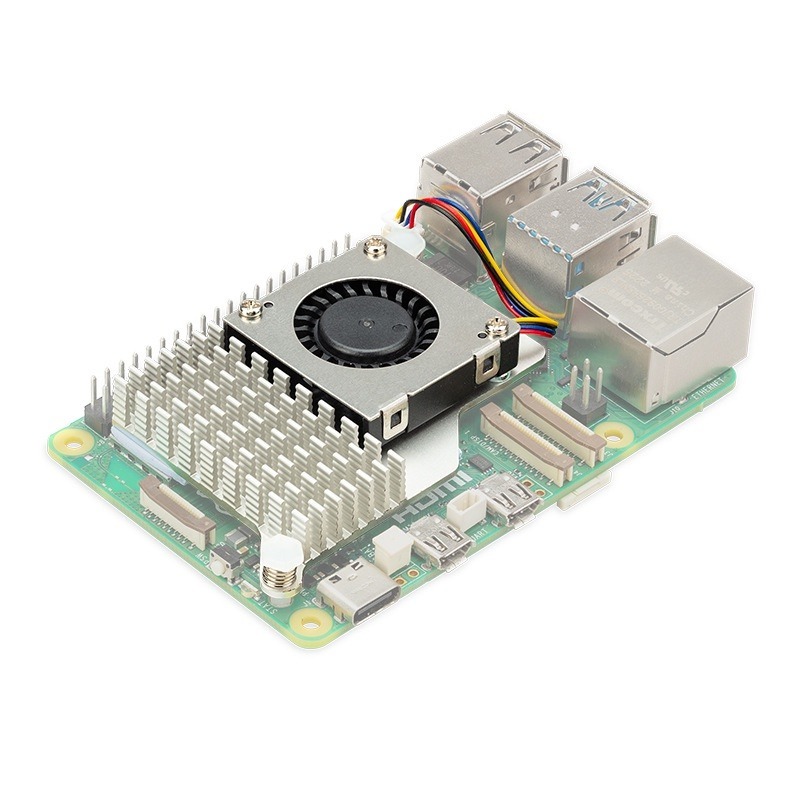

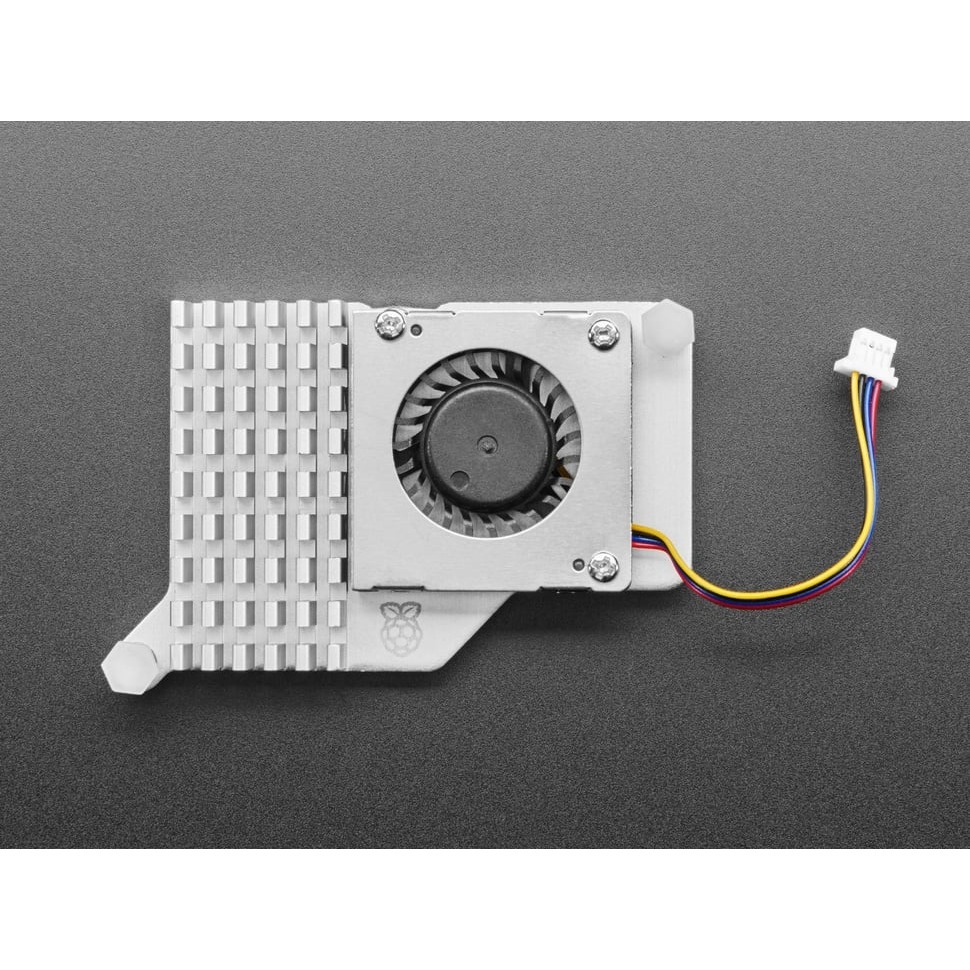

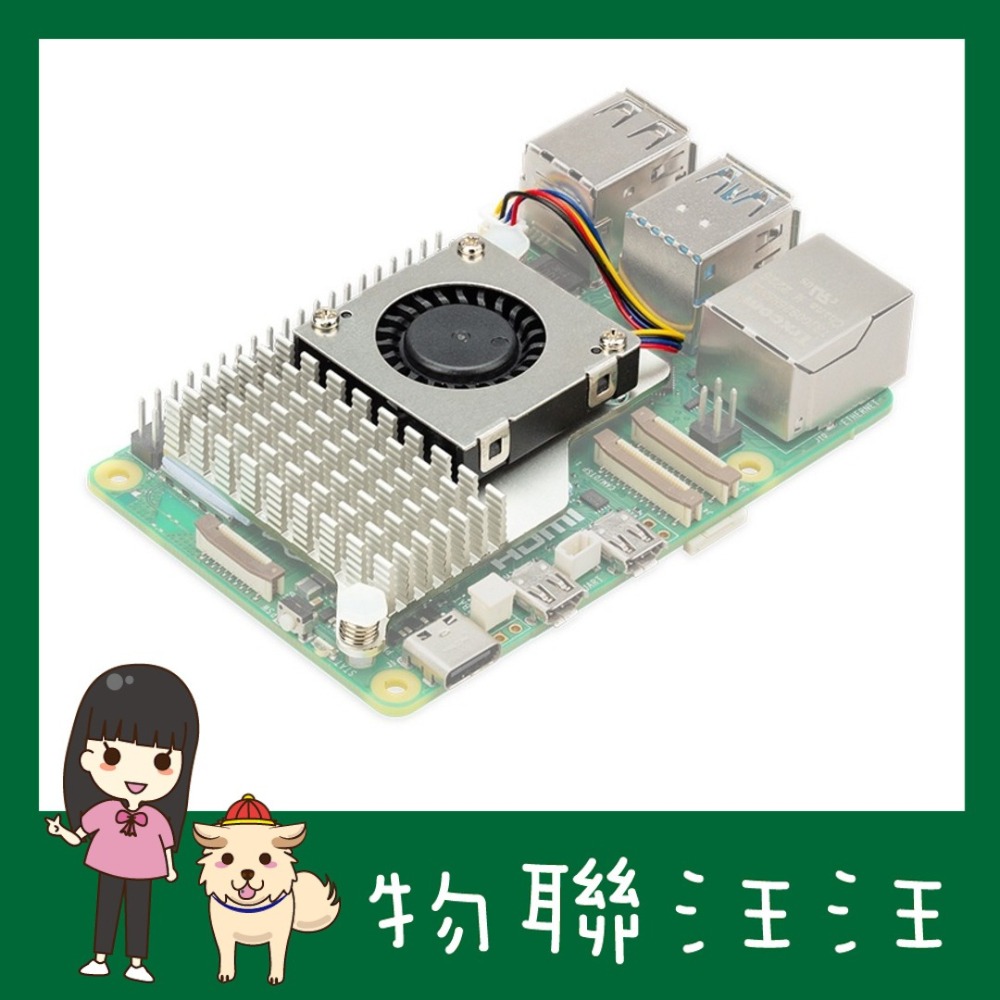

The Raspberry Pi Active Cooler for Raspberry Pi 5 is a dedicated clip-on cooling solution for Raspberry Pi 5. It combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads.
Features
Single-piece anodised aluminium heatsink
Heatsink-mounted, temperature-controlled blower fan attached by three screws
Spring-loaded push pins for mounting onto Raspberry Pi 5

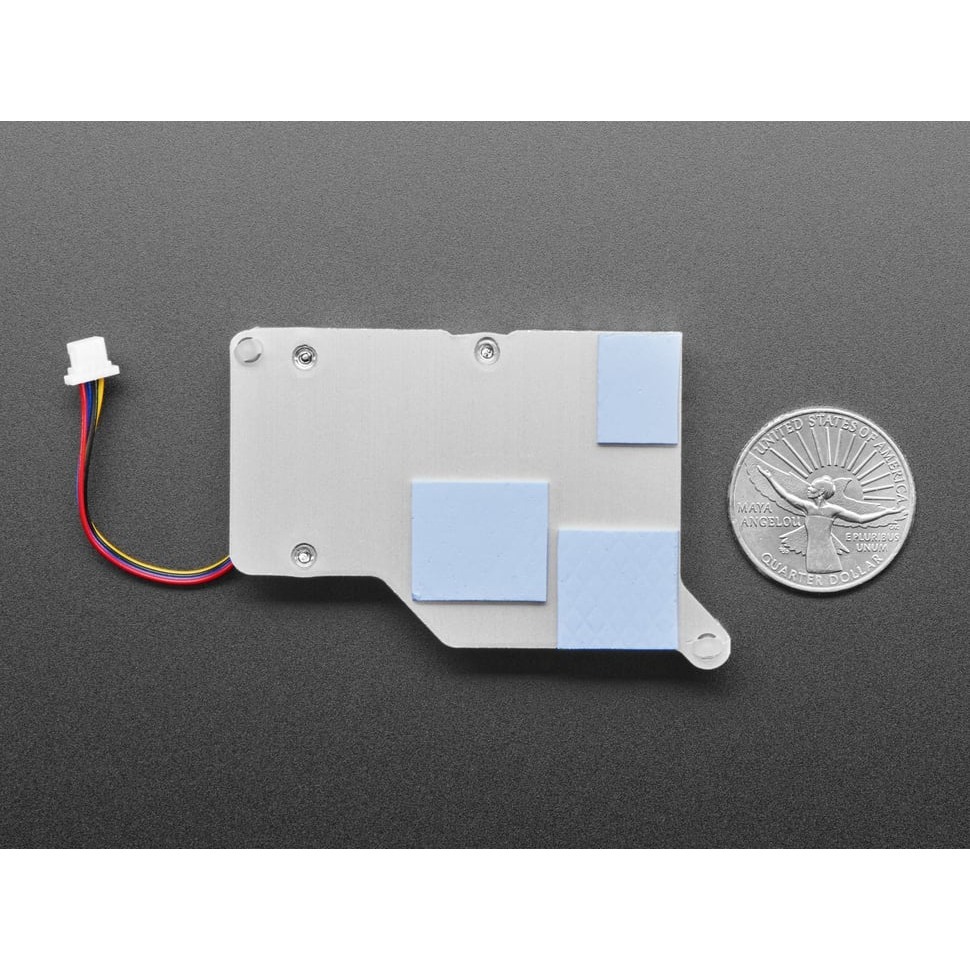

Pre-applied thermal pads for heat transfer
Specifications
Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 1.09 CFM
Maximum fan speed: 8000 RPM +/- 15%
Product material: Anodised aluminium
Package Contents
- 1x Raspberry Pi Active Cooler for Raspberry Pi 5 (includes fan and thermal pads (pre-fitted))
Documents
- Raspberry Pi Active Cooler product brief [ https://datasheets.raspberrypi.com/cooling/raspberry-pi-active-cooler-product-brief.pdf ]
- Raspberry Pi Active Cooler mechanical drawing [ https://datasheets.raspberrypi.com/cooling/raspberry-pi-active-cooler-mechanical-drawing.pdf ]
