[物聯汪汪] 含稅附發票~正版STLINK-V3 STLINK-V3SET模組在線除錯及燒錄器STM32/STM8

商品編號:P0510705728990 原始貨號:P0510705728990

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 1,650
$ 1,750
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

***請注意: 本產品出貨前皆會簡單測試並記錄序號, 測試後將提供測試報告供賣家參考, 謝謝!


敬請留意:

1. 最新出貨之 STLINK-V3SET 已全部更新為 ST 全球統一環保設計牛皮紙盒包裝,敬請認明!!!


2. 凡購買 ST 原廠出品之開發套件,如 Nucleo、Discovery 的 STM 各系列開發板,板上均已經由官方搭配隨附合適版本之 ST-Link 奢錄器,故無須購買額外之 ST Link 燒錄器,省錢省力!且原廠亦在這些 On Board 的 ST Link 燒錄器旁,貼心地附加了外接針腳,可以讓開發者藉此連接其它載有 STM MCU 的板子進行燒錄除錯,此項作法可算是 ST 奉送的額外服務。


詳盡技術資料請見原廠或供應商 https://www.st.com/en/development-tools/stlink-v3set.html [ https://www.st.com/en/development-tools/stlink-v3set.html ]  料號:STLINK-V3SET

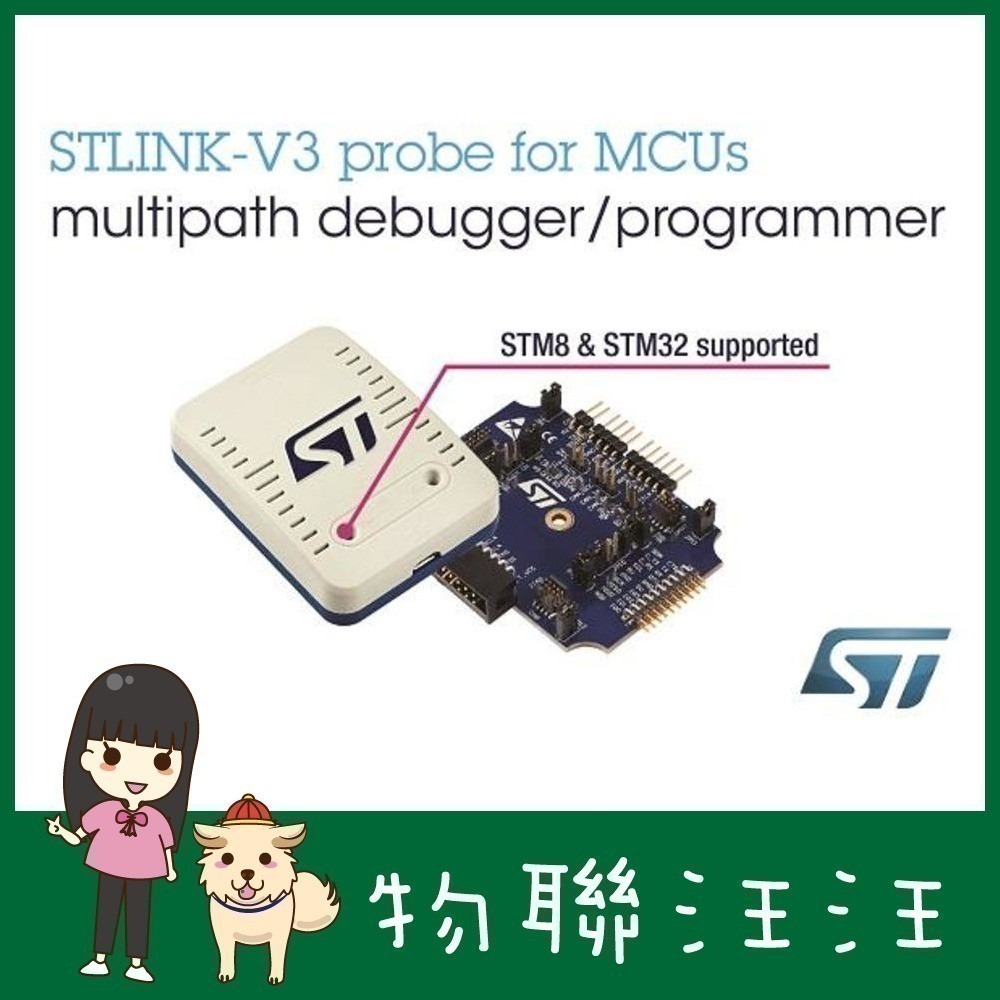

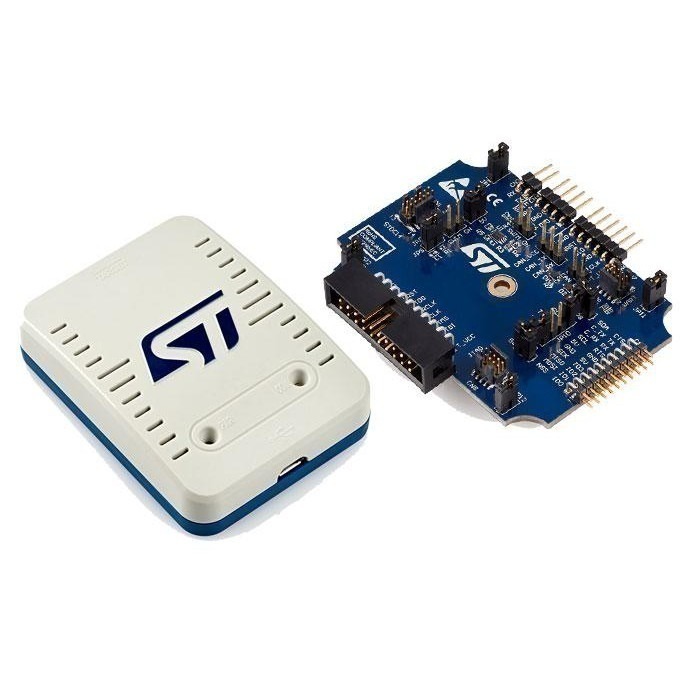

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board.

 [ https://www.st.com/en/development-tools/stlink-v3set.html# ]

The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through the bootloader.
The STLINK-V3SET can provide a second Virtual COM port interface allowing the host PC to communicate with the target microcontroller through another UART (called bridge UART). Bridge UART signals, including optional RTS and CTS, are available on adapter board only (MB1440). The second Virtual COM port activation is done through a reversible firmware update, which also disables the mass storage interface (used for drag-and-drop flash programming).
The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.

KEY FEATURES

  • Stand-alone probe with modular extensions
  • Self-powered through a USB connector (Micro-B)
  • USB 2.0 high-speed compatible interface
  • Direct firmware update support (DFU)
  • JTAG / serial wire debugging (SWD) specific features:
    • 3 to 3.6 V application voltage support and 5 V tolerant inputs

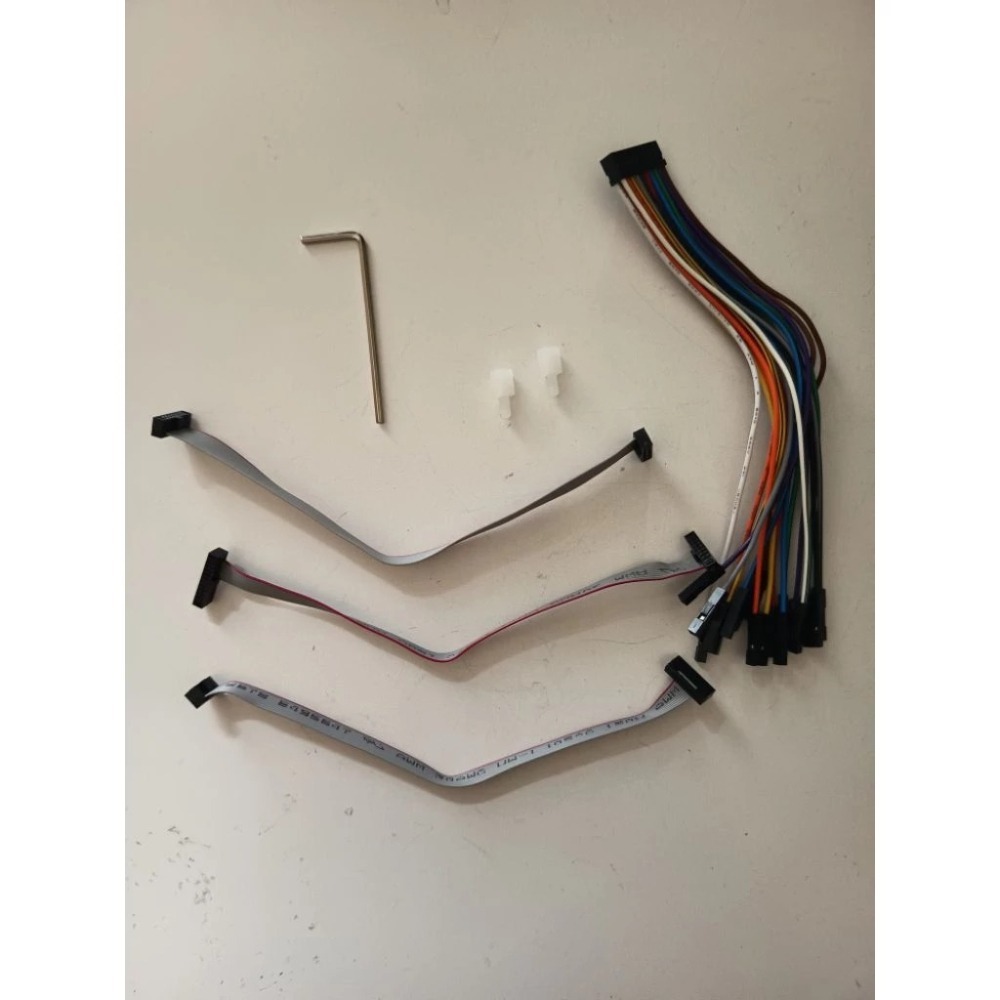

    • Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch)
    • JTAG communication support
    • SWD and serial wire viewer (SWV) communication support
  • SWIM specific features (only available with adapter board MB1440):
    • 1.65 to 5.5 V application voltage support
    • SWIM header (2.54 mm pitch)
    • SWIM low-speed and high-speed modes support
  • Virtual COM port (VCP) specific features:
    • 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
    • VCP frequency up to 15 MHz
    • Available on STDC14 debug connector (not available on MIPI10)
  • Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
    • 3 to 3.6 V application voltage support and 5 V tolerant inputs
    • Signals available on adapter board only (MB1440)
  • Drag-and-drop flash programming of binary files
  • Two-color LEDs: communication, power
