[物聯汪汪]含稅附發票~ STM32F3DISCOVERY CortexM4 STM32F303 陀螺儀加速度計電子羅盤

商品編號:P0510700193666 原始貨號:P0510700193666

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 750
$ 795
預計出貨天數3
規格
  • 主板
  • 主板+Mini USB線
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/stm32f3discovery.html [ https://www.st.com/en/evaluation-tools/stm32f3discovery.html ]  料號:STM32F3DISCOVERY



Description

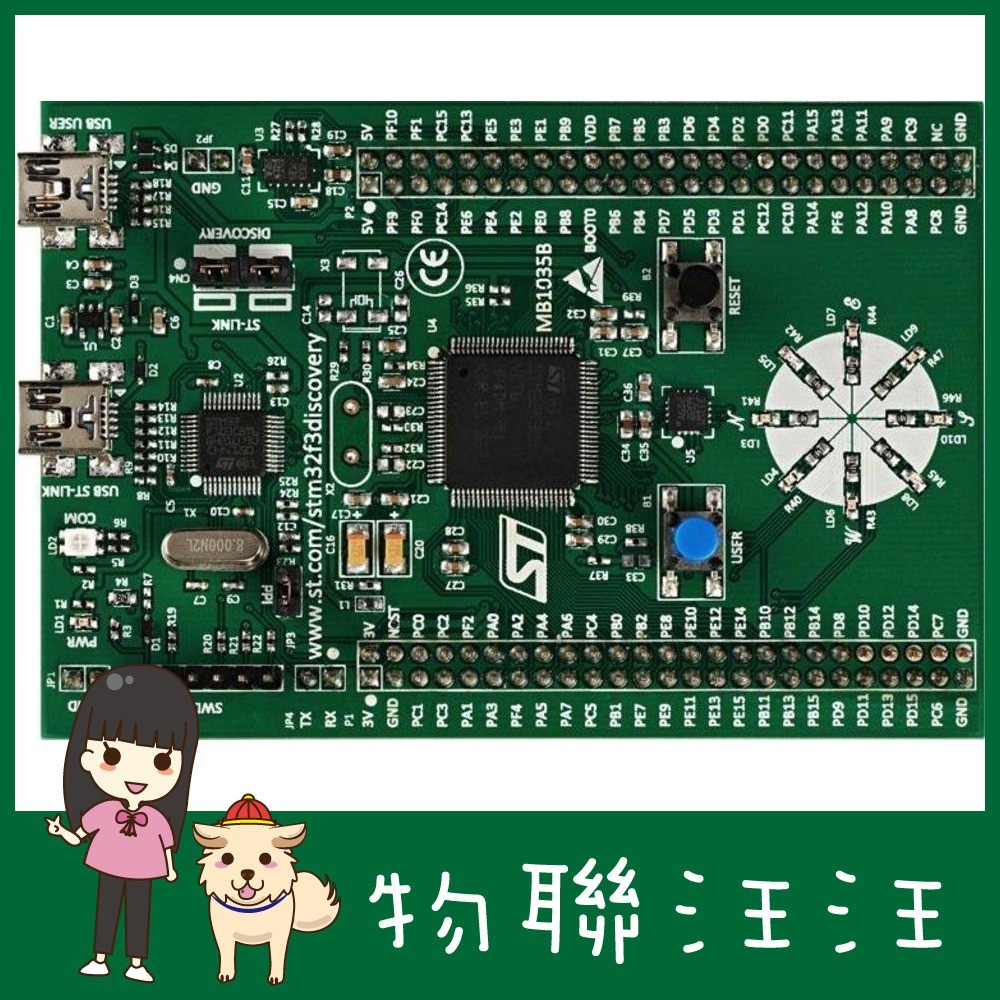

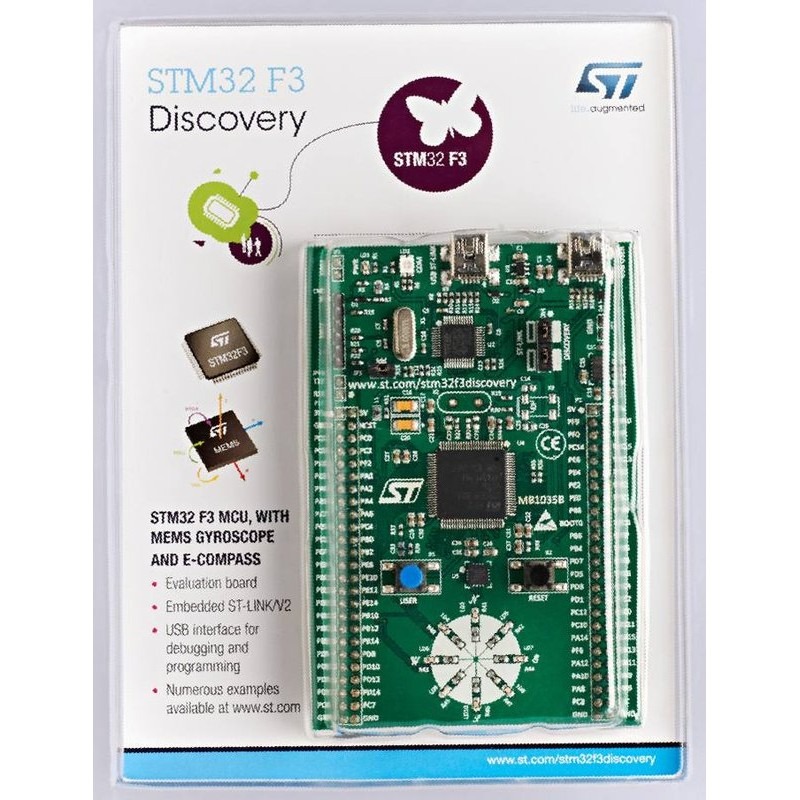

The STM32F3DISCOVERY allows users to easily develop applications with the STM32F3 Series mixed-signal microcontroller based on the Arm® Cortex®-M4. It includes everything required for beginners and experienced users to get started quickly. Based on the STM32F303VCT6, it includes an ST-LINK/V2 or ST-LINK/V2-B embedded debug tool, accelerometer, gyroscope and e-compass ST MEMS, USB connection, LEDs and push-buttons.



All features

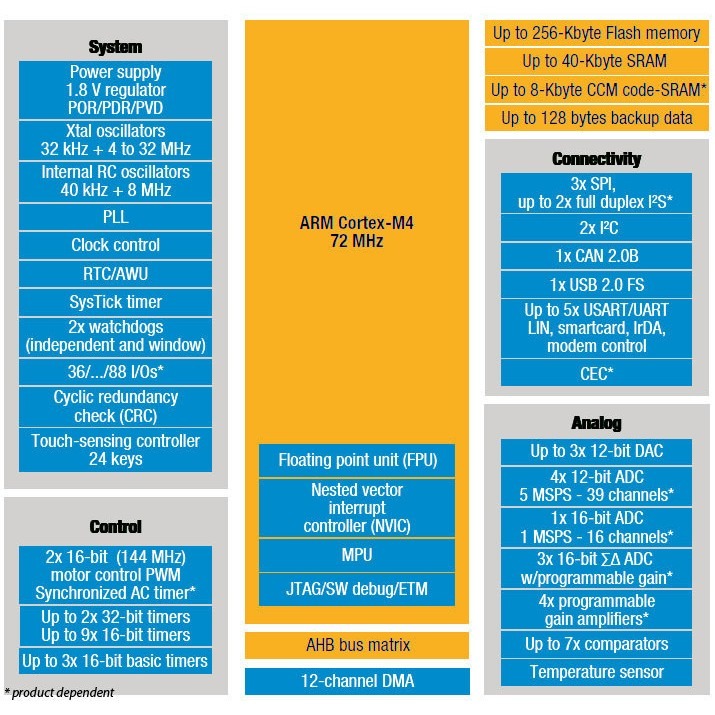

  • STM32F303VCT6 microcontroller featuring 256‑Kbyte Flash memory and 48‑Kbyte RAM in an LQFP100 package
  • USB FS
  • ST MEMS motion sensor, 3-axis digital output gyroscope
  • ST MEMS system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
  • Ten LEDs:
    • LD1 (red) for 3.3 V power on
    • LD2 (red/green) for USB communication
    • Eight user LEDs: LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
  • 1 user and reset push-buttons
  • Board connectors:
    • USB FS Mini-B connector
    • ST-LINK Mini-B USB connector
    • Extension header for all LQFP100 I/Os for quick connection to prototype board and easy probing
  • Flexible power-supply options:
    • ST-LINK USB connector or USB FS connector
    • External 3 V or 5 V supply voltage
  • On-board debugger/programmer ST-LINK/V2 for PCB version A or B, or ST-LINK/V2-B for PCB version C and newer:
    • Debug port
    • Mass storage and Virtual COM port with ST-LINK/V2-B only
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, and STM32CubeIDE
