詳盡技術資料請見原廠或供應商 https://www.waveshare.net/shop/Pico-Relay-B.htm [ https://www.waveshare.net/shop/Pico-Relay-B.htm ] 料號:WS-20218

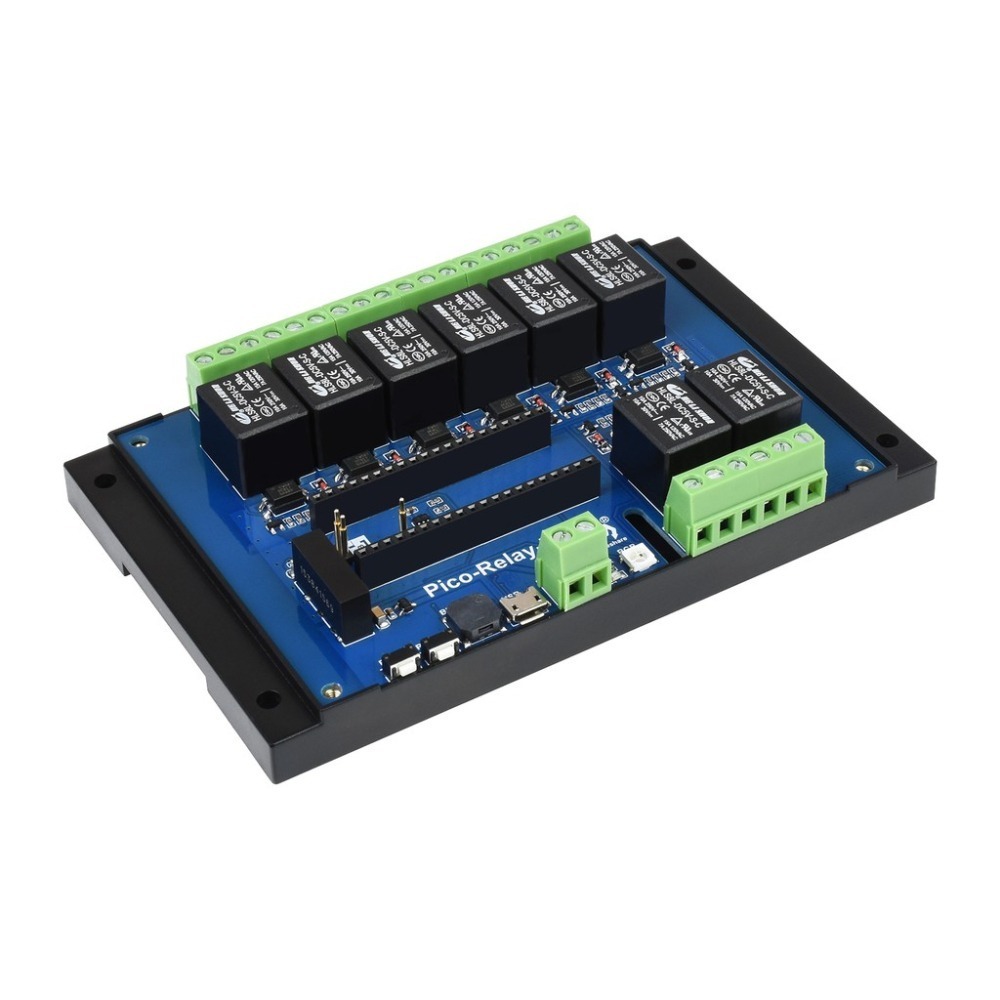

工業級 8 路繼電器 Pico 模組
內建電源隔離、光耦隔離保護電路

產品特性
- 板載一體式電源隔離,可提供穩定的隔離電壓,隔離端無須額外供電
- 板載光耦隔離,避免繼電器外接高壓電路干擾控制晶片
- 採用優質繼電器,允許接入負載:≤10A 250V AC 或 ≤10A 30V DC
- 導軌式 ABS 保護外殼,方便安裝使用,帶外殼更安全
- 通過彈簧頂針引出 USB 介面和 BOOT 引腳,無需反覆拆裝外殼,方便使用者除錯
- 外接 1 個 PWR 指示燈,RGB 指示燈和無源蜂鳴器
- 提供完善的配套資料手冊 (Raspberry Pi Pico C/C++ 和 MicroPython 等示例程式)
產品引數
| 工作電壓 | 5V | 繼電器路數 | 8 路 |
|---|---|---|---|
| 通訊協議 | USB | 觸點型別 | 一常開、一常閉 |
| 通訊介面 | Micro USB |
基於樹莓派 Pico 介面設計
適用於 Raspberry Pi Pico 系列主機板、焊接排母,可直接連線到 Pico 主機板

本產品不含 Raspberry Pi Pico [ /shop/Raspberry-Pi-Pico.htm ] ,如有需要,請另行購買

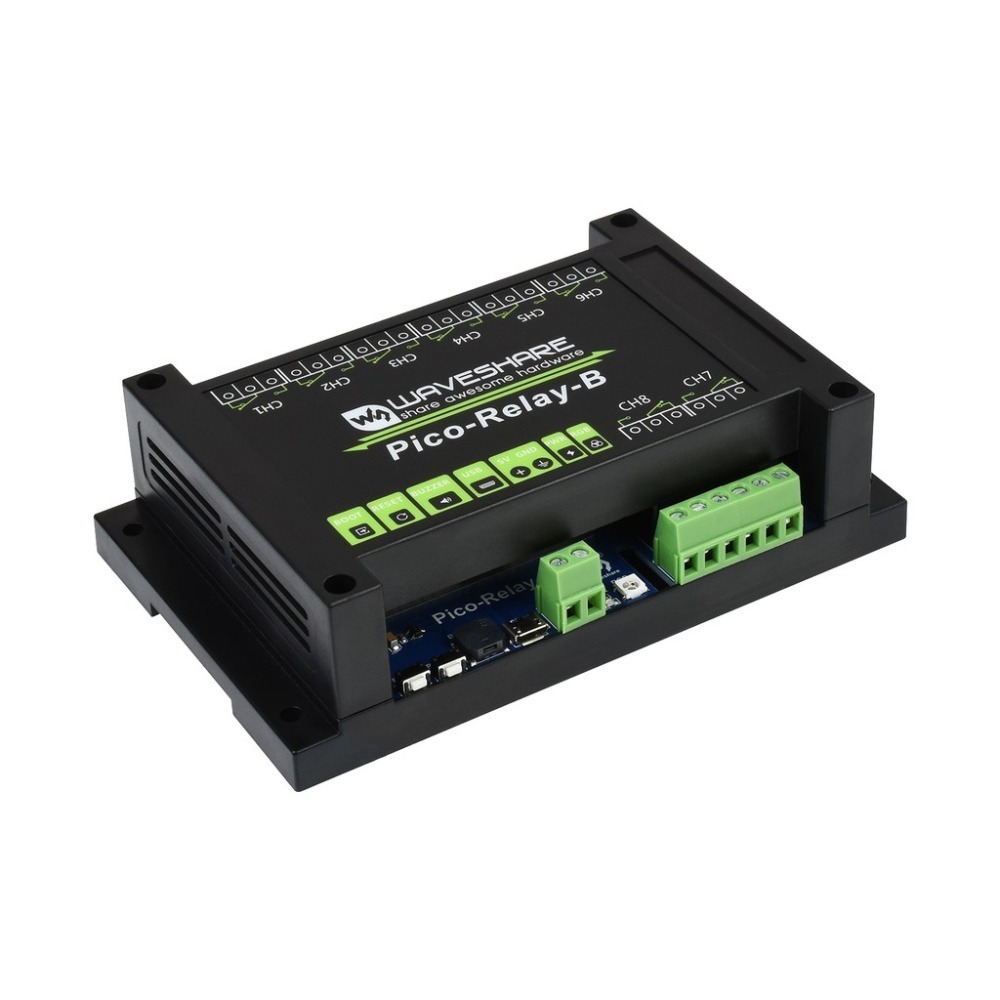

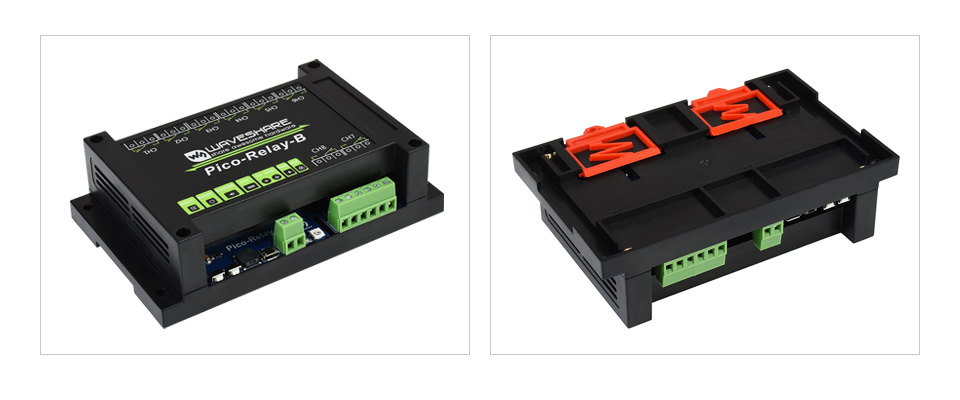

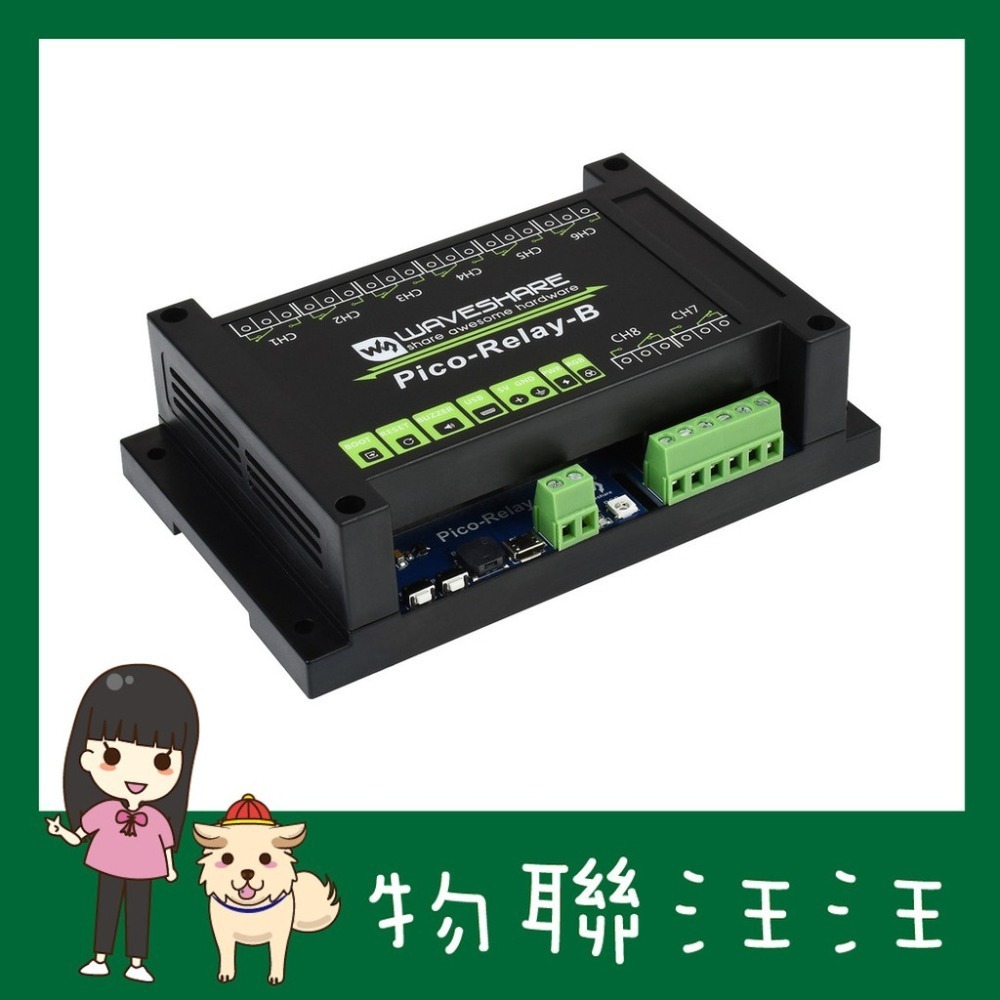

外殼設計

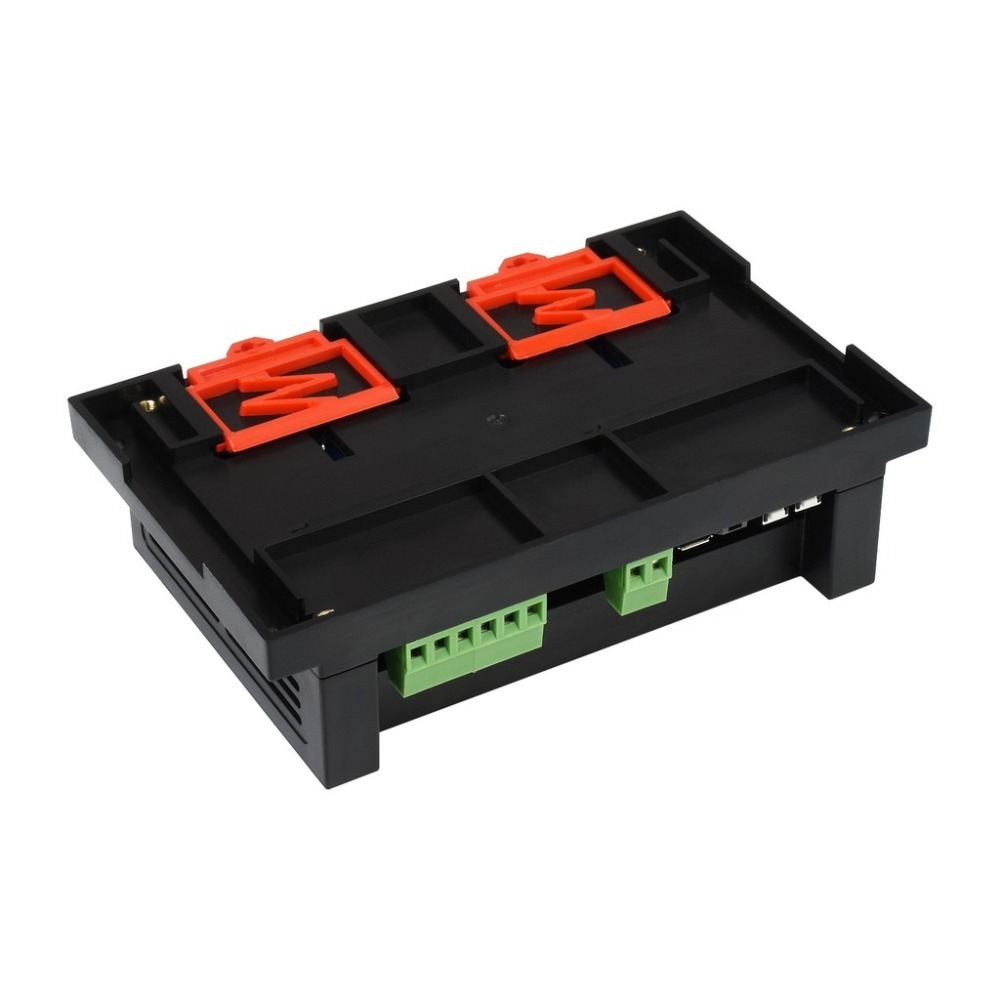

導軌式 ABS 保護外殼,方便安裝使用,帶外殼更安全

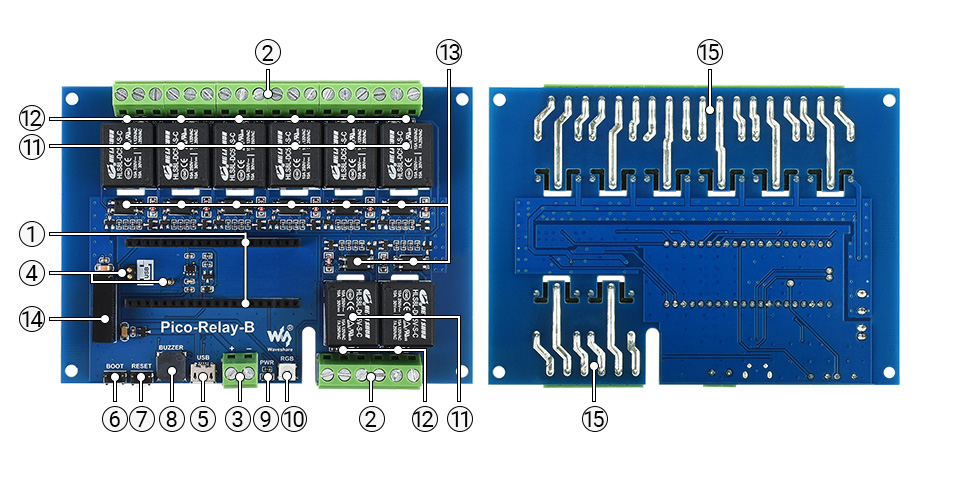

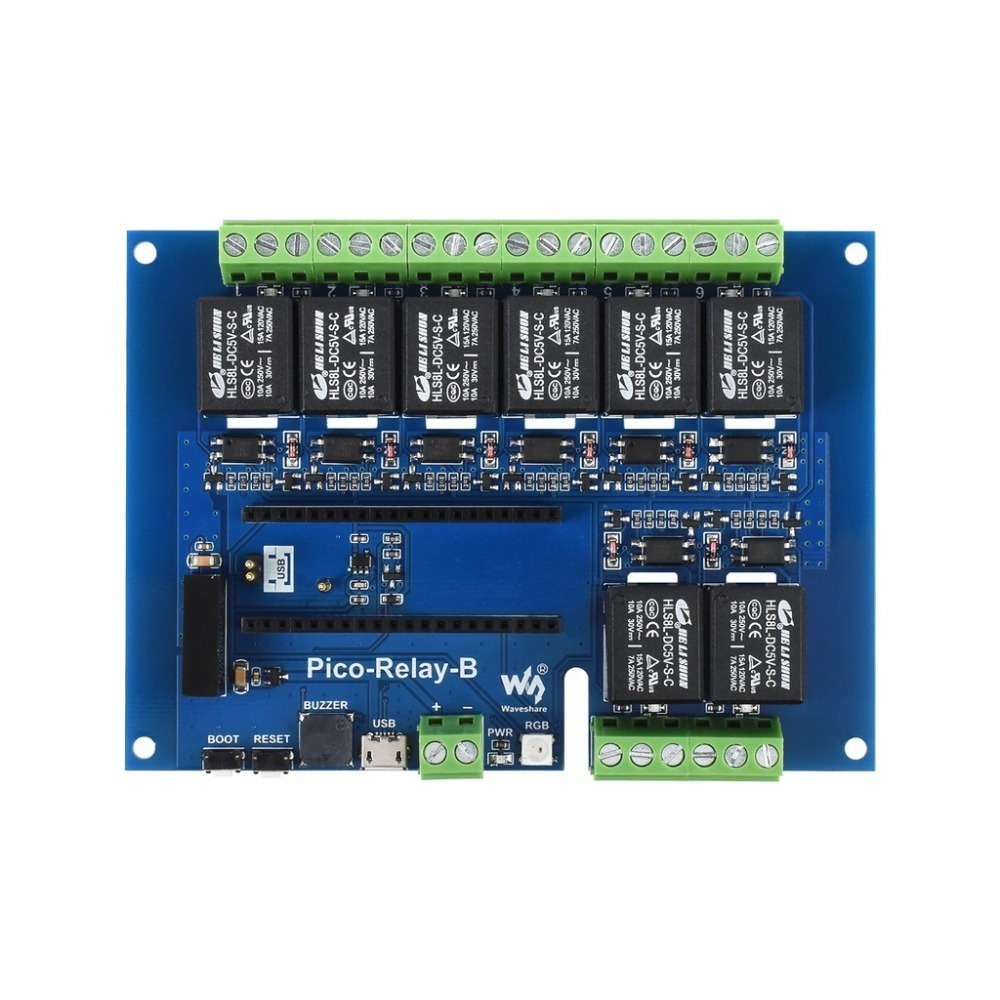

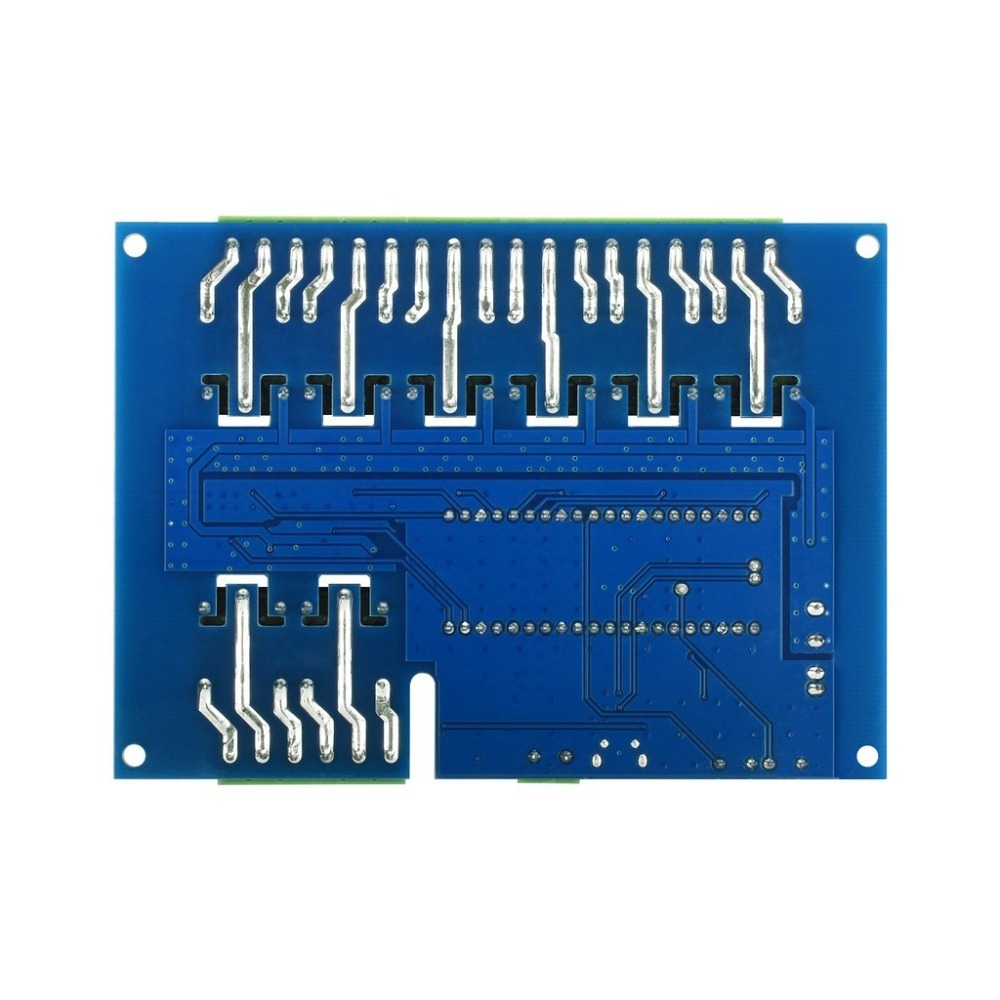

資源簡介

- Raspberry Pi Pico 介面
可接入 Raspberry Pi Pico 主機板
- 繼電器接線端子
方便使用者連線裝置
- 電源接線端子
多個繼電器並聯工作
- 彈簧頂針
- USB 通訊介面
由彈簧頂針引出
- 外接 BOOT 按鍵
由彈簧頂針引出
- 復位按鍵
Pico 復位按鍵
- 無源蜂鳴器
聲音訊率可控
- 電源指示燈
- WS2812
炫酷 RGB LED
- 8 路優質繼電器
單路繼電器允許接入負載:≤10A 250V AC 或 ≤10A 30V DC
- 繼電器工作指示燈
- 光耦隔離
避免繼電器外接高壓電路干擾控制晶片
- 電源隔離
提供穩定的隔離電壓,隔離端無須額外供電
- 開窗加錫
支援接入大電流裝置

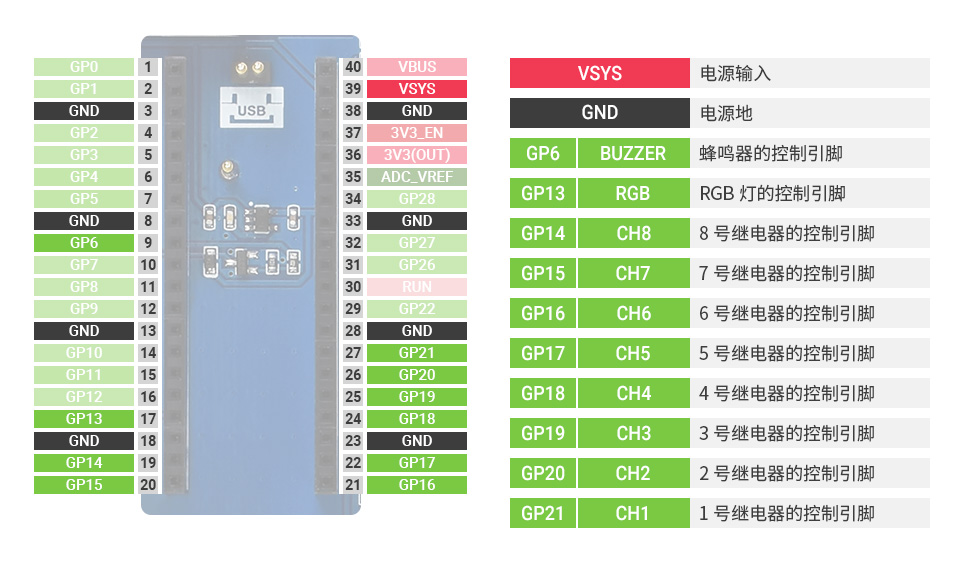

介面定義

產品尺寸

Pico 教學視訊
(更多視訊,持續更新中……)
[ http://pico.wiki/index.php/2021/04/27/getting-started-with-raspberry-pi-pico-basic-intro.html ]
[ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-gpio.html ]
[ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-pwm.html ]
[ http://pico.wiki/index.php/2021/04/06/getting-started-with-raspberry-pi-pico-adc.html ]
[ http://pico.wiki/index.php/2021/05/28/getting-started-with-raspberry-pi-pico-uart.html ]
[ http://pico.wiki/index.php/2021/06/08/getting-started-with-raspberry-pi-pico-i2c.html ]
[ https://pico.wiki/index.php/2021/06/09/getting-started-with-raspberry-pi-pico-spi.html ]
[ https://pico.wiki/index.php/2021/07/19/getting-started-with-raspberry-pi-pico-pio.html ]資料及服務

- 認準微雪正品
- 專業技術支援
- 豐富的資料教程
- 使用者手冊
- 電路原理圖
- 示例程式
- 開發資料
資料路徑:www.waveshare.net/wiki/Pico-Relay-B [ http://www.waveshare.net/wiki/Pico-Relay-B ]
配置清單

- ABS 保護外殼 (上下盒) × 1
- Pico-Relay-B × 1
- 螺絲刀 × 1
- 螺絲包 × 1
