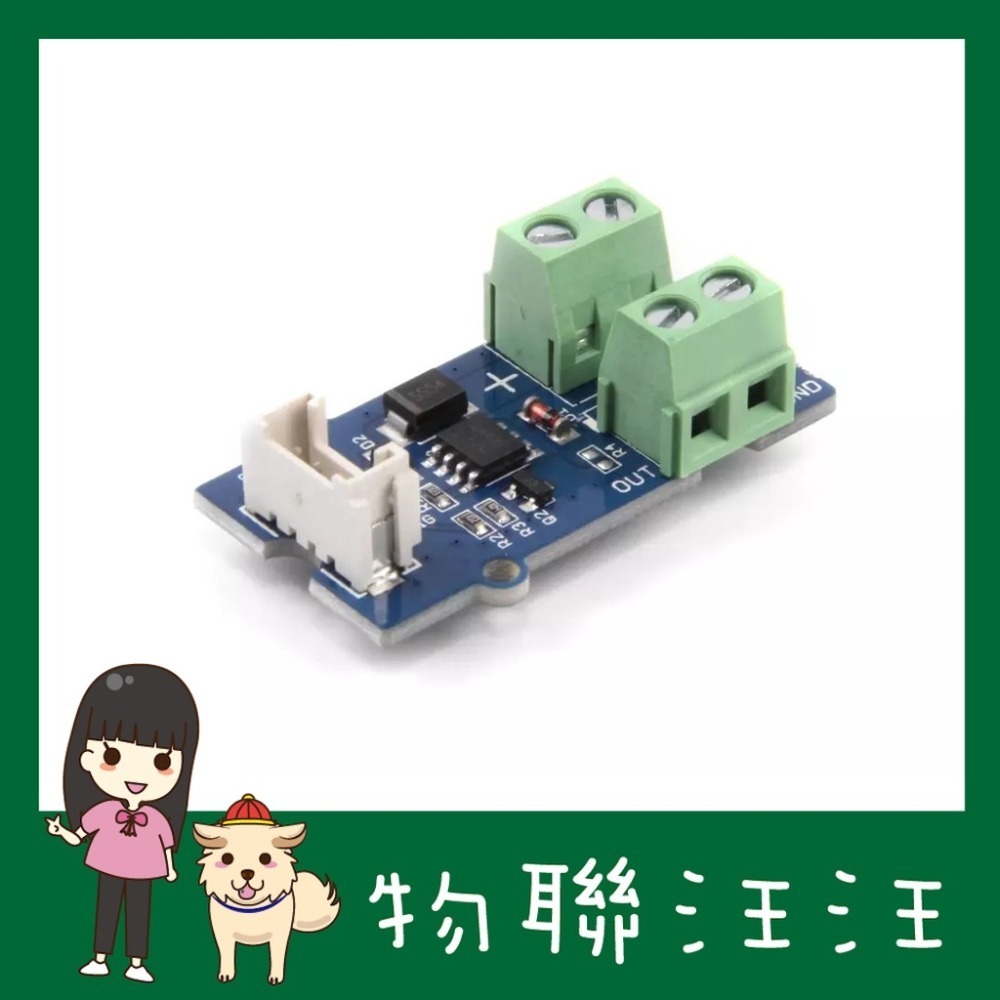

[物聯汪汪] 含稅附發票~ Seeed 公司貨 Grove - MOSFET 繼電器

商品編號:P0510700189198 原始貨號:P0510700189198

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 120
$ 130
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/Grove-MOSFET.html [ https://www.seeedstudio.com/Grove-MOSFET.html ]  料號:103020008

PRODUCT DETAILS



Description

MOSFET stands for metal oxide semiconductor field-effect transistor and it is used to switch or amplify voltages in circuits. The purpose of a MOSFET transistor is essentially to control voltage/current flow between the source and the drain. The working principle differs based on the type of MOSFET.

Grove - MOSFET enables you to control higher voltage projects, say 15VDC, with low voltage, say 5V, on the microcontroller. MOSFET is also a kind of switch, but its switching frequency can reach up to 5MHz, much faster than a normal mechanical relay. There are two screw terminals on the board. One for outer power source and the other for the device you want to control. Grove - MOSFET will pass the power from one end to another when closed. But if the outer power source is absent, your device can still draw power from the microcontroller via the Grove interface.

Features

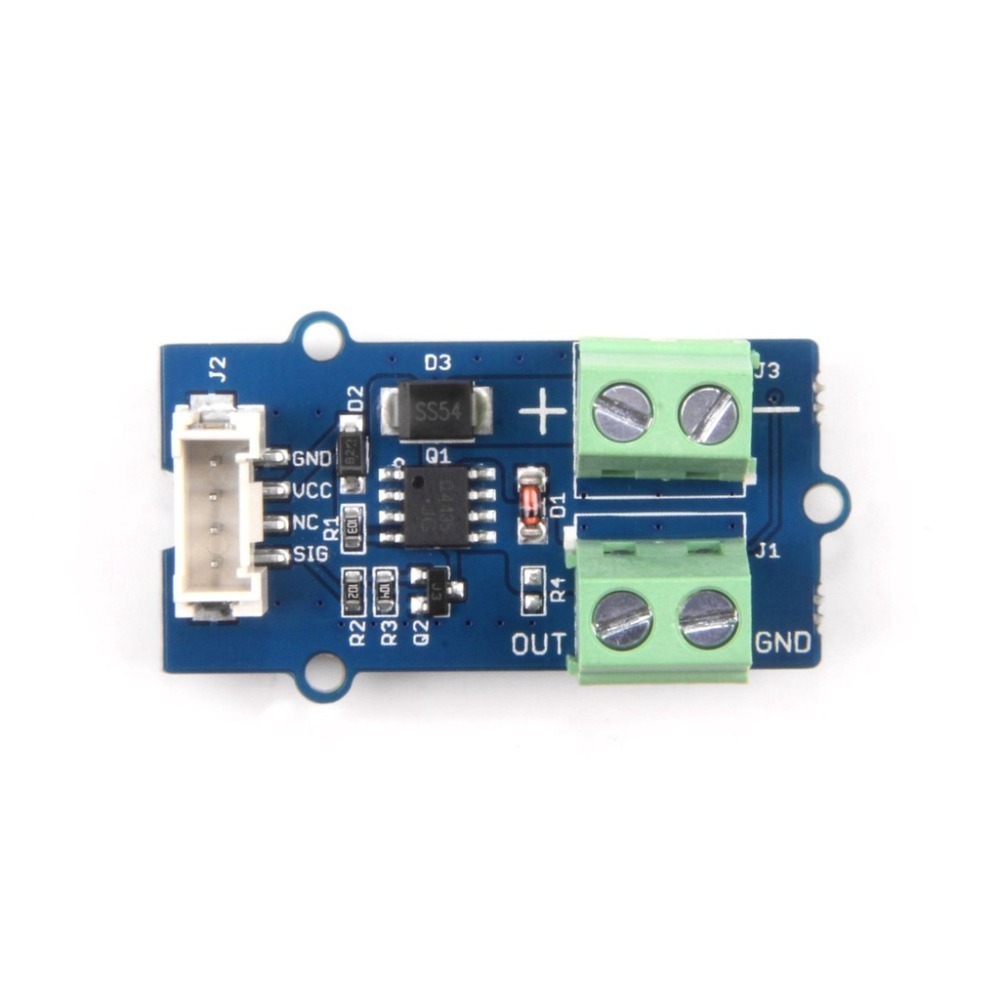

  • Two screw terminals on board; one for outer power source, while the other for the device you want control over with
  • 5V – 15V voltage control
  • Plug and Play with Grove connectors

What is Grove?



Grove [ https://www.seeedstudio.com/category/Grove-c-1003.html ]  makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Not only are these open hardware, but we also have open-source software.



For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started [ https://www.seeedstudio.com/document/pdf/Preface.pdf ]  and Introduction to Grove [ https://www.seeedstudio.com/document/pdf/Introduction%20to%20Grove.pdf ]  before your use of the product.



Tip

We prepared a blog What is MOSFET Transistor and How to use with Arduino? [ https://www.seeedstudio.com/blog/2020/01/15/what-is-mosfet-transistor-basics-uses-arduino-tutorial/ ] to help you get started the basics of MOSFET more easily!



Technical details

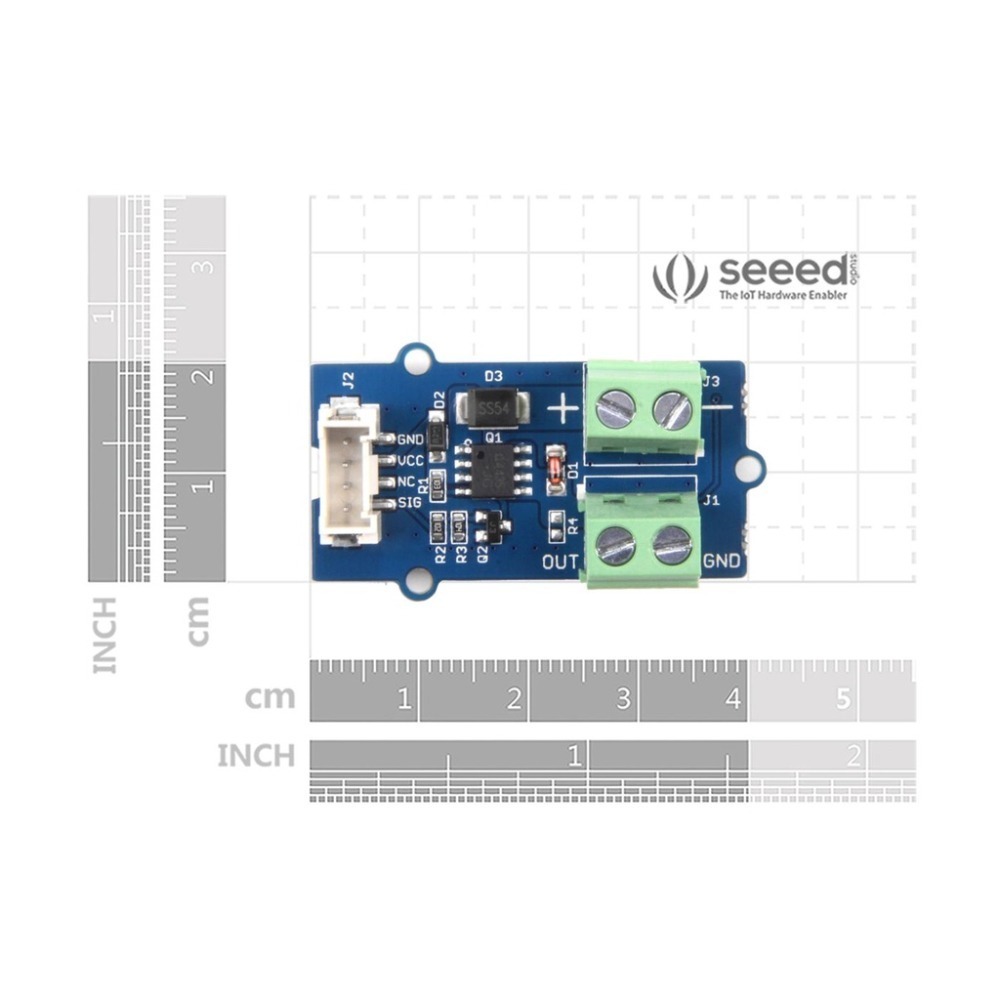

Dimensions40mm x20mm x15mm
WeightG.W 14g
BatteryExclude
Working voltage:5V
Vin:5 ~ 15V
MOSFET Model:CJQ4435

Part List

Grove - MOSFET1

ECCN/HTS

HSCODE8517709000
USHSCODE8517180050
UPC841454107934
EUHSCODE8517180000
COOCHINA
EU DoC1
RoHS1
UK DoC1


LEARN AND DOCUMENTS

Documentations

Resources

  • Grove - MOSFET Schematic [ https://raw.githubusercontent.com/SeeedDocument/Grove-MOSFET/master/res/Grove-MOSFET_Eagle_File.zip ]
  • Grove - MOSFET Schematic PDF [ https://github.com/SeeedDocument/Grove-MOSFET/raw/master/res/Grove%20-%20MOSFET%20.pdf ]
  • CJQ4435 Datasheet [ https://raw.githubusercontent.com/SeeedDocument/Grove-MOSFET/master/res/CJQ4435.pdf ]
  • MOSFET Wikipedia [ https://en.wikipedia.org/wiki/MOSFET ]
