[物聯汪汪]附發票~ Artech A5030 自動範圍三用電表、萬用電表可測交直流電壓電流電阻電容、二極體、頻率

商品編號:P0510700189125
原始貨號:P0510700189125

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 630
$ 670
預計出貨天數3天
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款
本商品適用活動
    • 折價券
    點我領取
    • 折價券
    點我領取
    • 折價券
    點我領取
    • 折價券
    點我領取
    • 折價券
    點我領取
MORE

商品特色

詳盡技術資料請見原廠或供應商 https://www.sparkfun.com/products/18342 [ https://www.sparkfun.com/products/18342 ]  料號:TOL-18342


The digital multimeter (DMM) is an essential tool in every electronic enthusiasts arsenal. This Smart Digital Multimeter, however, is not your average multimeter, it features a continuity sound at less than about 40±10Ω, current/voltage sense, and a Smart Measurement feature. You can use the multimeter to measure AC/DC voltage, AC/DC current, resistance, continuity, capacitance, frequency, temperature, EF, Hz DUTY, and test diodes.

With Smart Measurement this multimeter will auto identify the measurement of ACV, DCV, resistance and continuity. This multimeter will also auto range to the optimum range to provide the best resolution and accuracy for the input signal. An auto power off feature is also present on this multimeter. This meter will automatically shut off after approximately 15 minutes of operation.

Note: Two AA batteries are required to operate the Smart Multimeter. These are not included with this product and will need to be purchased separately.

Includes:

  • 1x Digital Smart Multimeter

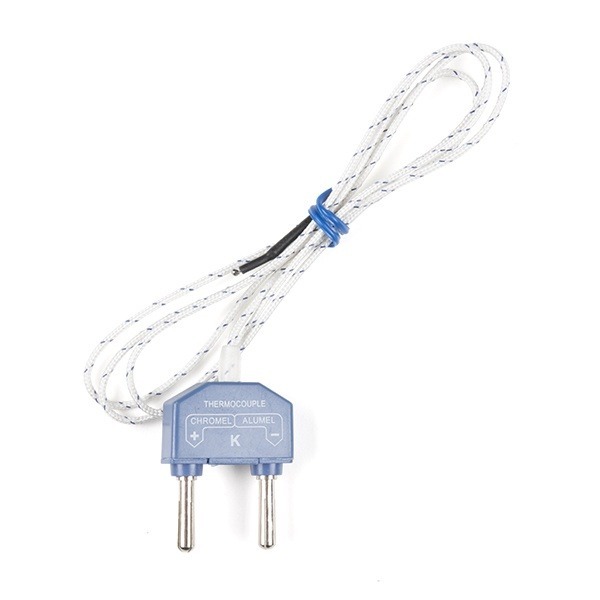

  • 1x Type K Thermocouple
  • 2x Testing Probes

Features:

  • DC Voltage: 600mV/6V/60V/600V/1000V
  • AC Voltage: 6V/60V/600V/750V
  • DC Current: 600uA/6000uA/60mA/600mA/6A/20A
  • AC Current: 600uA/6000uA/60mA/600mA/6A/20A
  • Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Frequency: 9.999/99.99/9.999K/99.99K/999.9K/9.999MHz
  • DUTY: 10%~90%
  • Capacitance: 9.999nF/99.99nF/999.9n/9.999u/99.99u/999.9uF
  • Temperature: -20~1000℃ / -4~1832℉
  • Diode: Open Voltage: 3.2V
  • Continuity: Buzzer sound at less than about 40±10Ω

Documents:

  • Datasheet [ https://cdn.sparkfun.com/assets/4/e/9/9/c/A5030_6000_Counts_T-RMS_DMM.pdf ]
