[物聯汪汪] 附發票~ Arduino UNO Mini Limited Edition 迷你經典限量版ABX00062

商品編號:P0510700189120 原始貨號:P0510700189120
$ 1,850
$ 1,960
預計出貨天數3
規格
  • 原裝主板

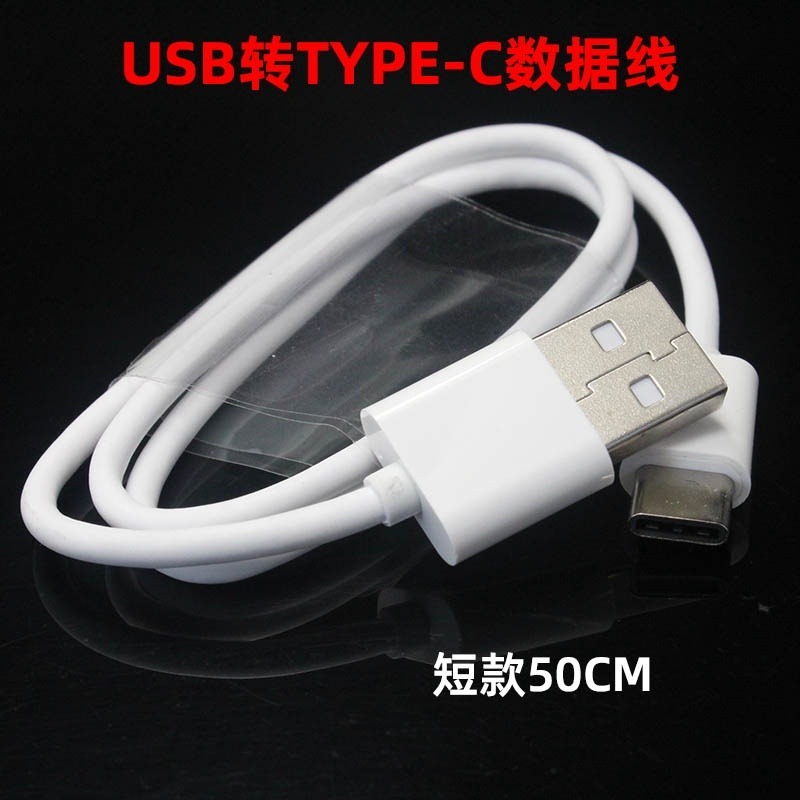

  • 主板+50cm Type-C 線
  • 主板+100cm Type-C 線
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://store-usa.arduino.cc/products/uno-mini-le [ https://store-usa.arduino.cc/products/uno-mini-le ]  料號:ABX00062

Overview

Celebrating the Arduino UNO with a miniaturized limited edition

The world's favorite development board has gone mini. Everything in this version of the Arduino UNO is unique. Black and gold, finishing, elegant design and packaging, all delivered to the highest standard. A little jewel to celebrate the Arduino community and what we’ve been doing together for all these years.

Each item is unique and numbered on the PCB, and includes a hand-signed letter from the founders. It’s a limited edition, so get while it’s in stock!

For serious Arduino UNO lovers

Arduino UNO Mini Limited Edition is a collector’s item for serious Arduino Lovers: hobbyists, students, makers, reimaginers, dreamers, hopers, fans, engineers, designers, questioners, cake-makers, problem-solvers, puzzlers, gamers, debaters, developers, entrepreneurs, architects, future-shapers, musicians, scientists... 10 million projects based on (official) Uno boards that have contributed to this incredible story.

Numero UNO in the Maker Space

“Uno” means one in Italian and was chosen in 2010 to mark the release of the Arduino IDE  1.0 software, five years after the Arduino project was born.
With over 10 million official UNO boards running amazing projects around the world, the Arduino UNO has been the number one choice for makers for over a decade.

This limited edition celebrates our most iconic board, and all of the amazing projects that our community has created over the years. The UNO Mini LE functions exactly as the classic UNO, so it can very easily be used in any UNO projects.

Getting Started

The Getting Started [ https://docs.arduino.cc/tutorials/uno-mini-le/uno-mini-le-guide ] section contains all the information you need to configure your board, use the Arduino Software (IDE) [ https://www.arduino.cc/en/software ] , and start tinkering with coding and electronics.


Tech specs

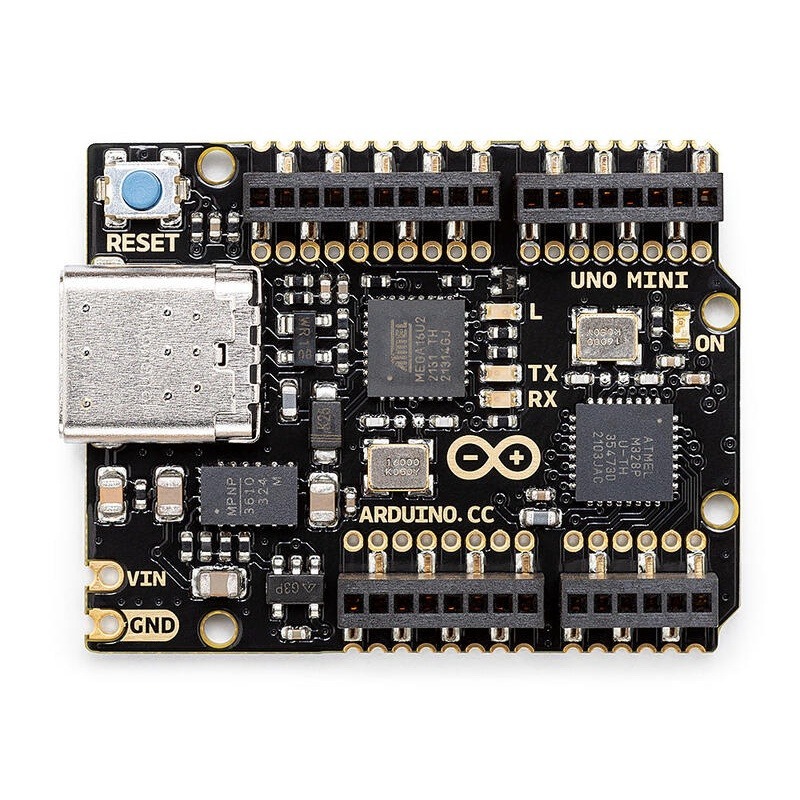

The Arduino UNO Mini LE is a microcontroller board based on the ATmega328P (datasheet). It has 14 digital inputs/outputs (six of which can be used as PWM outputs), six analog inputs, a 16MHz ceramic resonator, a USB-C connector, and a reset button. Contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable, use a power adapter, or connect a battery to get started.

MICROCONTROLLERATmega328P
USB CONNECTORUSB-C
BUILT-IN LED PIN13
DIGITAL I/O PINS14
ANALOG INPUT PINS6
PWM PINS6
UARTyes
I2Cyes
SPIyes
CIRCUIT OPERATING VOLTAGE5V
INPUT VOLTAGE (LIMIT)6-12V
BATTERY CONNECTORNone.
DC CURRENT PER I/O PIN20 mA
DC CURRENT FOR 3.3V PIN50 mA
MAIN PROCESSORATmega328P 16 MHz
USB-SERIAL PROCESSORATmega16U2 16 MHz
MEMORY ATMEGA328P2KB SRAM, 32KB FLASH, 1KB EEPROM
WEIGHT8.05 g
WIDTH26.70 mm
LENGTH34.20 mm



Documentation

This board is open-source hardware, get the sources here [ https://docs.arduino.cc/hardware/uno-mini-le ] .

CAD FILES IN .ZIP [ https://docs.arduino.cc/static/ac7d752cff09b2755d61abc737dbcdd9/ABX00062-cad-files.zip ]  SCHEMATICS IN .PDF [ https://docs.arduino.cc/hardware/uno-mini-le#resources ]  DATASHEET IN .PDF [ https://docs.arduino.cc/resources/datasheets/ABX00062-datasheet.pdf ]  FRITZING IN .FZPZ [ https://content.arduino.cc/assets/Arduino%20Uno%20Mini%20LE.fzpz ]
