詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/Grove-Electromagnet.html [ https://www.seeedstudio.com/Grove-Electromagnet.html ] 料號:101020073
PRODUCT DETAILS

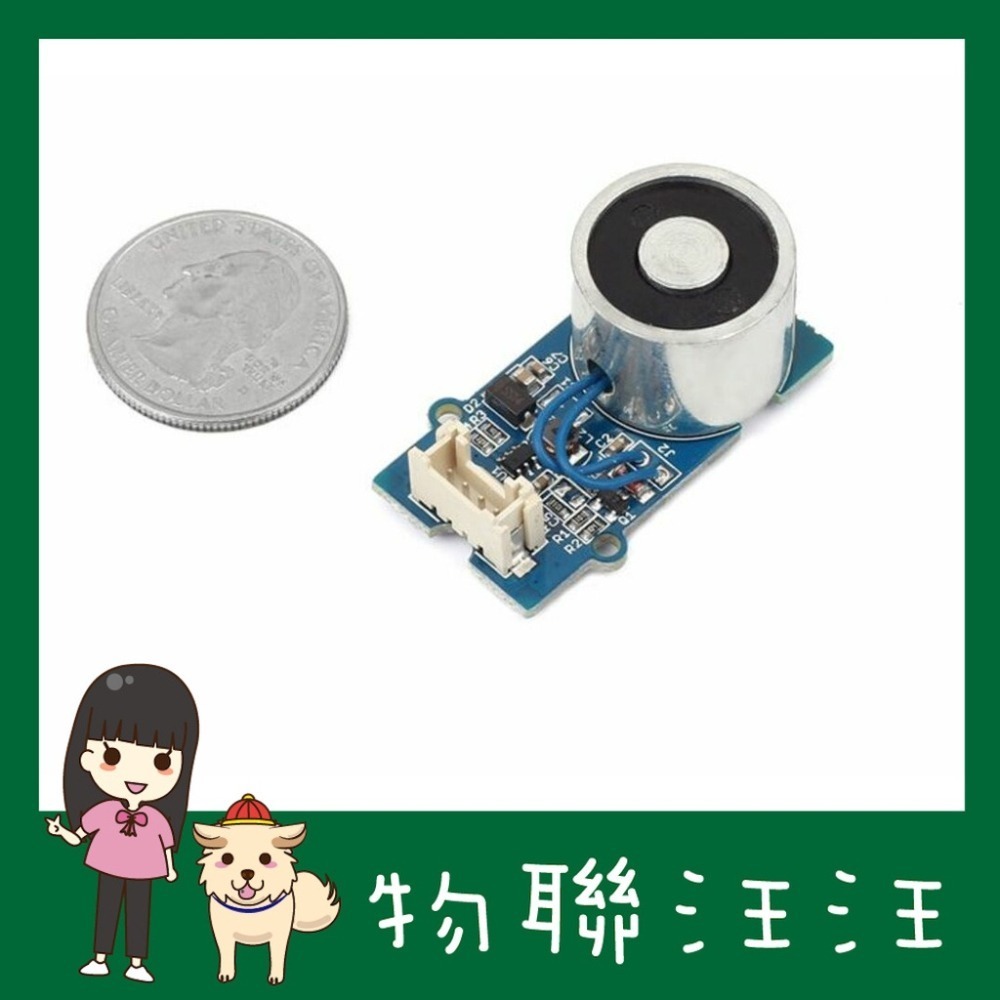

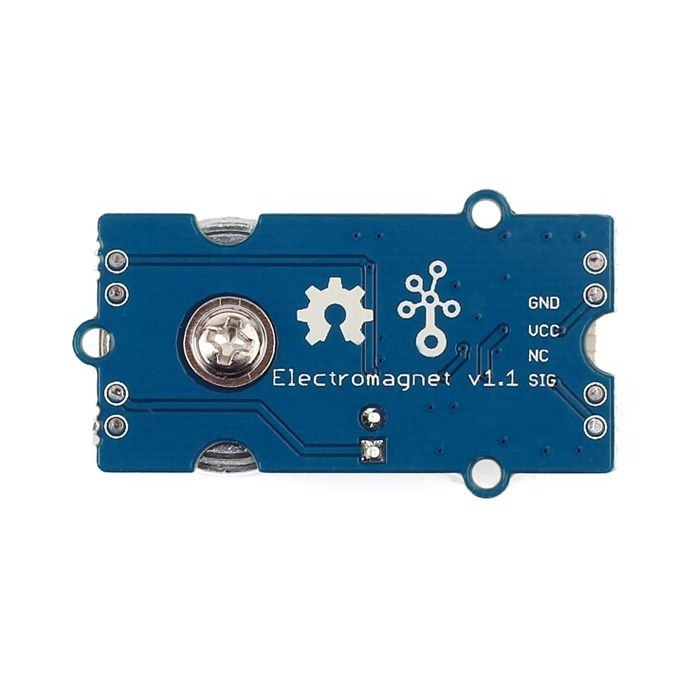

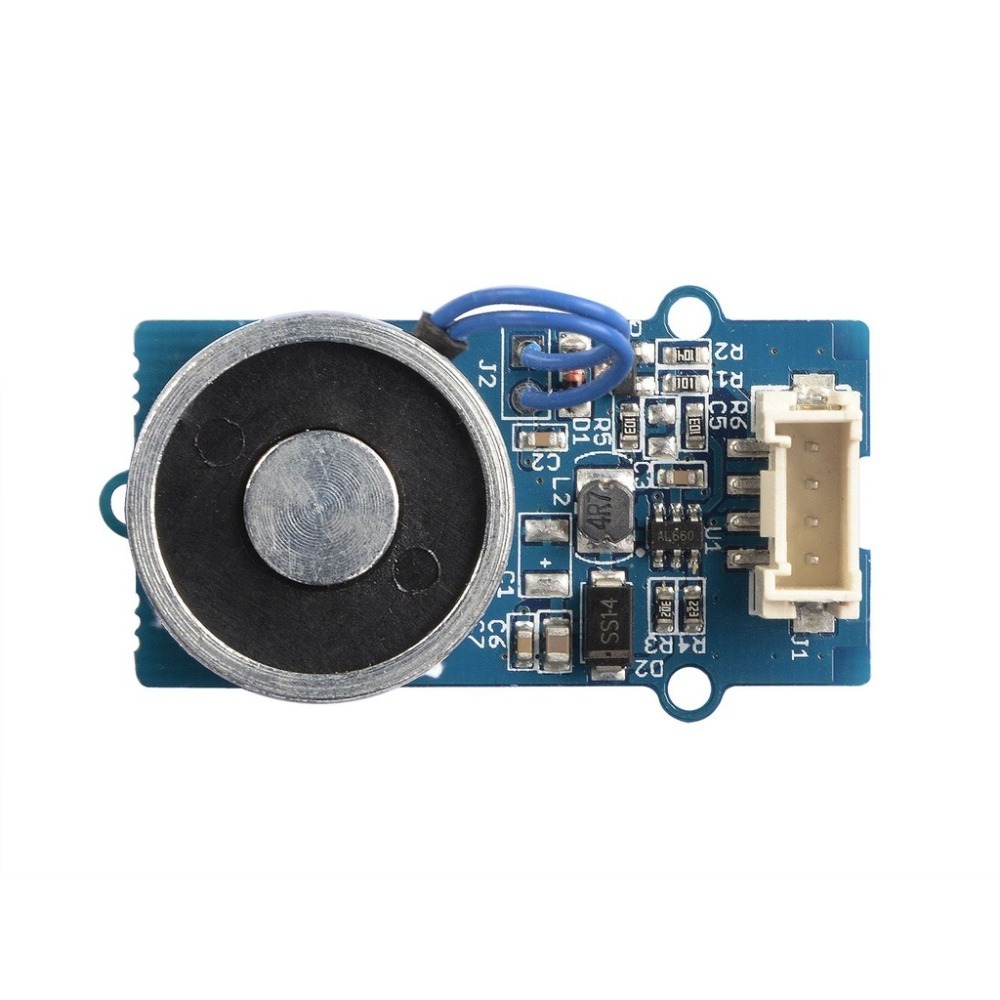

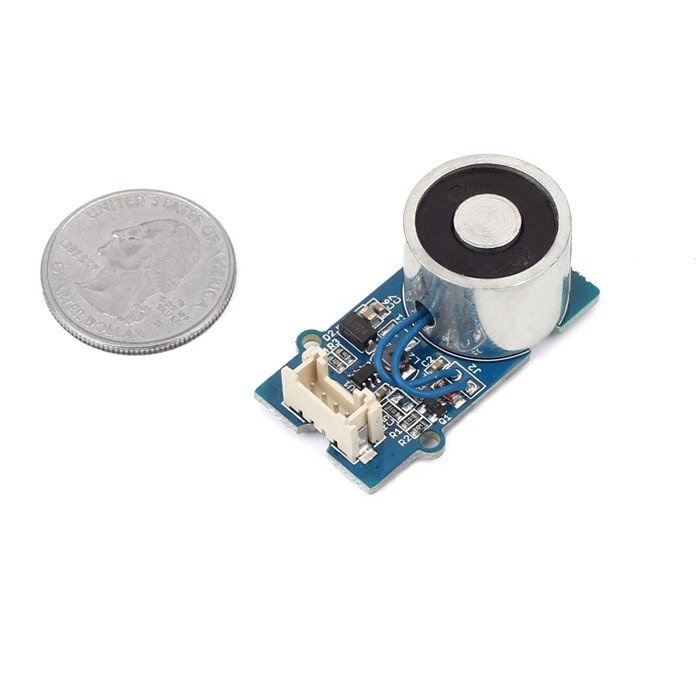

An electromagnet is a type of magnet in which the magnetic field is produced by electric current. An electric current flowing in a wire creates a magnetic field around the wire, due to Ampere's law(see drawing below). To concentrate the magnetic field, in an electromagnet the wire is wound into a coil with many turns of wire lying side by side. The magnetic field of all the turns of wire passes through the center of the coil, creating a strong magnetic field there. Grove - Electromagnet can shuck 1KG weight and hold on. it easy to use, to learn electromagnet principle.
Features
Grove shape
1KG peak suction
Low standby current
[ https://wiki.seeedstudio.com/Grove-Electromagnet/ ]
Specification
Working Voltage :DC 3.3/5V
Working Current : 400mA
Standby current : 200uA
Load Weight: 1KG
Technical details

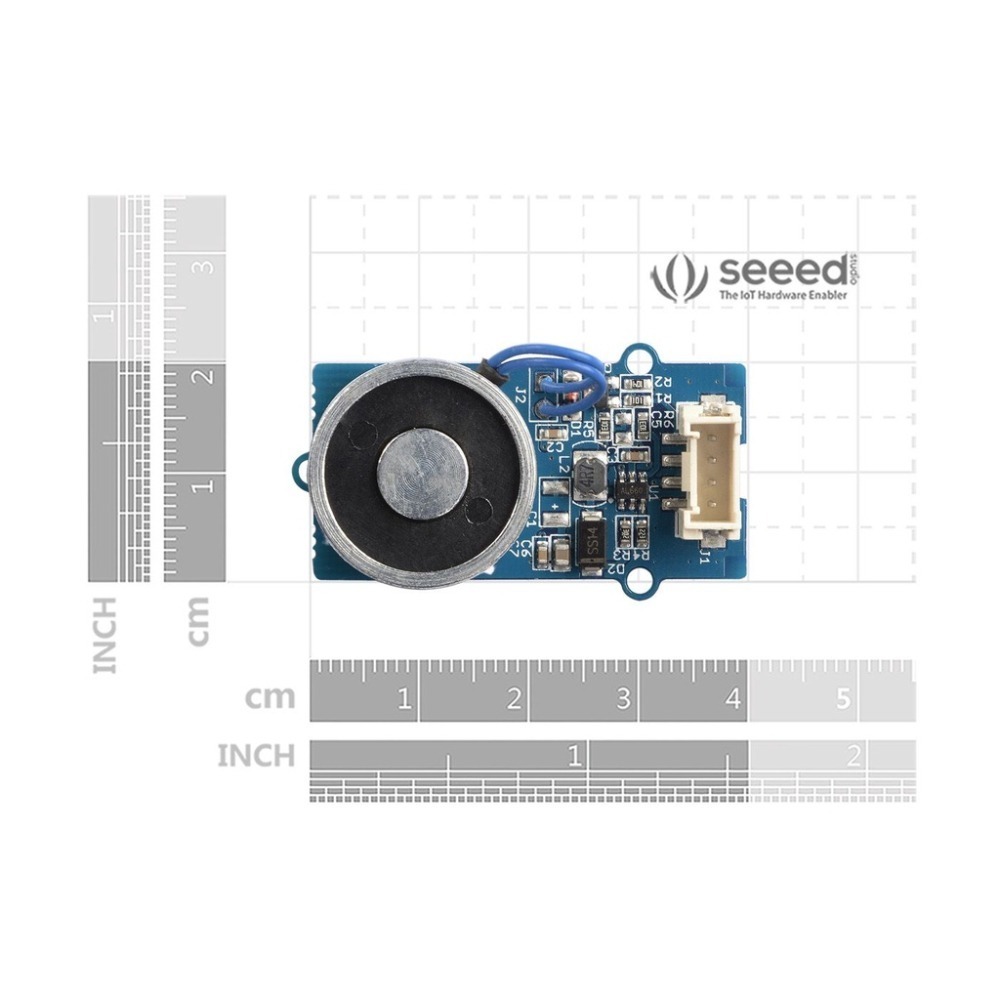

| Dimensions | 89mm x140mm x18.8mm |
| Weight | G.W 34g |
| Battery | Exclude |
Part List
| Grove - Electromagnet | 1 |
ECCN/HTS
| HSCODE | 9031900090 |
| USHSCODE | 9026104000 |
| UPC | 841454108467 |
| EUHSCODE | 9013101000 |
| COO | CHINA |
| EU DoC | 1 |
| RoHS | 1 |
| UK DoC | 1 |
LEARN AND DOCUMENTS
Documentations
Resources
- Grove_Electromagnet_v1.0_SCH_PCB [ https://raw.githubusercontent.com/SeeedDocument/Grove-Electromagnet/master/res/Grove_Electromagnet_v1.0_SCH_PCB.zip ]
- ZYE1-P electro holding magnets [ https://github.com/SeeedDocument/Bazaar_file/raw/master/101020073/ZYE1-P%20electro%20holding%20magnets.pdf ]
- Grove_Electromagnet_CDC_File [ https://raw.githubusercontent.com/SeeedDocument/Grove-Electromagnet/master/res/Grove_Electromagnet_CDC_File.zip ]
