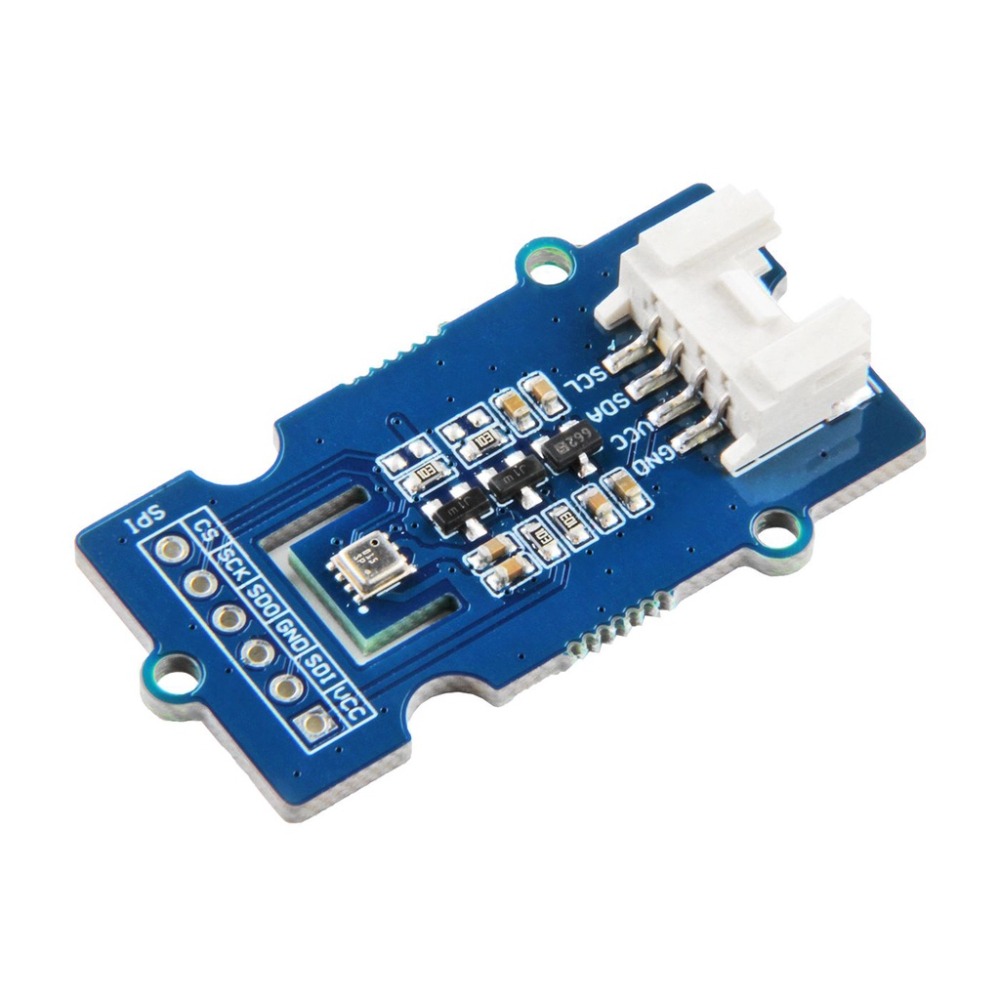

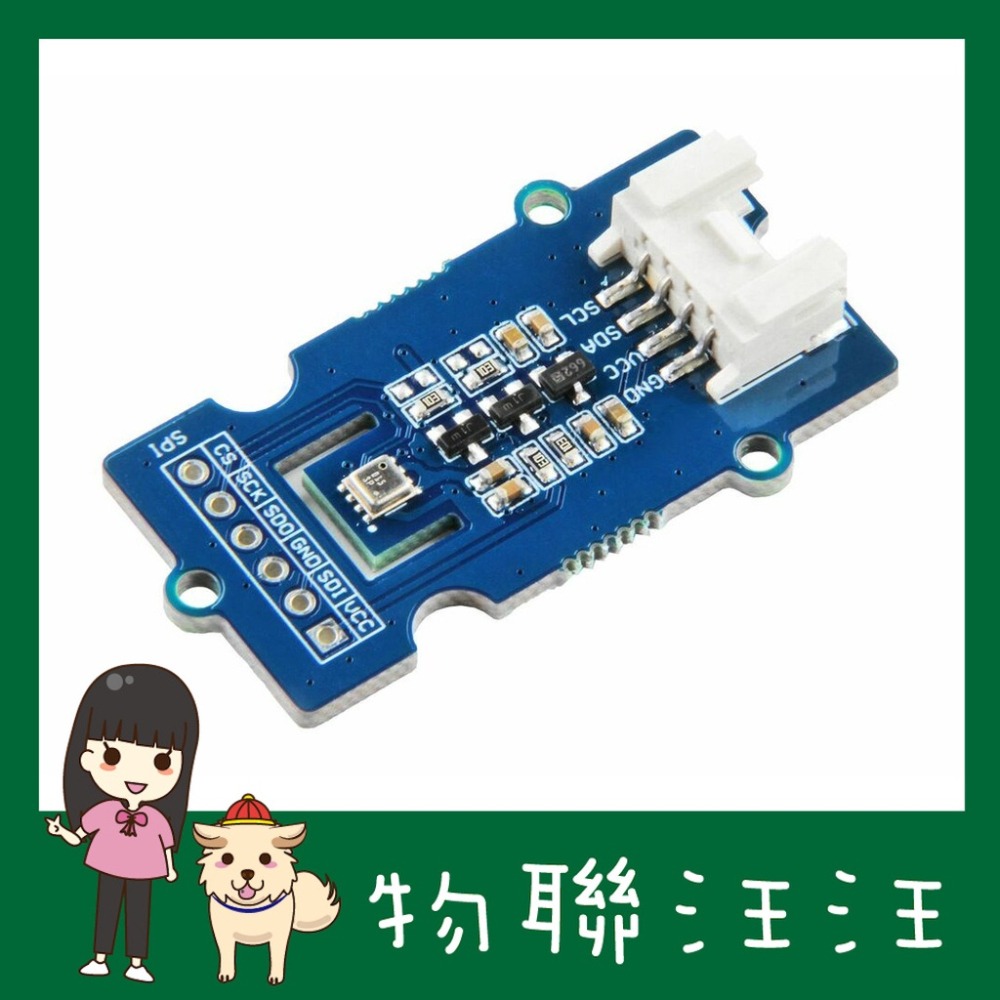

[物聯汪汪] 含稅附發票~ BME680 Grove 溫度、濕度、氣壓、與氣體四合一傳感器

商品編號:P0510700189083 原始貨號:P0510700189083
$ 690
$ 730
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/Grove-Temperature-Humidity-Pressure-and-Gas-Sensor-for-Arduino-BME680.html [ https://www.seeedstudio.com/Grove-Temperature-Humidity-Pressure-and-Gas-Sensor-for-Arduino-BME680.html ]  料號:101020513


溫馨提示

PRODUCT DETAILS

Grove BME680 sensor is a 4-in-1 environmental sensor with strong sensing capability for Temperature, Humidity, Pressure, and Gas even in a small package! It will be very beneficial to apply on GPS devices or IoT projects such as your own Arduino weather station or weather forecast system.



Features

  • High-performance environmental detection: The powerful BME680 module can simultaneously detect temperature and humidity, barometric pressure and gas, to achieve a stronger detection effect
  • Higher measurement accuracy: Measure humidity with ±3% accuracy, absolute temperature (0-65℃) accuracy ±1℃ and absolute/relative pressure accuracy ±0.6hPa/±0.12hPa
  • robust measurement range: works at a wide operating range of -40 ‒ +85 °C, 0‒100% r.H, 300‒1100 hPa
  • Safety certificate: The product is RoHS compliant, halogen-free, MSL1
  • Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications



Description

Based on the BME680 module, a 4-in-one MEMS environmental sensor can measure four parameters of VOC (volatile organic compounds), temperature, humidity, and air pressure. It supports a wide voltage input, compatible with a 3.3V/5V controller, and works at a wide operating range of -40‒+85 °C, 0‒100% r.H., 300‒1100 hPa.

Due to the use of MEMS technology, the sensor is small in size and low in power consumption, enabling several new capabilities for wearables and mobile devices and other applications for the Internet of Things (IoT), such as air quality measurement and home automation.

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Click to explore the Grove Sensor family [ https://wiki.seeedstudio.com/Sensor/ ] and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started [ https://www.seeedstudio.com/document/pdf/Preface.pdf ] and Introduction to Grove [ https://www.seeedstudio.com/document/pdf/Introduction%20to%20Grove.pdf ] before your use of the product.

To get more technical information and get started with this sensor, please refer to our wiki page: Grove - Temperature Humidity Pressure Gas Sensor(BME680) [ https://wiki.seeedstudio.com/Grove-Temperature_Humidity_Pressure_Gas_Sensor_BME680/ ] . Let's try it out!



Tips: We've released the Seeed Gas Sensor Selection Guide [ https://wiki.seeedstudio.com/Sensor_gas/ ] and Grove Selection Guide [ https://docs.google.com/spreadsheets/d/123yBkwL2mo8Zt2CCPW4_MX4TCSTSj8BVLRSmSZeEYzg/edit#gid=1056399402 ] or suitable for smart home series on Selection Guide of Grove Temperature and Humidity Sensor [ https://www.seeedstudio.com/blog/2022/11/11/selection-guide-of-grove-temperature-and-humidity-sensor-that-support-esphome/ ] . It will help you choose the sensor that best suits your needs.

Get Started with Industrial Sensors

SenseCAP S210x series industrial sensors provide an out-of-box experience for environmental sensing. Please refer to the S2101 Wireless Temperature and Humidity Sensor [ https://www.seeedstudio.com/SenseCAP-S2101-LoRaWAN-Air-Temperature-and-Humidity-Sensor-p-5354.html ] with higher performance and robustness for air temperature and humidity detection.

Applications

  • Indoor air quality monitor
  • Home automation and control
  • IoT device
  • Barometer
  • Weather forecast system using Arduino
  • GPS enhancement(e.g. time-to-first-fix improvement, dead reckoning, slope detection)
  • Indoor navigation(change of floor detection, elevator detection)
  • Vertical velocity indication(rise/sink speed)

Upgrade to Industrial Solutions

With the SenseCAP S2110 controller [ https://www.seeedstudio.com/SenseCAP-XIAO-LoRaWAN-Controller-p-5474.html ] and S2100 data logger [ https://www.seeedstudio.com/SenseCAP-S2100-LoRaWAN-Data-Logger-p-5361.html ] , you can easily turn the Grove into a LoRaWAN® sensor. Seeed not only helps you with prototyping but also offers you the possibility to expand your project with the SenseCAP series of robust industrial sensors [ https://www.seeedstudio.com/catalogsearch/result/?q=sensecap&categories=SenseCAP&application=Temperature%2FHumidity~Soil~Gas~Light~Weather~Water~Automation~Positioning~Machine%20Learning~Voice%20Recognition&compatibility=SenseCAP ] .

The IP66 housing, Bluetooth configuration, compatibility with the global LoRaWAN® network, built-in 19 Ah battery, and powerful support from APP make the SenseCAP S210x [ https://www.seeedstudio.com/catalogsearch/result/?q=S21&categories=SenseCAP~LoRaWAN%20Device&product_module=Device ] the best choice for industrial applications. The series includes sensors for soil moisture, air temperature and humidity, light intensity, CO2, EC, and an 8-in-1 weather station. Try the latest SenseCAP S210x for your next successful industrial project.

 [ https://www.seeedstudio.com/catalogsearch/result/?q=S21&categories=SenseCAP~LoRaWAN%20Device&compatibility=SenseCAP~Helium~TTN ]



Specifications

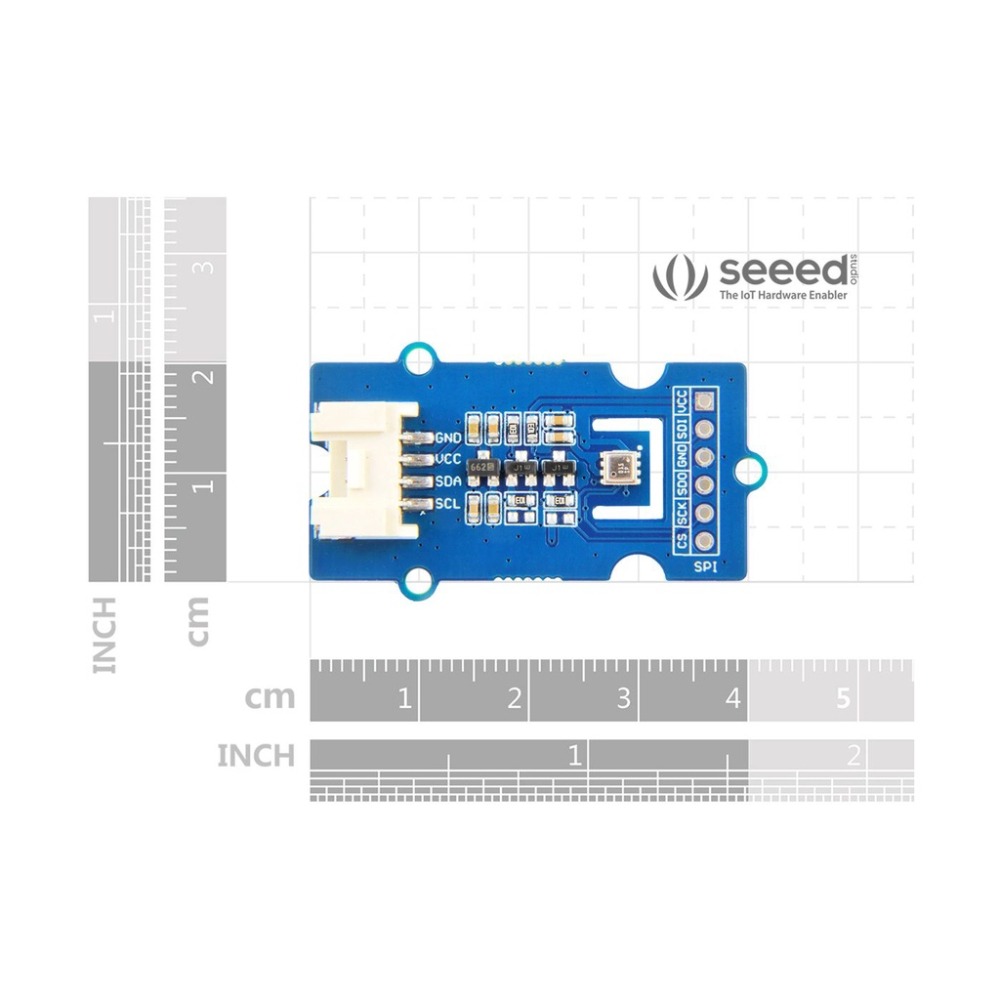

Dimensions40mm x20mm x7mm
WeightG.W 9.1g
BatteryExclude
Operating Voltage3.3V/5V
Operating Range-40~+85℃; 0-100% r.H.; 300-1100hPa
Humidity Absolute Accuracy± 3%r.H. (20-80 %r.H.,25℃)
Humidity Resolution0.008 %r.H.
Pressure Absolute Accuracy± 0.6 hPa (300-1100 hPa, 0-65℃)
Pressure Resolution0.18 Pa
Temperature Absolute Accuracy± 0.5℃ (25℃, At,25); ± 1℃ (0-65℃,At,full)
Temperature Resolution0.01℃
Digital InterfaceI²C(up to 3.4MHZ)/SPI(3 and 4 wire,up to 10MHz)

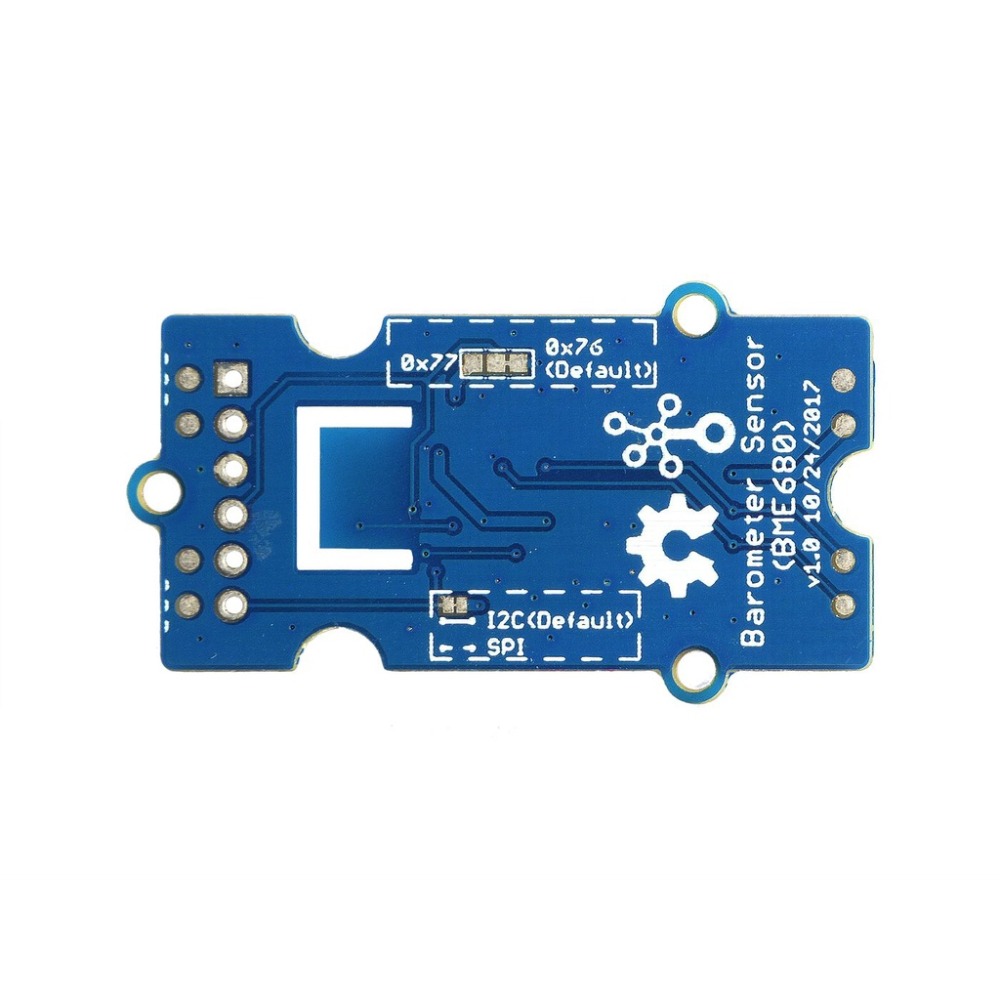

I²C address0x76(default)/ 0x77(optional)

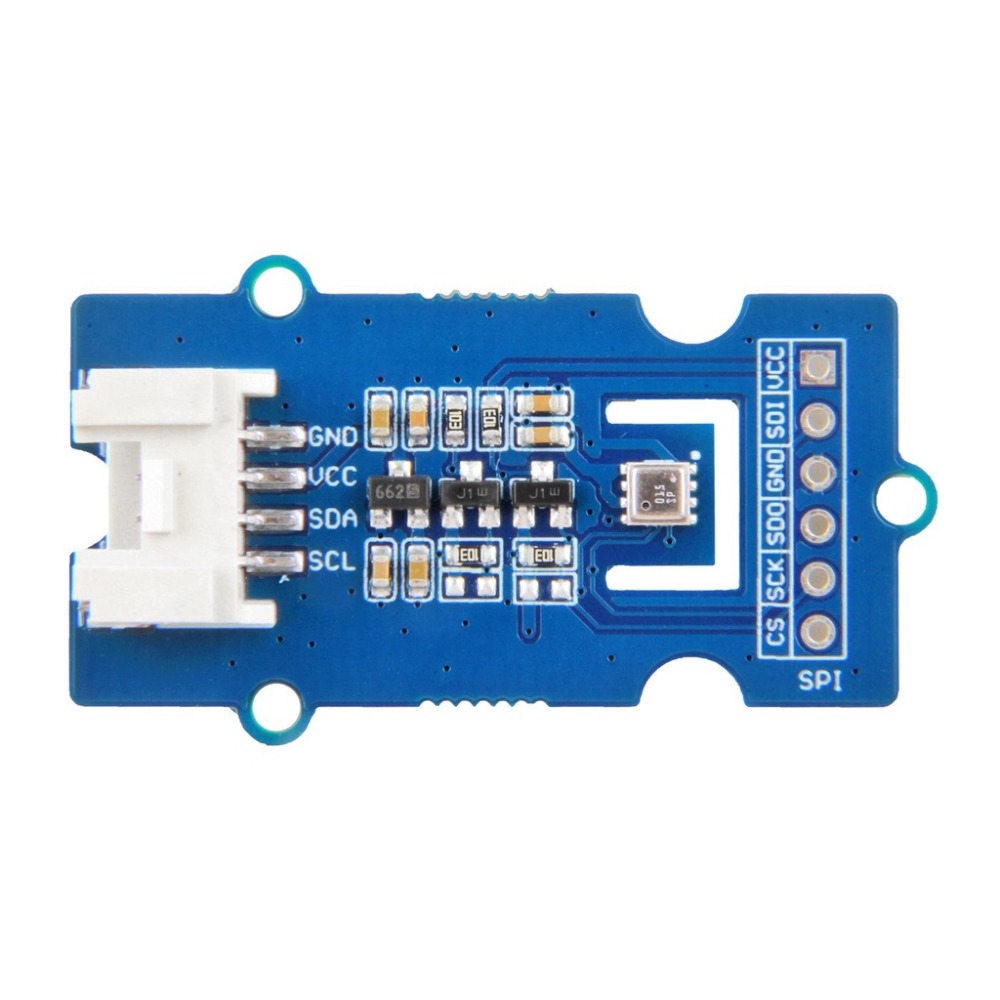

Hardware Overview

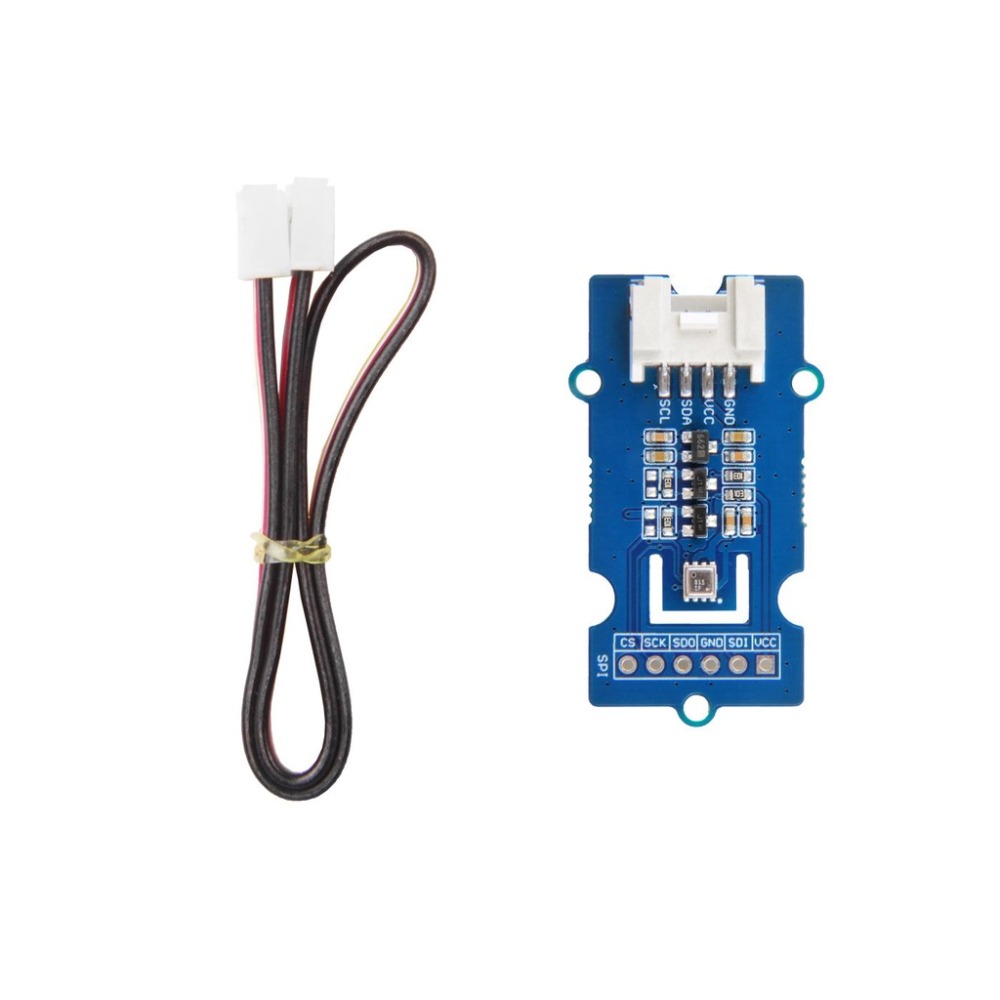

Part List



Grove - Temperature, Humidity, Pressure and Gas Sensor (BME680)



1



Grove cable



1











ECCN/HTS

HSCODE9025900090
USHSCODE9026104000
EUHSCODE9013101000
COOCHINA
EU DoC1
RoHS1
UK DoC1


LEARN AND DOCUMENTS

Documentations

  • Resources

    • Grove-BME680 Eagle file [ https://github.com/SeeedDocument/Grove-Temperature-Humidity-Pressure-Gas-Sensor_BME680/raw/master/res/Grove-Temperature-Humidity-Pressure-and-Gas-Sensor_BME680.zip ]
    • Seeed BME680 Library [ https://github.com/SeeedDocument/Grove-Temperature-Humidity-Pressure-Gas-Sensor_BME680/raw/master/res/Seeed_BME680-master.zip ]
    • Datasheet of BME680 [ https://github.com/SeeedDocument/Grove-Temperature-Humidity-Pressure-Gas-Sensor_BME680/raw/master/res/BME680.pdf ]
