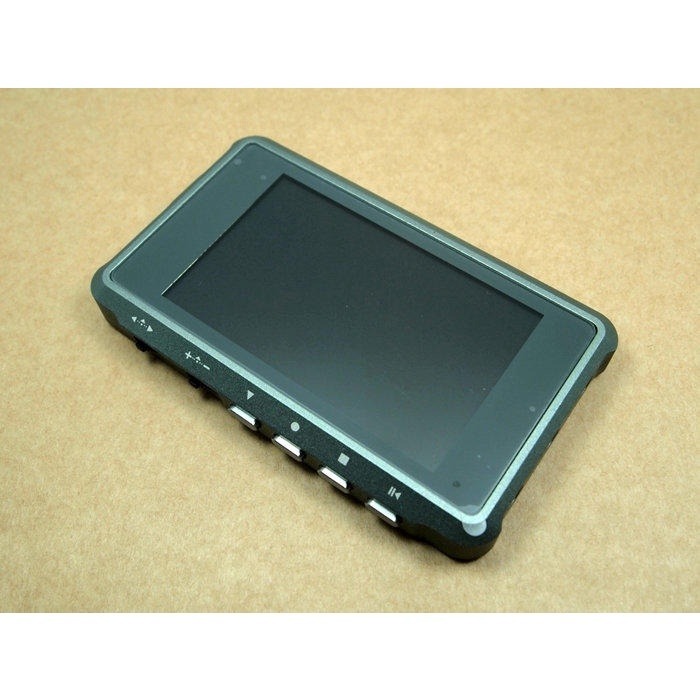

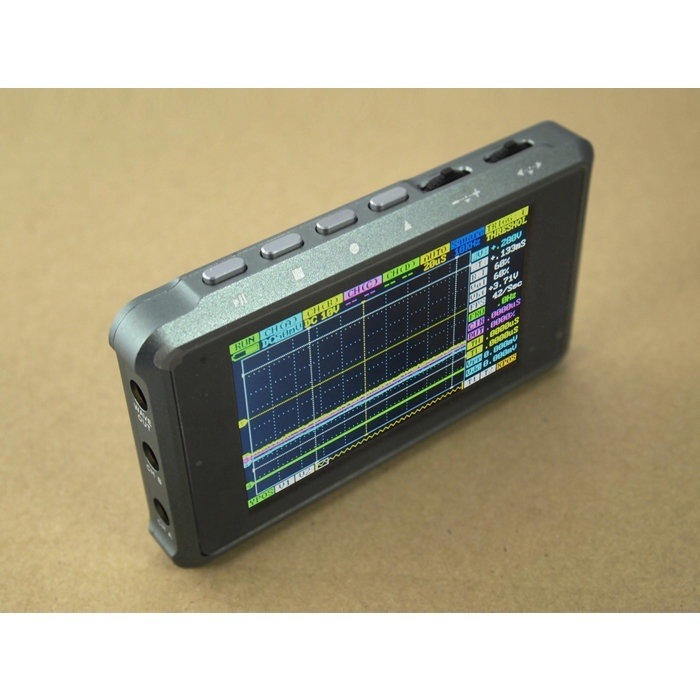

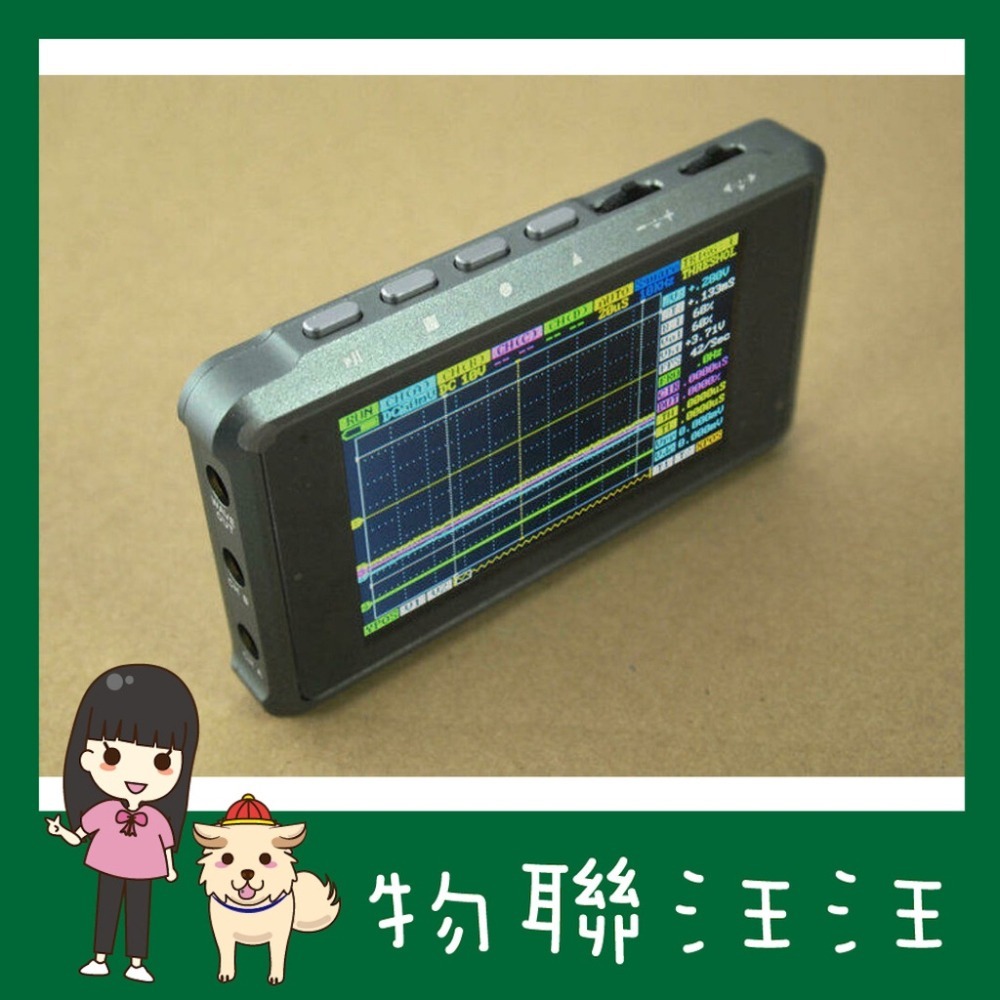

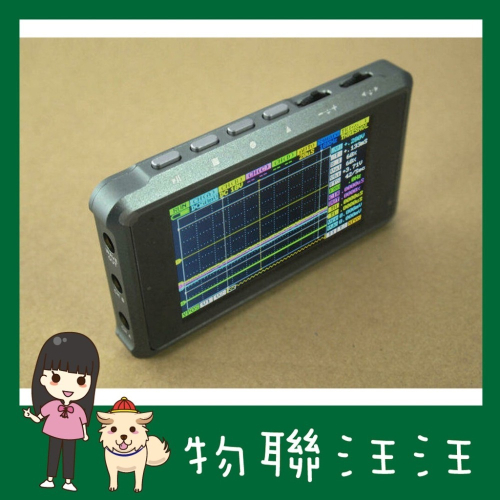

[物聯汪汪] DS203 DSO Quad 鋁殼版 STM32F103 72MSa/S四通道數位儲存示波器及波型產生器

商品編號:P0510700189082 原始貨號:P0510700189082

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 6,000
$ 6,350
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/DSO-Quad-Aluminium-Alloy-Silver-p-1033.html [ https://www.seeedstudio.com/DSO-Quad-Aluminium-Alloy-Silver-p-1033.html ]  料號:109990016



PRODUCT DETAILS

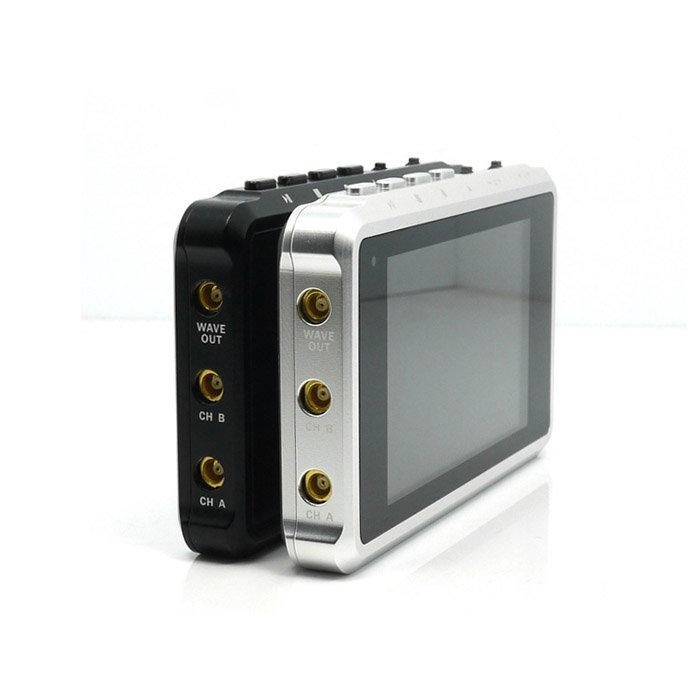

DSO Quad – Aluminum Alloy now is available at Seeed Studio. A new, rigid, elegant aluminum alloy shell makes the Quad even better. This is the coolest tool you should have on your worktable!



DSO Quad is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.



Note: Due to the metal conductive shell of DSO Quad, its operating voltage should be controlled under 60V during working in case of any damage to the Quad itself or human.



Features

  • Pocket size and light weight

  • Two 72MS/s analog channels, plus two digital channels

  • Signal Generator

  • Auto Measurement

  • Various Triggering Option

  • Easy waveform storage

  • Firmware upgrade

  • User applications

  • Open source



Technical details

Dimensions190mm x110mm x49mm
WeightG.W 328g
BatteryLithium Cells / Batteries contained in equipment UN3481 - PI967
Analog channel * 2[CH_A] [CH_B]
Digital channel * 2[CH_C] [CH_D]
Vertical Scale20mV-10V/div (x1 probe)
Vertical solution8 bit
Input couplingAC/DC
Max input voltage80Vpp (x1 probe)
Storage4K per channel
Software trigger typeedge, pulse, level (to be added)
Hardware trigger typeedge
Trigger sourceCH1/CH2/EXT
Test Signal generator10Hz to 1Mhz
Storageinternal 2MB USB disk
Auto measureVmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Cursor measurementLevel, Voltage
Display modeCH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Sampling modereal time
Sampling rate1kSa/s - 72MSa/S
PowerLipo battery
Dimension98 * 60 * 14.5
Weight80g (without battery)
Accessories within Pack2 mueller mcx oscilloscope probe, 2 digital probe

Part List

DSO Quad1
Battery1
Mueller mcx oscilloscope probe2
Digital probe3
Screwdriver1

ECCN/HTS

HSCODE9030201000
USHSCODE90302010
UPC841454110286
COOCHINA
RoHS1


LEARN AND DOCUMENTS

Documentations

  • Resources

    • Schematic and firmware (HW2.2 ~ HW2.72) [ https://wiki.seeedstudio.com/DSO_Quad/#upgrading-firmware ]

    • Discussion board with resouces for HW2.6 [ https://forum.seeedstudio.com/viewtopic.php?f=22&t=1929 ]

    • DS203_yijian_app_user_manual.rar‎ [ https://github.com/SeeedDocument/DSO_Quad/raw/master/res/DS203_yijian_app_user_manual.rar ]

    • DSO Quad Manual [ https://github.com/SeeedDocument/DSO_Quad/raw/master/res/DSO203_user_Guide_2.pdf ]
