[物聯汪汪] 附發票~ CANBed - Arduino CAN-Bus RP2040 開發板同樹莓派 Pico MCU

商品編號:P0510700189010 原始貨號:P0510700189010

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 650
$ 690
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/CANBed-RP2040-CAN-Bus-development-board-p-5262.html [ https://www.seeedstudio.com/CANBed-RP2040-CAN-Bus-development-board-p-5262.html ]  料號:102991596


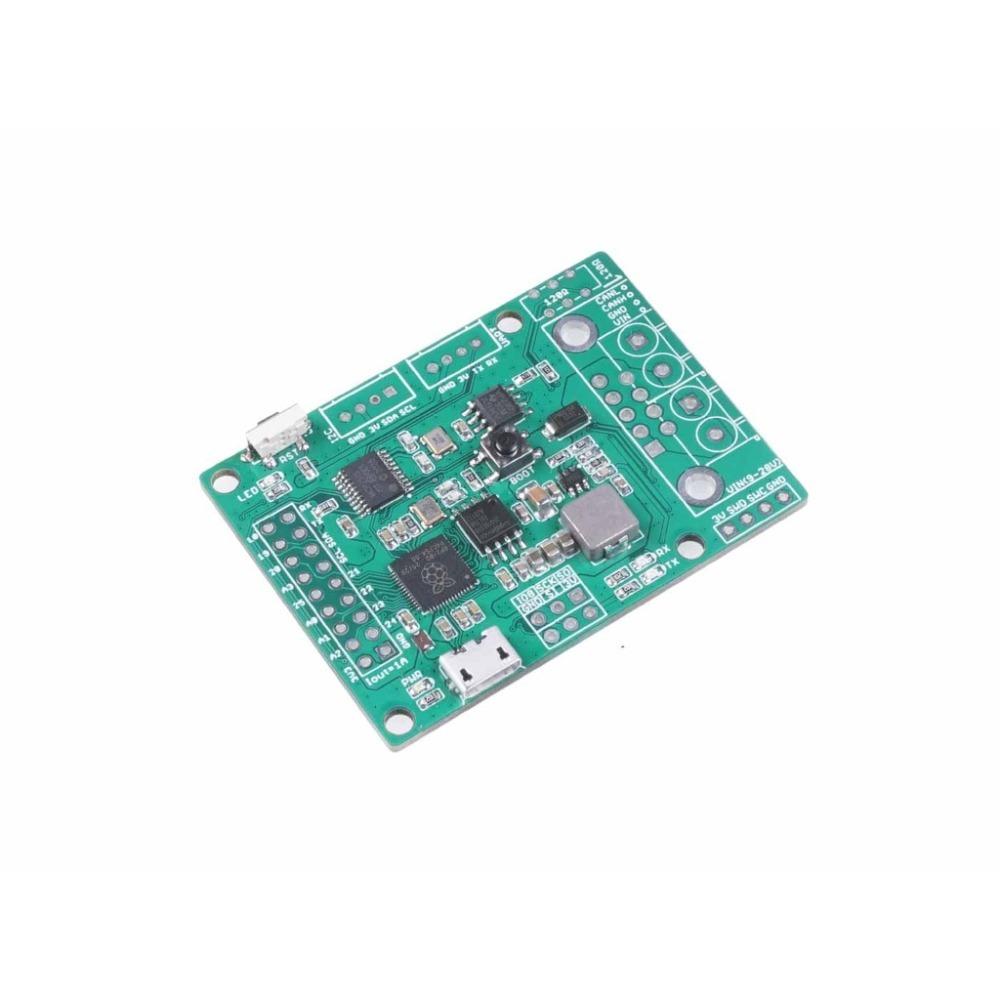

PRODUCT DETAILS

Features

  • Powerful Raspberry Pi RP2040 processor
  • Implements CAN V2.0B at up to 1 Mb/s
  • Industrial standard 9 pin sub-D connector or 4PIN Terminal.
  • OBD-II and CAN standard pinout selectable at the sub-D connector
  • 2x4Pin Connector compatible with Grove system from Seeedstudio
  • SPI Interface
  • Standard (11 bit) and extended (29 bit) data and remote frames
  • Power input from 9-28V

Description

The CANBed RP2040 version has been changed from V1.0 into V1.1. For further information, please check here [ https://docs.longan-labs.cc/1030018/#reference ] .

CANBed RP2040 is a CAN Bus development board equipped with an RP2040 chip with a high-performance MCP2515 CAN controller and MCP2551 CAN receiver operating at CAN2.0 protocols in 133MHz. The board contains a flexible CAN interface where it can be used 4-PIN Terminal or D89 connector. D89 connector can be directly used as OBD-II mode by default and the hardware can be configured as CAN Open mode as well. Additionally, it has a rich interface in which there is a Micro USB connector that can be programmed instead of supplying power. It also has I2C, UART, SPI, 3 analog input interfaces, and 8 digital IO with 2MB of Flash and 264KB of RAM which make it suitable for most embedded applications.

If you want to use this board to develop OBD-related applications, click to get a DB9 to OBD-II cable.

We use a flexible way for the CAN interface. You can use 4PIN Terminal or DB9 connector. DB9 connector uses OBD-II mode by default. You can also configure CAN Open mode on the hardware. The voltage input range of the CAN interface is 9-28V, which can provide a stable 3.3V/1A output.

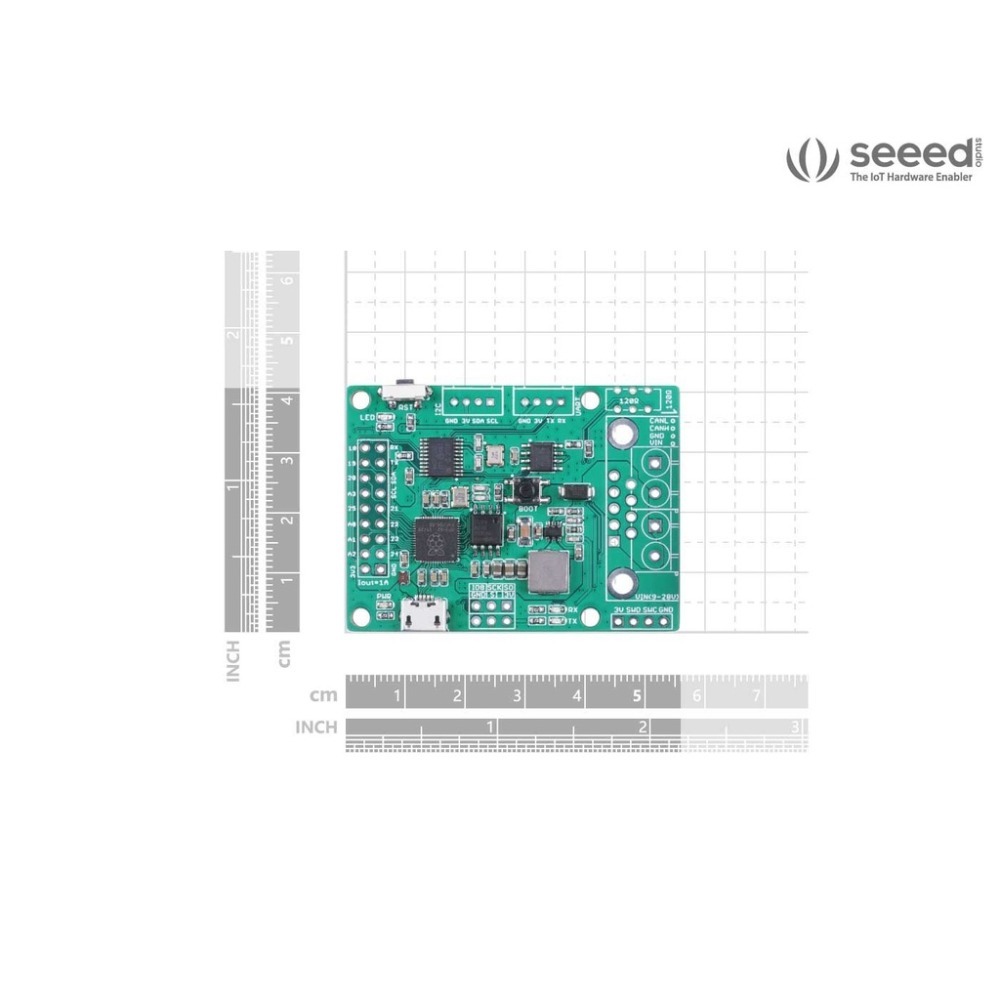

Specification

ParameterValue
MCURP2040
Clock Speedflexible clock running up to 133 MHz
Flash Memory2MB
RAM264KB
Operate Voltage9-28V
Output Current @ 3.3V1A
Input Interfacesub-D



Application

  • Hack and Upgrade Your Car
  • Vehicle dynamics control system
  • Attitude and orbit control system



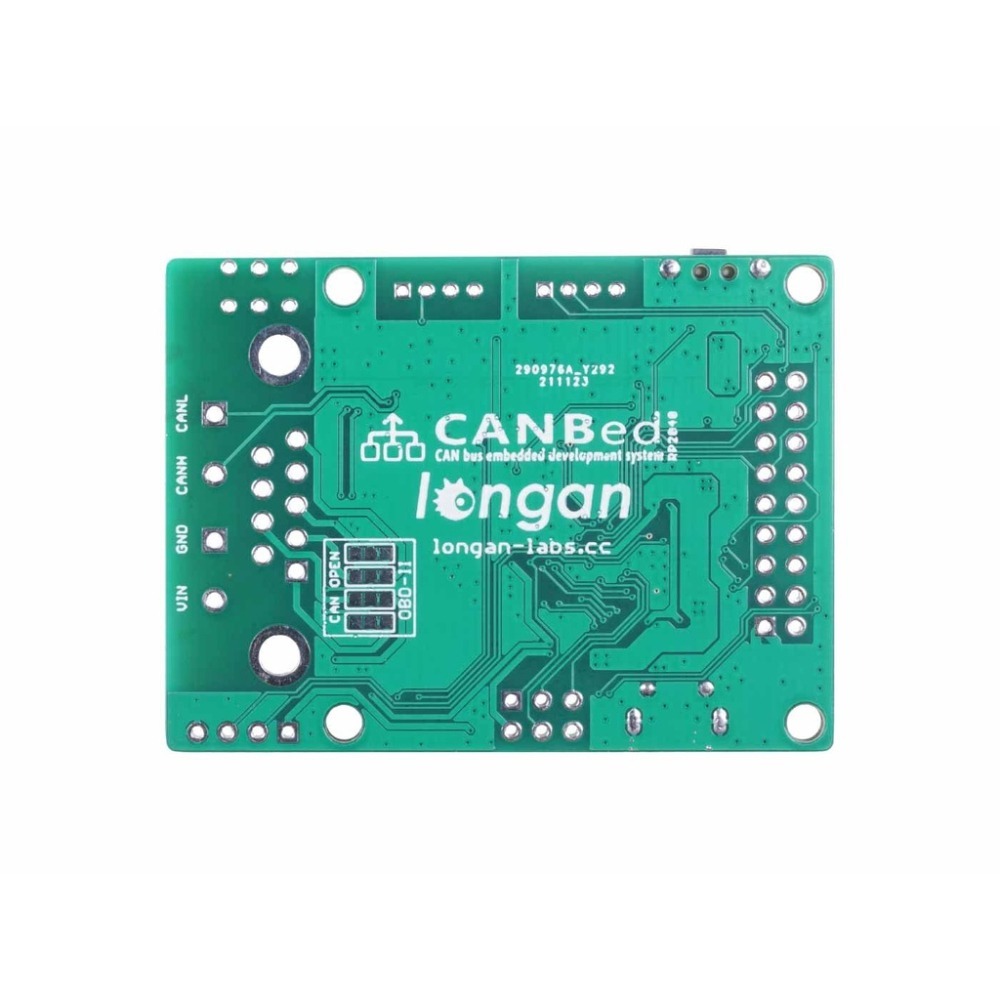

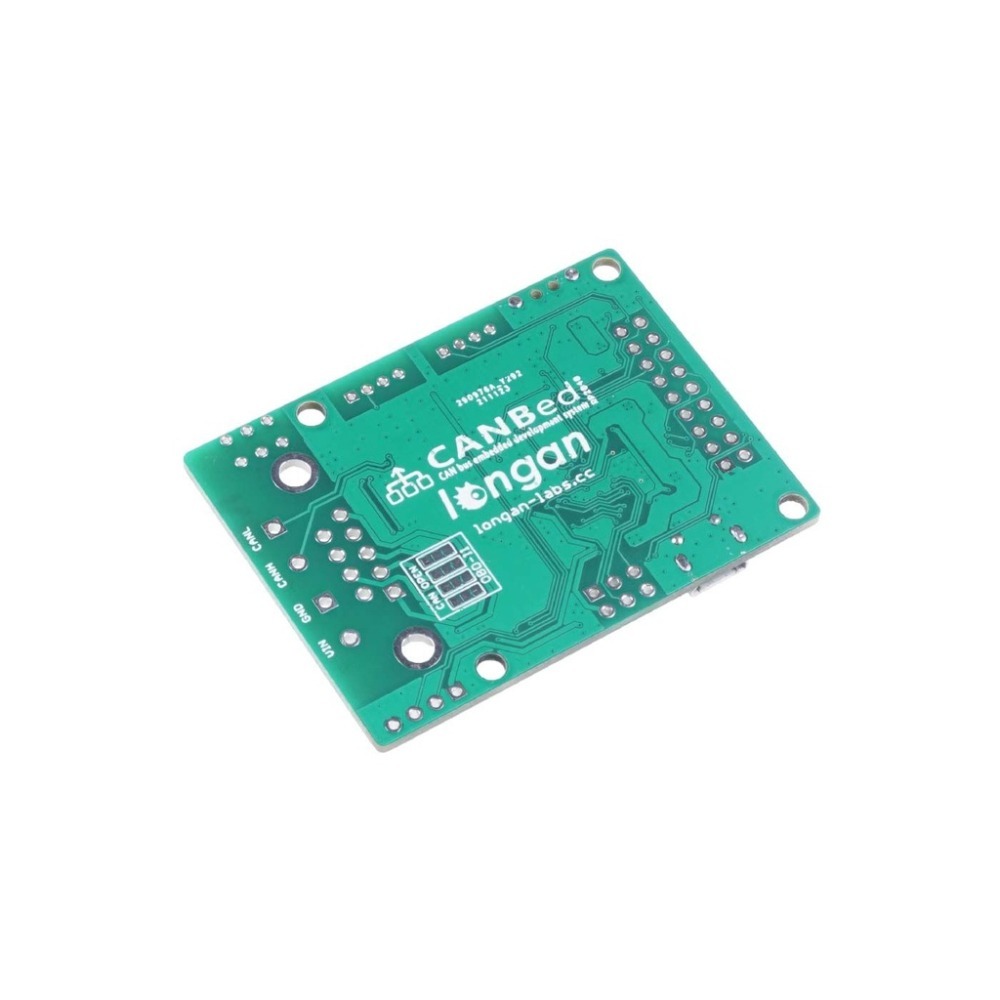

Hardware Pinout

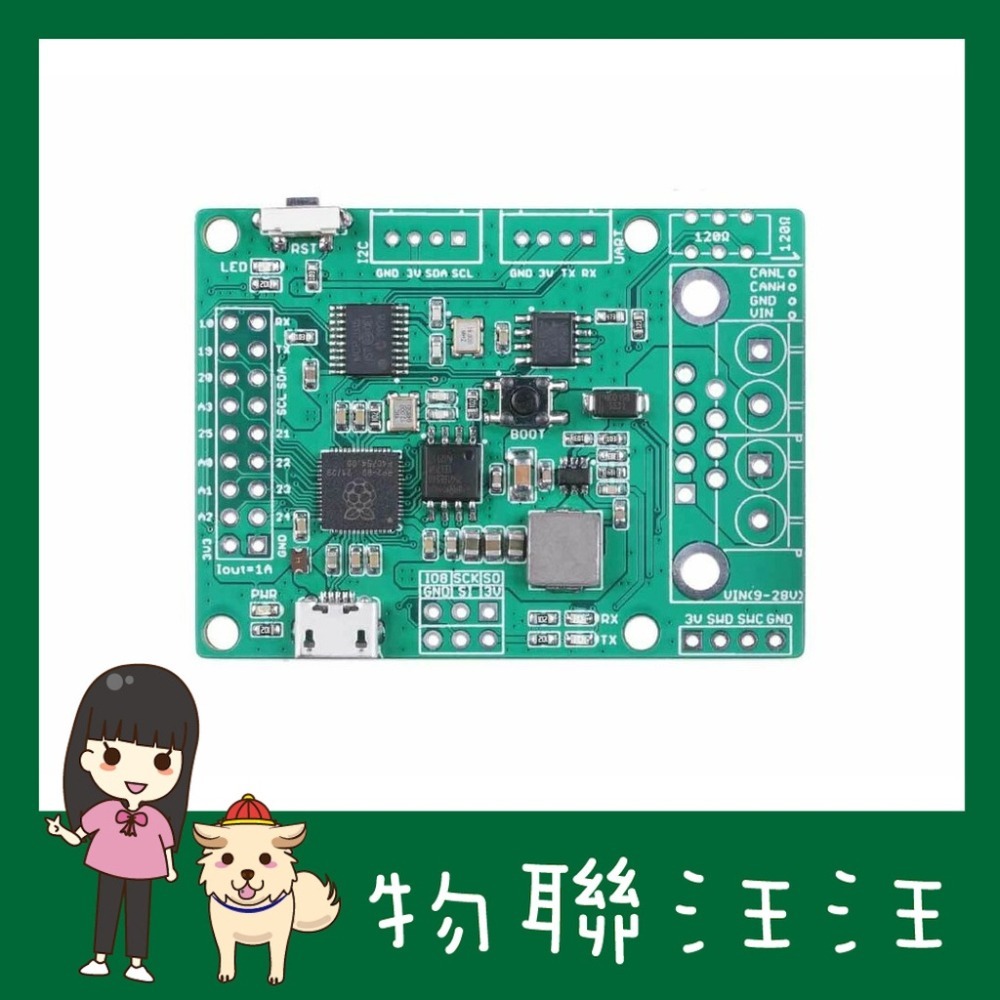

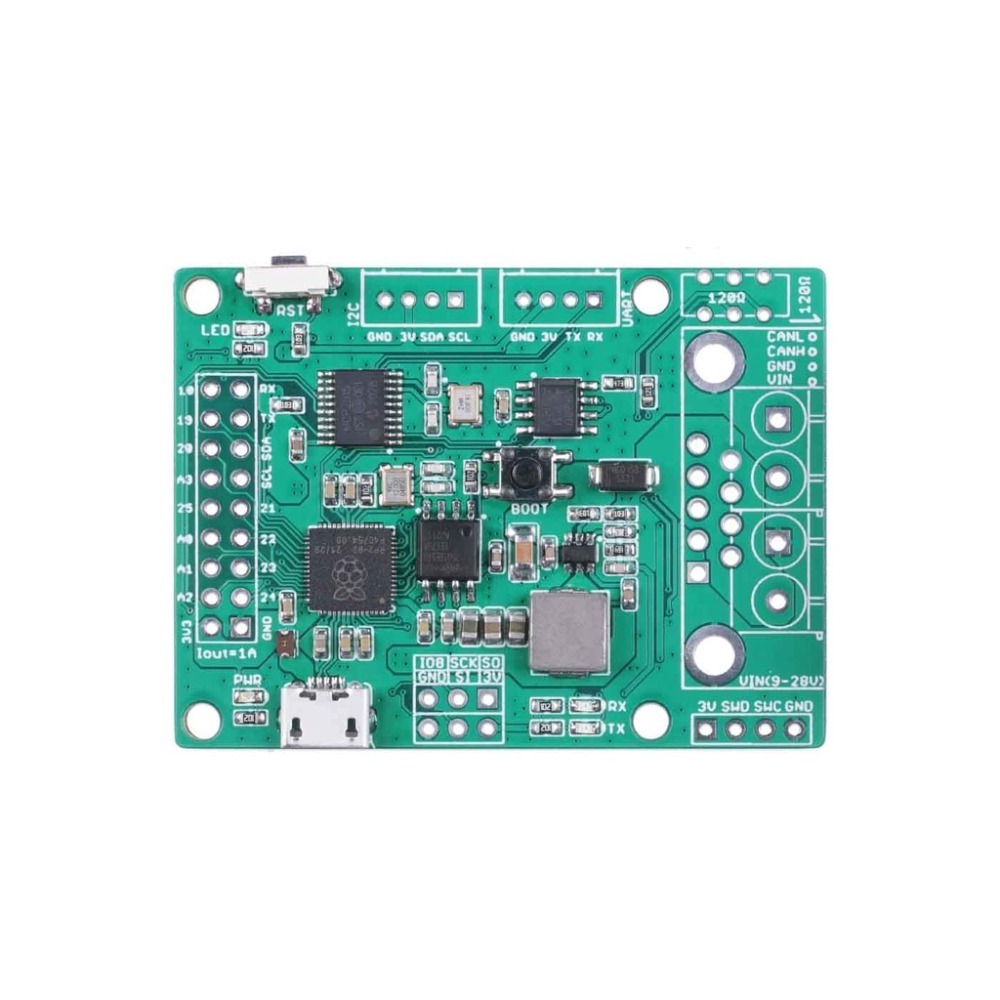

1. GPIO - 9x2 I/O Pin OUT:
2. Micro USB connector for programming
3. SPI Interface
4. CAN RX/TX Indicator
5. DB9 connector or Terminal for CAN Bus
6. Switch for the 120Ω terminal resistor for CAN Bus
7. Grove connector for UART
8. Grove connector for I2C (Wire1)
9. Reset



CAN Bus Family in Seeed

 [ https://www.seeedstudio.com/vehicle-hacking-tools ]

CAN-BUS series product selection reference is provided here. The table compares NEW-Release Wio-E5 CAN, CANBed v1, CANBed FD, CANBed M4, and CANBed RP2040 in terms of MCU, protocol, memory, interface, etc.

Items

Wio-E5 CAN [ https://www.seeedstudio.com/LoRa-E5-CAN-FD-dev-kit-CANBUS-p-5398.html ]

CANBed v1 [ https://www.seeedstudio.com/canbed-arduino-can-bus-development-kit-atmega32u4-with-mcp2515-and-mcp2551-p-4365.html ]

CANBed FD [ https://www.seeedstudio.com/CANBed-FD-Arduino-CAN-FD-Development-Kit-p-4724.html ]

CANBed M4 [ https://www.seeedstudio.com/Canbed-M4-p-4782.html ]

CANBed RP2040

CANBed Dual [ https://www.seeedstudio.com/CANBed-DUAL-RP2040-based-Arduino-CAN-Bus-dev-board-2-independent-CAN2-0-CAN-FD-p-5377.html ]

MCU

Wio-E5 (STM32WLE5JC)

ATmega32U4(with Arduino Leonardo bootloader)

ATmega 32U4 (with Arduino Leonardo bootloader)

ATSAME51 32bit Cortex M4 core

RP2040
(Dual ARM Cortex-M0+)

RP2040

(Dual ARM Cortex-M0+)

Clock Speed

up to 48MHz

16MHz

16MHz

120MHz

up to 133 MHz

133MHz

Protocol

Long Range,RS485,CANFD & CAN2.0

CAN2.0

CANFD & CAN2.0

CANFD & CAN2.0

CAN2.0

CANFD & CAN2.0

Flash Memory

256KB

32KB

32KB

512KB

2MB

2MB

SRAM

64KB

2.5KB

2.5KB

192KB

264KB

264KB

EEPROM

-

1KB

1KB

-

-



Operate Voltage(CAN-BUS)

4.5~28V

9-28V

7-28V

7~28V

9-28V



9-28V

Operate Voltage (MicroUSB)

5V

5V

5V

5V

3.3V

5V

Lipo Battery

3.7V

-

-

-

-

-

Input Interface

9 pin sub-D or 4PIN Terminal

9 pin sub-D or 4PIN Terminal

sub-D or 4PIN Terminal

sub-D as well as Terminal

sub-D

Sub-D

Price

$39.90

$24.90

$17.90

$19.90

$15.90

$14.9

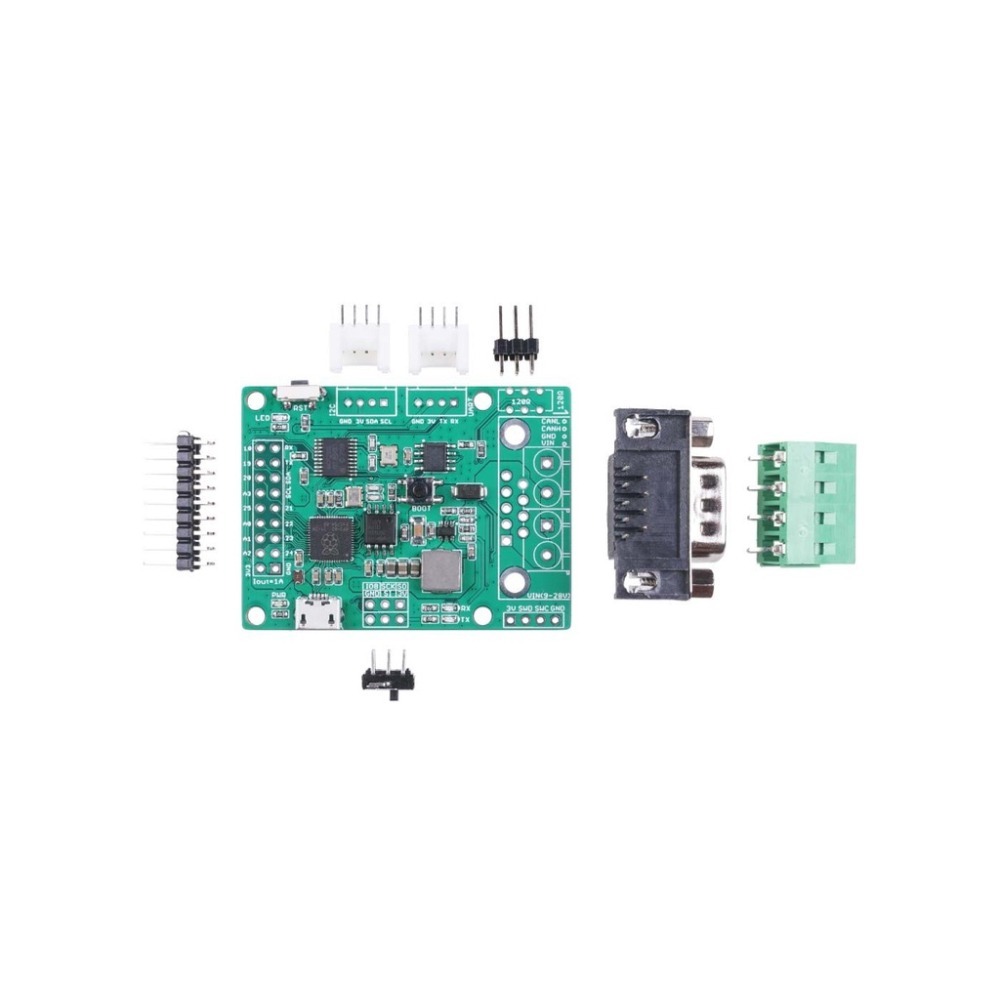

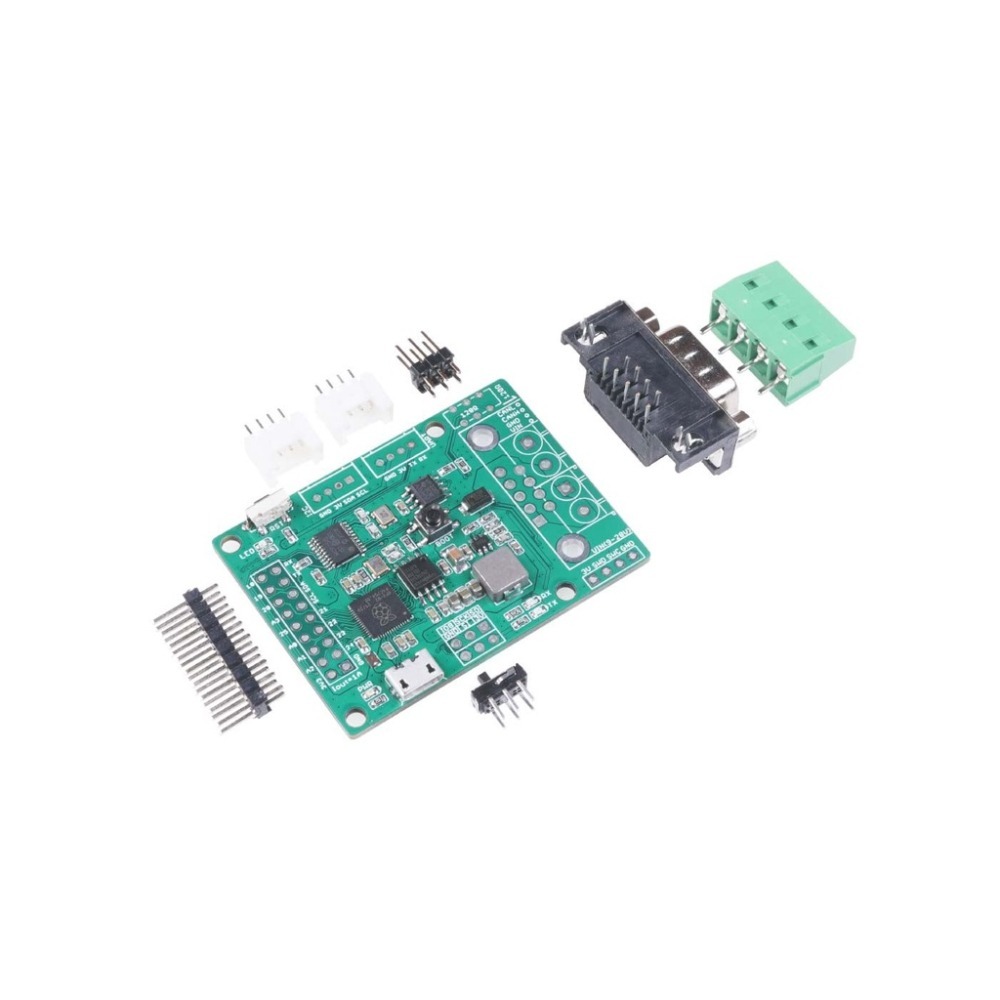

Part List

CANBed 2040 PCBAx1
Sub-D connectorx1
4PIN Terminalx1
4PIN HY2.0 Connectorx2
9x2 2.54 Headerx1
3x3 2.54 Headerx1
Switch for 120Ω terminal resistorx1
