[物聯汪汪] 附發票~ RF Explorer 6G WB PLUS - Slim 15-6100MHz超寬頻譜分析儀

商品編號:P0510700188991 原始貨號:P0510700188991

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 15,500
$ 16,430
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/RF-Explorer-6G-WB-PLUS-SLIM-p-5371.html [ https://www.seeedstudio.com/RF-Explorer-6G-WB-PLUS-SLIM-p-5371.html ]  料號:114992756


溫馨提示

2022 年 RF-Explorer 家族最佳性價比成員

  • 掃描自 15MHz 到 6.1GHz。中間無任何間隔!加購 licence 後可達到 7.5GHz!
  • 標準 span 為 600Mhz,加購 licence 後可達到 3GHz。



PRODUCT DETAILS

Features

  • Internal LNA amplifier and selectable attenuator for additional power range handling.
  • Low frequency support from 15MHz covering LF, MF, HF, VHF and UHF
  • High frequency support covering all range up to 6.1GHz with no gaps.
  • New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
  • Ideal choice for all usable HAM bands.

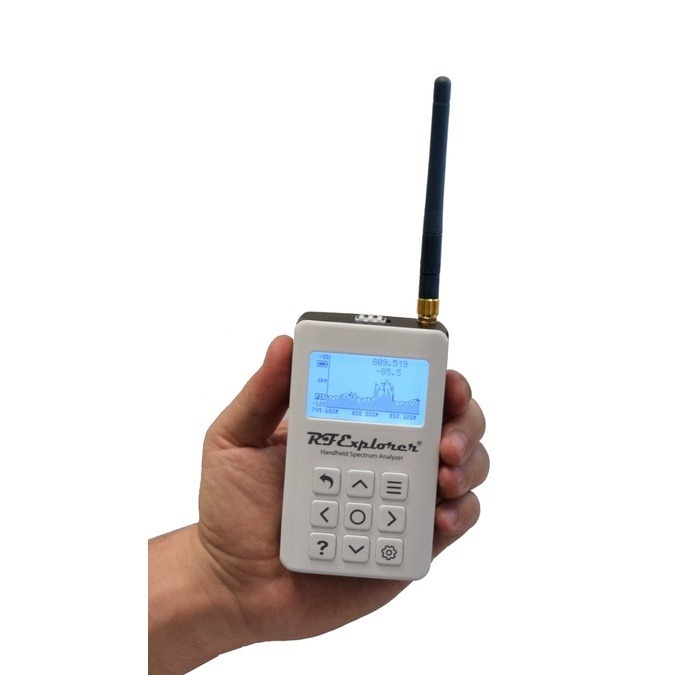

  • Pocket size and light weight
  • Solid metal case with high quality varnished paint
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
  • Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Description

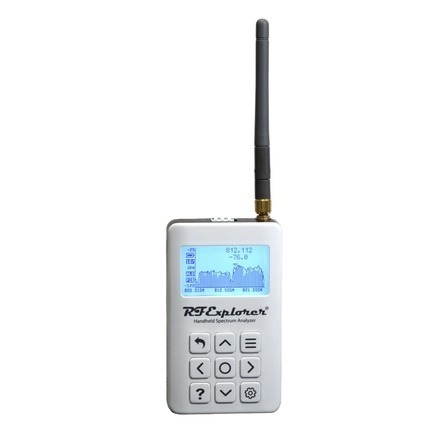

RF Explorer 6G WB+ is a powerful Spectrum Analyzer model, covering the full 6GHz range starting at 15MHz up to 6.1GHz with no gaps or limitations, and up to 7.5GHz with optional extra license.

This model replaces RF Explorer 6G Combo standard model, the new SLIM design offers an outstanding robust enclosure with strong metallic body and shiny varnished paint, a more convenient USB connector on the side and larger internal battery capacity.

What is Spectrum Analyzer

A RF Explorer Spectrum Analyzer is a special device designed to detect very sensitive signal radiation and identify signal interference, tune antenna setups, detect signal leakage and find hidden bugs, among many other applications.

The combination of small size, great sensitivity and robust design makes it the ideal instrument to carry on for indoor and outdoor measurements.

When connected to a computer, it can be controlled by free software available for download with stunning high resolution graphics, data storage and reply features.

How RF Explorer Works?

For introductory details and quick start guide, please visit www.rf-explorer.com/start [ https://www.rf-explorer.com/start ]

For best handling work at the desk, we recommend the RF Explorer Holder SLIM [ https://www.seeedstudio.com/RF-Explorer-SLIM-Holder-p-4571.html ]

 [ https://www.seeedstudio.com/RF-Explorer-SLIM-Holder-p-4571.html ]

For best results detecting near field signal sources or interferences, we recommend the RF Explorer Near Field Antenna Kit [ https://www.seeedstudio.com/RF-Explorer-Near-Field-Antenna-Kit-p-2784.html ]

 [ https://www.seeedstudio.com/RF-Explorer-Near-Field-Antenna-Kit-p-2784.html ]

Specifications



Frequency Band

15MHz – 6100MHz

  • Upgrade Option available 7.5GHz







Frequency Span

2 – 960MHz in a single sweep

  • Upgrade Option available 3GHz Span

Internal Selectable LNA Gain

25dB

Internal selectable Attenuators

30dB and 60dB

Supporting OS

Windows, Linux and MacOS X

Resolution Bandwidth (RBW)

automatic 2.6Khz to 600Khz

Frequency Resolution

1Khz

Frequency stability and accuracy (typical)

+-1.0ppm

Amplitude Stability and Accuracy (typical)

+-3dBm

Amplitude Resolution

0.5dBm

Dynamic Range

-125dBm to 10dBm

Absolute Max Input Power

+30dBm

Average Noise Level (typical LNA)

-125dBm

Wifi Analyzing Range

2.4GHz and 5GHz bands


Antenna Included

  • 2.4/5GHz dual-band antenna

  • UHF 400-900MHz rubber duck articulated antenna

  • Wideband 144/433MHz dual band telescopic antenna

SMA

Standard 50 ohms connectors

Battery

Internal Lithium-Ion 1800mA/h rechargeable battery

Display

128x64 pixels LCD

Applications

  • RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
  • WiFi analysis and fine tuning
  • Interference hunting
  • EMC pre-testing
  • RF device tuning (with Signal Generator working as Tracking SNA): See this link for more details [ https://j3.rf-explorer.com/145 ]

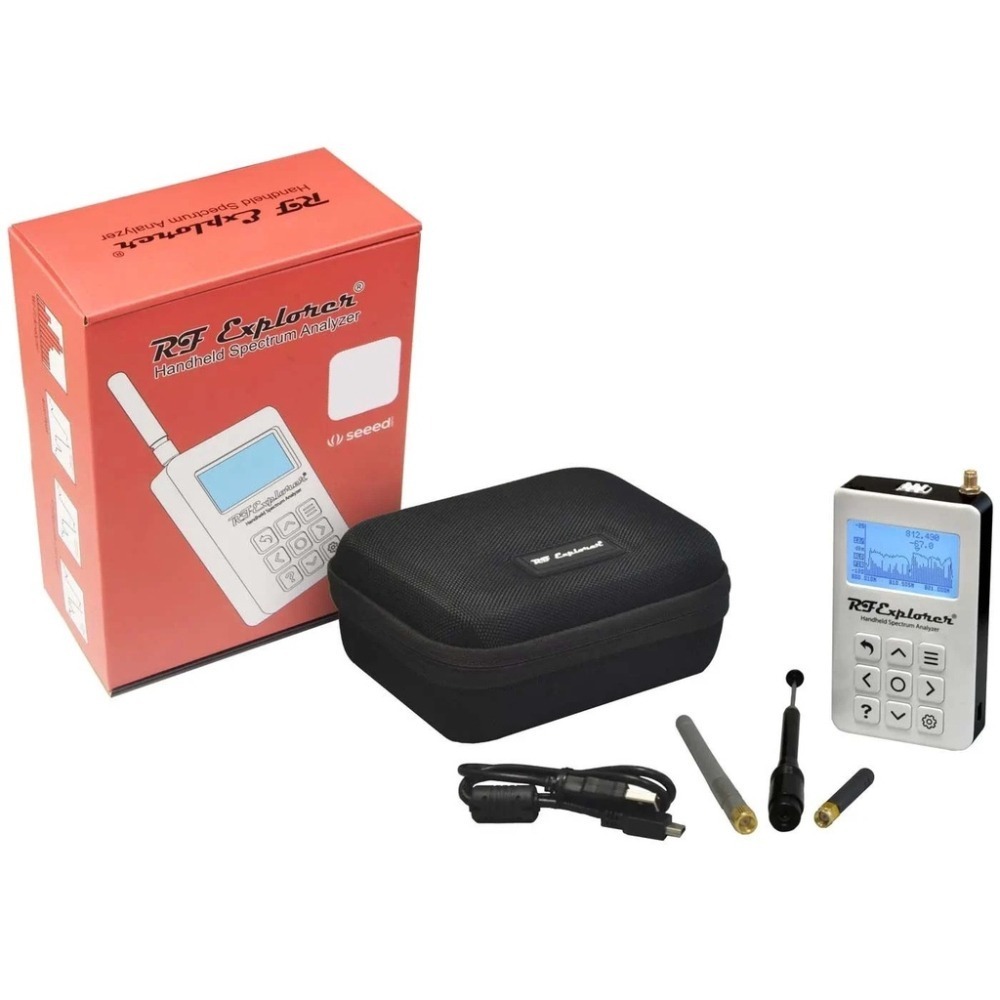

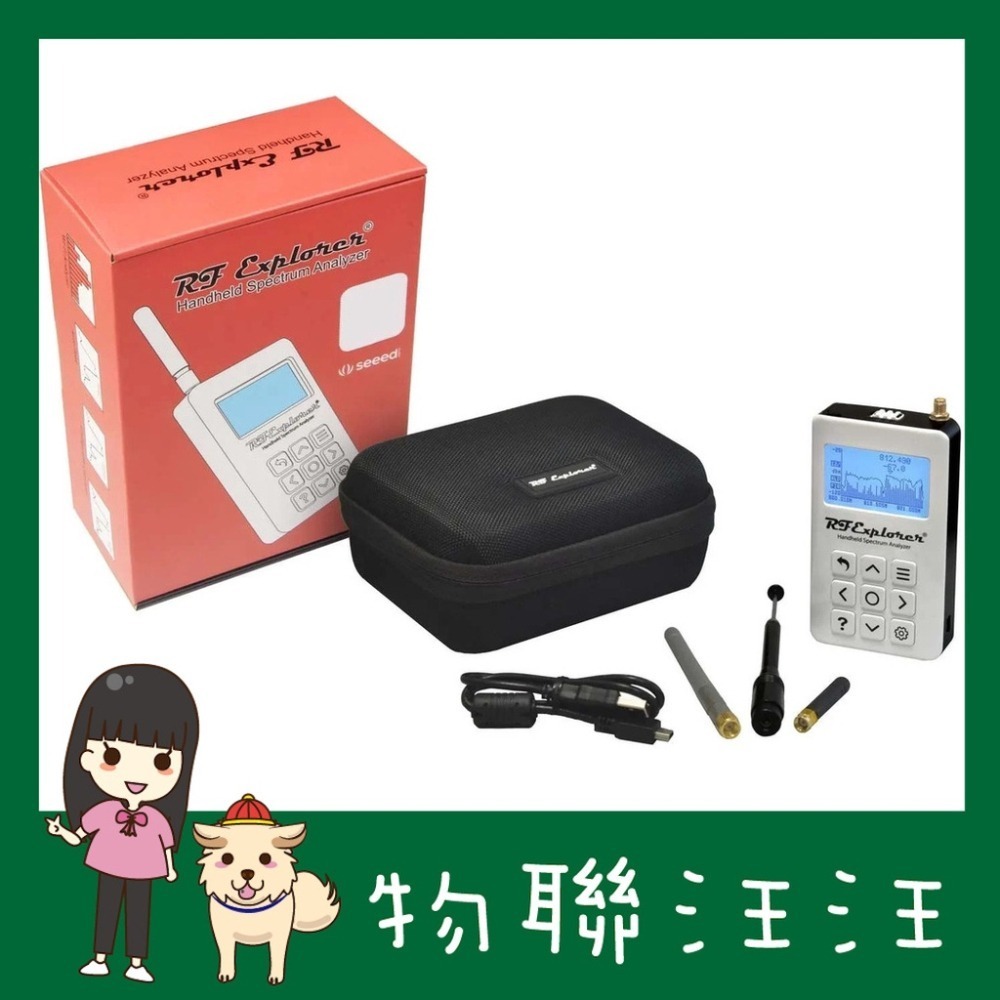

Part List

  • 1 x Spectrum Analyzer
  • 1 x Mini USB cable
  • 1 x Dual band 144/430MHz Telescopic antenna
  • 1 x UHF 400-900Mhz antenna
  • 1 x Dual band 5/2.4GHz antenna
  • 1 x EVA case

Documents tab

Specifications: https://www.rf-explorer.com/6GWBP [ https://www.rf-explorer.com/6GWBP ]

Getting started: www.rf-explorer.com/start [ https://www.rf-explorer.com/start ]

Software options: www.rf-explorer.com/software [ https://www.rf-explorer.com/software ]

Downloads: www.rf-explorer.com/downloads [ https://www.rf-explorer.com/downloads ]
