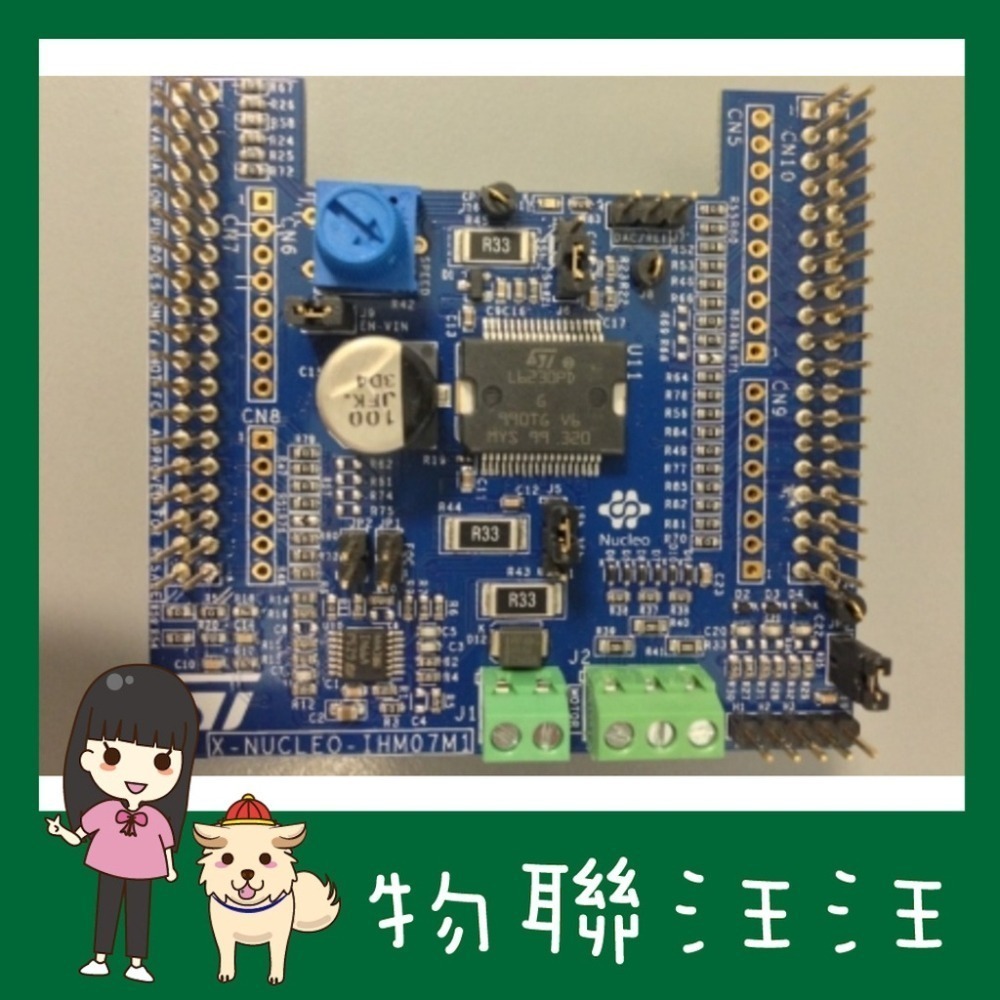

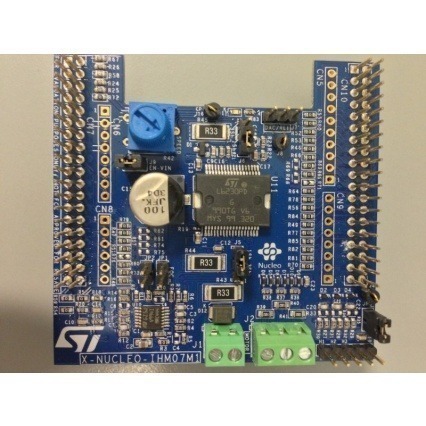

[物聯汪汪] 附發票~ 基於 L6230 的三相無刷直流馬達擴展板 X-NUCLEO-IHM07M1

商品編號:P0510700188913 原始貨號:P0510700188913

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 600
$ 640
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商  /en/ecosystems/x-nucleo-ihm07m1.html [ https://www.st.com/en/ecosystems/x-nucleo-ihm07m1.html ]  料號:X-NUCLEO-IHM07M1

Description

The X-NUCLEO-IHM07M1 is a three-phase brushless DC motor driver expansion board based on the L6230 for STM32 Nucleo. It provides an affordable and easy-to-use solution for driving three-phase brushless DC motor in your STM32 Nucleo project. The X-NUCLEO-IHM07M1 is compatible with the ST Morpho connector and supports the addition of other boards which can be stacked with onto a single STM32 Nucleo board.
The user can also mount the Arduino UNO R3 connector. The driver used on this expansion board is the L6230, a DMOS fully integrated driver for three-phase brushless DC motors assembled in a PowerSO-36 package (L6230PD), with overcurrent and thermal protection.
The L6230 driver is optimized for six-step and FOC algorithms thanks to independent current sensing.

All features

  • 3-phase driver for BLDC/PMSM motors
  • Nominal operating voltage range from 8 V to 48 VDC
  • 2.8 A output peak current (1.4 ARMS)
  • Operating frequency up to 100 kHz
  • Non dissipative overcurrent detection and protection
  • Cross-conduction protection
  • Thermal measuring and overheating protection
  • Compatible with STM32 Nucleo boards
  • Fully compatible with STM32 Motor Control SDK (X-CUBE-MCSDK-Y)
  • Equipped with ST morpho connectors
  • Three-shunt and single-shunt configurable jumpers for motor current sensing
  • Hall/Encoder motor sensor connector and circuit
  • Debug connector for DAC, GPIOs, etc.
  • Potentiometer available for speed regulation
  • User LED
  • RoHS compliant
