[物聯汪汪] 含稅附發票~ STLINK-V3MODS STLINK v3 緊湊型在線調試器和STM32編程器

商品編號:P0510700188907 原始貨號:P0510700188907

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 400
$ 425
預計出貨天數6
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/development-tools/stlink-v3mods.html [ https://www.st.com/en/development-tools/stlink-v3mods.html ]  料號:STLINK-V3MODS


Description

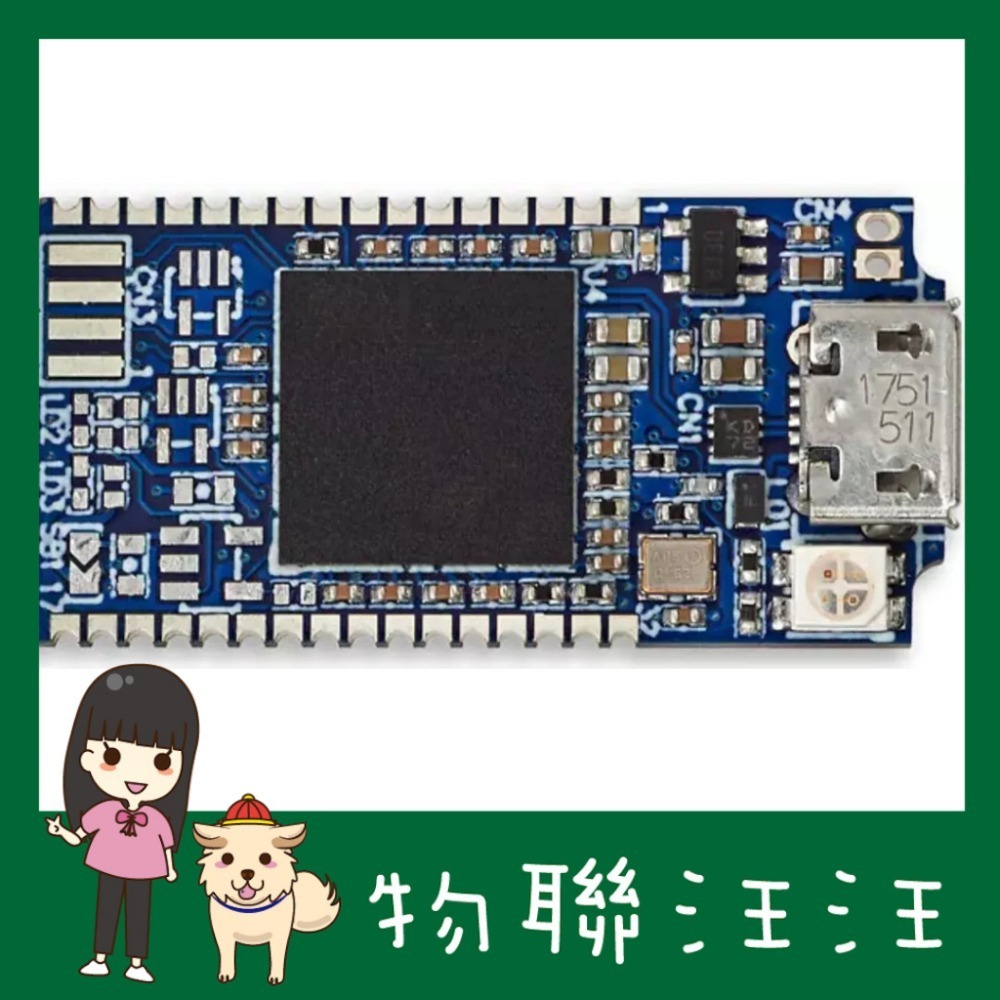

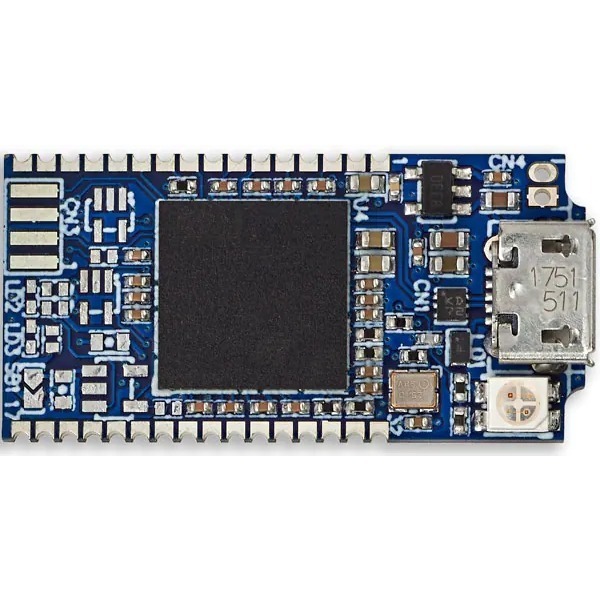

The STLINK-V3MODS is a small size debugging and programming probe for STM32 microcontrollers.

The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board.

The STLINK-V3MODS also provides a Virtual COM port interface enabling the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) simplifying for instance the field programming through bootloader.

The STLINK-V3MODS is ready to be embedded in a master application and can be directly soldered on the PCB motherboard.



All features

  • Modular probe with small size: approximately 15 x 30 mm
  • Direct-to-PCB implementation by 2 x 16-pin 1.27 mm edge castellated vias, with all signals available in required minimum PCB surface
  • Self-powered through a USB connector (Micro-B)
  • USB 2.0 high-speed compatible interface
  • Direct firmware update support (DFU)
  • JTAG / serial wire debugging (SWD) specific features:
    • 3 V to 3.6 V application voltage support and 5 V tolerant inputs
    • JTAG communication support
    • SWD and serial wire viewer (SWV) communication support
  • Virtual COM port (VCP) specific features:
    • 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
    • VCP frequency up to 15 MHz
  • Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
    • 3 V to 3.6 V application voltage support and 5 V tolerant inputs
  • Drag-and-drop Flash programming
  • Two color LEDs: communication, power
