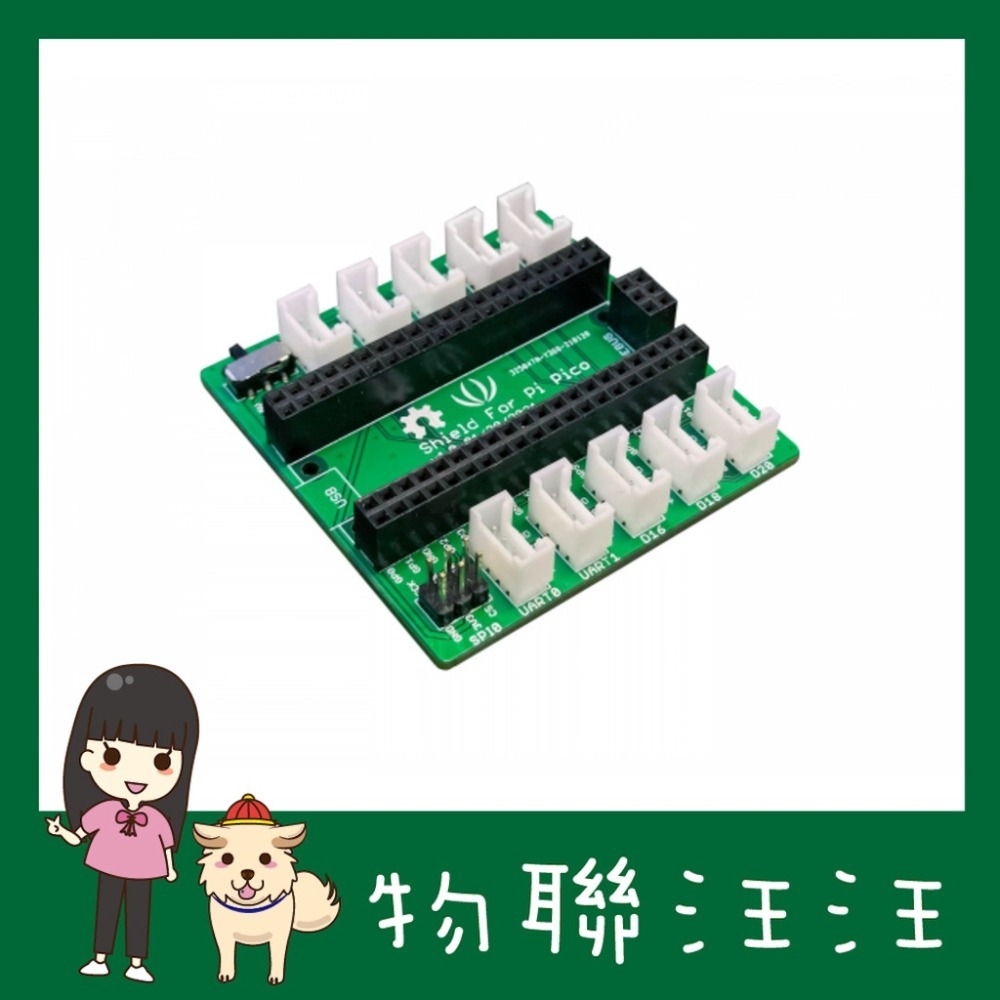

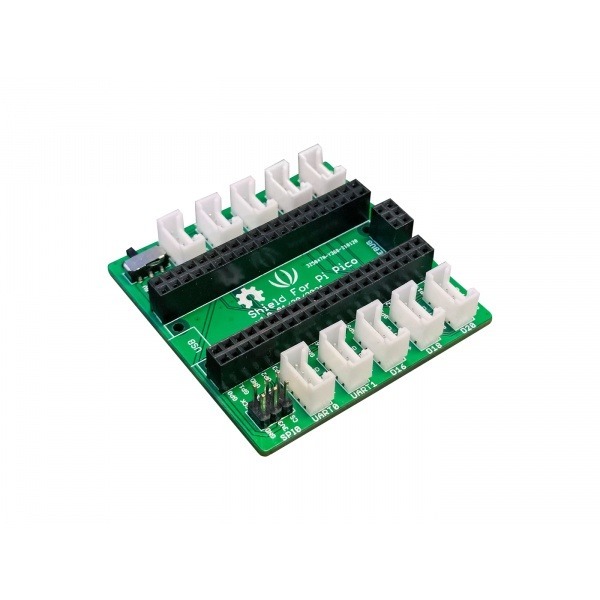

[物聯汪汪] Grove Shield for Pi Pico - 全母座 I2C、UART、SPI、類比、數位、電源

商品編號:P0510700188898 原始貨號:P0510700188898

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 150
$ 160
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/Grove-Shield-for-Pi-Pico-v1-0-p-4846.html [ https://www.seeedstudio.com/Grove-Shield-for-Pi-Pico-v1-0-p-4846.html ]  料號:103100142


PRODUCT DETAILS

Grove Shield for Pi Pico is an expansion board for Raspberry Pi Pico, designed by Seeed Studio, for the orderliness of your conected sensors when you develop projects with Pico. It provides female headers for all the pins and 10 additional Grove ports, along with other interfaces, giving you the great and quick develop experience.\

Features

  • Grove & GPIO Expansion Board for Pico: Break out all the pins and power of the Raspberry Pi Pico to provide full female headers and 10 additional Grove ports
  • Rich Peripherals for Grove: Provide 10 Grove ports including 2× I2C, 2× UART, 3× Digital, and 3× Analog, which also contains 1x SPI port, 1x power switch, and the SWD Debug interface.
  • Plug and Play: Benefit convenient Grove connectors that supports multiple Grove components
  • Platform Support: MicroPython & Arduino

Description

This is the perfect expansion board for Raspberry Pi Pico represented by Seeed Studio, where it breaks out all the pins and power of the board to produce additional Grove ports and led out full female headersSWD debug interfaceSPI pin. With its convenient feature and Grove system supported, it will be your good assistant that helps you quickly develop your projects.

The Grove connector on the board includes 2*I2C, 2*UART communication ports, and 3*Analog with 3*Digital transmitted ports. The internal of the two female headers are directly attached to a Raspberry Pi Pico and the external two are for standard Raspberry Pi Pico pins. You can directly use Pre-Soldered Pico [ https://www.seeedstudio.com/Raspberry-Pi-Pico-Pre-Soldered-p-4875.html ] and plug it into the shield board. Additionally, there is an SWD debug interface, the SPI pin, and one 5V/3.5V changeable switch, for your further usage.

What is Grove?

Grove is an electronic component ecosystem launched by Seeed Studio where it assembles actuators, displays, sensors, wireless modules and other units, more than 300 in the total count, all sharing the same Grove data transmitted cable.

Grove Starter Kit for Raspberry Pi Pico

To provide a more smoothed learning experience for beginners, we have prepared a Grove Starter Kit for Raspberry Pi Pico [ https://www.seeedstudio.com/Grove-Starter-Kit-for-Raspberry-Pi-Pico-p-4851.html ] . It includes multiple Grove components, Grove Shield board for Pico, as well as free course [ https://www.seeedstudio.com/blog/2021/03/26/10-raspberry-pi-pico-projects/ ] s based on Raspberry Pi Pico. Programmed in Micro Python, this can help you quickly get started with development boards, and then proceed to realize your own fun projects.

Application

  • Projects with Grove sensors
  • Electronics learn based on Grove Starter Kit for Raspberry Pi Pico [ https://www.seeedstudio.com/Grove-Starter-Kit-for-Raspberry-Pi-Pico-p-4851.html ]
  • SWD debug
  • Rapid prototyping
  • Wearable devices
  • Intelligent control

Specification



Parameter



Description



Analog Port



Include 3 anlog ports, A0, A1, A2



Digital Port



Include 3 digital ports, D16, D18, D20



UART Port



Include 2 UART port



I2C Port



Include 2 I2C ports



SPI Port



Provide one SPI0 port



Power Switch



Provide 5V/3.3V selectable power switch



Operating Temperature



-25℃ to +85℃



Operating voltage



Input power 3/5 V



Dimension



56mm * 56mm

Hardware Overview

1Analog Ports: include 3 anlog ports, A0, A1, A2
2Digital Ports: include 3 digital ports, D16, D18, D20
3UART Port: 2 UART port
4I2C Ports: 2 I2C ports
5Power Switch: 5V/3.3V selectable power switch
6SPI port: 1 spi0 port

Part List

Grove Shield for Pi Pico v1.0

x1

Q&A

What kinds of Grove sensors are supported by this expanison board?

All the Grove sensors are supported by this expansion board with Arduino, and all the Grove sensors in Grove Starter Kit for Raspberry Pi Pico [ https://www.seeedstudio.com/Grove-Starter-Kit-for-Raspberry-Pi-Pico-p-4851.html ] are supported with both Arduino and MicroPython.

Will there be more MicroPython supported Grove sensors for the board?

Yes, more and more MicroPython supported Grove sensors will be published by Seeed as the schedule.
