[物聯汪汪]附發票~Coral.AI Dev Board Micro帶camera,mic及Coral Edge TPU

商品編號：P0510700188877　原始貨號：P0510700188877

本賣場商品一律含稅開發票，需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站，歡迎大家來店自取，需要自取的請留言聯絡!

$ 4,850

$ 5,145

規格

主板+Wireless+Case
主板+PoE+Wireless+Case
主板+Wireless Add-on
主板+Micro Case
主板+PoE+Case
主板+PoE+Wireless
主板
主板+PoE Add-on

數量

付款方式：

超商取貨付款

運送方式：

常溫7-ELEVEN店到店取貨付款

詳盡技術資料請見原廠或供應商 /products/dev-board-micro [ https://coral.ai/products/dev-board-micro ] 料號：G650-07968-01

您亦可加購下列商品搭配主板使用:

PoE Add-on board 、Wireless Add-on board 、Coral.AI Dev Board Micro Case

Name: [物聯汪汪]附發票~Coral.AI Dev Board Micro帶camera,mic及Coral Edge TPU
Brand: 物聯汪汪
SKU: P0510700188877
Price: 4850 TWD

Description

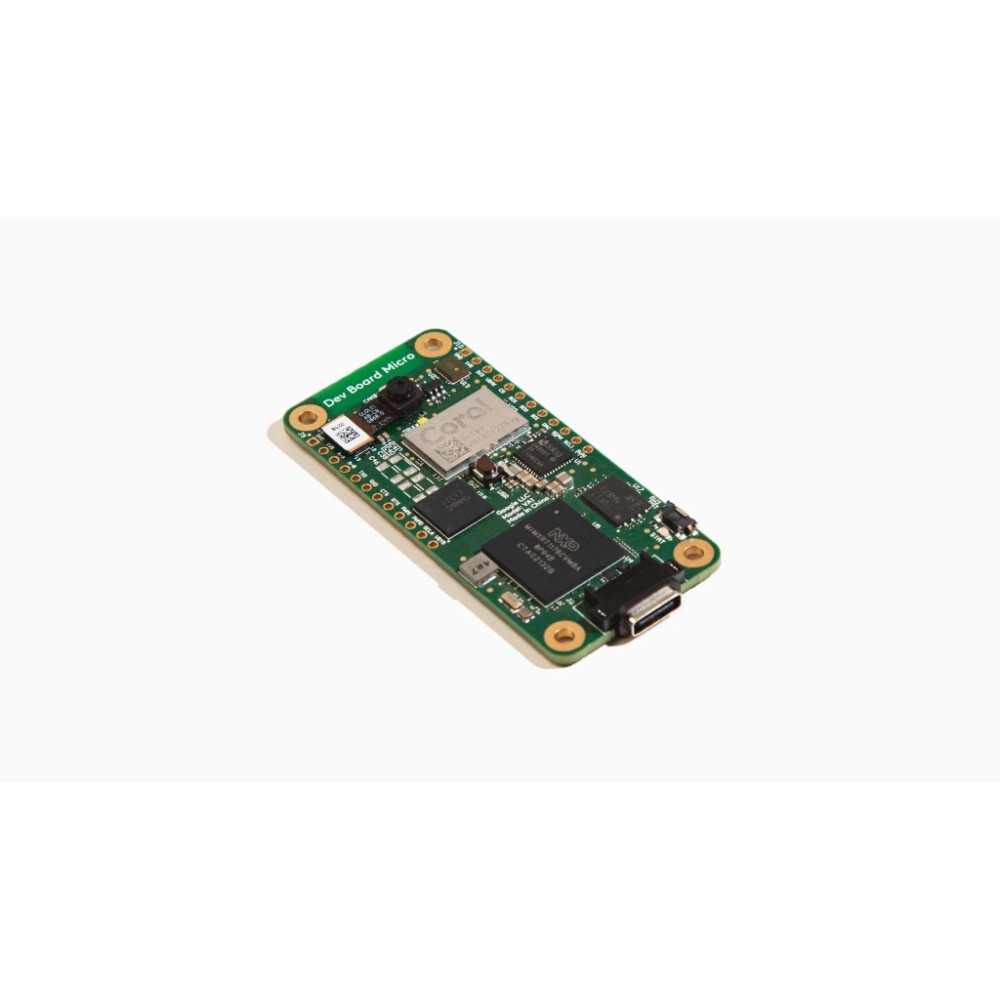

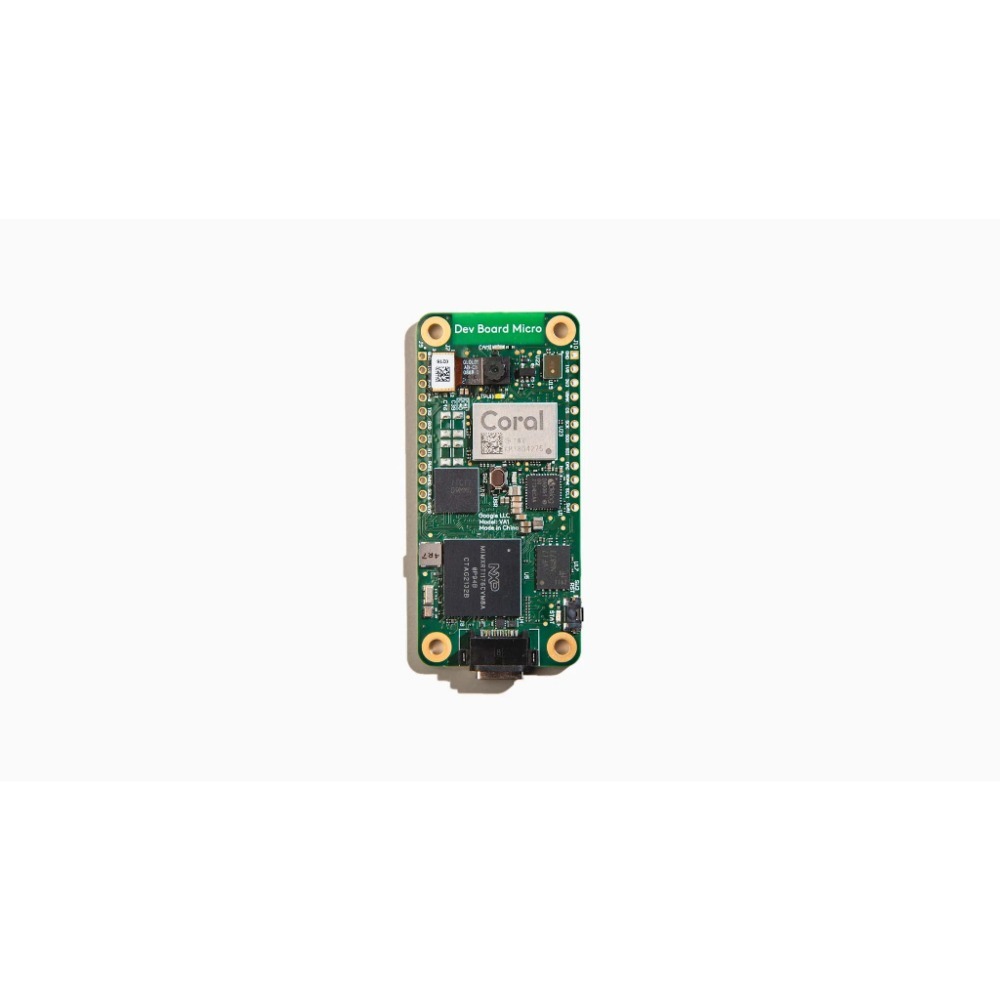

The Coral Dev Board Micro is a microcontroller board with a built-in camera, microphone, and Coral Edge TPU, allowing you to quickly prototype and deploy low-power embedded systems with on-device ML inferencing.

By combining the Cortex M4 and M7 processors with the Coral Edge TPU on this board, you can design systems that gracefully cascade from extreme low-power ML inferencing to more complex—yet still power-efficient—ML inferencing.

Tech specs

MCU	NXP i.MX RT1176 (Cortex-M7 and Cortex-M4)
ML accelerator	Coral Edge TPU coprocessor: 4 TOPS (int8); 2 TOPS per watt
RAM	64 MB
Flash memory	128 MiB
Sensors	Himax color camera (324 x 324 px); PDM mono microphone
Input/output	(2x) 12-pin GPIO header; (2x) 100-pin board-to-board connectors; USB Type-C (USB 2.0)
User interface	(4x) LEDs; (2x) switch buttons
Accessories (sold separately)	Coral Wi-Fi/Bluetooth Module Board; Coral Ethernet/POE Board

Want to learn more about the Edge TPU and Coral platform? Read about our technology [ https://coral.ai/technology/ ] .

Pinout

Header pins are not included. We recommend soldering header pins onto the board so you can access the serial port via UART.

Documentation

Datasheet

Dev Board Micro datasheet [ https://coral.ai/docs/dev-board-micro/datasheet/ ]

Schematics

Dev Board Micro schematics and layout [ https://github.com/google-coral/electricals/tree/master/dev_board_micro ]

Application notes

Get started with the Dev Board Micro [ https://coral.ai/docs/dev-board-micro/get-started/ ]
Get started with Arduino [ https://coral.ai/docs/dev-board-micro/arduino/ ]
Build apps with FreeRTOS [ https://coral.ai/docs/dev-board-micro/freertos/ ]
Create a multi-core app [ https://coral.ai/docs/dev-board-micro/multicore/ ]
Connect to the Dev Board Micro serial console [ https://coral.ai/docs/dev-board-micro/serial-console/ ]
Set up the Wireless Add-on board [ https://coral.ai/docs/dev-board-micro/wireless-addon/ ]
Set up the PoE Add-on board [ https://coral.ai/docs/dev-board-micro/poe-addon/ ]
Update or flash the Dev Board Mini [ https://coral.ai/docs/dev-board-mini/reflash/ ]
