詳盡技術資料請見原廠或供應商 /products/wireless-add-on/ [ https://coral.ai/products/wireless-add-on/ ] 料號:G650-07974-01
溫馨提示
- 本商品為專用於雛形研發實驗之非隨插即用的射頻模組,並非通用終端產品。故須經具備相關知識之專業人士(如:工程師、研究師生、或創客)撰寫程式、燒錄、焊接、外接天線等二次加工,或須與主機板連接使用等方式,始具備訊號傳輸功能,非屬電信管制射頻器材。
- 專業人士在購買前敬請詳閱商品說明與原廠規格書,始可用於您自己的原型設計中自行實驗與實作完整通訊功能。
- 商品本身初始無任何預設應用或功能,故一般消費者上電後無法直接使用,切勿購買。
Description

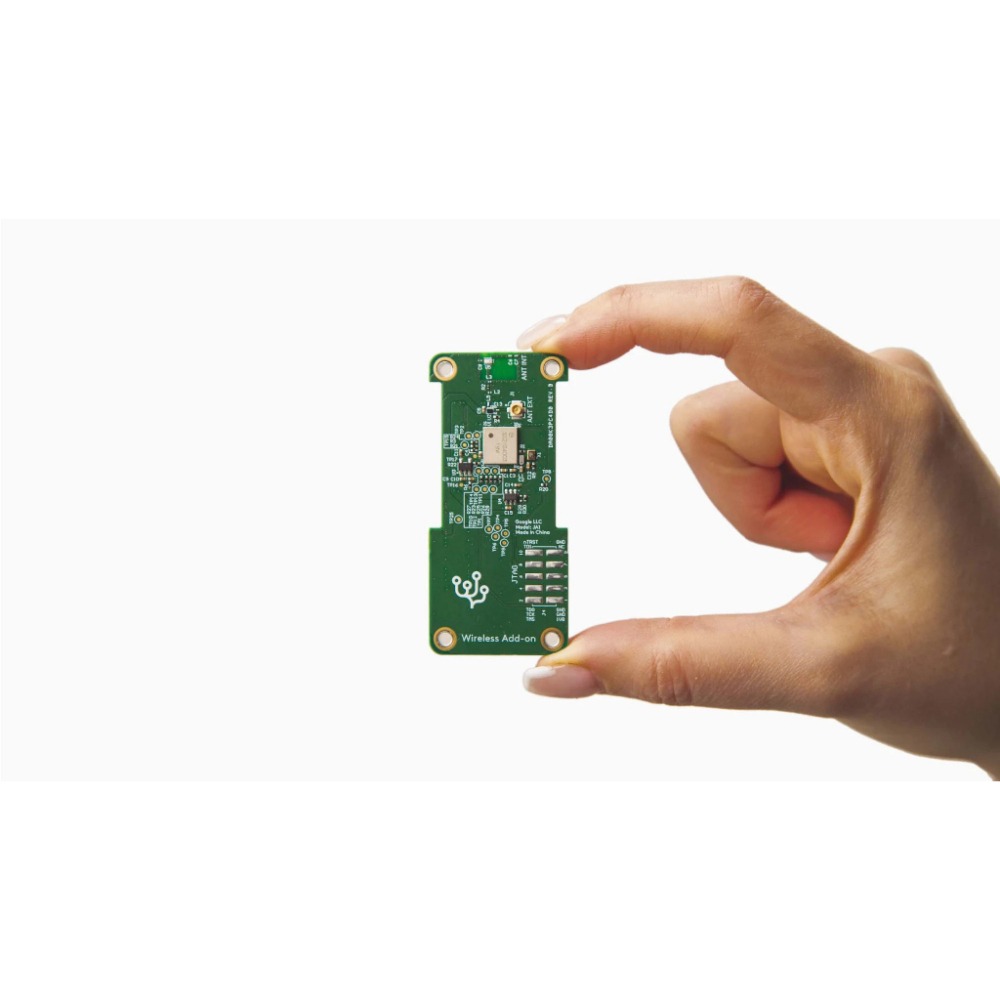

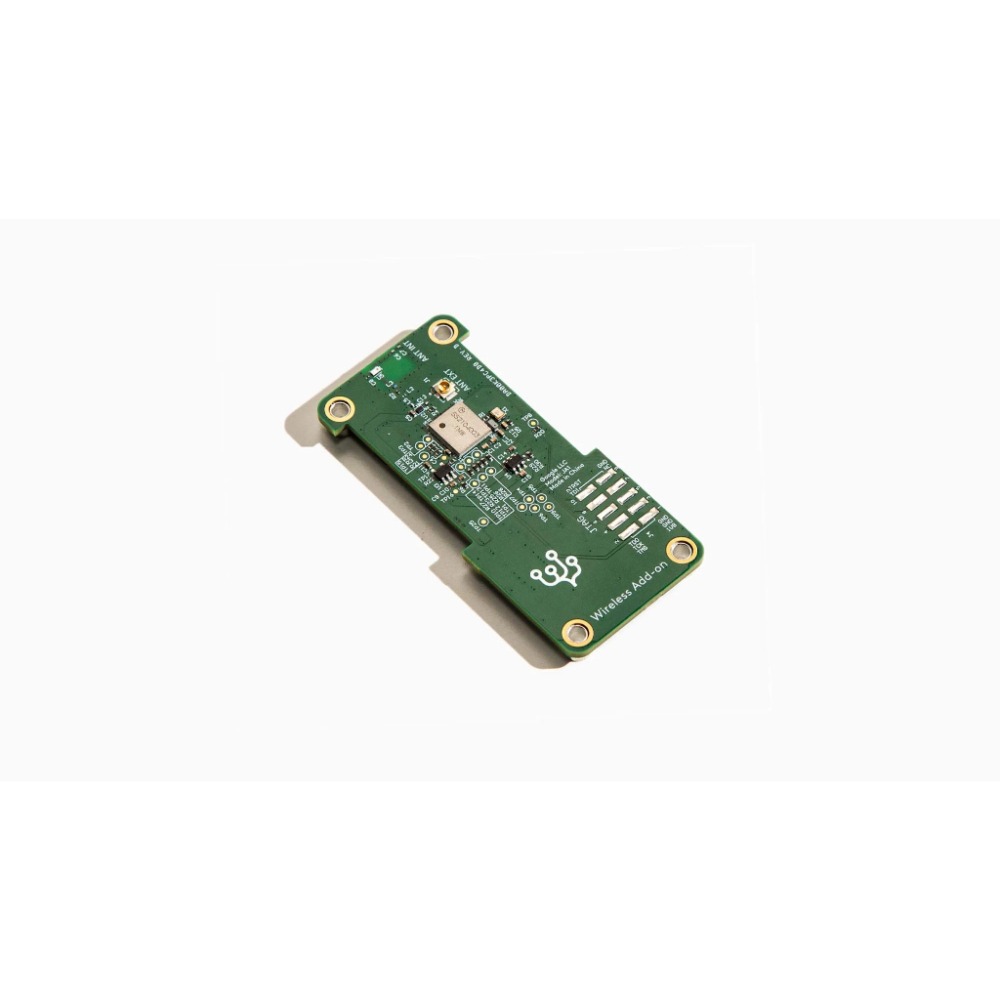

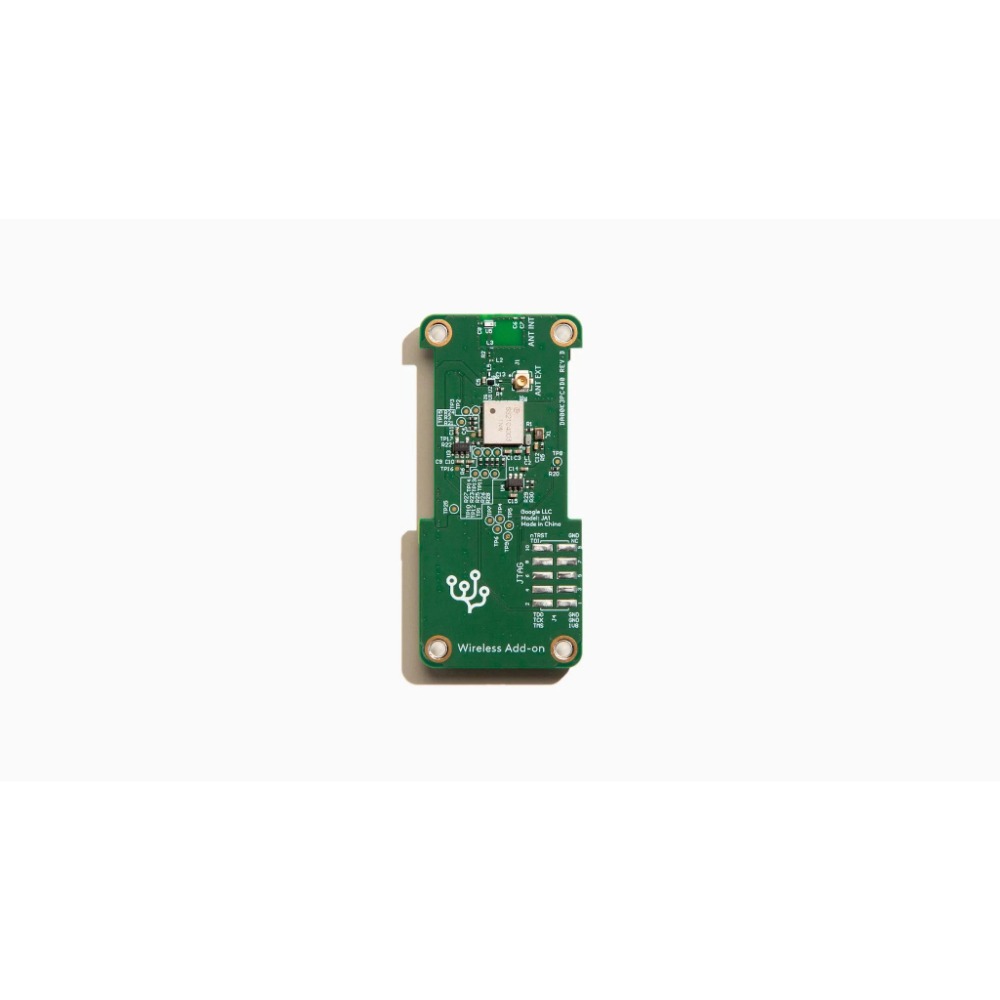

The Coral Wireless Add-on board snaps onto the Coral Dev Board Micro with high-density pin connectors to provide Wi-Fi and Bluetooth connectivity.
Requires the Coral Dev Board Micro [ https://coral.ai/products/dev-board-micro ] (sold separately).
Tech specs
Wi-Fi | 802.11 a/b/g/n/ac; 2.4 GHz and 5 GHz; |
Bluetooth | Bluetooth 5.0; Up to 3 Mbps PHY data rate |

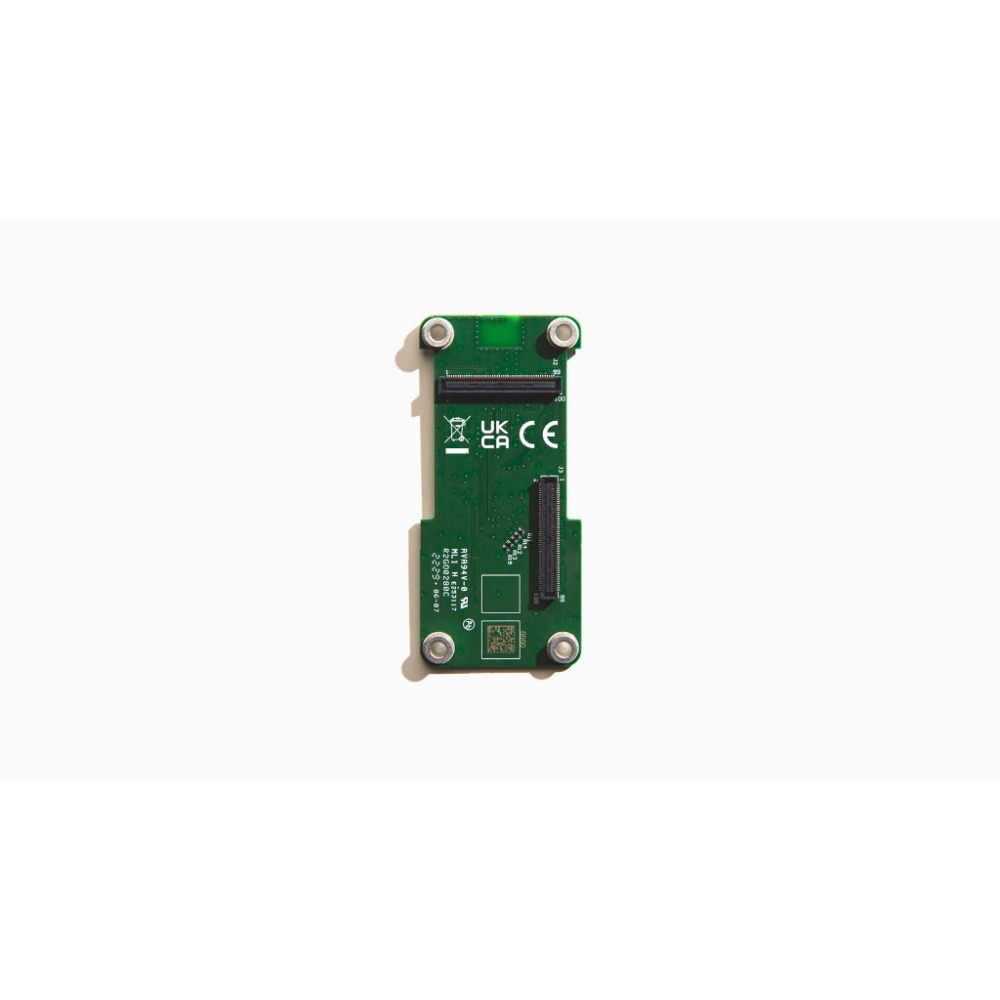

Connectors | Alternative antenna connector (U.FL coaxial); Board-to-board connectors for Coral Dev Board Micro (sold separately) |

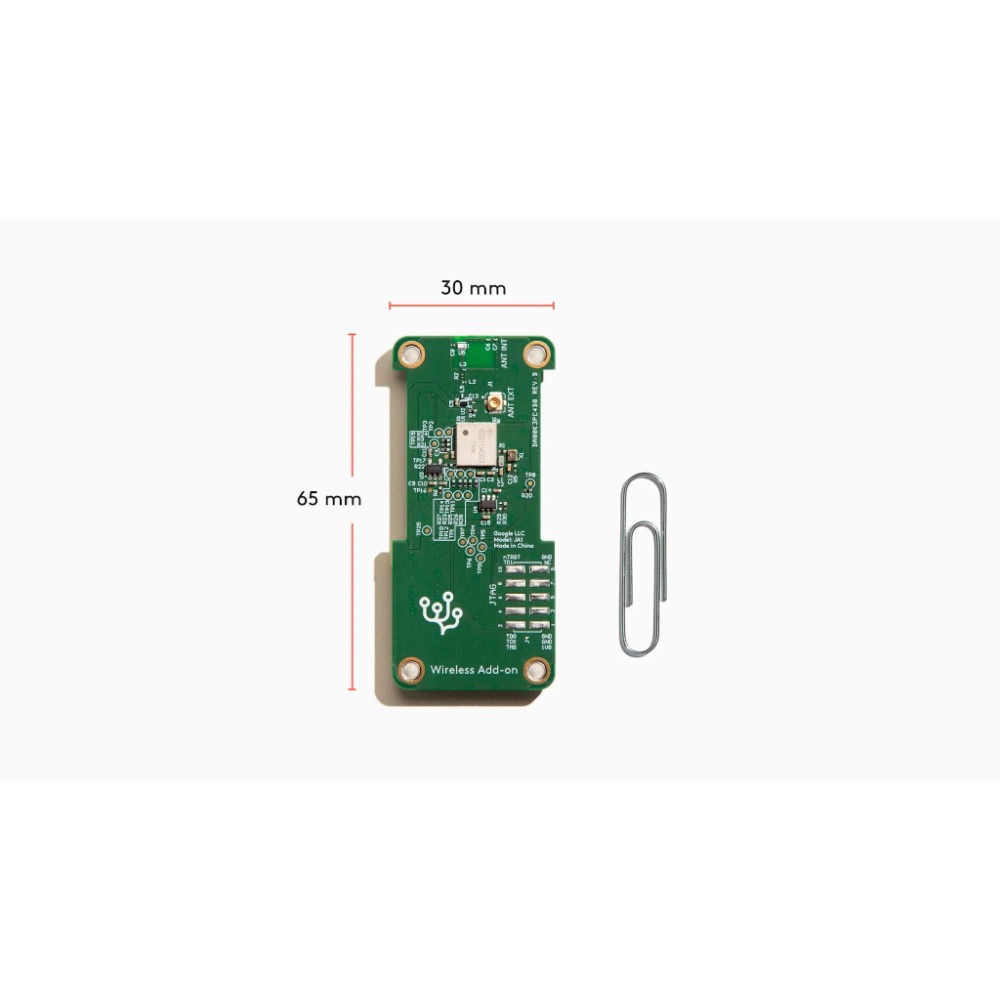

Dimensions | 65.0 x 30 x 16.8 mm |
Documentation
Datasheet
- Wireless Add-on datasheet [ https://coral.ai/docs/dev-board-micro/wireless-datasheet/ ]
Schematics
- Dev Board Micro and add-on schematics and layouts [ https://github.com/google-coral/electricals/tree/master/dev_board_micro ]
Application notes
- Set up the Wireless Add-on [ https://coral.ai/docs/dev-board-micro/wireless-addon/ ]
