[物聯汪汪] WT32-SC01 Plus ESP32-S3 3.5吋觸控LCD開發板具RS485、USB藍牙WIFI

商品編號:P0510700188850 原始貨號:P0510700188850

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 1,150
$ 1,220
預計出貨天數3
規格
  • 開發套件
  • 開發套件+ESP-PROG
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://doc.smartpanle.cn/ESP32-S3/board.html [ https://doc.smartpanle.cn/ESP32-S3/board.html ]  料號:WT32-SC01-Plus


溫馨提示

  • 本商品為專用於雛形研發實驗之非隨插即用的射頻模組,並非通用終端產品。故須經具備相關知識之專業人士(如:工程師、研究師生、或創客)撰寫程式、燒錄、焊接、外接天線等二次加工,或須與主機板連接使用等方式,始具備訊號傳輸功能,非屬電信管制射頻器材。
  • 專業人士在購買前敬請詳閱商品說明與原廠規格書,始可用於您自己的原型設計中自行實驗與實作完整通訊功能。
  • 商品本身初始無任何預設應用或功能,故一般消費者上電後無法直接使用,切勿購買。

此為進階套件,目前較適用於以 IDF-SDK 環境進行開發,亦可用於實際終端產品。開發板上留有串口燒錄介面,除原廠提供雙頭 7p 與 4p MX1.27 cables 外,本公司特別加贈 7p 與 4p MX1.27 轉杜邦母頭連接線各一條,以便開發者立刻上手。原廠亦在 github 上提供了 lvgl 範例,可以參考相關 LCD 及 USB 等驅動源碼。Debug 接口定義如下:

Pin 編號描述ESP Pin電壓範圍備註
1+5V-5V
2+3.3V-3.3V參考電壓,不用作電源
3ESP_TXDTXD03.3V TTL
4ESP_RXDRXD03.3V TTL
5ENEN0-3.3V啟用晶片
6BOOTGPIO 00-3.3V
7GNDGPIO 140V接地

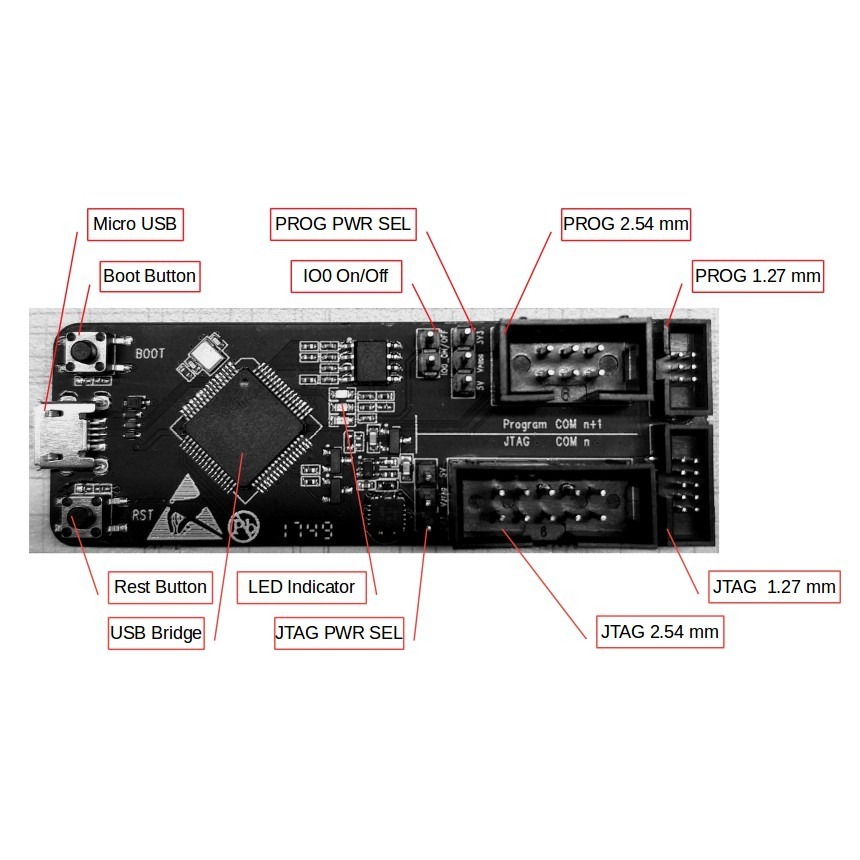

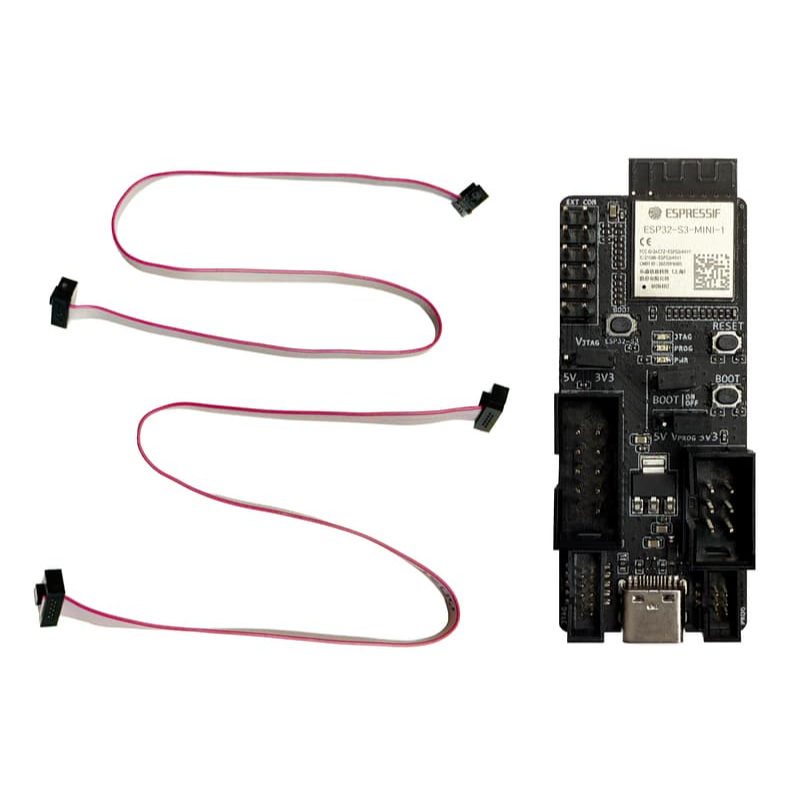

推薦採用原廠出品的 ESP-PROG 上的 Program 接口,可以完整對應。POWER SEL 跳線帽選 3.3V,空出的那根 5V 剛好接 Debug cable 上的 5V,其餘 pins 都一一對應 ESP-PROG 上的 6pin Program 插座。

開發文件指引

  • ZX3D50CE02S [ https://github.com/wireless-tag-com/ZX3D50CE02S ]  原廠資料入口 [ https://doc.smartpanle.cn/ESP32-S3/index.html ]
  • Seeed WT32-SC01 Plus - ESP32 development board With 3.5 Inch LCD IPS Display Touch Screen 商品說明 [ https://www.seeedstudio.com/WT32-3-5-Inch-Display-p-5542.html ]
  • WT32-SC01 PLUS 規格資料 [ https://docs.makehub.tw/wt32-sc01plus/ ]
  • WT32-SC01 PLUS 在 github 的相關專案 [ https://github.com/search?q=WT32-SC01+plus ]
  • wireless-tag-com/ZX3D50CE02S [ https://github.com/wireless-tag-com/ZX3D50CE02S ]  Github 建議由此入手參考 LCD 驅動源碼

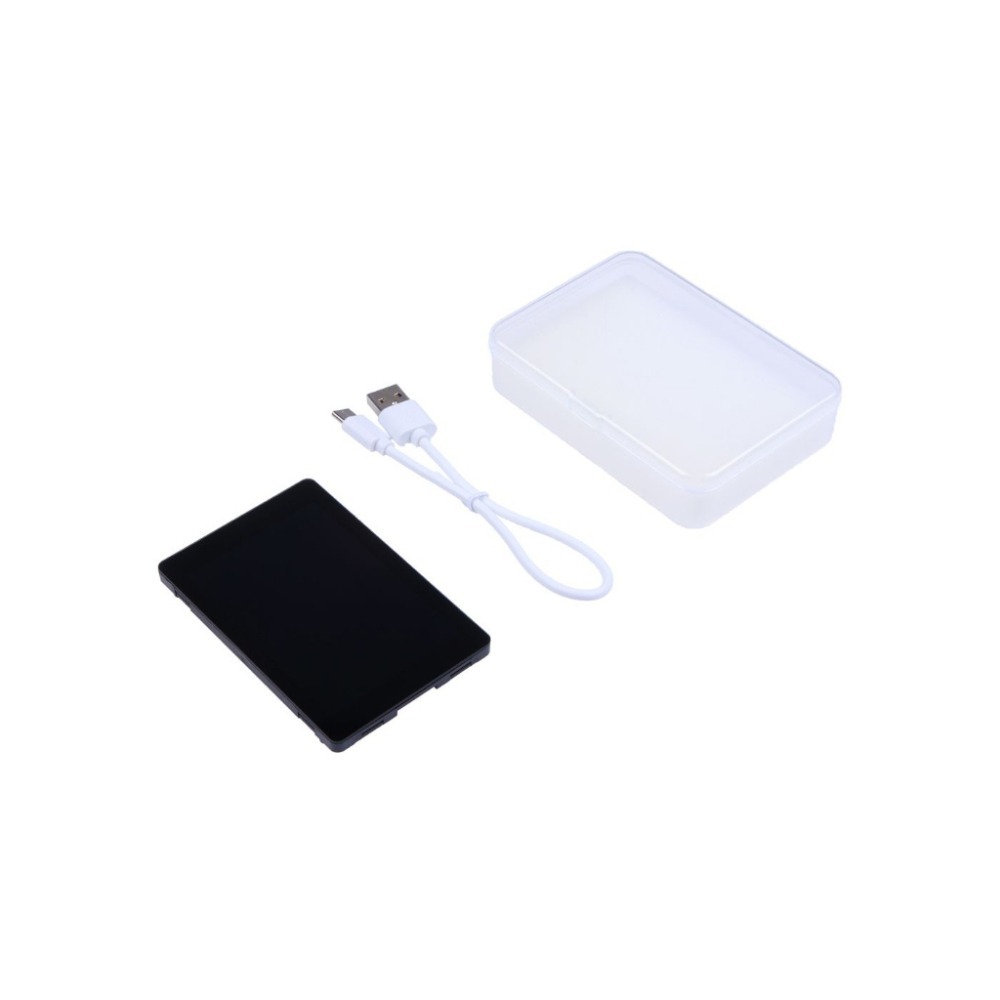

內容物

ESP32-S3 Development board - 1 x 4.3 Inch 480*272 RGB LCD display

×1

Type-C Cable

×1

MX1.27 7p cable

×1

MX1.27 4p cable

×1

MX1.27 7p 轉杜邦母頭

x1 (MakeHub 又名「物聯汪汪」特別加贈)

MX1.27 4p 轉杜邦母頭

x1 (MakeHub 又名「物聯汪汪」特別加贈)

PRODUCT DETAILS

WT32-SC01 Plus is a development board for visual touch screen, the board is equipped with GUI platform firmware developed independently, supports graphic drag and drop programming to help users complete the development of customized control platform.It is ideal for implementing smart home.



Features

  • Powerful development firmware: Equipped with GUI platform firmware allows users to customize their own personalized control scheme. Graphical programming makes development easier.
  • LCD with capacitive multi-touch panel: RGB colorful display and visual touch operation are more convenient to make interaction.
  • Rich extension interfaces: Customize functions such as button operation, voice control, and camera operation through the expansion interfaces.
  • Highly integrated MCU: The ESP32-wrever-b MCU is a Wi-Fi + Bluetooth + Bluetooth LE module suitable for various applications. It can be used in low-power sensor networks and important applications.
  • Easy to assemble: The small size of the motherboard can be perfectly combined with the user's products through the buckle, saving space and cost.



Description

WT32-SC01 Plus is a development board with a visual touch screen. The development system consists of a 3.5-inch LCD screen with a resolution of 320×480 pixels and a capacitive touchpad. It has a feature that supports drag-and-drop graphical programming to help less-experienced users develop solutions.



SC01 plus is an upgraded version of our WT32-SC01 [ https://www.seeedstudio.com/ESP32-Development-board-WT32-SC01-p-4735.html?queryID=823a03690433fb314339002ffb2adad3&objectID=4735&indexName=bazaar_retailer_products ]  development board. The upgraded product is based on Loxin ESP32-S3. The screen is replaced by IPS and fully fitted, making the touch more sensitive and smooth. At the same time, we are equipped with an integrated black plastic frame, which can be quickly installed on your products by means of clasp. The development board adds a speaker, RS485, SD card and an interface for debugging.



Compared with The previous version of SC01, the main controller of WT32-SC01 Plus development board is configured with a more integrated and powerful WT32-S3-Wrover-N16R2 module. this module is a general-purpose WiFi + BT + BLE MCU module, 16MB SPI flash and 2MB PSRAM configured in. It supports RGB colorful display of various pictures, capacitive multi-touch makes interaction easier, and the use of IPS full touch screen brings users better visual effects and a more comfortable experience.



WT32-SC01 Plus development board can also develop and debug functions such as buttons, voice and camera through the expansion interfaces on both sides, greatly shortening the development cycle of users.



Application

  • Smart Home
  • Environment Monitoring
  • Intelligence Appliance
  • Temperature Controller
  • Home Automation Control
  • IoT Wearable Devices



Specifications



Basic Parameters



MCU



WT32-S3-WROVER-N16R2



Supply Power



DC 5V 2A



Power management



Two LDOS of 3.3V output



Capacity



2Mbyte PSRAM+ 16Mbyte Flash



working current



240mA



Working Temperature



-20°C~70°C

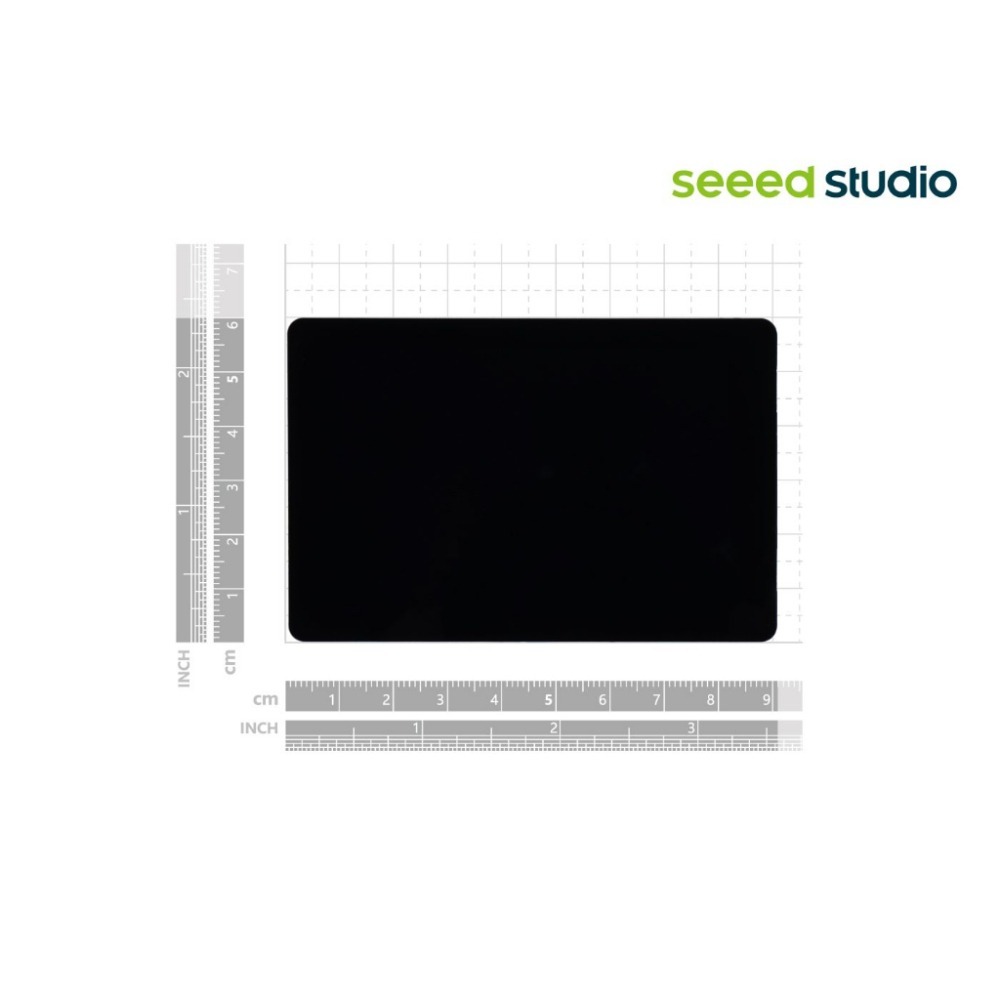

Dimensions



60mm*92mm*10.8mm



Display Parameters



Display Type



LCD



Driver IC Model



ST7701



Viewing Angle



FULL



Display Size



3.5 Inch



Resolution



480*320



Interface



MCU8080 8Bit



Color



RGB565



Touch Parameters



Touchscreen Type



Capacitive touch



Driver IC Model



FT6336U



Interface



I²C



Touchscreen structure



G+F



Touch Mode



Single touch

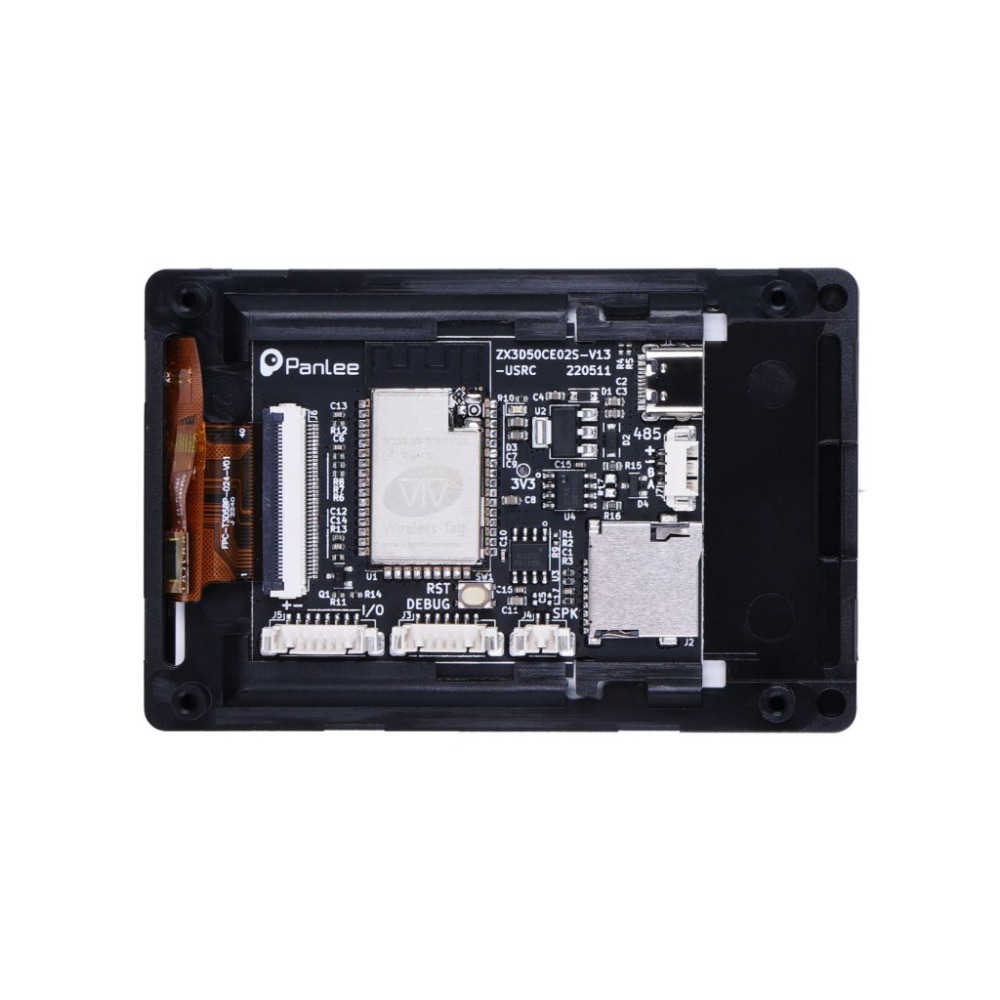

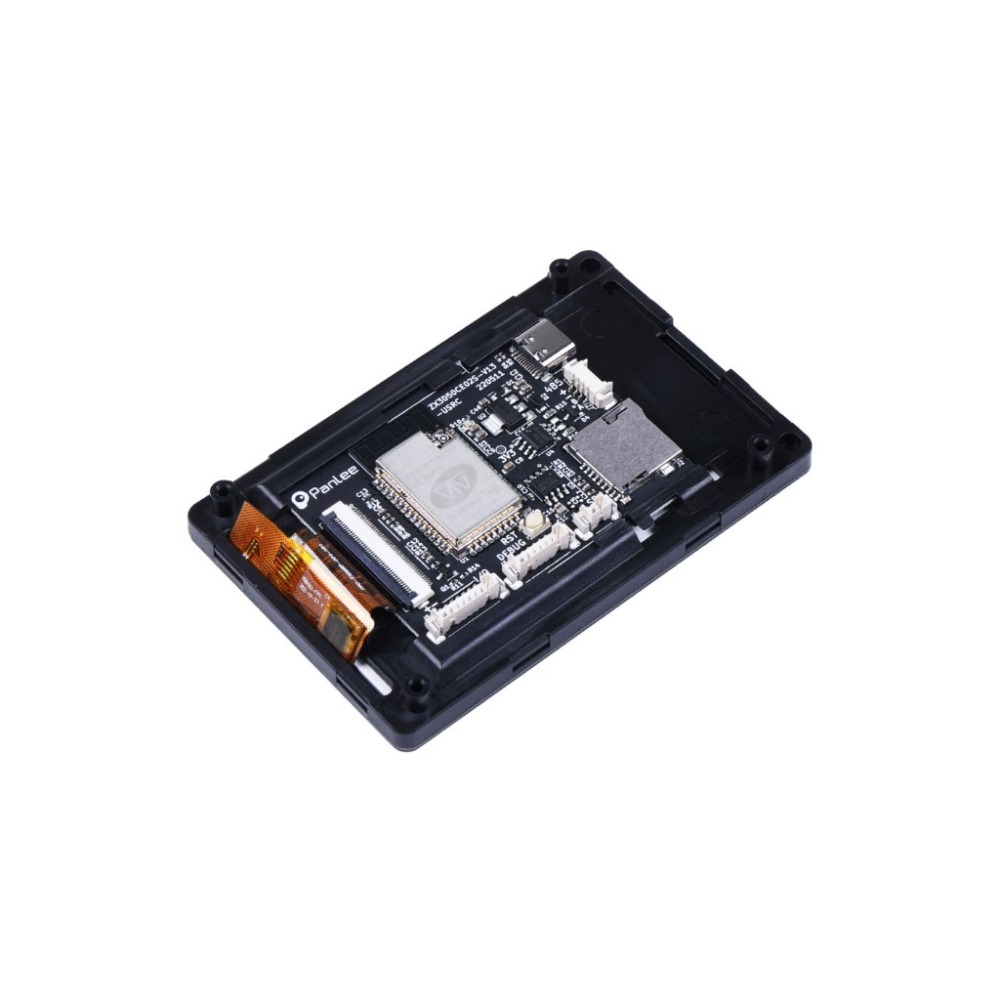

Hardware Overview
