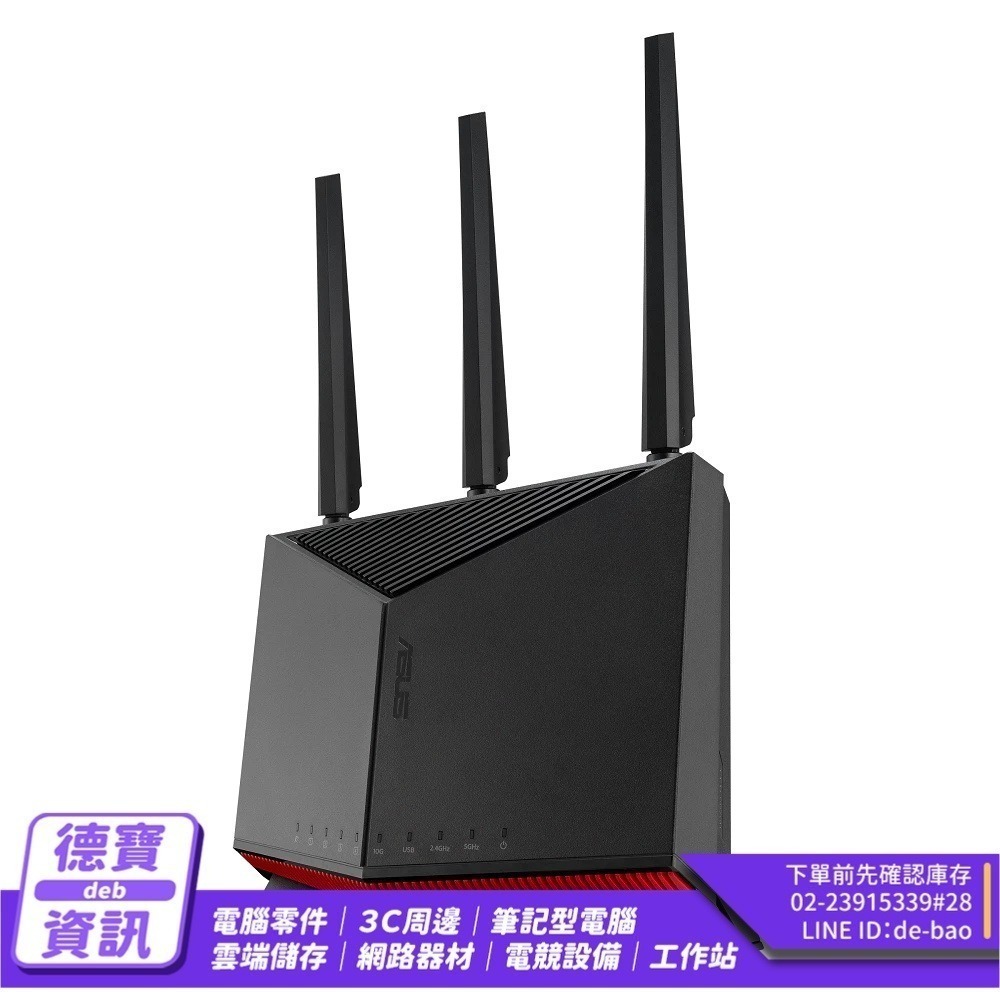

ASUS 華碩 RT-BE86U BE6800 Wi-Fi 7 無線路由器 Wi-Fi分享器 路由器 分享器/1020

✅產品規格

型號

RT-BE86U

網路技術標準

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 6E (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6

產品規格

BE6800 ultimate BE performance : 1032+5764 Mbps

傳輸量

WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

天線

External antenna x 3； Internal antenna x 1

傳送 / 接收

2.4GHz 3x3

5GHz 4x4

處理器

2.6GHz quad-core processor

記憶體

256 MB Flash and 1 GB RAM

網速提升

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160 MHz bandwidth

運作頻率

2.4 GHz

5 GHz

Operating Mode

Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

網路埠規格

1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

按鈕

WPS Button, Reset Button, Power Switch, LED on/off Button

LED 指示燈

WAN x1

10G Port x1

LAN x4

USB x1

2.4GHz x1

5GHz x1

Power x1

電源規格

AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current

包裝內容物

RT-BE86U WiFi router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card

產品淨重(g)

854 g

Product Dimensions

235*90*316 mm
