【MikroTik台灣代理】公司貨 hAP ax³ C53UiG+5HPaxD2HPaxD WIFI 6 無線路由器

商品編號:P0190708212800 原始貨號:P0190708212800

 hAP ax³  C53UiG+5HPaxD2HPaxD WIFI 6 無線路由器

$ 5,250
預計出貨天數2
發票
  • 電子發票(個人)
  • 公司報帳(需要統編跟抬頭)
數量
  • 付款方式:
    超商取貨付款 / 線上刷卡 / 刷卡分期 / ATM 轉帳
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款 / 常溫7-ELEVEN店到店取貨不付款 / 宅配

商品特色

MikroTik原廠代理,台灣公司貨(新北市新店)


專業銷售MikroTik,無需擔心售後及技術問題!(歡迎弱電廠商長期配合)

全新品保固一年,30天內非人為故障直接換新品不囉嗦!


NCC 型式認證號碼:CCAK24LP1050T1

產品型號 C53UiG+5HPaxD2HPaxD (AP ax³)


4個Gigabit網口

1個2.5G網口

WIFI 6 AX1800

二根可拆式外接WIFI天線(已內含)

1個USB3.0

電壓範圍 18-28 V (內附24V/1.5A美規變壓器)

第1口支援POE輸出 (24V Passive PoE)

可平放可直立(內付直立底座)


官網商品介紹

https://mikrotik.com/product/hap_ax3#fndtn-specifications

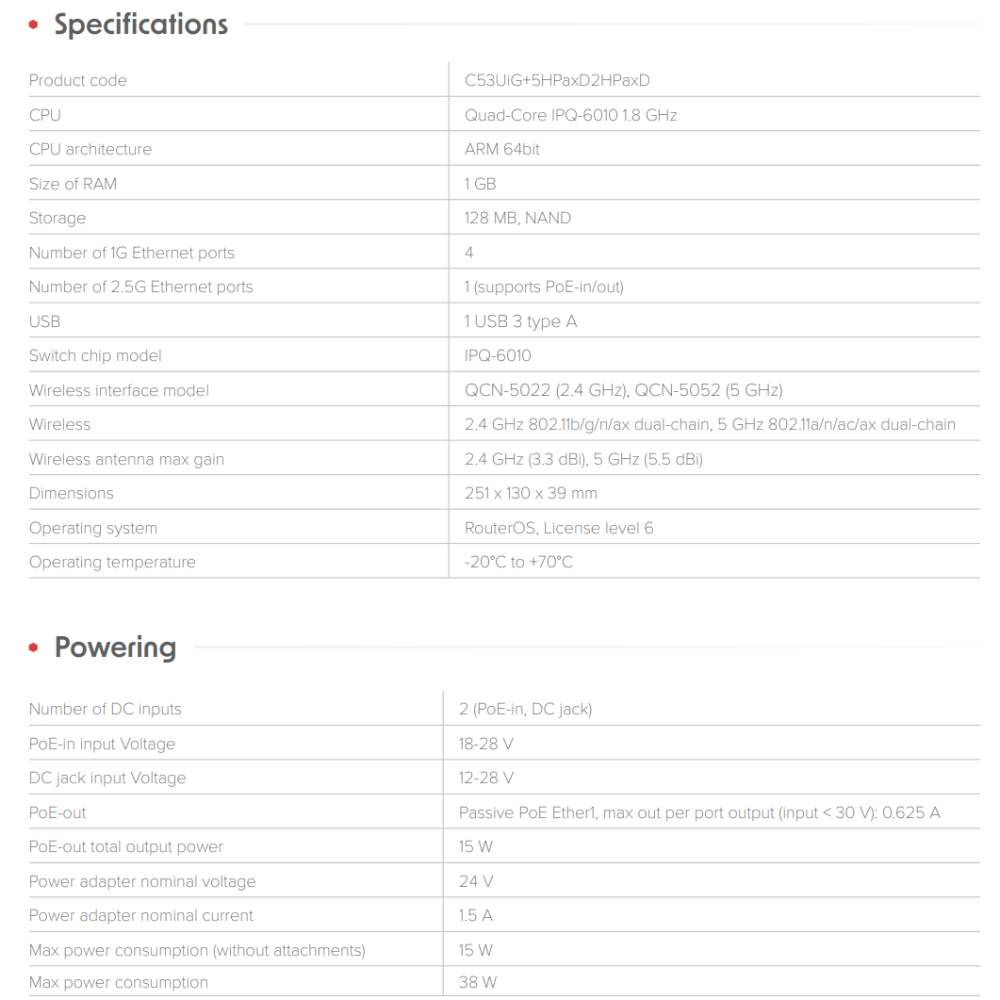

Architecture ARM 64bit

CPU IPQ-6010

CPU core count 4

CPU nominal frequency auto (864 - 1800) MHz

Switch chip model IPQ-6010

RouterOS license 6

Operating System RouterOS v7

Size of RAM 1 GB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

IPsec hardware acceleration Yes


無線功能

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz 3.3

Wireless 2.4 GHz chip model QCN-5022

Wireless 2.4 GHz generation Wi-Fi 6

Wireless 5 GHz Max data rate 1200 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac/ax

Antenna gain dBi for 5 GHz 5.5

Wireless 5 GHz chip model QCN-5052

Wireless 5 GHz generation Wi-Fi 6

WiFi speed AX1800


網路介面

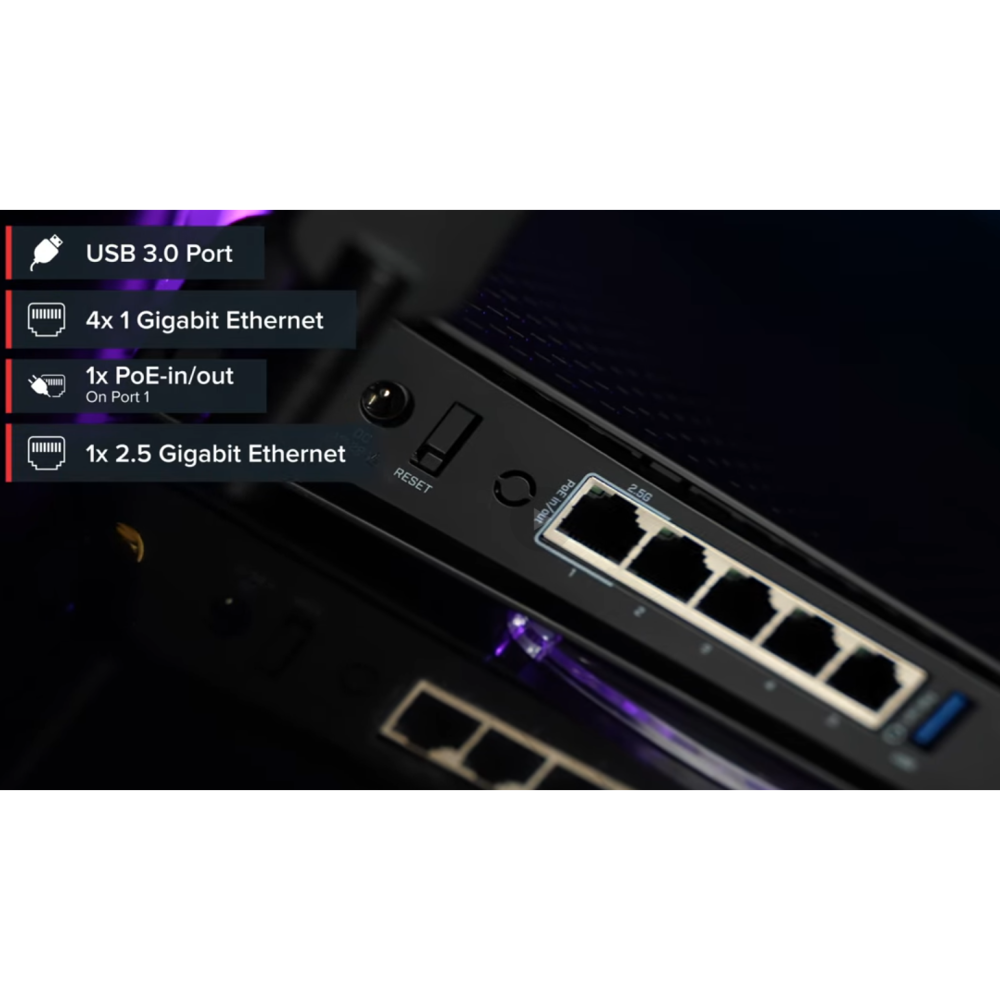

10/100/1000 Ethernet ports 4

Number of 1G Ethernet ports with PoE-out 1

Number of 2.5G Ethernet ports 1


週邊設備

Number of USB ports 1

USB Power Reset Yes

USB slot type USB 3.0 type A

Max USB current (A) 1.5


供電

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-28 V

Max power consumption 38 W

Max power consumption without attachments 15 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 18-28 V


POE輸出

PoE-out ports Ether 1

PoE out Passive PoE

Max out per port output (input 18-30 V) 0.625 A

Max total out (A) 0.625 A

Total output current 0.625

Total output power 15


Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS, NCC

IP 20


其它

CPU temperature monitor Yes

Mode button Yes


Ultimate power for your whole home

hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

AX wireless – as strong as an ox

Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

Safer in many wa
