MikroTik原廠代理,台灣公司貨(新北市新店)
專業銷售MikroTik，無需擔心售後及技術問題！(歡迎弱電廠商長期配合)
全新品保固一年，30天內非人為故障直接換新品不囉嗦!
NCC 型式認證號碼：CCAK24LP0650T4
產品型號 L009UiGS-2HaxD-IN
ARM CPU IPQ-5018 雙核 800 MHz
8個Gigabit網口
1個2.5G SFP
WIFI 6 AX600 (ONLY 2.4G)
二根可拆式外接WIFI天線(已內含)
1個USB3.0
電壓範圍 24-56 V (內附24V/1.5A美規變壓器)
第1口支援POE輸入24-56V (802.3af/at)
第8口支援POE輸出 (24-56V Passive PoE)
官網商品介紹
https://mikrotik.com/product/l009uigs_2haxd_in#fndtn-specifications

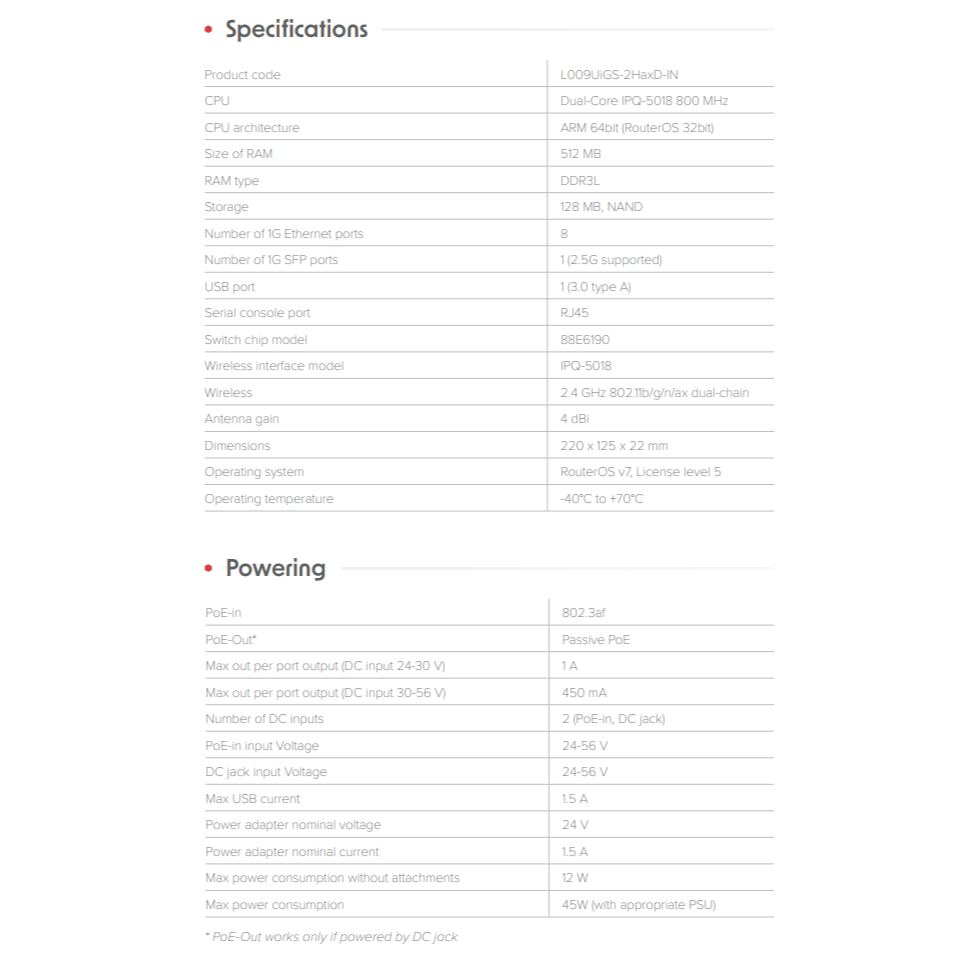

Specifications
Product code L009UiGS-2HaxD-IN
Architecture ARM
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200＇000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $129.00
Wireless capabilities
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model IPQ-5018
Wireless 2.4 GHz generation Wi-Fi 6
WiFi speed AX600
Ethernet
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1
Fiber
Details
SFP ports 1 (2.5G supported)
Peripherals
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 24-56 V
Max power consumption 47 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V
PoE-out
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1.0 A
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS, NCC
IP 20
Other
Mode button Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 30 -96
54MBit/s 28 -80
MCS0 30 -96
MCS7 27 -75
MCS9 25 -70
MCS11 23 -67

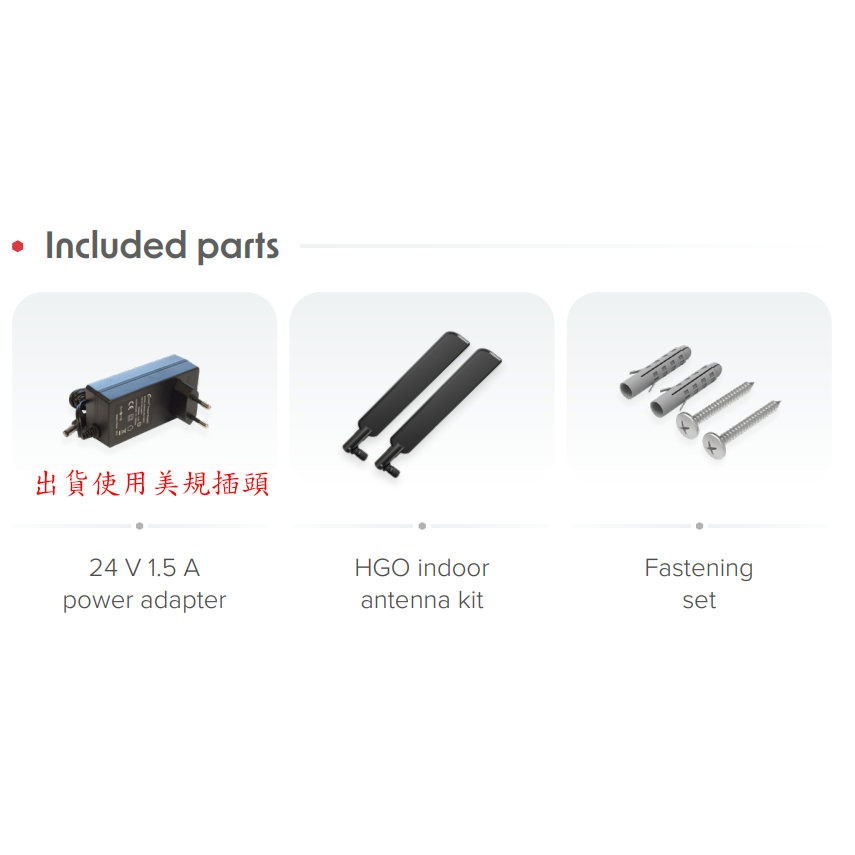

Included parts

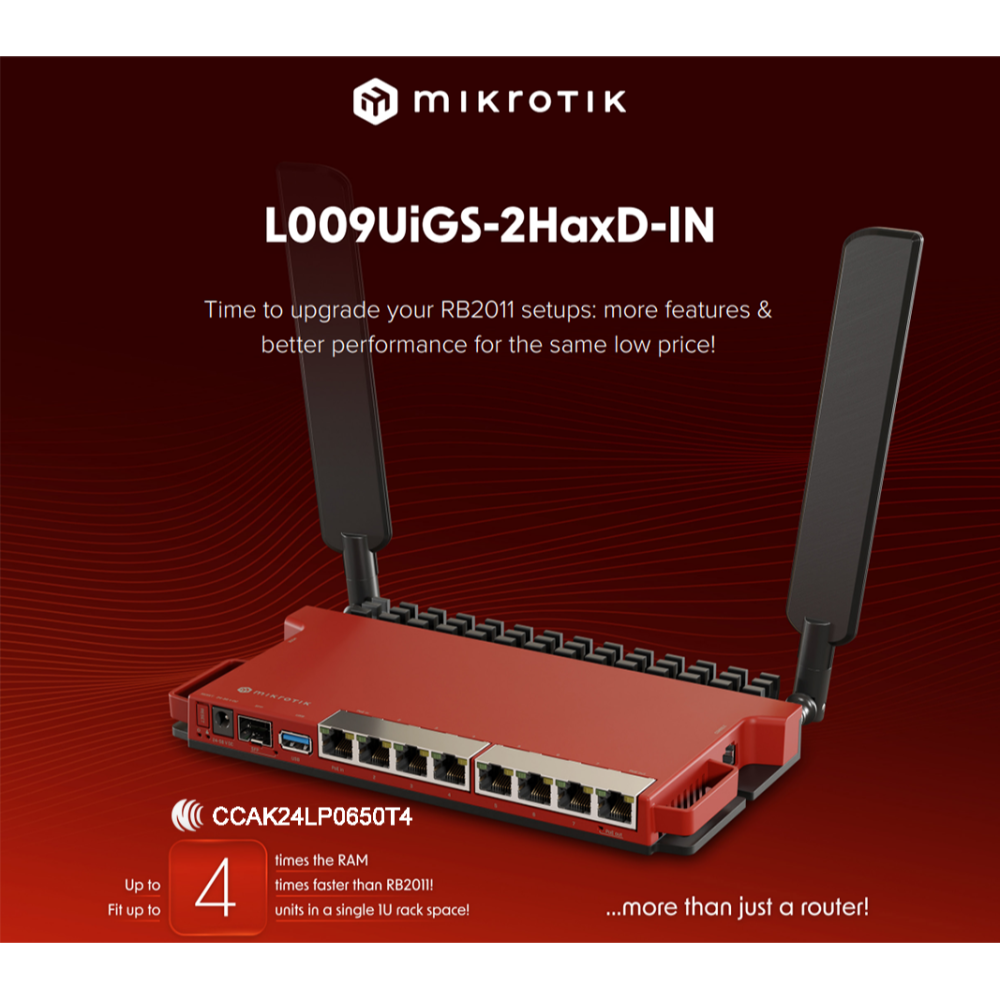

The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, it’s time for an upgrade. But don’t worry: we’ve kept and improved all the key elements and features of the beloved RB2011. Even the red color scheme and the appealing price!

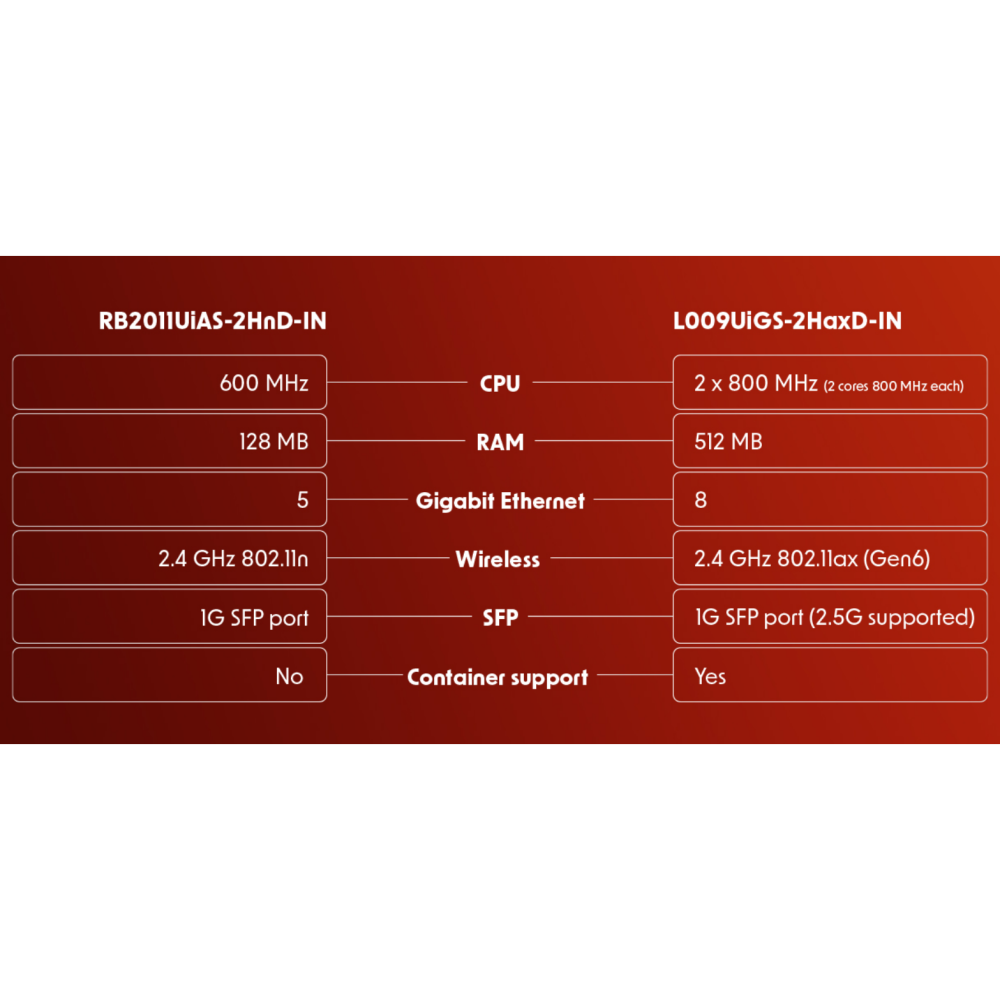

There are three main reasons to choose the L009: better performance, more features, and some interesting quality-of-life improvements. Let’s start with the raw power and performance improvements.
L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

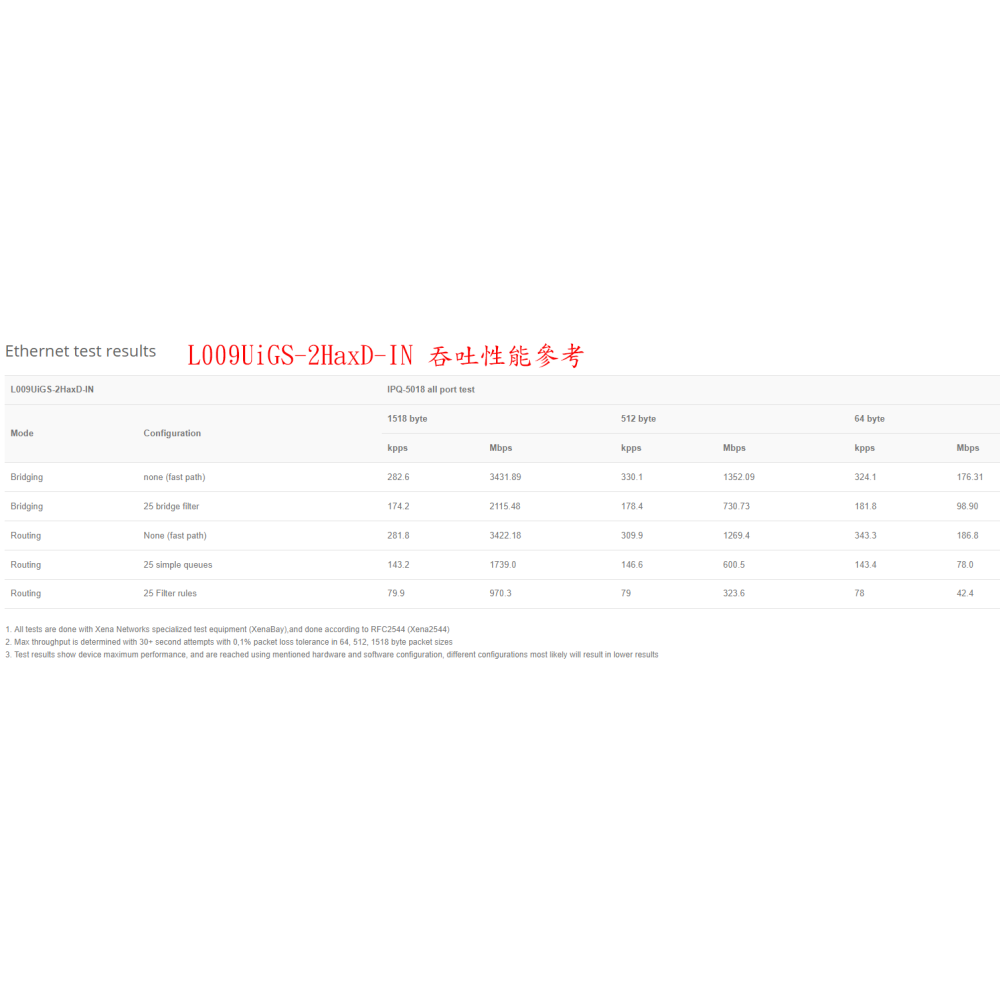

L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters. And L009 IPsec hardware encryption ensures lower CPU usage without measurable performance degradation compared to the regular driver. You can expect around 60-90 Mbps throughput using a 1400 byte packet size.

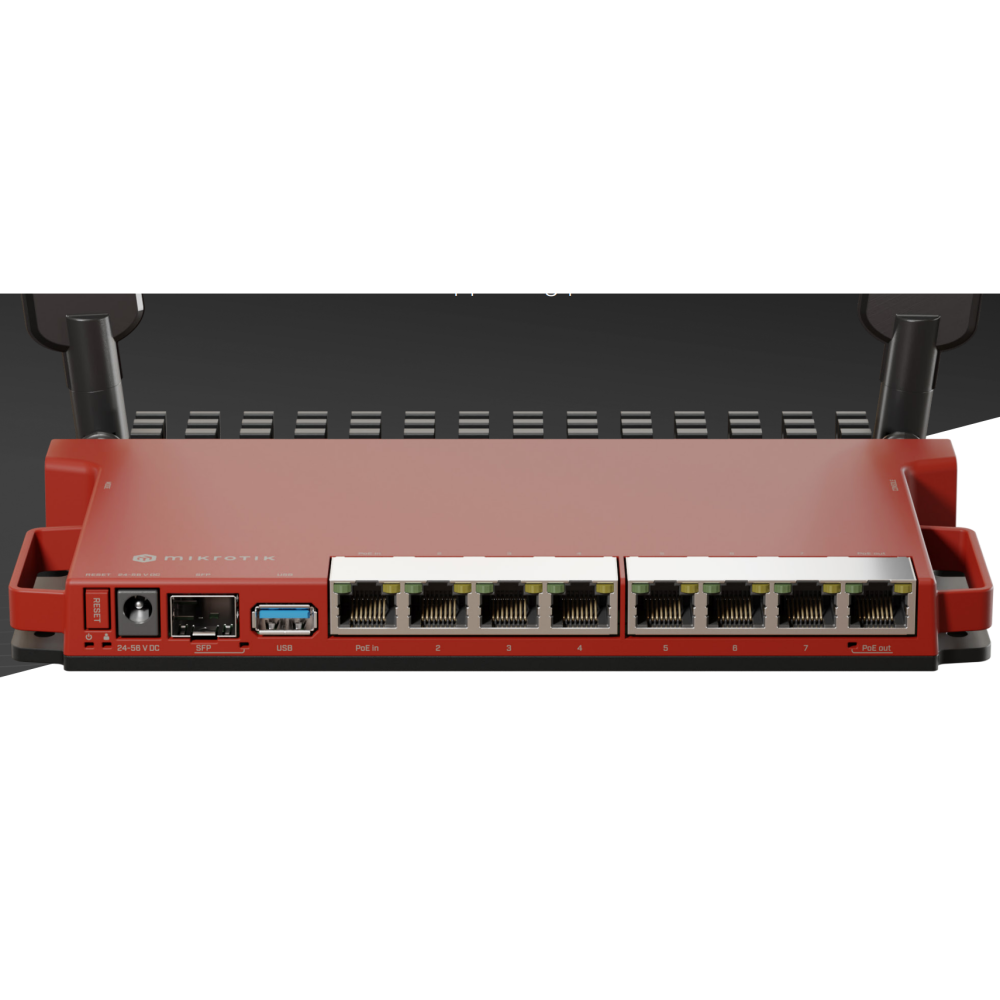

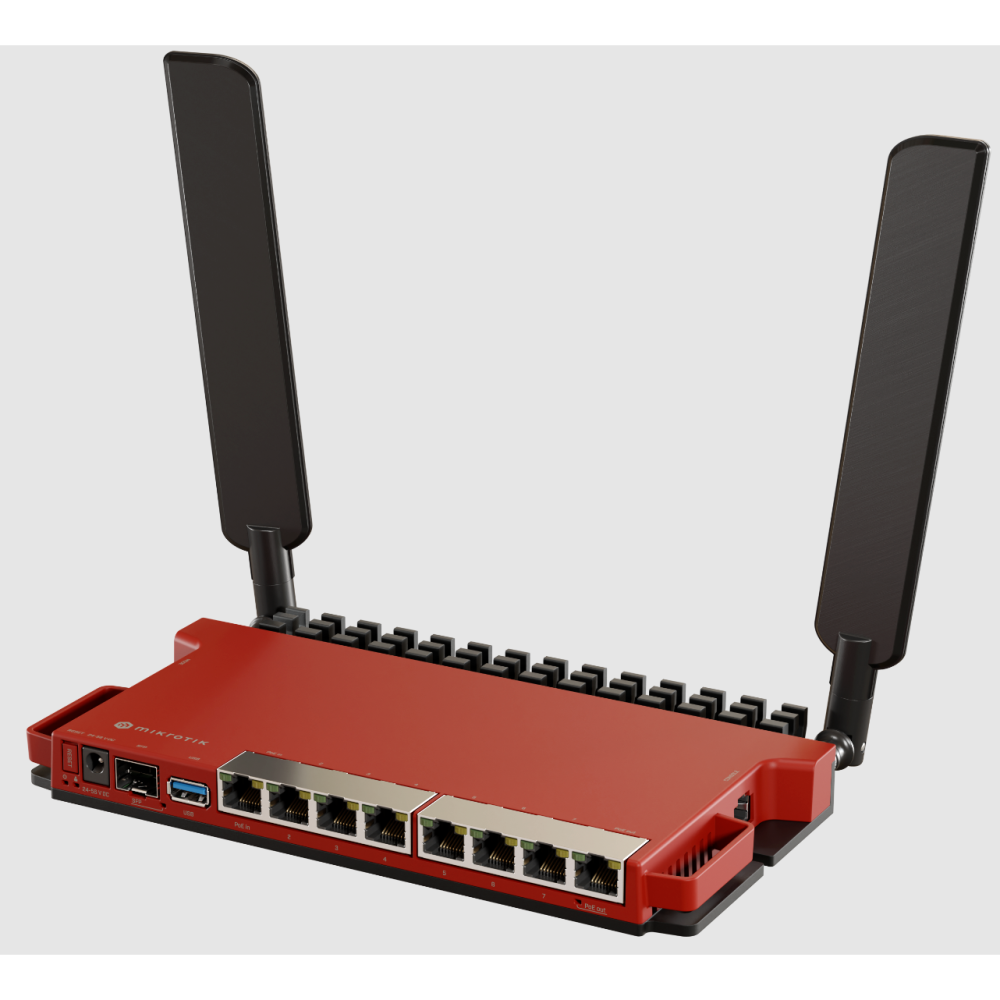

All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration!

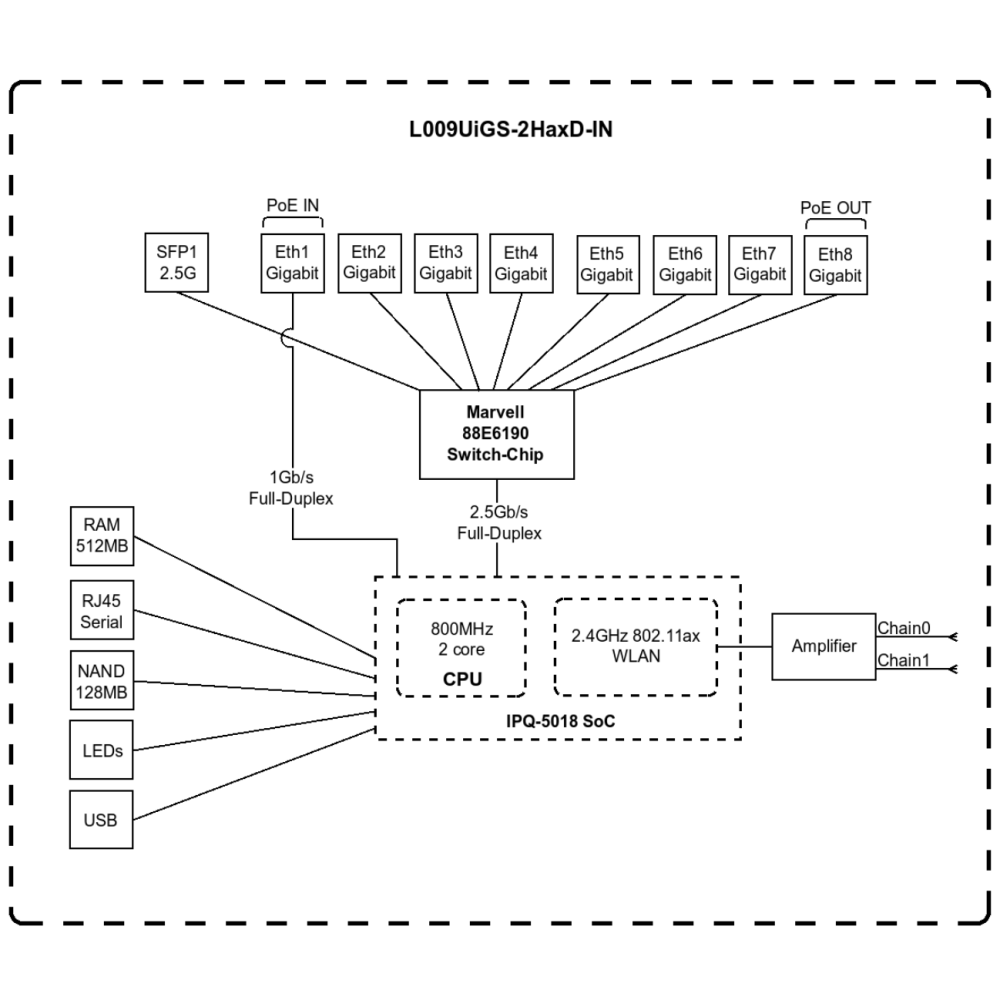

At the heart of it all we have a speedy Marvell Peridot Switchchip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. That means – countless configurations with no bottlenecks!
The 2.4 GHz dual-chain wireless connectivity is also much stronger now. The Generation 6 or the ax standard wireless offers up to 90% higher speed in the 2.4 GHz spectrum! Not to mention the overall signal stability. It can handle more clients with better responsiveness.

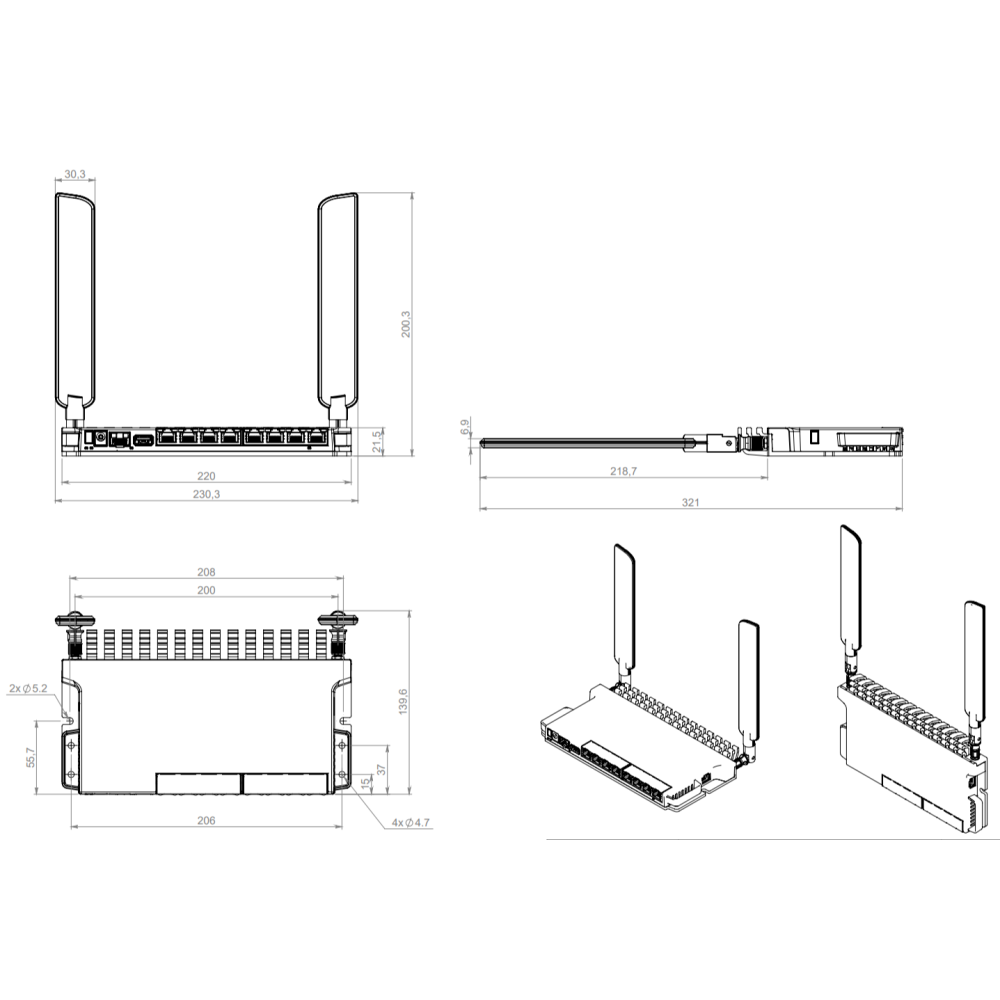

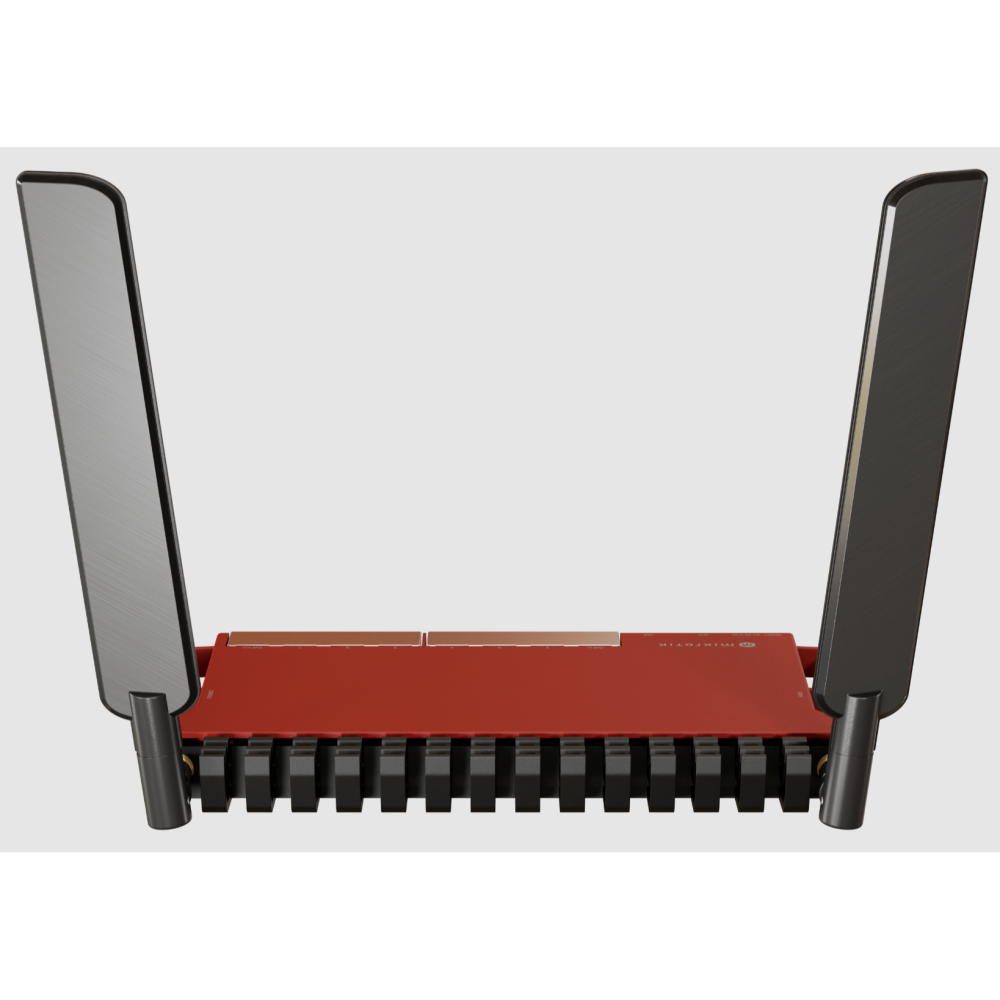

The new enclosure is a spectacular innovation on its own. It’s the same form-factor you might have seen with our highly sought-after RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But here’s the fun part: with a simple set of accessories, you can fit up to four of these routers in a single 1U rackmount space.
Here at MikroTik, we’re the world champions of server room tetris. So here’s our latest lifehack for the most efficient server rooms: grab an RB5009 with PoE-out ports. And mount it together with seven L009 routers in just two 1U rackmount spaces. You’ll become a living legend among system administrators, setting a new example of efficient space management and simple, reliable powering. And if you don’t need the wireless capability, you can cut costs even more and try the other version of this router: the L009UiGS-RM. It has all the same features – except for the 2.4 GHz wireless. And it comes with all the necessary mounting accessories.
RB2011 will always remain a networking legend, but it’s time to take it up a notch. And the L009 product line is the perfect upgrade that will help you save time, money, and server room space like never before!
