MikroTik原廠代理,台灣公司貨(新北市新店)
專業銷售MikroTik,蝦皮最多客人下單的店家。
無需擔心售後及技術問題!(歡迎弱電廠商長期配合)
全新品保固一年,30天內非人為故障直接換新品不囉嗦!
MikroTik 800MHz 雙核心 ARM IPQ-5018 CPU
RAM 512 MB
Storage 128 MB
合計8個Gigabit網口
1個SFP 1.25G/2.5G光纖口
1個USB3.0

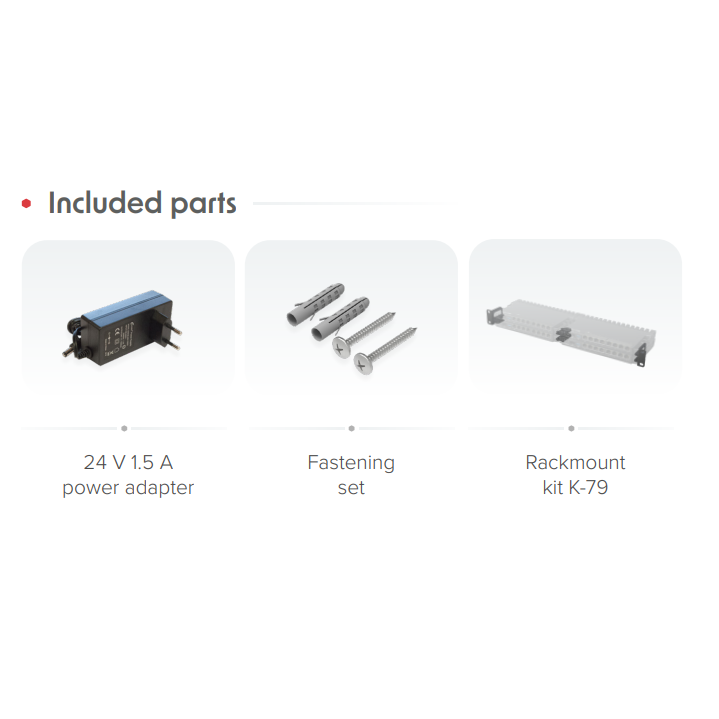

電壓範圍 24-56 V (內附24V/1.5A美規變壓器)
第八口支援POE輸出 (Passive PoE)
內含耳朵套件可安裝於標準19吋機架.
官網商品介紹
https://mikrotik.com/product/l009uigs_rm

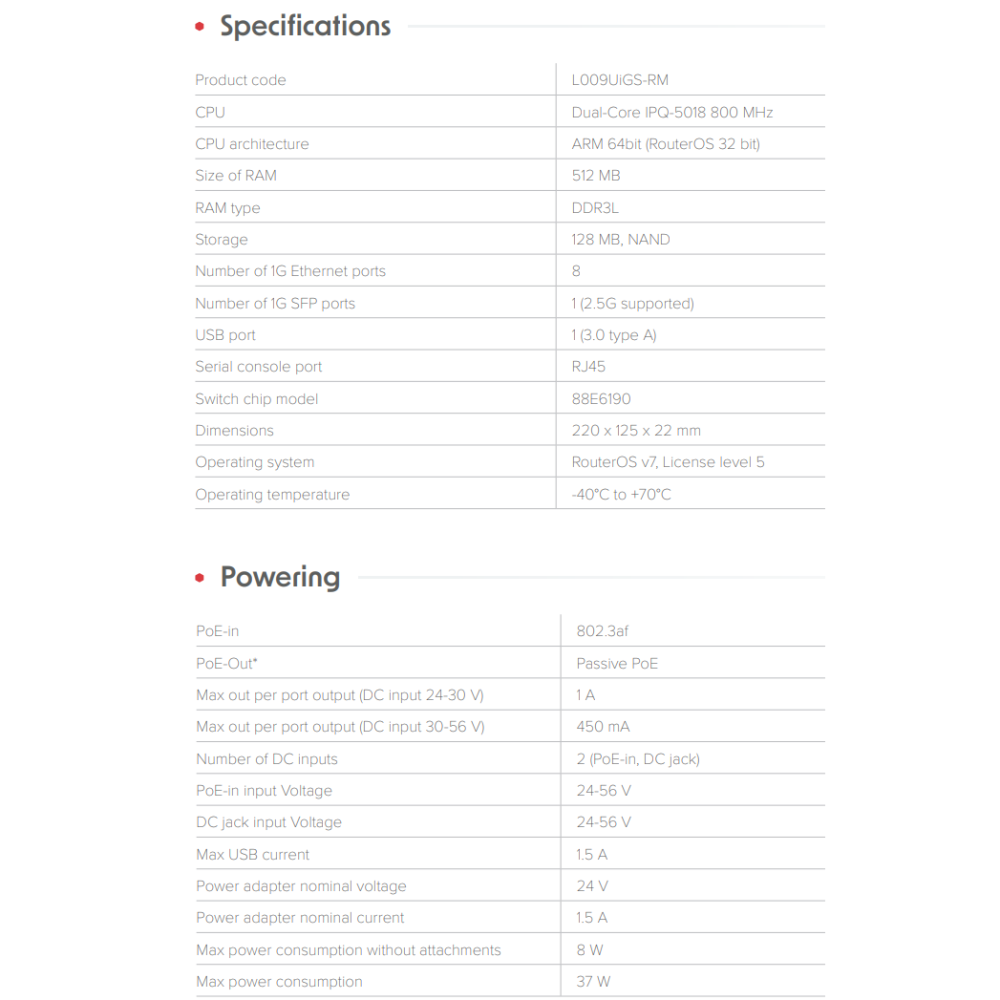

規格
Product code L009UiGS-RM
Architecture ARM
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
供電
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 24-56 V
Max power consumption 40 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V
PoE-out
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1 A
Ethernet
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1
Fiber
SFP ports 1 (2.5G supported)
Peripherals
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
Mode button Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP 20
L009UiGS-RM

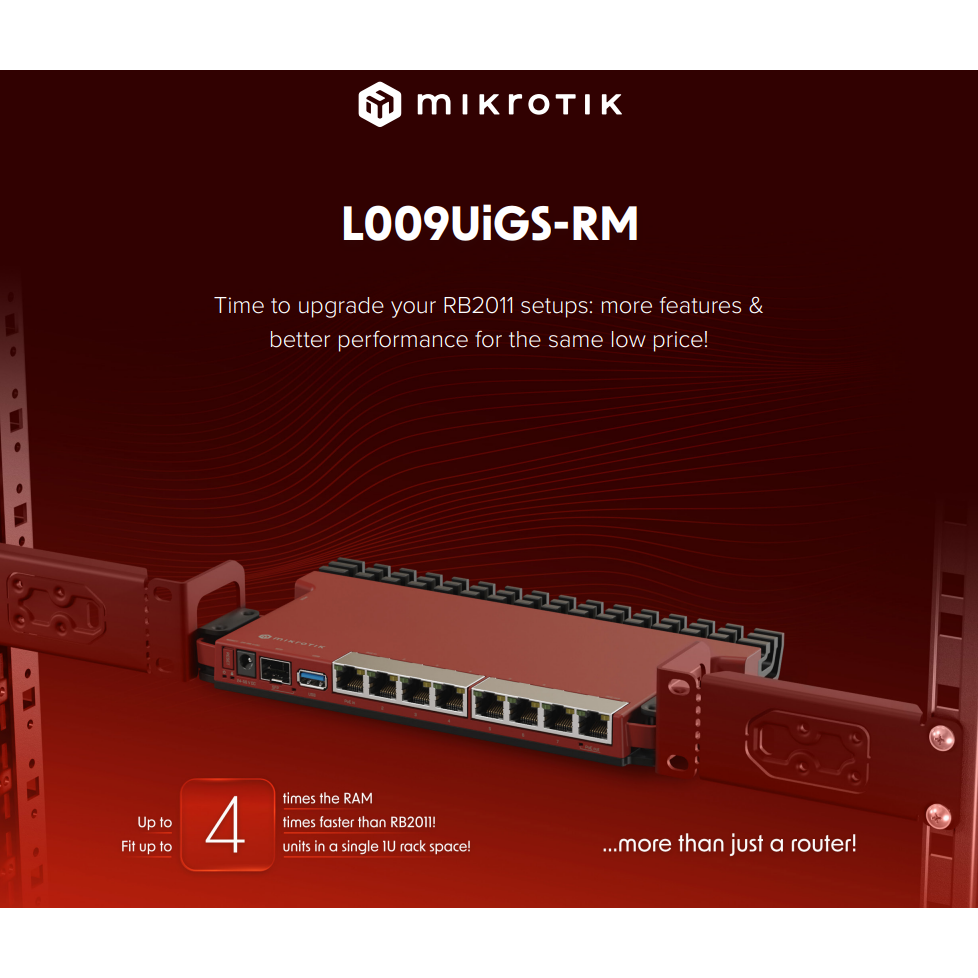

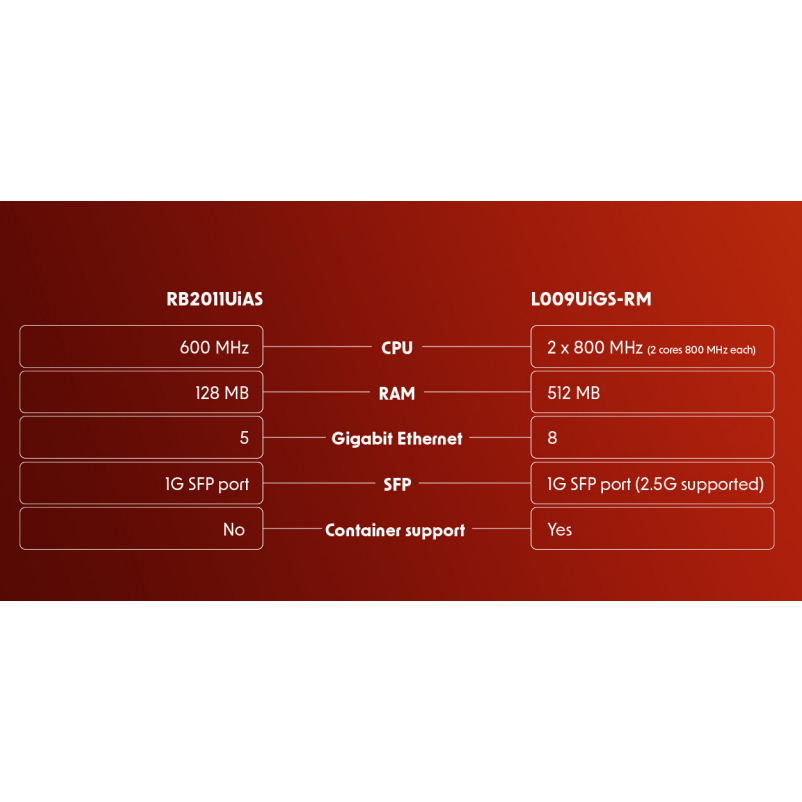

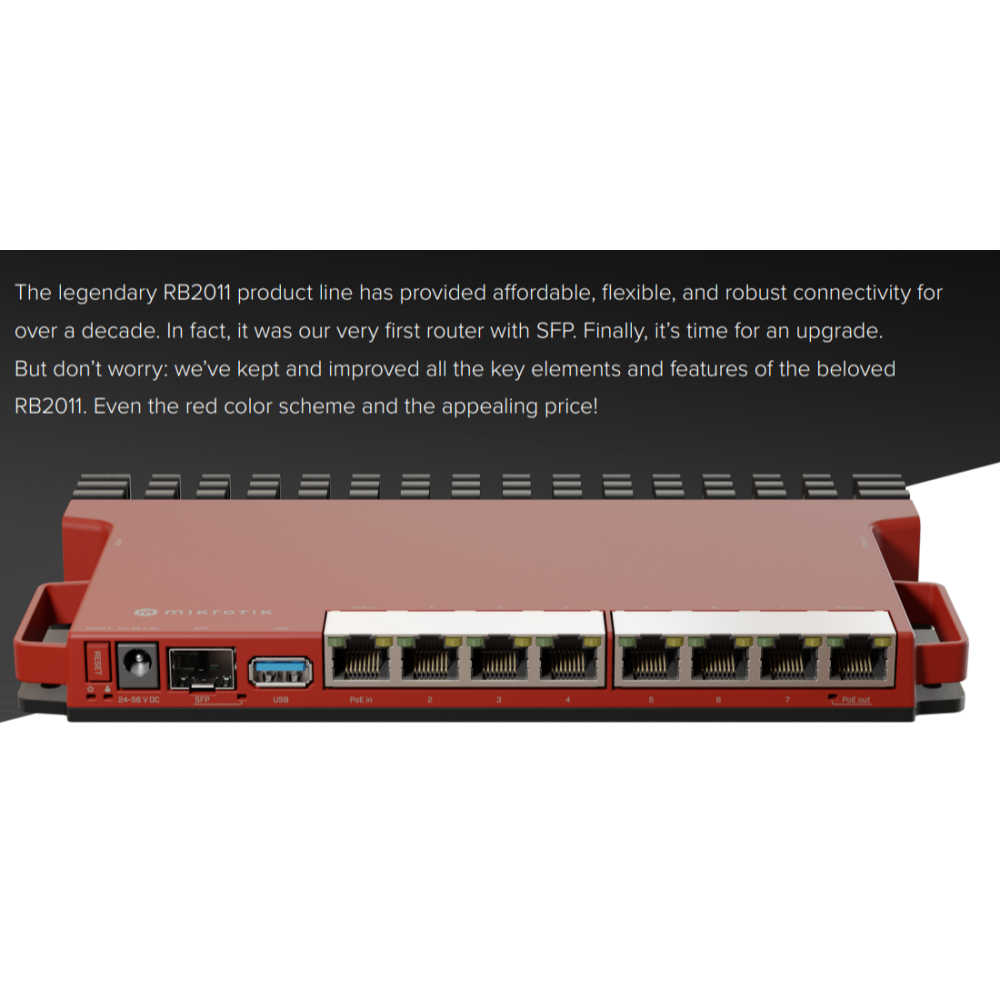

L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories.
