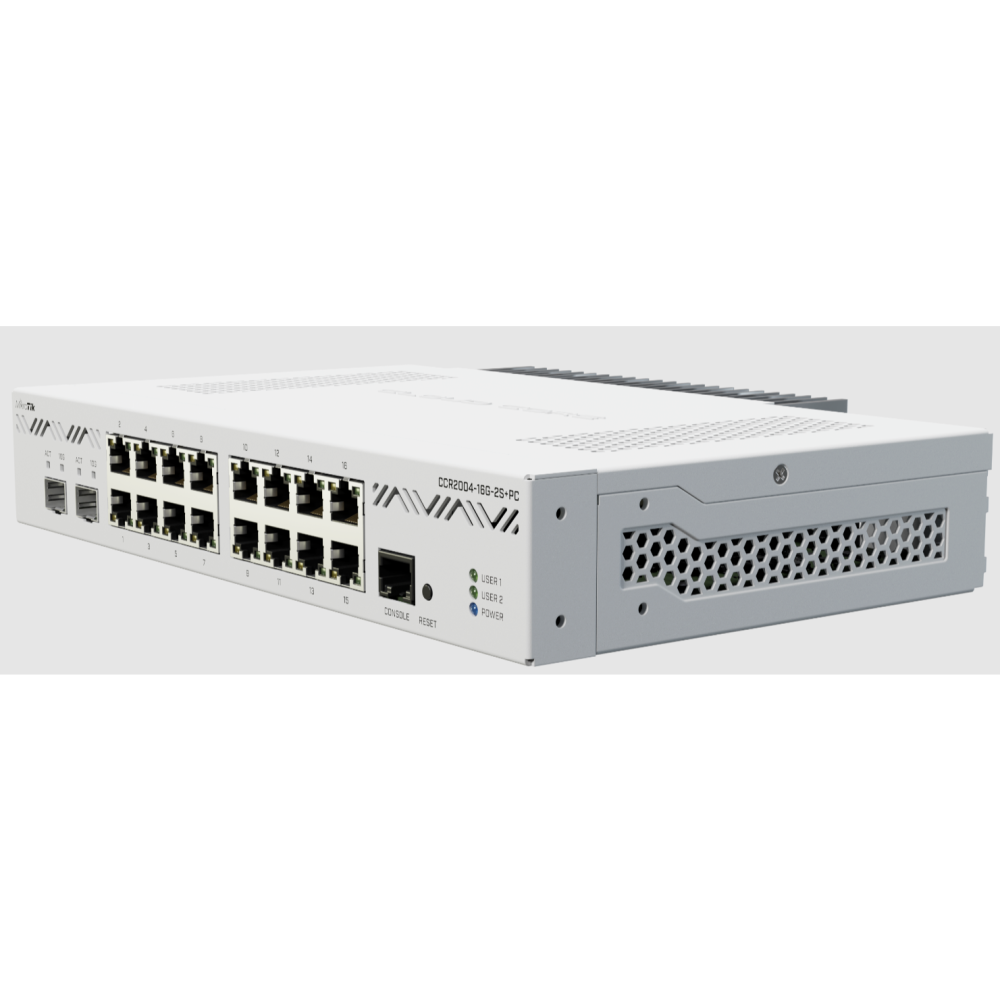

2022年最新款高性能桌面型 CCR2004-16G-2S+PC

型號:CCR2004-16G-2S+PC (桌面型)

CPU:四核心ARM-64 1200 MHz （AL32400）

RAM：4 GB

儲存空間：128 MB

16個10/100/1000M網口

2個10G 光纖SFP+（售價不含SFP模塊）

48V/0.95A 外接變壓器供電

無散熱風扇（外部散熱片散熱）

RouterOS授權等級 license 6

console port 1個（RJ45）

最大功率(無外接時）30 W

最大功率全輸出時 36 W

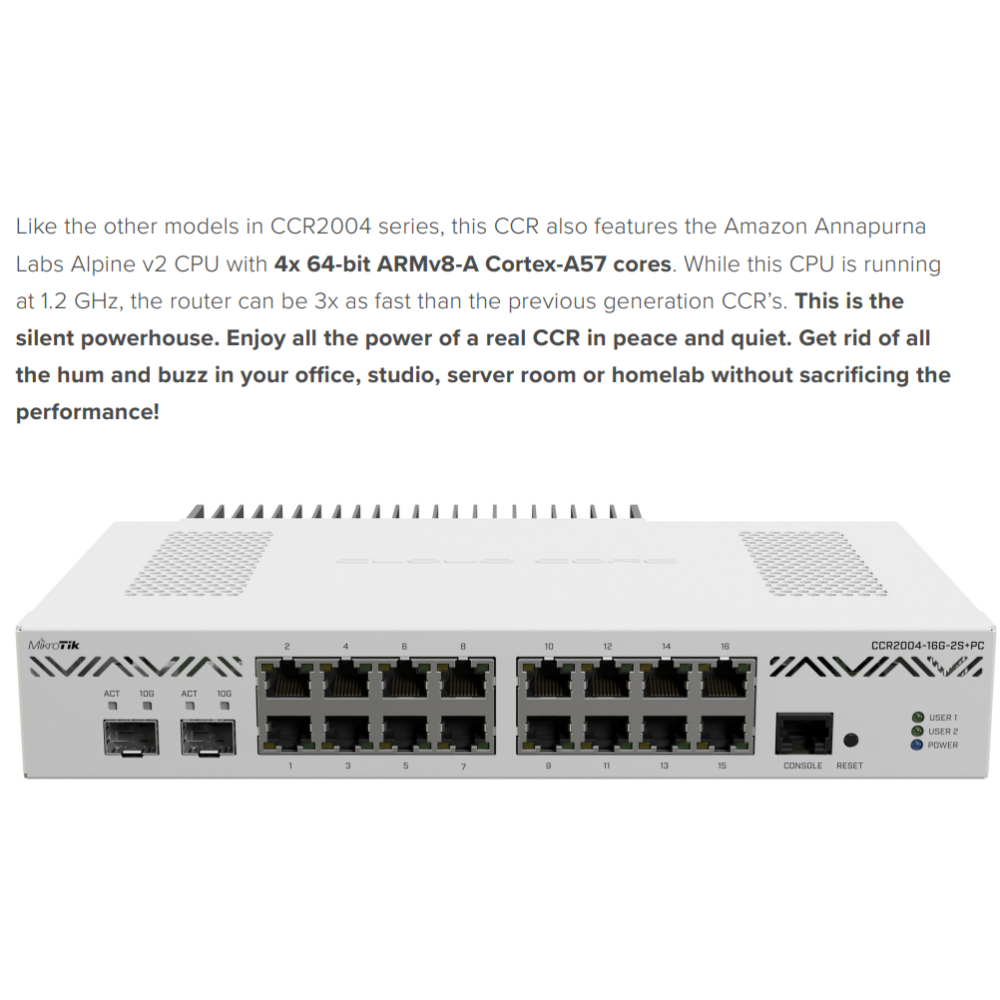

Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!

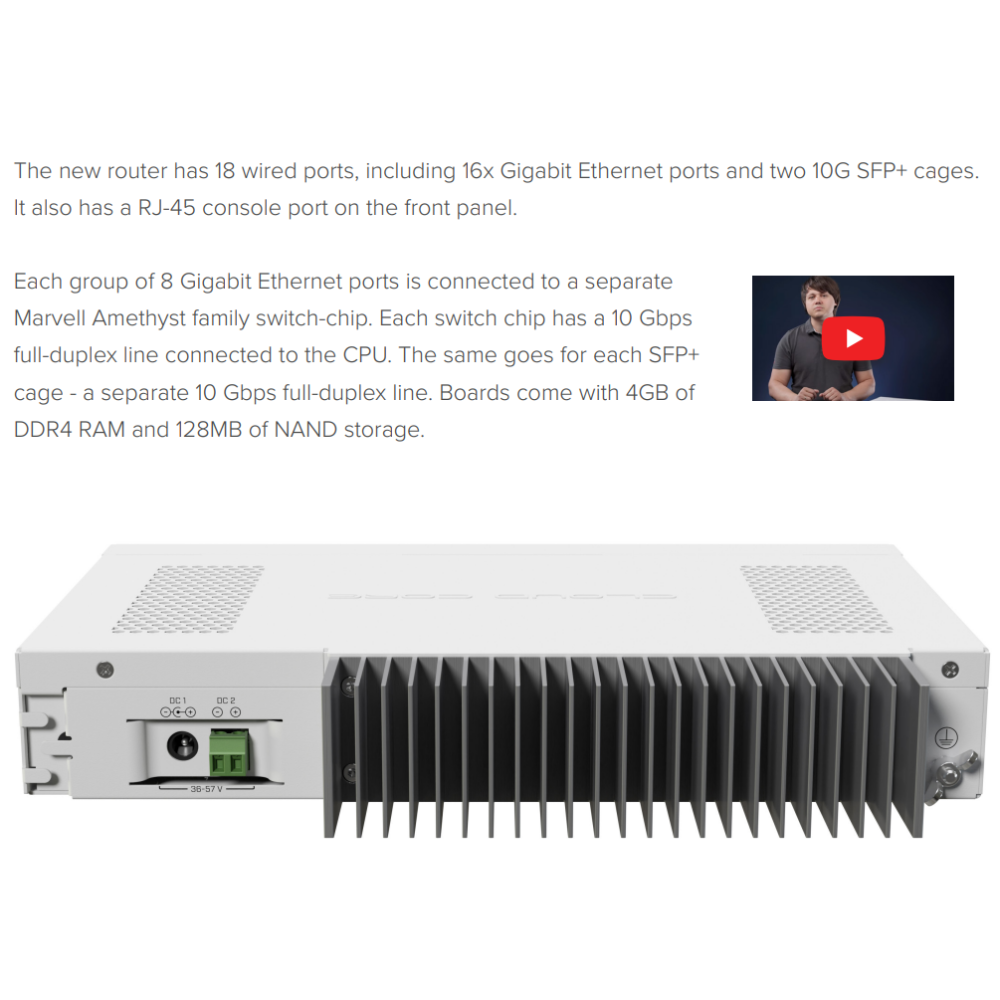

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.

Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

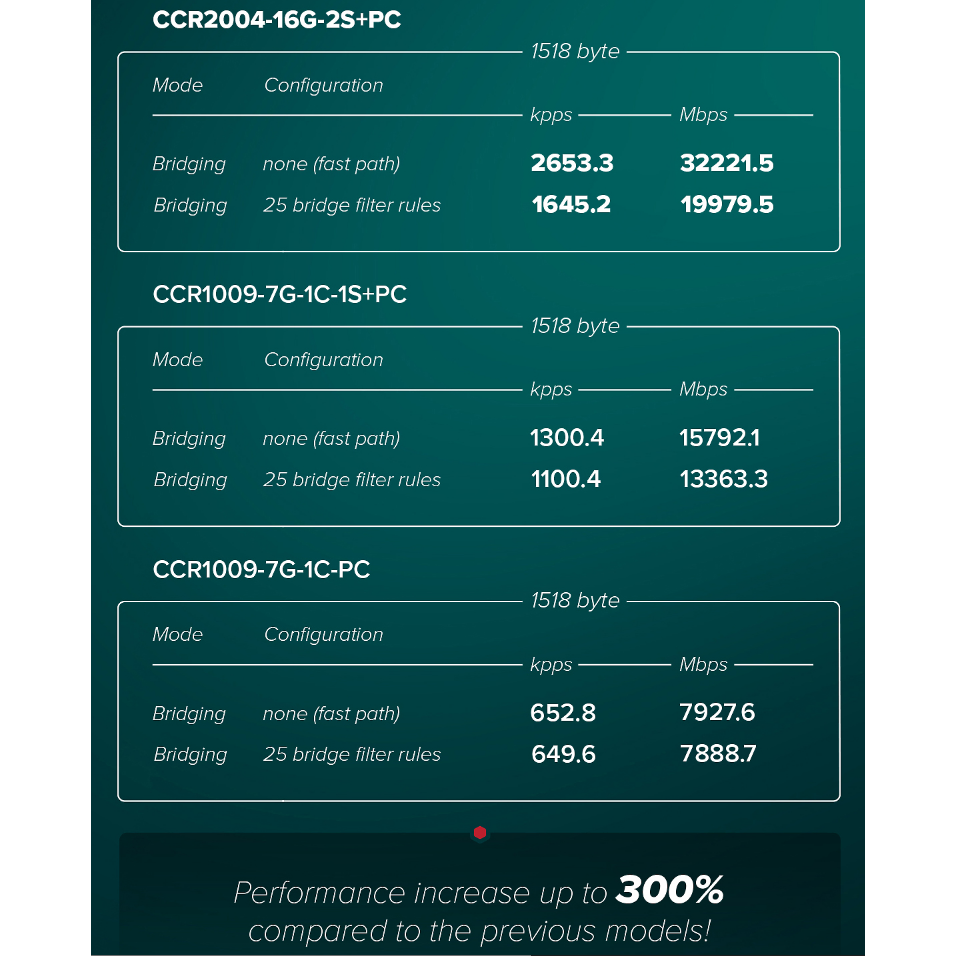

So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009.

The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.

Specifications

DetailsProduct codeCCR2004-16G-2S+PCArchitectureARM 64bitCPUAL32400CPU core count4CPU nominal frequency1200 MHzRouterOS license6Operating SystemRouterOSSize of RAM4 GBStorage size128 MBStorage typeNANDTested ambient temperature-20°C to 60°CSuggested price$465.00

Powering

DetailsNumber of DC inputs2 (DC jack, 2-pin terminal)DC jack input Voltage36-57 V2-pin terminal input Voltage36-57 VMax power consumption36 WMax power consumption without attachments30 WCooling typePassive

Ethernet

Details10/100/1000 Ethernet ports16

Fiber

DetailsSFP+ ports2

Peripherals

DetailsSerial console portRJ45

Other

DetailsCPU temperature monitorYesPCB temperature monitorYesVoltage MonitorYes

Certification & Approvals

DetailsCertificationCE, EAC, ROHSIPIP 20
