詳盡技術資料請見原廠或供應商 https://www.ftdichip.com/Support/Documents/DataSheets/Modules/DS_UMFT260EV1A.pdf [ https://www.ftdichip.com/Support/Documents/DataSheets/Modules/DS_UMFT260EV1A.pdf ] 料號:UMFT260EV1A
Product Overview

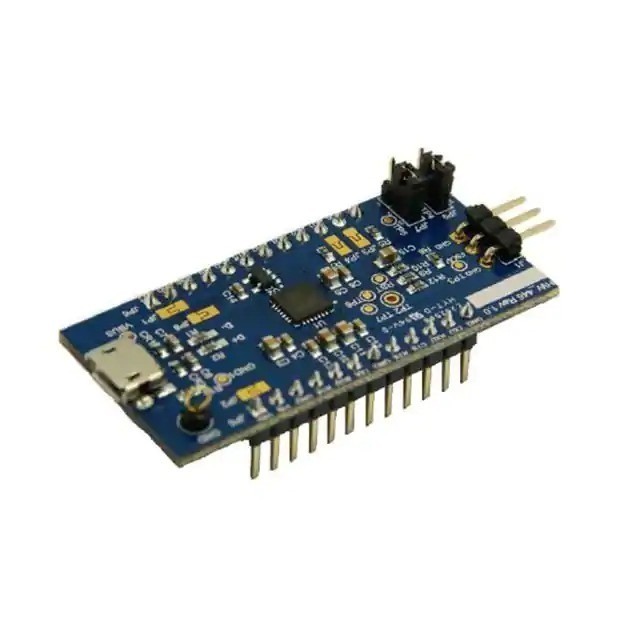

The UMFT260EV1A is a development module for FTDI's FT260 HID class USB to UART/I2C bridge IC. The FT260 is a single chip USB to UART/I2C bridge with standard human interface device (HID) class support. The HID class USB to UART/I2C module is ideal for development purposes to quickly prove functionality of adding USB to a target design. The UMFT260EV1A is a module which is designed to plug into a standard 0.8" wide 24 pin DIP socket. An On-board Micro USB-B type connector allows modules to be connected to a host system via a standard USB A to Micro B cable. Many of the features of FT260 can be utilized with this module.
- USB2.0 compliant full speed device with entire USB protocol handled on the chip
- Support 2 USB HID interfaces, each corresponding to the on-chip physical interfaces, I2C and UART
- Pin configuration of enabling HID interface for variety of application
- HID over I2C specification support
- On-board I2C 2kbits EEPROM to contain FT260 configuration settings and vendor specific parameters
- Jumpers for selecting the FT260 HID interfaces configuration
- Solder jumpers for configuring the FT260Q to be in USB bus powered or self powered modes
Applications
Communications & Networking
Official Documents
- UMFT260EV1A Datasheet [ https://www.ftdichip.cn/Support/Documents/DataSheets/Modules/DS_UMFT260EV1A.pdf ]
- FT260 – Full speed HID Class USB to UART/I2C Datasheet [ https://www.ftdichip.cn/Support/Documents/DataSheets/ICs/DS_FT260.pdf ]
- AN_394 User Guide for FT260 [ https://www.ftdichip.cn/Support/Documents/AppNotes/AN_394_User_Guide_for_FT260.pdf ]
- AN_395 User Guide for LibFT260 [ https://www.ftdichip.cn/Support/Documents/AppNotes/AN_395_User_Guide_for_LibFT260.pdf ]
- AN_438_FT260_I2C_Example_in_Csharp [ https://www.ftdichip.com/Support/Documents/AppNotes/AN_438_FT260_I2C_Example_in_Csharp.pdf ]
- AN_444 Using the FT260 with Linux [ https://www.ftdichip.com/Support/Documents/AppNotes/AN_444_Using_the_FT260%20_with_Linux.pdf ]
- LibFT260 [ https://www.ftdichip.cn/Support/SoftwareExamples/LibFT260-v1.1.5.zip ] - 支持編程FT260不使用原HID類報道中描述庫AN_395 [ https://www.ftdichip.cn/Support/Documents/AppNotes/AN_395_User_Guide_for_LibFT260.pdf ]
