[物聯汪汪] 附發票~ Nordic原廠 nRF52840 Dongle Bluetooth 5 BLE藍牙開發板

詳盡技術資料請見原廠或供應商 https://www.nordicsemi.com/Software-and-tools/Development-Kits/nRF52840-Dongle [ https://www.nordicsemi.com/Software-and-tools/Development-Kits/nRF52840-Dongle ]  料號：nRF52840-Dongle

溫馨提示

本裝置具備裸露的金屬接點，對靜電非常敏感。使用前請務必遵照下列步驟：

1. 人體先接觸大型接地金屬物品進行人體放電。
2. 再接觸 USB 上的金屬接地點透過人體進行放電。
3. 插入電腦時手指盡量不要觸碰到裝置上的金屬接點，以免形成靜電迴路。
4. 請保持垂直方向插入 USB，避免晃動金屬接觸點造成短路。

• 本商品為專用於雛形研發實驗之非隨插即用的射頻模組，並非通用終端產品。故須經具備相關知識之專業人士（如：工程師、研究師生、或創客）撰寫程式、燒錄、焊接、外接天線等二次加工，或須與主機板連接使用等方式，始具備訊號傳輸功能，非屬電信管制射頻器材。
• 專業人士在購買前敬請詳閱商品說明與原廠規格書，始可用於您自己的原型設計中自行實驗與實作完整通訊功能。
• 商品本身初始無任何預設應用或功能，故一般消費者上電後無法直接使用，切勿購買。

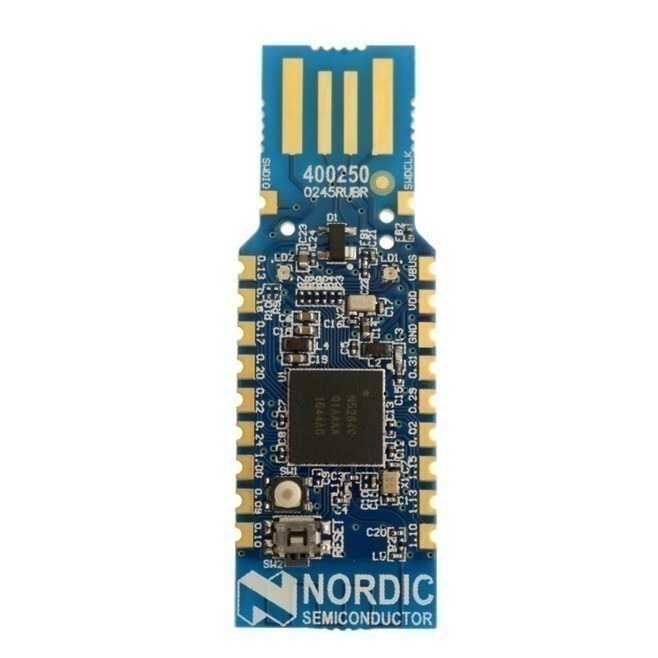

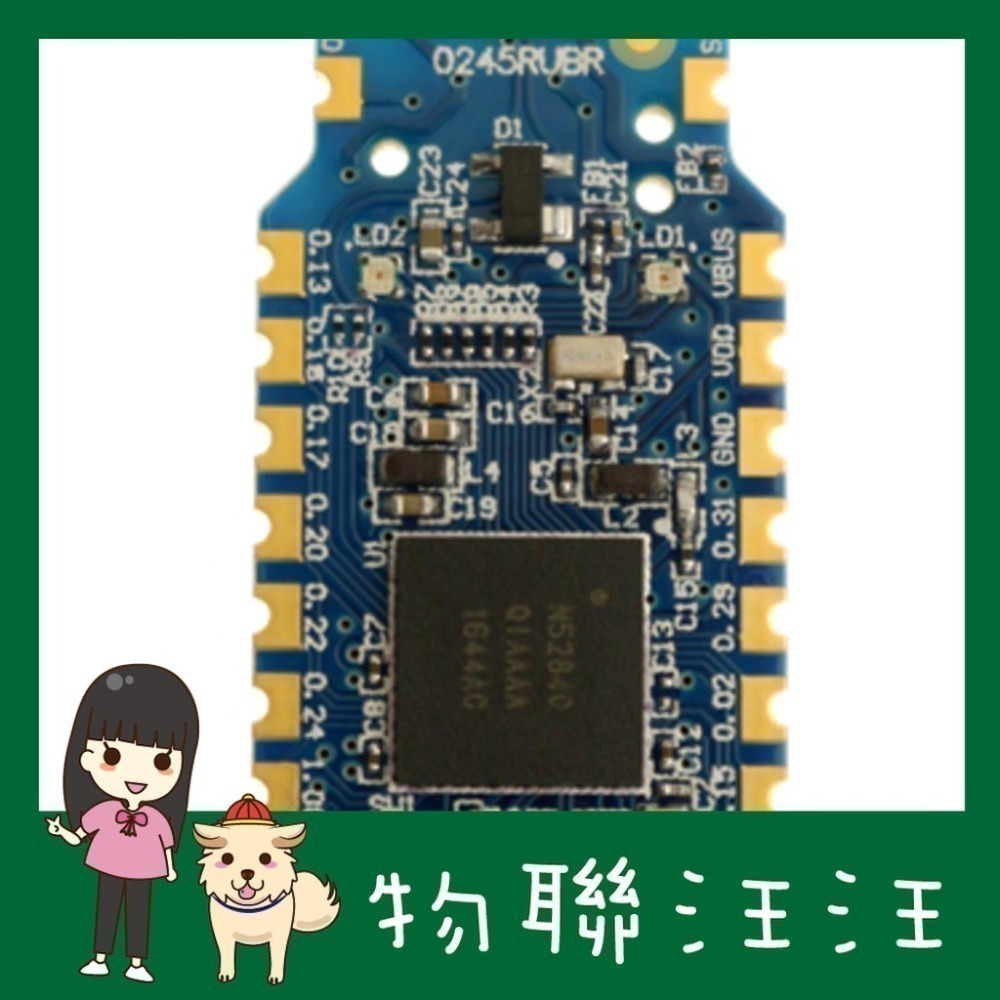

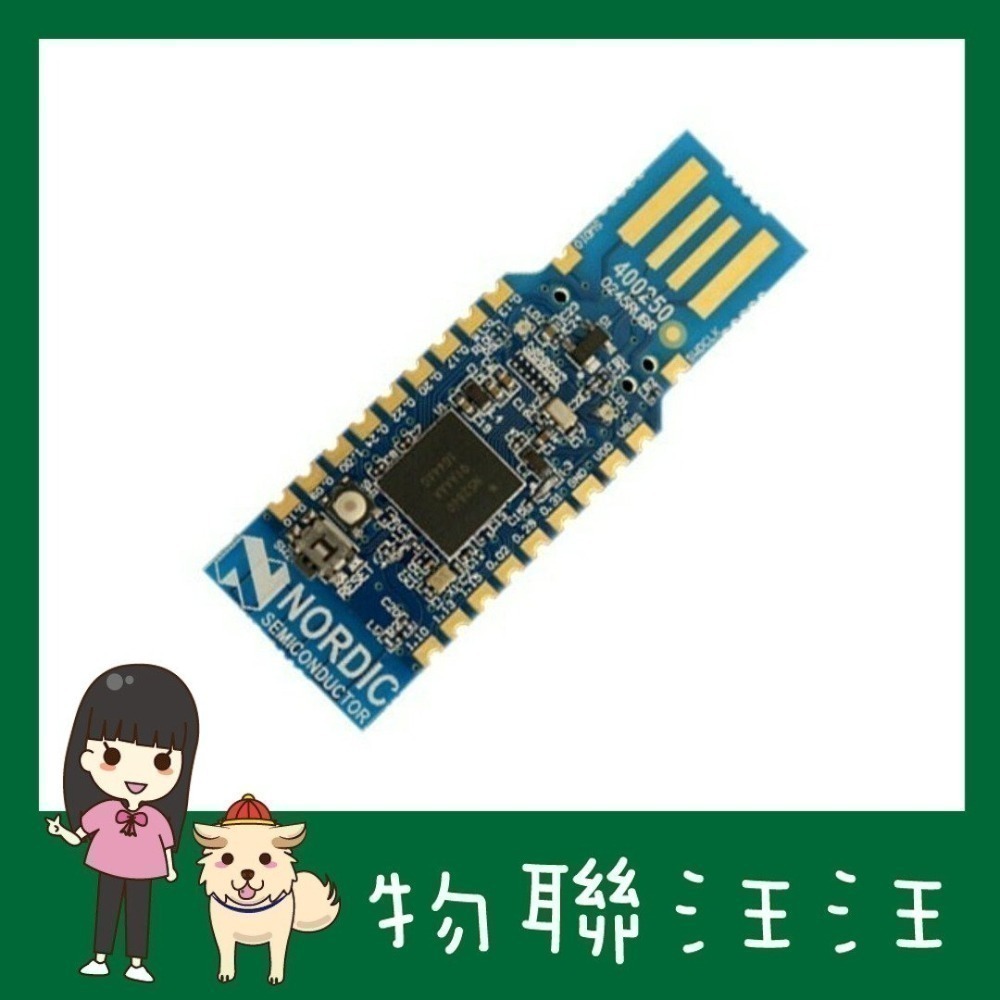

The nRF52840 Dongle is a small, low-cost USB dongle that supports Bluetooth 5, Bluetooth mesh, Thread, ZigBee, 802.15.4, ANT and 2.4 GHz proprietary protocols. The Dongle is the perfect target hardware for use with nRF Connect for Desktop as it is low-cost but still support all the short range wireless standards used with Nordic devices. The dongle has been designed to be used as a wireless HW device together with nRF Connect for Desktop. For other use cases please do note that there is no debug support on the Dongle, only support for programming the device and communicating through USB.

It is supported by most of the nRF Connect for Desktop apps and will automatically be programmed if needed. In addition custom applications can be compiled and downloaded to the Dongle. It has a user programmable RGB LED, a green LED, a user programmable button as well as 15 GPIO accessible from castellated solder points along the edge. Example applications are available in the nRF5 SDK under the board name PCA10059.

The nRF52840 Dongle is supported by nRF Connect for Desktop as well as programming through nRFUtil.

The box includes an nRF52840 Dongle.

Download nRF52840 Dongle product brief [PDF] [ https://www.nordicsemi.com/-/media/Software-and-other-downloads/Product-Briefs/nRF52840-Dongle-product-brief.pdf?la=en&hash=8DDD17CCF2E574021A06A05C71B46C505D492361 ]
