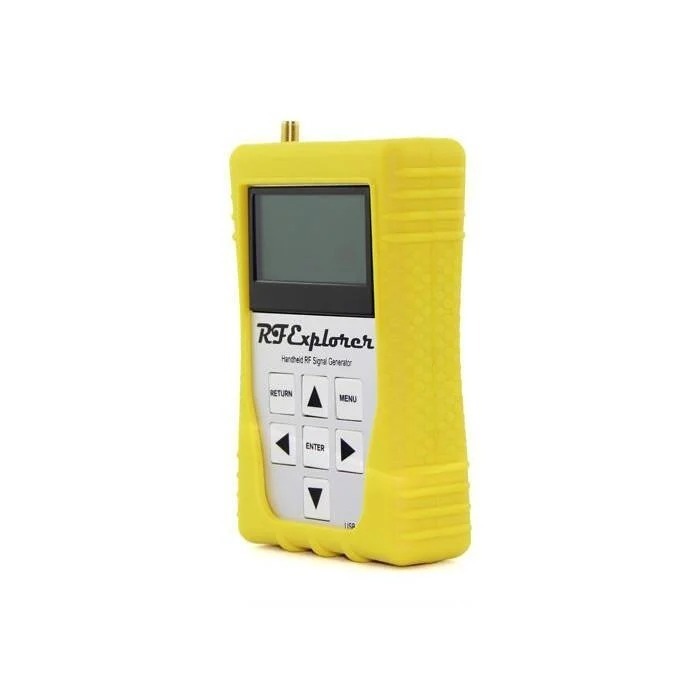

****凡購買此商品將加送黃色手持果凍套如圖六呈現效果!!

詳盡技術資料請見原廠或供應商連結 https://www.seeedstudio.com/RF-Explorer-ISM-Combo-p-1092.html [ https://www.seeedstudio.com/RF-Explorer-ISM-Combo-p-1092.html ] 單品料號：109990014

溫馨提示

RF-Explorer 原廠資料及下載區位於 https://j3.rf-explorer.com/downloads [ https://j3.rf-explorer.com/downloads ] ，現在已經有簡體中文使用手冊及豐富的說明文件，韌體終身可以更新修正 bugs。Windows / Mac / Linux / Raspberry Pi 等各種平台都有應用軟體支援，並且還有觸控版本！您還可以自行撰寫序列埠程式與主機溝通以便進行自動化控制，無線電波測量儀器普遍價格居高不下，RF-Explorer 系列絕對是您最好的投資！

這系列機種使用簡易、機體強固，請留意下列幾點，可以確保不受電磁波影響導致損害：

安裝天線後勿在高電磁場區域內使用，也不要近距離靠近手機（半公尺到一公尺內）。
單頻段機種防護耐受力較差，可以考慮加購 Poewr Limiter 以便防護強烈電磁突波。
不使用時請將天線卸除。

我司備有替換電池，如果有需要的客戶可以洽詢。

PRODUCT DETAILS

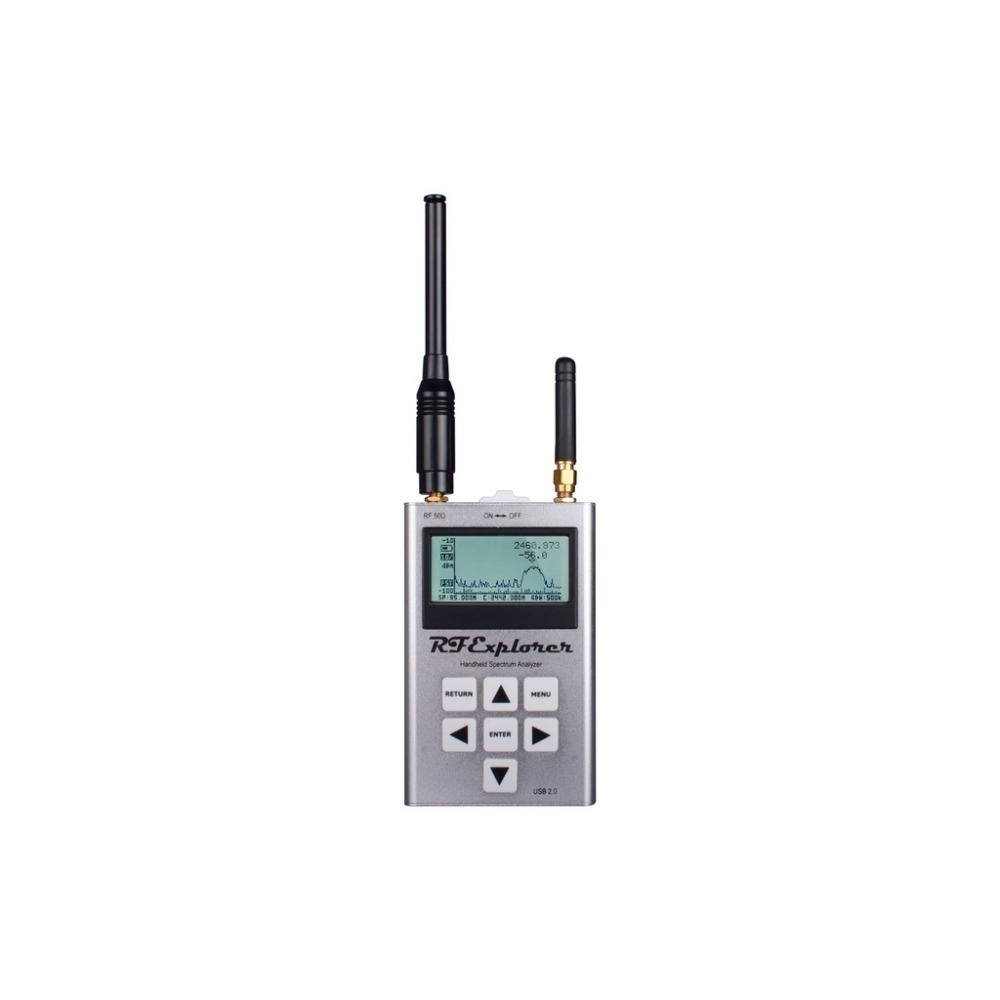

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

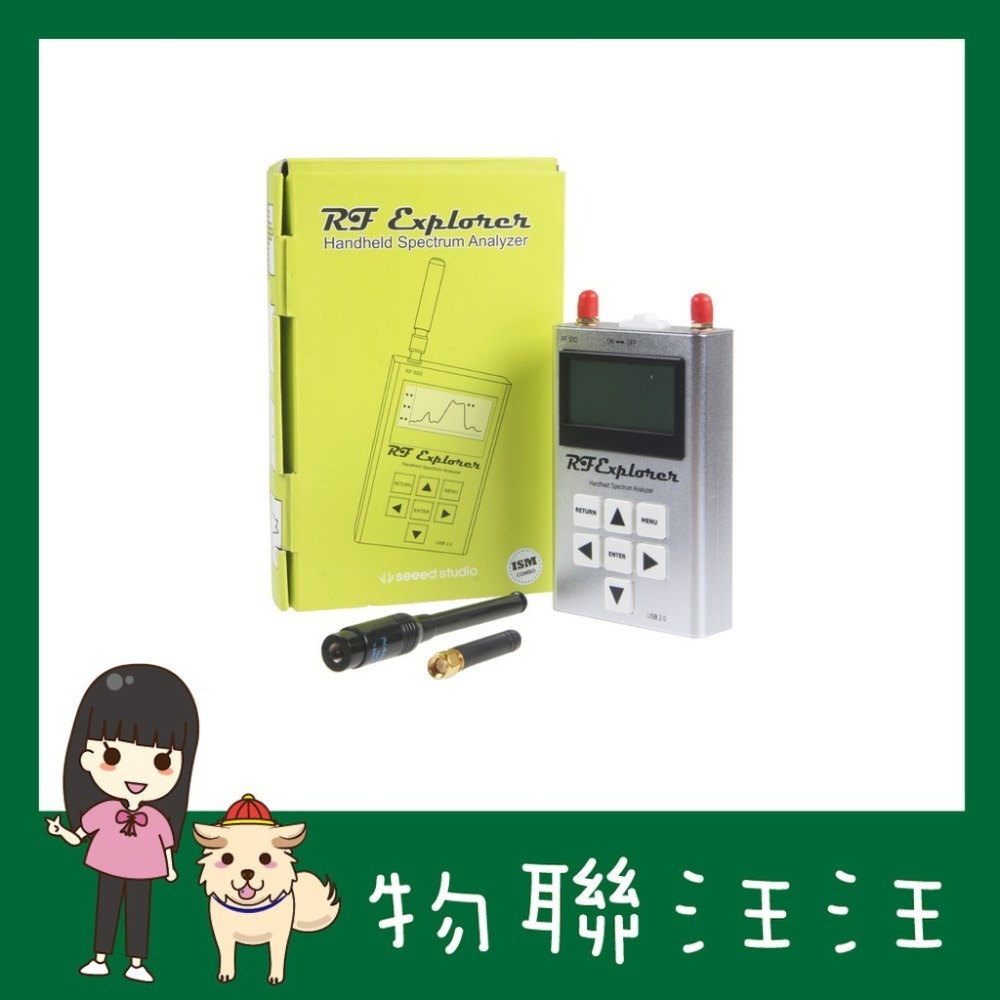

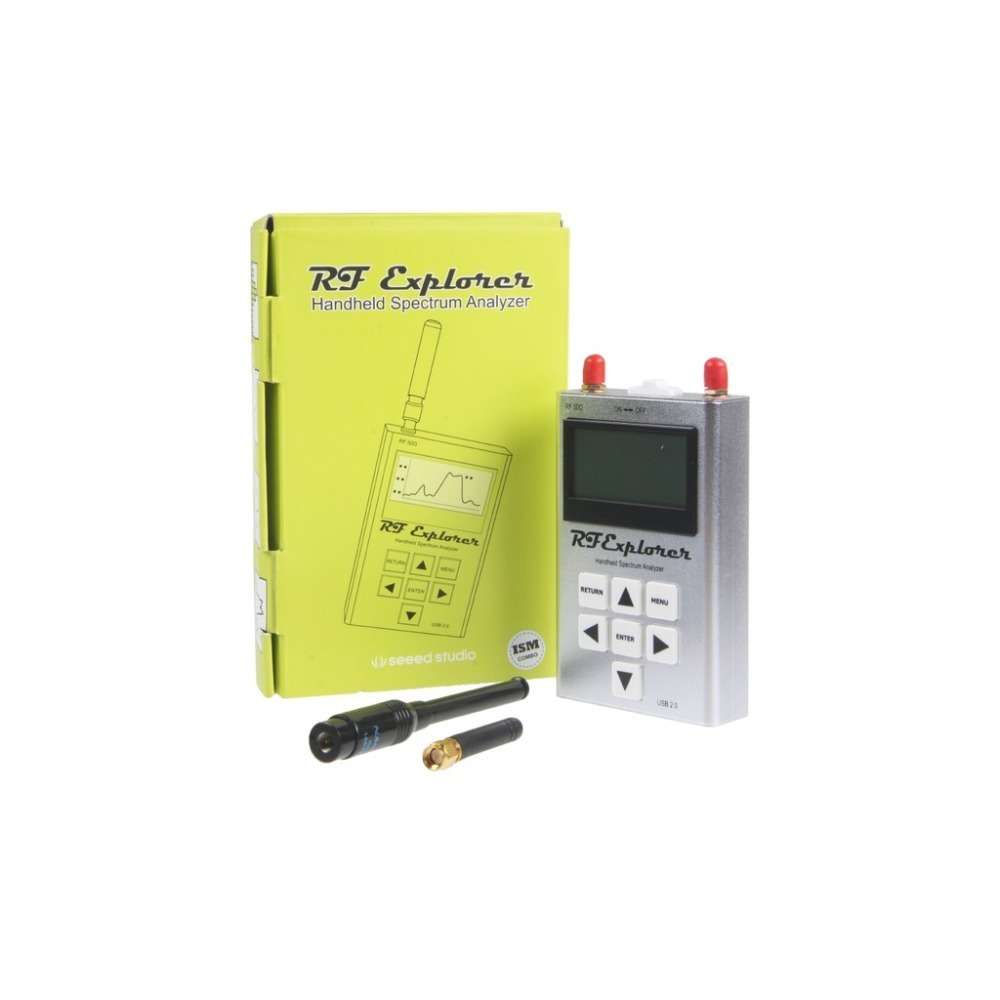

This model includes a WSUB1G baseline unit plus an RFEM2.4G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and two antennas,a nice dual band telescopic 144/430MHz wideband antenna for Sub-GHz frequencies and a whip helical for 2.4GHz band.

Feature

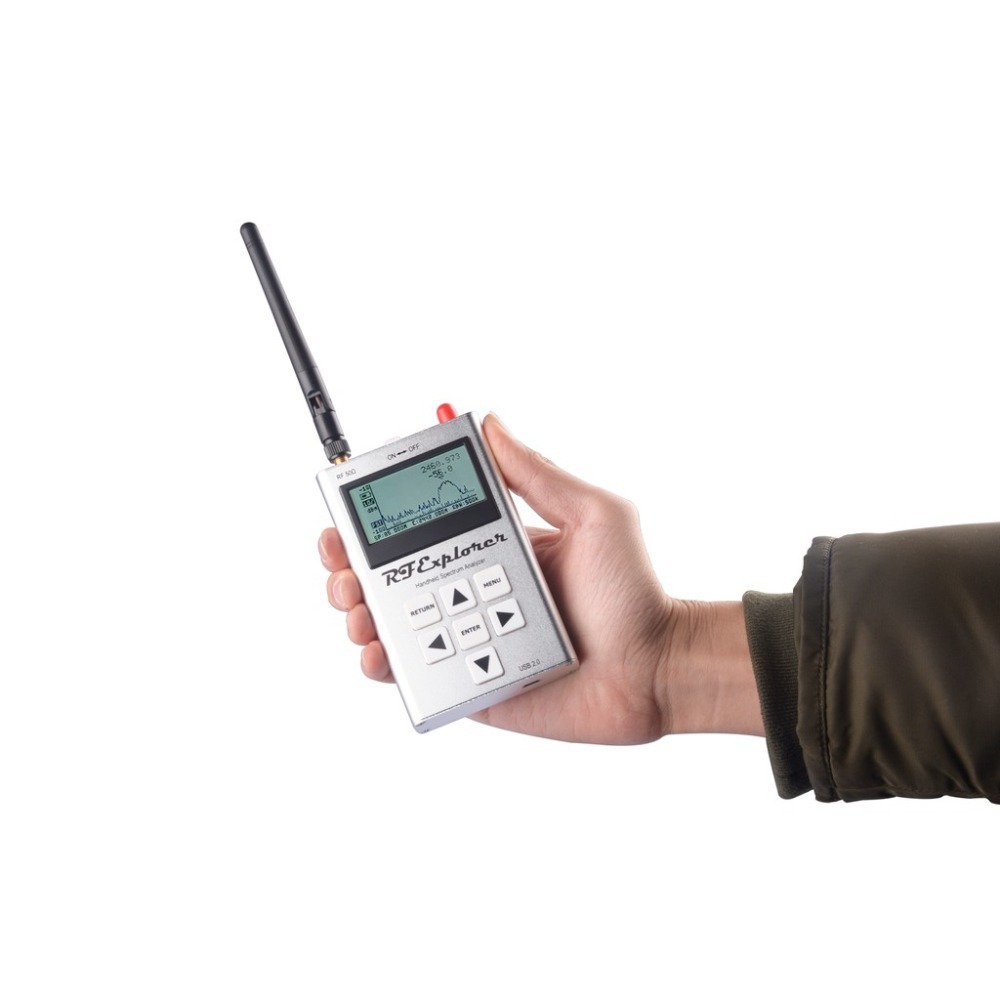

Pocket size and light weight
Solid aluminum metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

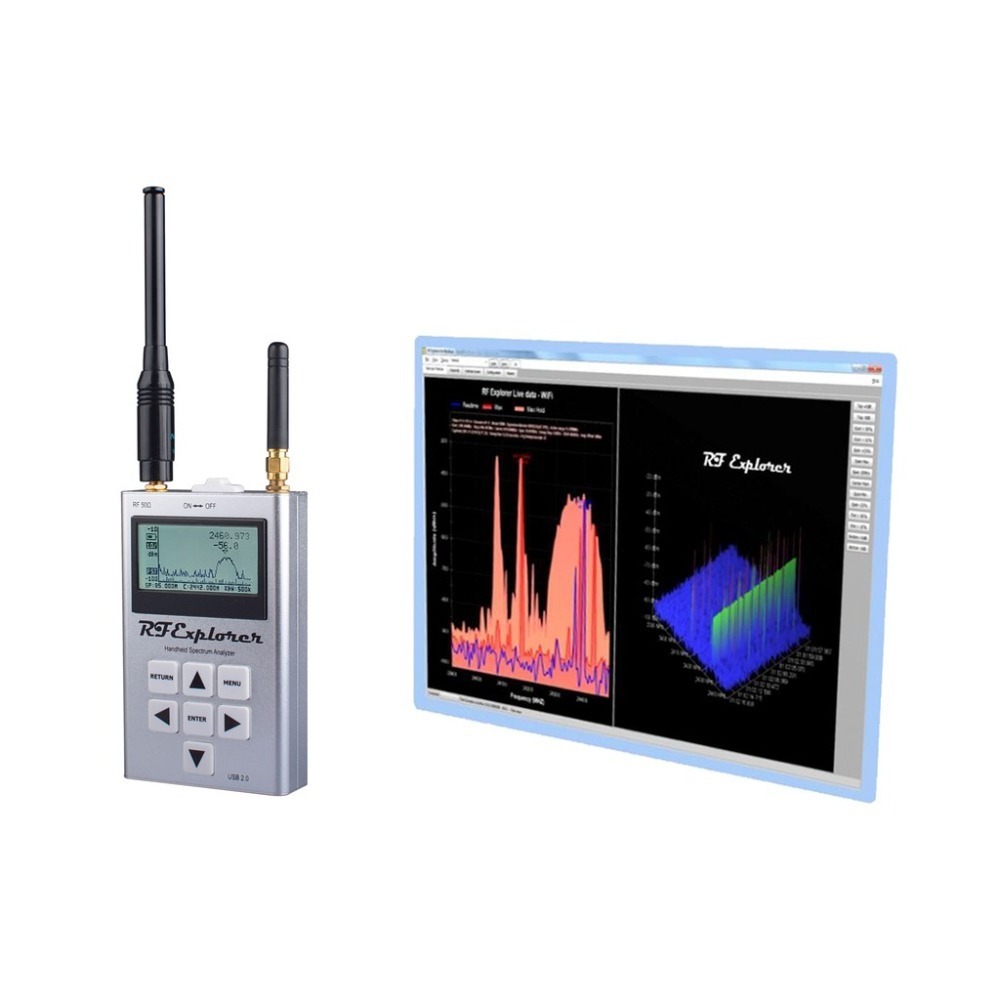

Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular sub-1Ghz ISM bands and 2.4GHz band, including 315MHz, 433MHz, 868MHzand 915MHz, 2.4GHz WiFi, Zigbee, also including UHF TV, 70cm and 33cm HAM radio, GSM, etc. Any frequency from 240MHzto 960MHz and 2350MHz to 2550MHz is supported.

Important

Note this unit does not include RF Generator functionality for the Sub-GHz band, only Spectrum Analyzer functionality is available for the Sub-GHz band. The 2.4GHz band includes standard RF Generator.

Specifications

Frequency band: 240 - 960 MHz and 2.35 GHz; 2.55 GHz
Frequency span: 112KHz - 100MHz
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility
2 standard SMA 50 ohms connector, one for Sub-GHz wideband dual band telescopic 144/430MHz antenna included and another one for 2.4GHz band with helical antenna included.
Amplitude resolution: 0.5dBm
Dynamic range: -115dBm to 0dBm
Absolute Max input power: +5dBm
Average noise level (typical): -110dBm
2.4GHz RF Generator amplitude: -30dBm to +1dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Weight: 185g
Size: 113x70x25 mm

Techsupport

For questions and support, please visit https://support.rf-explorer.com [ https://support.rf-explorer.com ]

If you＇d like to buy or change the RF Explorer Battery, please click here [ https://www.emrss.com/products/rf-explorer-battery ] .

Technical details

Dimensions	0mm x0mm x0mm
Weight	G.W 304.5g
Battery	Lithium Cells / Batteries contained in equipment UN3481 - PI967
