[物聯汪汪] 含稅附發票~ Nordic nRF52833-DK 藍牙 5 開發板

詳盡技術資料請見原廠或供應商 https://www.nordicsemi.com/Software-and-tools/Development-Kits/nRF52833-DK [ https://www.nordicsemi.com/Software-and-tools/Development-Kits/nRF52833-DK ]  料號：nRF52833-DK

溫馨提示

• 本商品為專用於雛形研發實驗之非隨插即用的射頻模組，並非通用終端產品。故須經具備相關知識之專業人士（如：工程師、研究師生、或創客）撰寫程式、燒錄、焊接、外接天線等二次加工，或須與主機板連接使用等方式，始具備訊號傳輸功能，非屬電信管制射頻器材。
• 專業人士在購買前敬請詳閱商品說明與原廠規格書，始可用於您自己的原型設計中自行實驗與實作完整通訊功能。
• 商品本身初始無任何預設應用或功能，故一般消費者上電後無法直接使用，切勿購買。

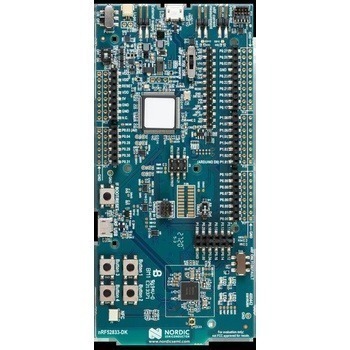

The nRF52833 DK is an affordable single-board development kit for development of Bluetooth® Low Energy, Bluetooth mesh, NFC, Thread and Zigbee applications on the nRF52833 SoC. It also supports development on the nRF52820 SoC.

The kit is hardware compatible with the Arduino Uno Rev3 standard, making it possible to use a wide range of 3rd-party shields that are compatible with this standard, including the Power Profiler Kit [ https://www.nordicsemi.com/Products/Development-hardware/Power-Profiler-Kit ] from Nordic Semiconductor. The nRF52833 DK is also compatible with the Power Profiler Kit II [ https://www.nordicsemi.com/Products/Development-hardware/Power-Profiler-Kit-2 ] .

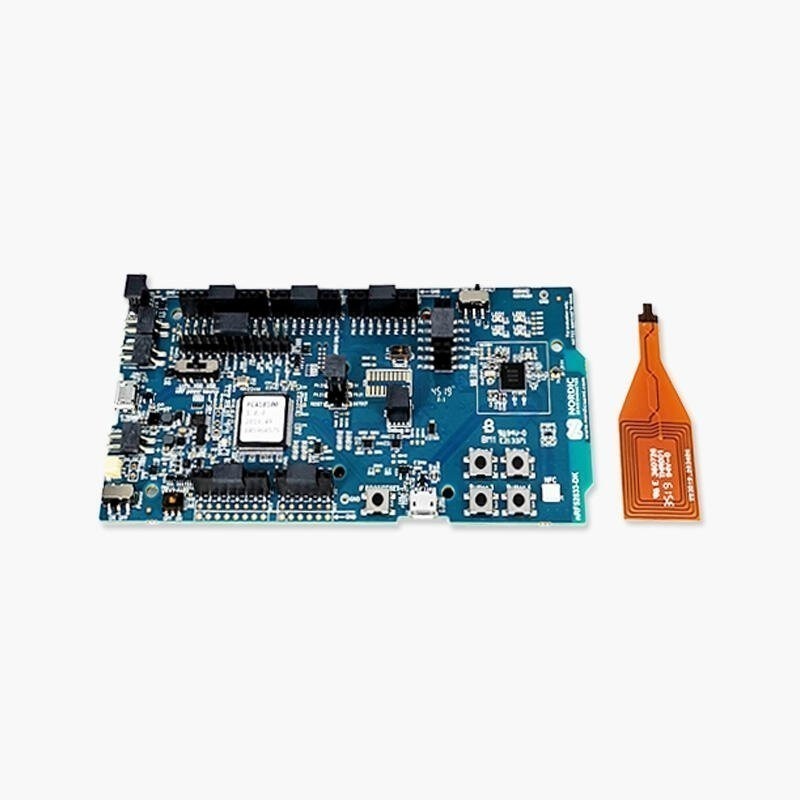

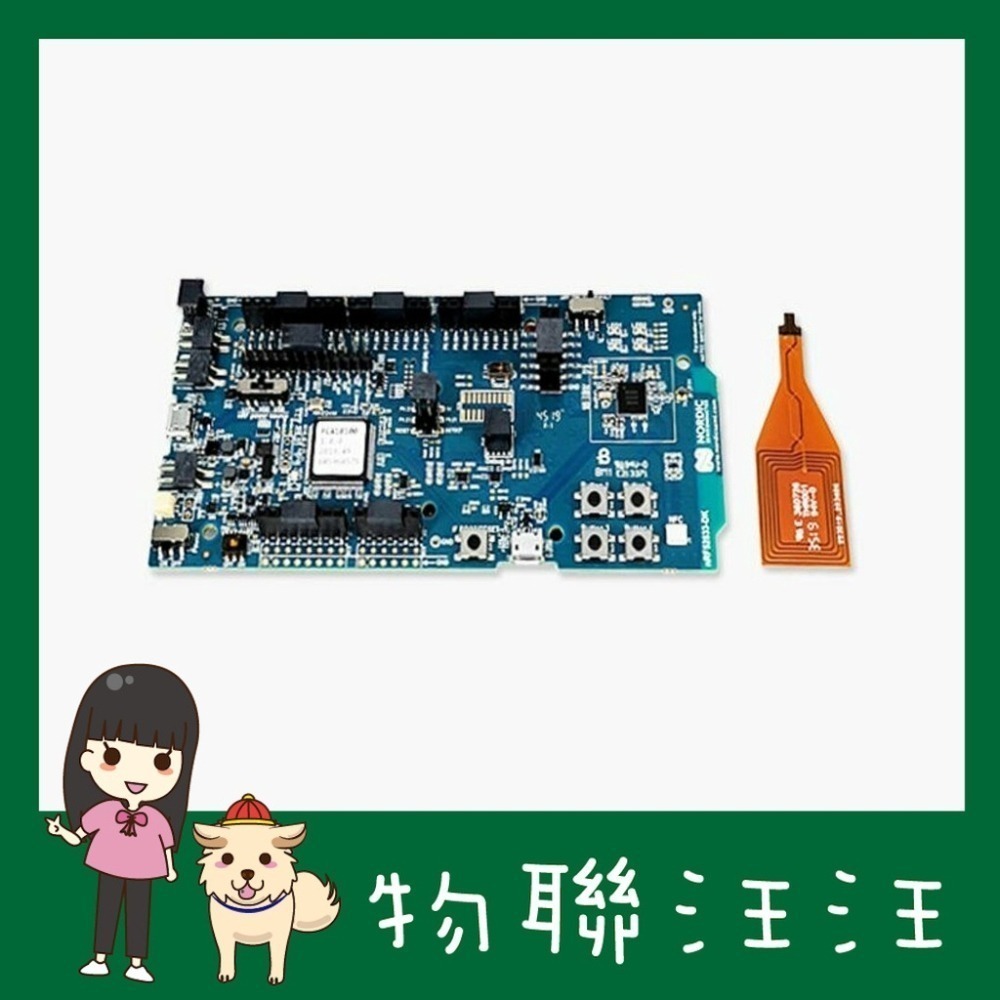

An included NFC antenna can be connected the kit to use the on-chip NFC-A tag functionality. The kit allows access to all I/O and interfaces via connectors and has 4 LEDs and 4 buttons which are user-programmable.

The DK is typically powered with USB, but can be powered by a wide range of sources, within the supply range of 1.7 to 5.0 V. In addition to USB, it can be powered with external source, but also includes a CR2032 battery holder and a Li-Po battery connector, for in-field testing. Current consumption can be measured by using the dedicated current measurement pins.

And on-board SEGGER J-link debugger allows programming and debugging both the on-board SoC and external SoCs through the debug out header.

Hardware layout and schematics are available under Downloads.

 Download nRF52833 DK product brief [PDF] [ https://www.nordicsemi.com/-/media/Software-and-other-downloads/Product-Briefs/nRF52833-DK-PB.pdf?la=en&hash=5E3C52E5881F1A7E2613F6EF1FAA99DEE30859C4 ]
