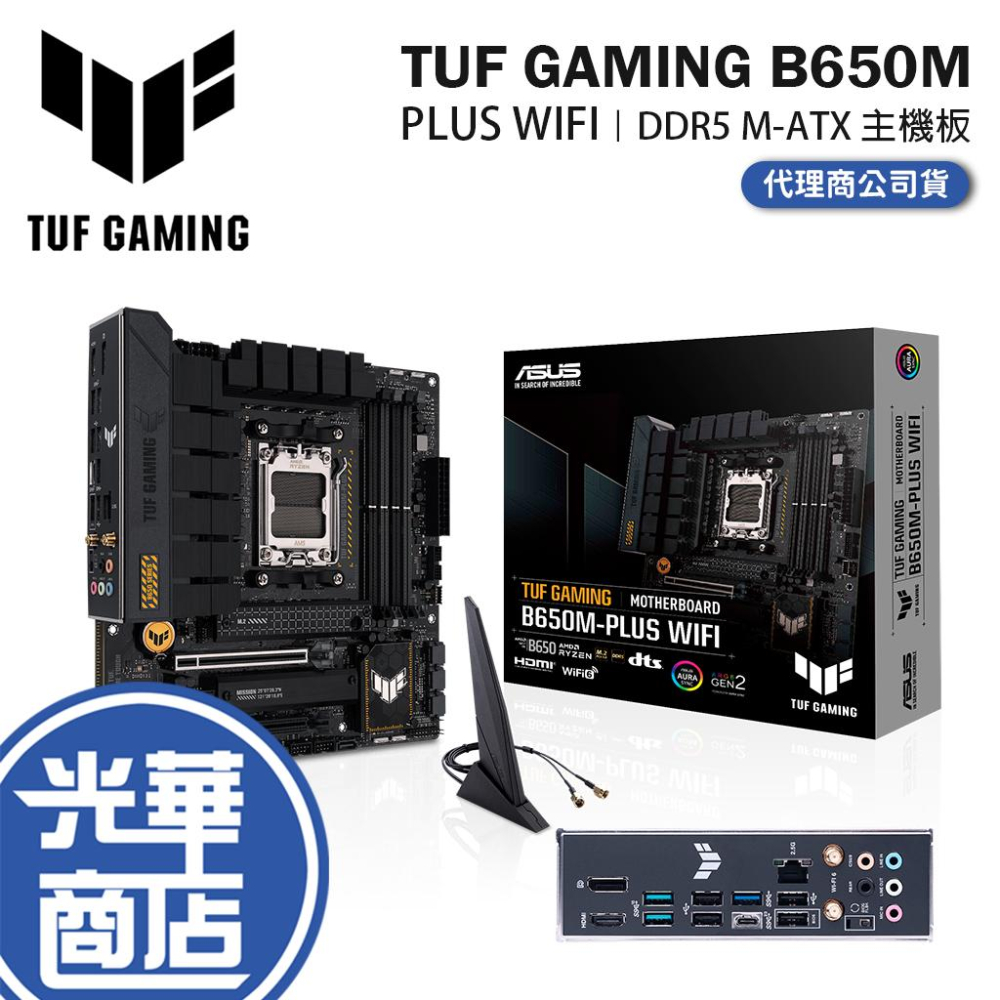

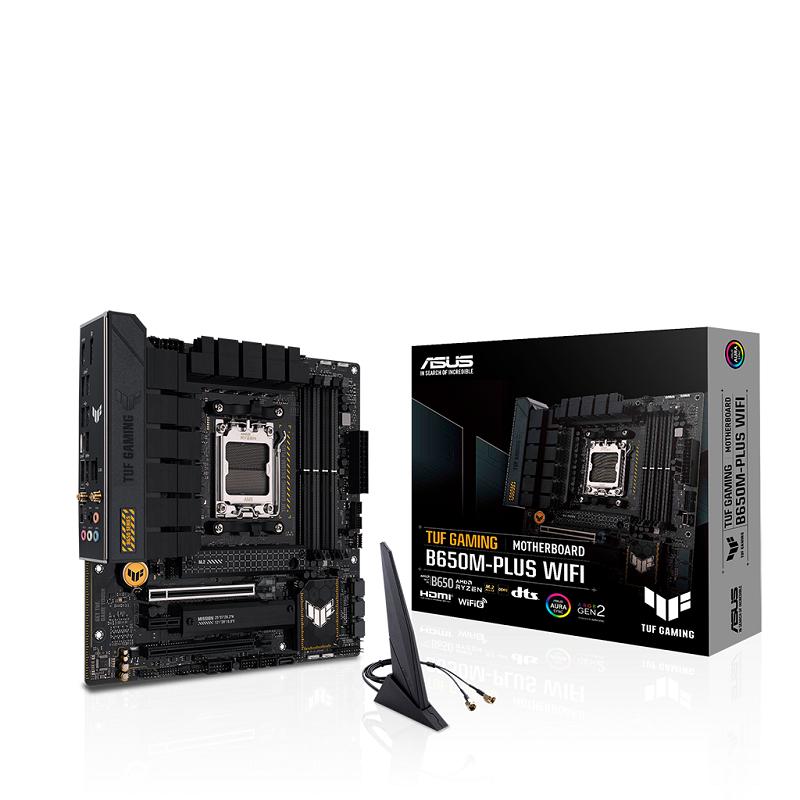

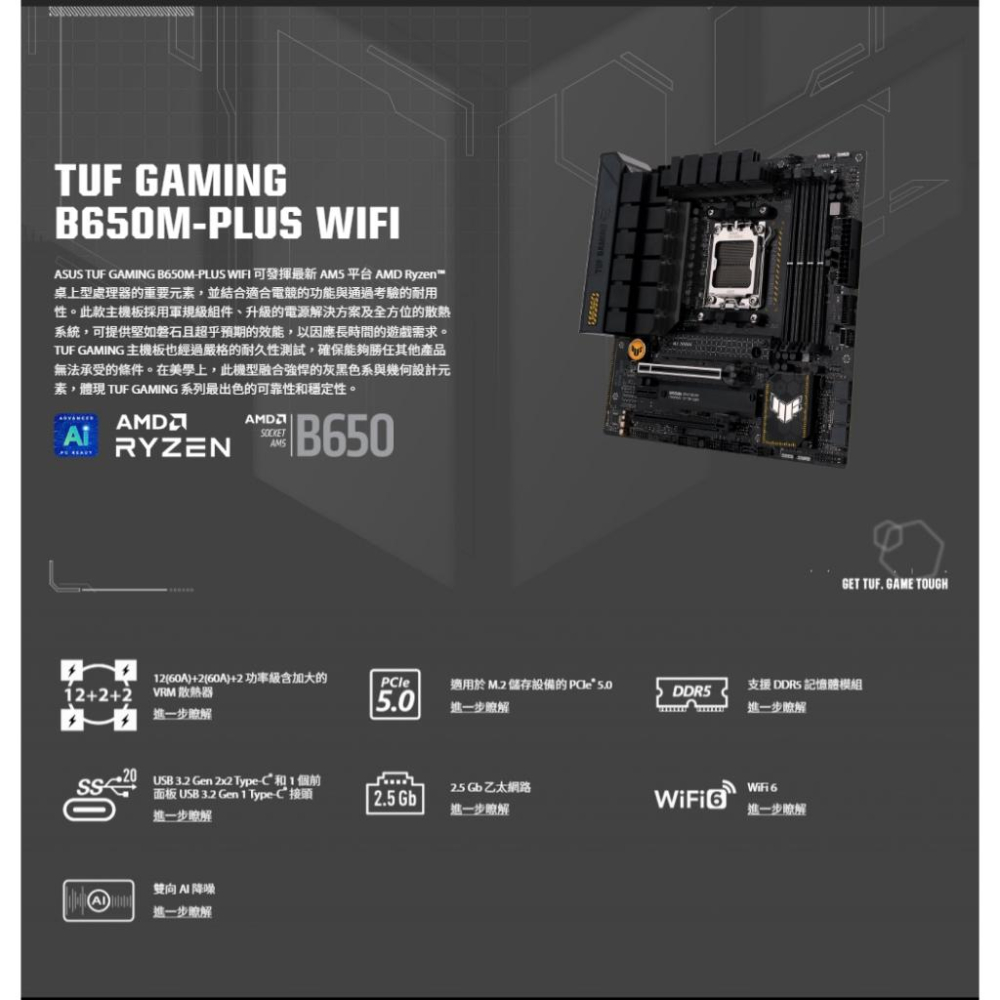

✅產品型號:TUF GAMING B650M-PLUS WIFI
✅產品保固:三年保固
✅產品特色

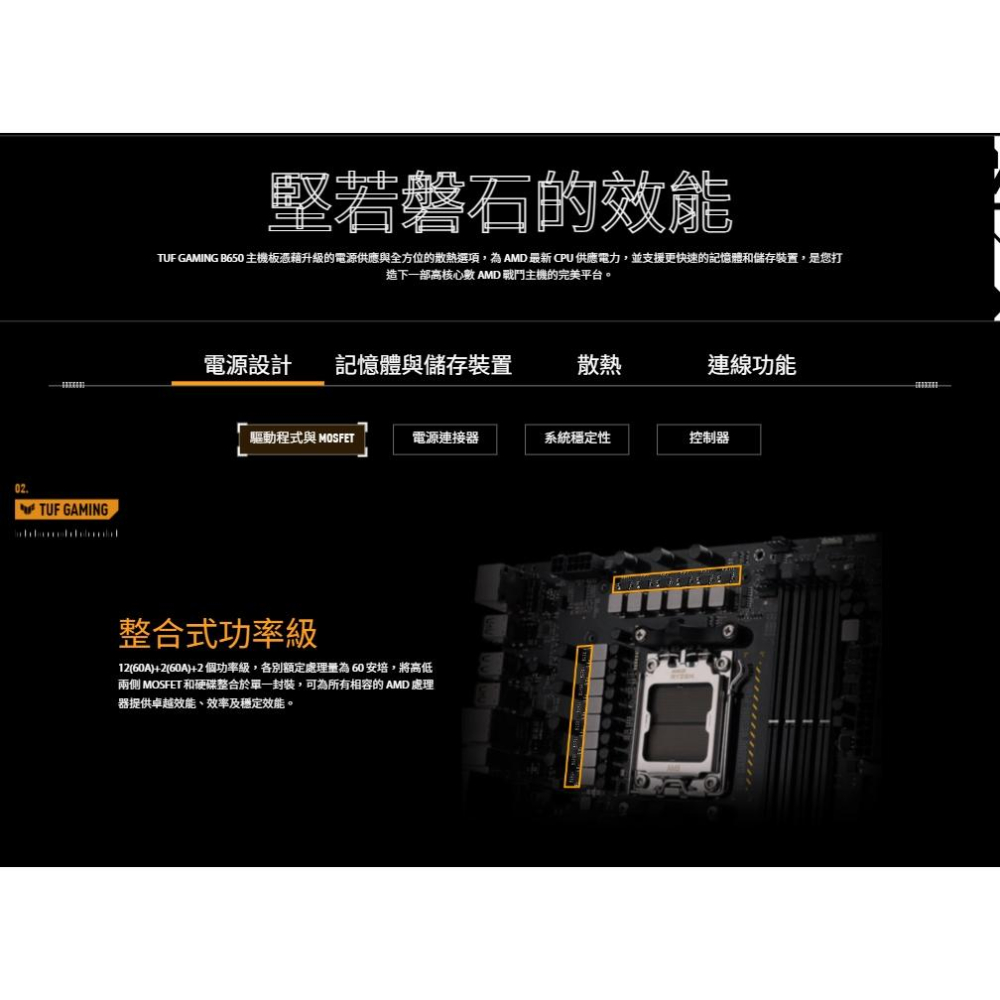

12(60A)+2(60A)+2 功率級含加大的 VRM 散熱器
適用於 M.2 儲存設備的 PCIe® 5.0
支援 DDR5 記憶體模組
USB 3.2 Gen 2x2 Type-C® 和 1 個前面板 USB 3.2 Gen 1 Type-C® 接頭
2.5 Gb 乙太網路
WiFi 6
雙向 AI 降噪
✅產品規格
型號
TUF GAMING B650M-PLUS WIFI
處理器
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series
晶片組
AMD B650
記憶體
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
PCIE介面
AMD Ryzen™ 9000 & 7000 Series
1 x PCIe 4.0 x16 slot
AMD Ryzen™ 8000 Series
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
儲存介面
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
網路
1 x Realtek 2.5Gb Ethernet
無線&藍芽
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth v5.2

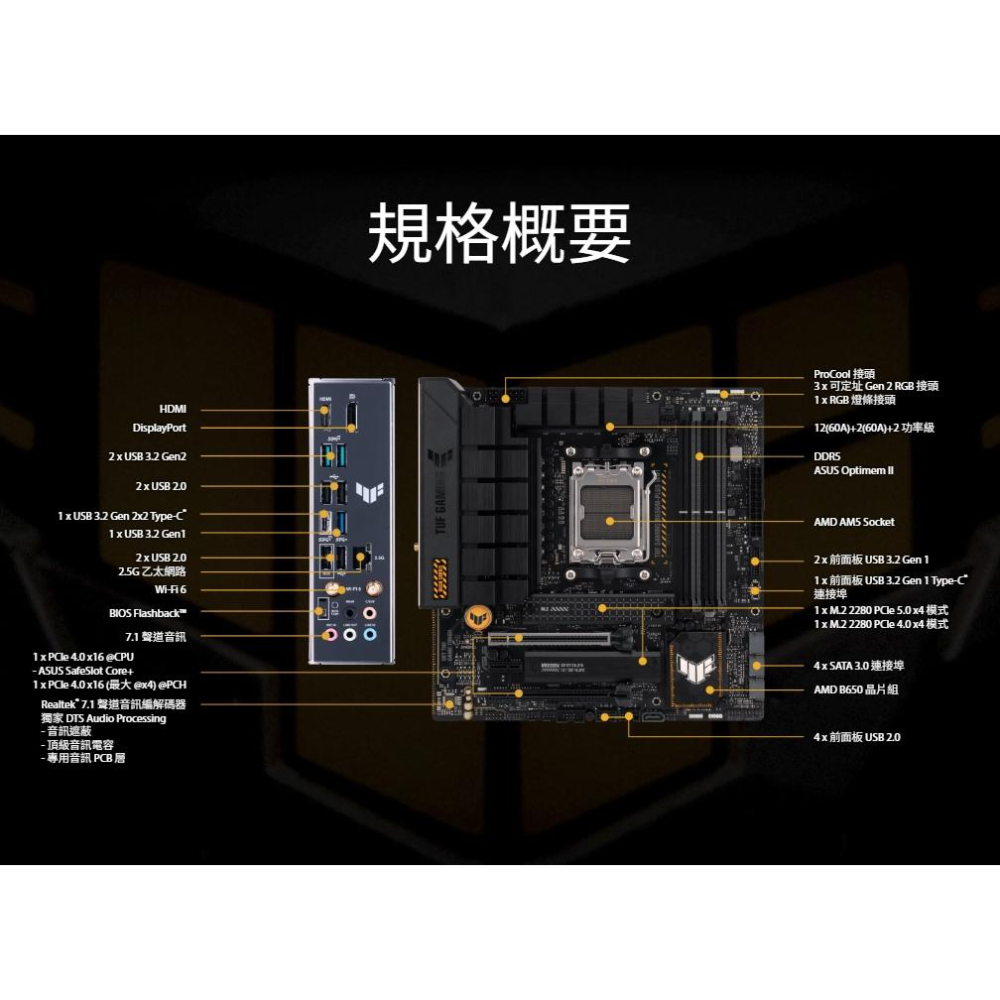

I/O介面
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
尺寸規格
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
