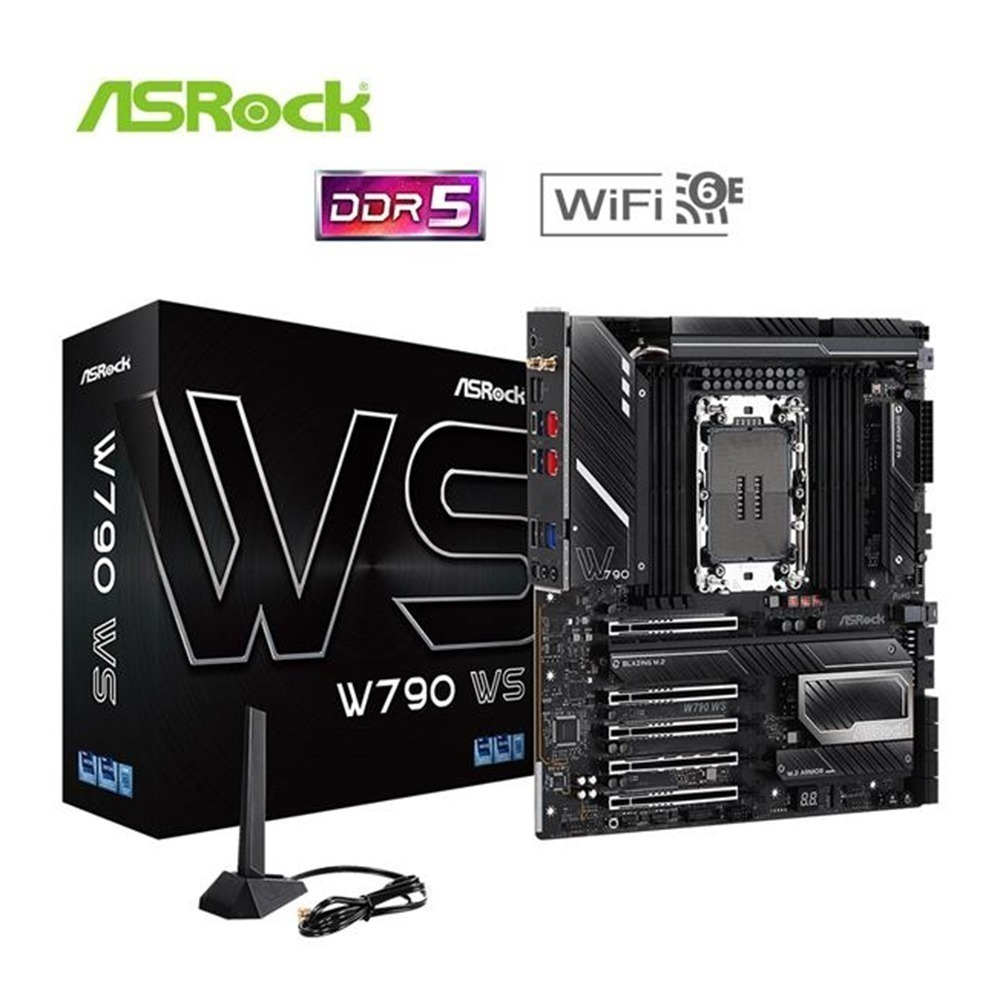

ASRock 華擎 W790 WS 主機板
產品規格
| 獨家功能 | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Quad Channel DDR5 - USB4 Type-C Ports Rock-Solid Durability - Ultra Low-Loss PCB - 20+2 Power Phase, 90A SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - Dual Marvell (Aquantia) 10GbE LAN - Intel® 2.5GbE LAN - Intel® vPro for Workstations with Intel® Advanced Management Technology - 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| CPU | - Supports 4th Gen Intel® Xeon® W-3400 and W-2400 Processors (LGA4677) - Supports Intel® Optane™ Persistent Memory - Supports Intel® Boot Guard - Supports Intel® Trusted Execution Technology (Intel® TXT) - Supports Intel® Turbo Boost Technology - Supports Intel® Virtualization Technology (Intel® VT) - Supports Intel® Hyper-Threading Technology (Intel® HT Technology) - Supports Intel® Data Streaming Accelerator (Intel® DSA) - Supports ASRock Hyper BCLK Engine |
| 晶片 | - Intel® W790 - Supports Intel® vPro Technology - Supports Intel® Active Management Technology |
| 記憶體 | - Quad Channel DDR5 Memory Technology - 8 x DDR5 DIMM Slots* - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9x4) up to 6800+(OC)** - Max. capacity of system memory: 2TB *S3 (Sleep) mode is supported only when 1 / 2 / 4 DIMMs memory modules are installed. 1DPC Up to 6800+ MHz (OC), 4800 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5. 2DPC Up to 6200+ MHz (OC), 4400 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5. Supports 4400 MHz Natively for Xeon® W3, W5-3423 and W5-3433. Overclocking is not supported. **Actual support may vary by CPU |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - n/a |
| 音效 | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) - Support Wake-On-LAN - Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I225LM) - Support Wake-On-LAN - Support PXE - Supports Intel® vPro Technology |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| 擴充插槽 | CPU: - 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slots *Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode* - 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 8 x SATA3 6.0 Gb/s Connectors - 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB | - 2 x USB4 Type-C (Rear) - 1 x USB 3.2 Gen2x2 Type-C (Front) - 2 x USB 3.2 Gen2 Type-A (Rear) - 8 x USB 3.2 Gen1 (4 Rear, 4 Front) - 3 x USB 2.0 (Front) * All USB ports support ESD Protection |
| Connector | - 1 x Virtual RAID On CPU Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard) - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)**** - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)***** - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Clear CMOS Button - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED *CPU_FAN1 supports the fan power up to 1A (12W). **CPU_FAN2/WP_3A supports the fan power up to 3A (36W). ***CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP_3A and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. ****It is optional to connect an ATX 12V 6-pin Cable to ATX12V3, which provides more power for overclocking. *****Use either GTX_12V1 or GTX_12V2 when you install one or two PCIe card(s). Use both connectors when you install more than two PCIe cards. Otherwise, the system may not boot up properly. |
| Rear Panel I/O | - 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports* - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 3 x RJ-45 LAN Ports - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | - 1 x User Manual - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x CPU Carrier for LGA 4677 E1A - 1 x CPU Carrier for LGA 4677 E1B - 4 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets |
| Form Factor | - EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm - 14 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit - Linux* *Linux supported by Intel® VIA® the upstreaming of Intel® Linux drivers to the Linux Open Source Community. Adoption into individual Linux distributions is dependent upon the OS vendor |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready |
| 原廠提供客戶保固期 | 36個月 |
※以上規格資料若有任何錯誤，以原廠所公佈資料為準。
