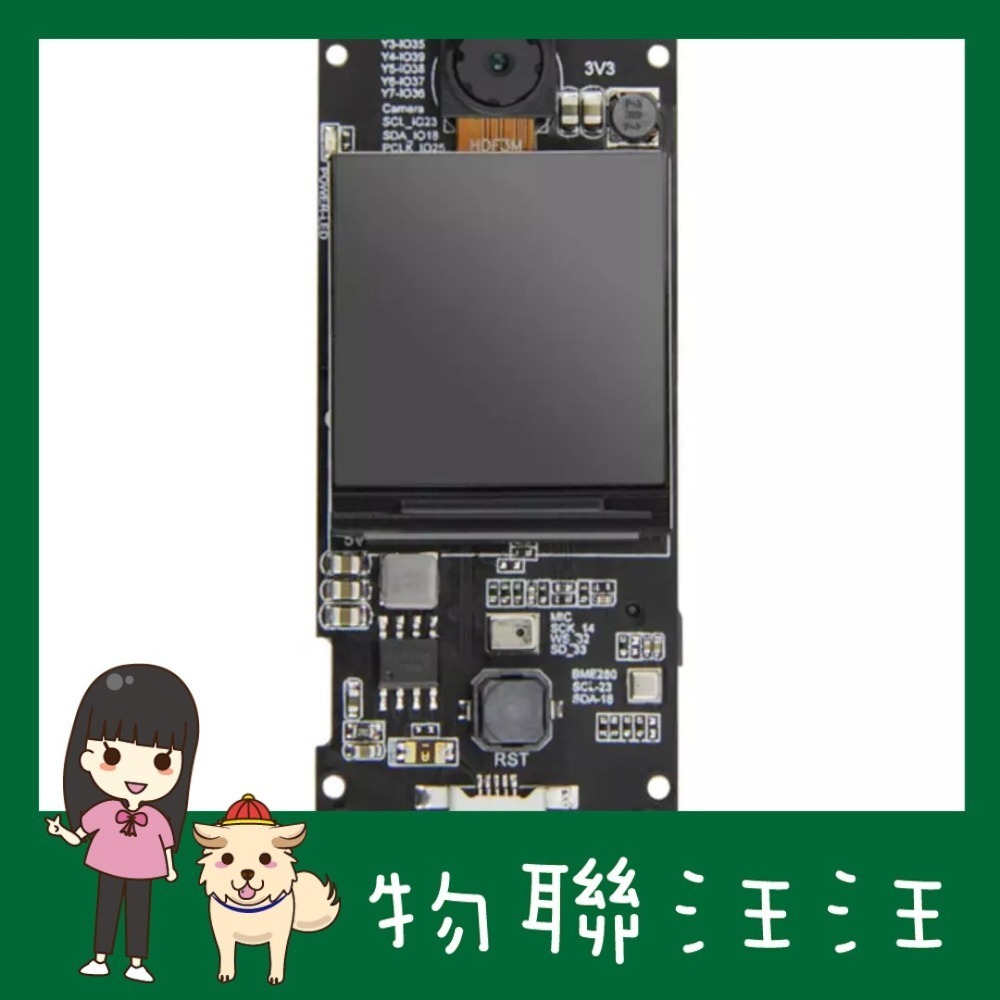

[物聯汪汪] TTGO T-Camera Plus相機模組ESP32-DOWDQ6藍牙WiFi可取代ESP32-EYE

商品編號:P0510708066174 原始貨號:P0510708066174

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 920
$ 975
預計出貨天數3
規格
  • 標準攝像頭 CH9102F版本 Q293
  • Q293+Micro USB線
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://github.com/Xinyuan-LilyGO/LilyGo-Camera-Series [ https://github.com/Xinyuan-LilyGO/LilyGo-Camera-Series ]  料號:Q293


溫馨提示

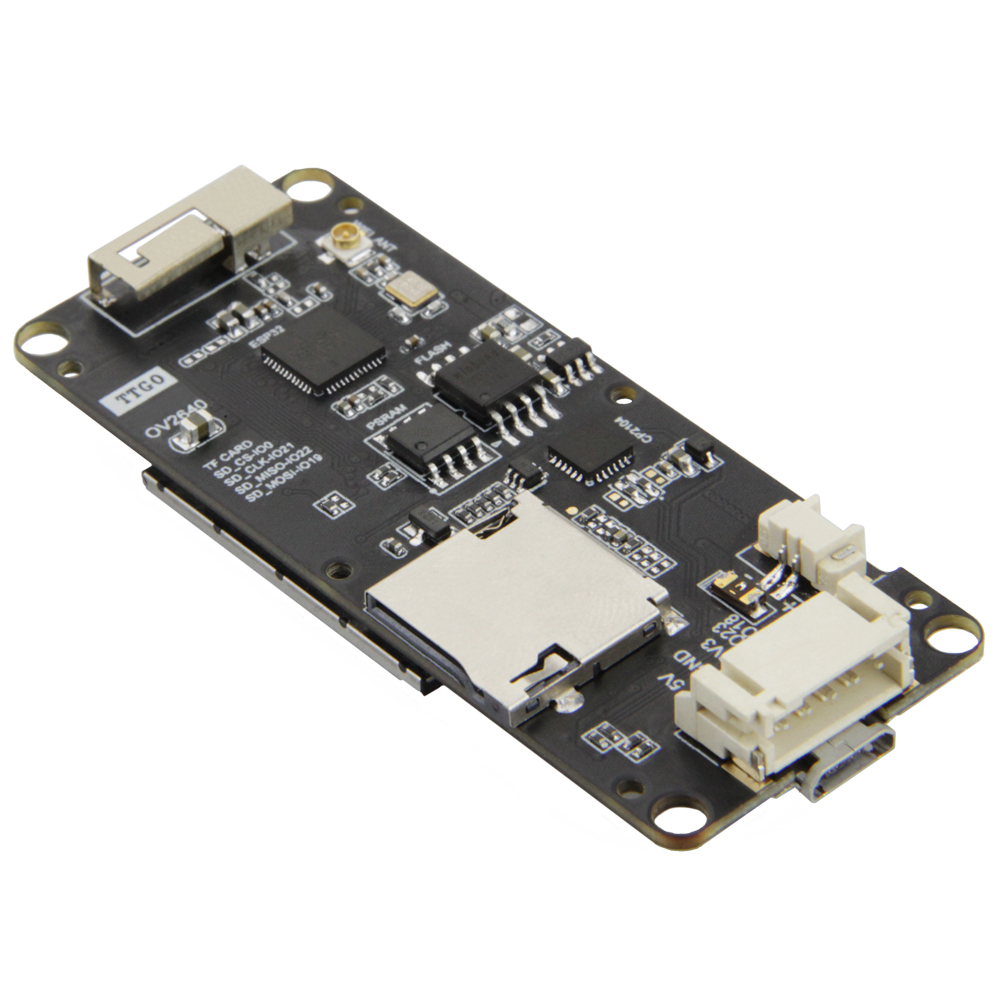

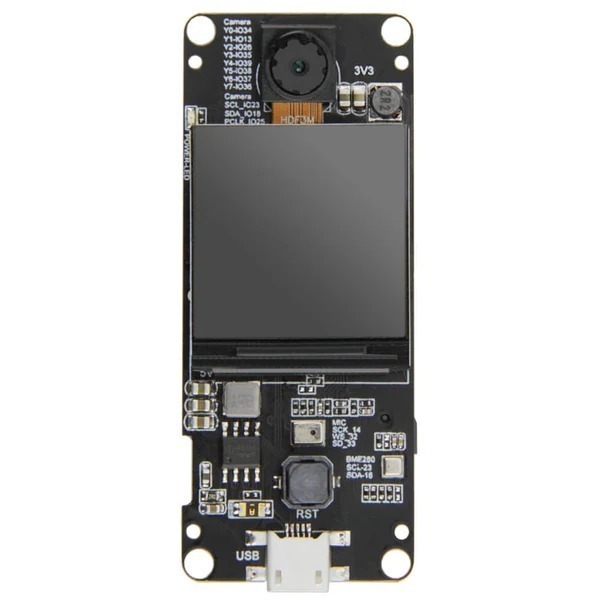

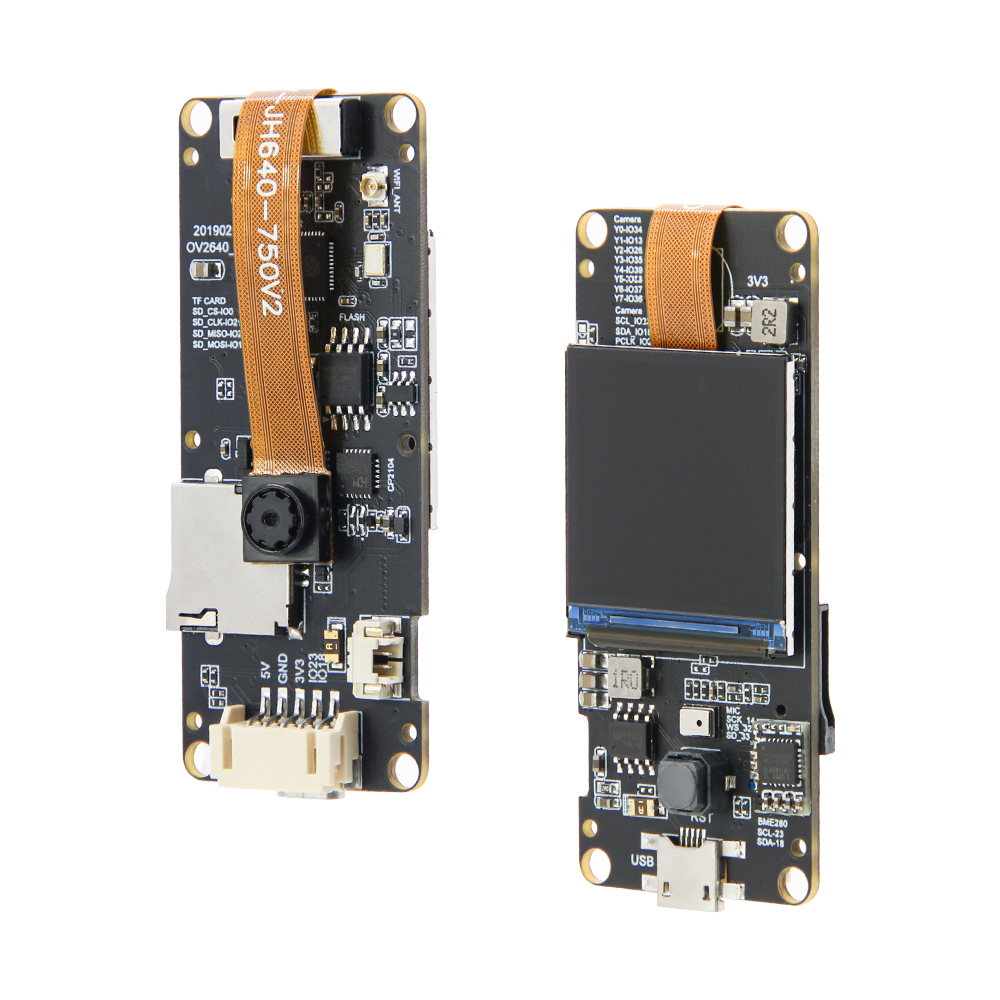

TTGO T-Camera Plus MCU32-DOWDQ6 8MB SPRAM相機模組OV2640

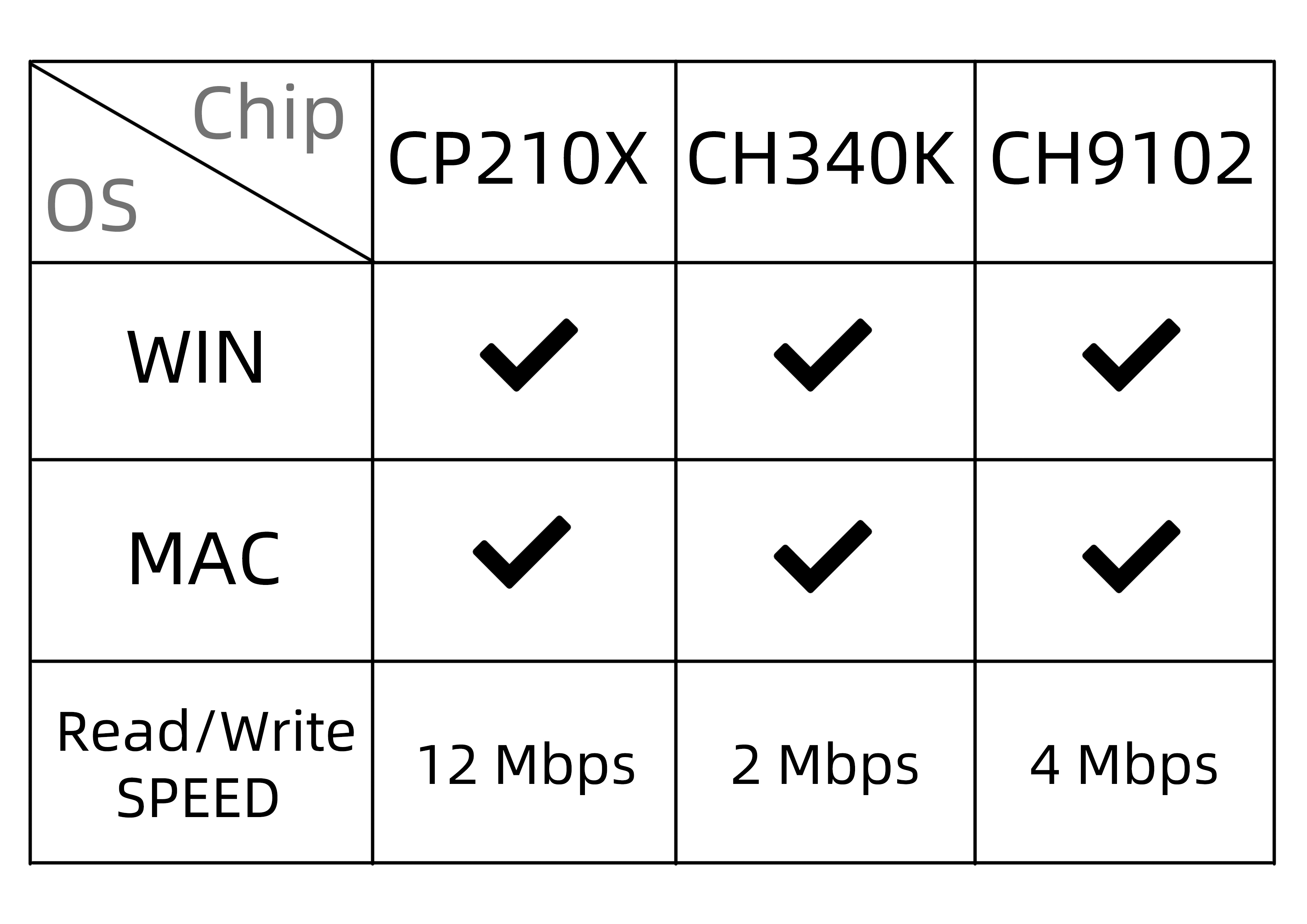

由於CP2104晶片價格上漲,而CH9102F QFN24是完全替代款,所以我們推薦CH9102F QFN24版本。



Github連結:(該連結需要複製貼上到瀏覽器打開)

https://github.com/Xinyuan-LilyGO/LilyGo-Camera-Series







Hardware Specifications


ChipsetMCURESSIF-MCU32-DOWDQ6 240MHz Xtensa® dual-core 32-bit LX6 microprocessor
FLASHQSPI flash/SRAM, up to 4 x 16 MB
SRAM 520 kB SRAM +  8 MBytes External SPRAM
Buttonreset
DisplayIPS Panel ST7789/1.3 Inch
Power indicator lampred
USB to TTLCP2104
CameraOV2640  2 Megapixel
on-board clock40MHz crystal oscillator
working voltage2.3V-3.6V
working currentabout 160mA
working temperature range-40℃ ~ +85℃

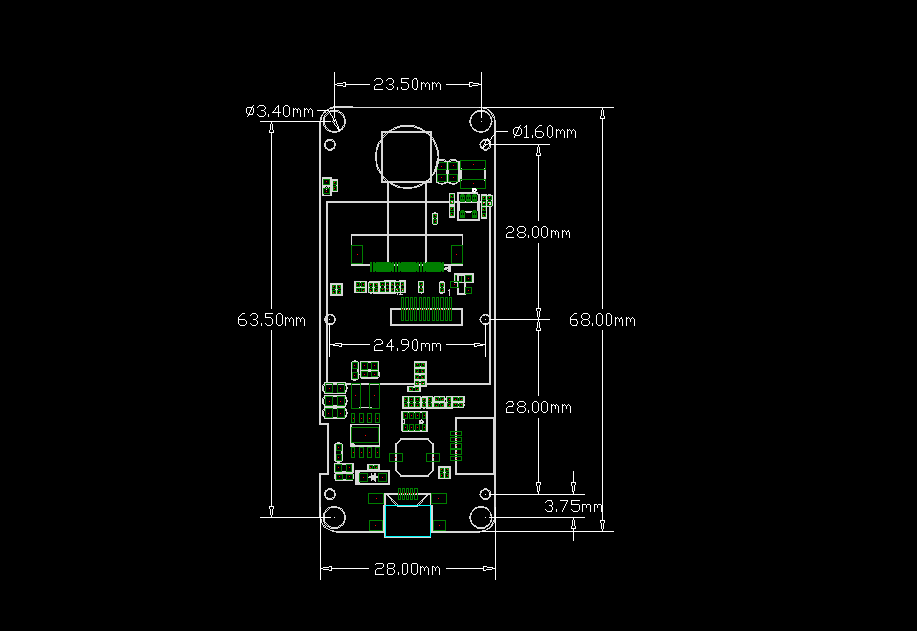

size69.13*28.41*8.45mm
MicMSM261S4030H0
SDCardIntegrated external SD card slot



Power management Chip

IP5306

Power SupplyUSB 5V/1A
charging current1A
battery3.7V lithium battery

WIFI

Description

StandardFCC/CE/TELEC/KCC/SRRC/NCC
protocol802.11 b/g/n/e/i (802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
communication distance300m

Bluetooth

Description

protocolmeet bluetooth v4.2BR/EDR and BLE standard
radio frequencywith -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
audio frequencyCVSD&SBC audio frequency

Software specification

Description

wifi ModeStation/SoftAP/SoftAP+Station/P2P
security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
networking protocolIPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS

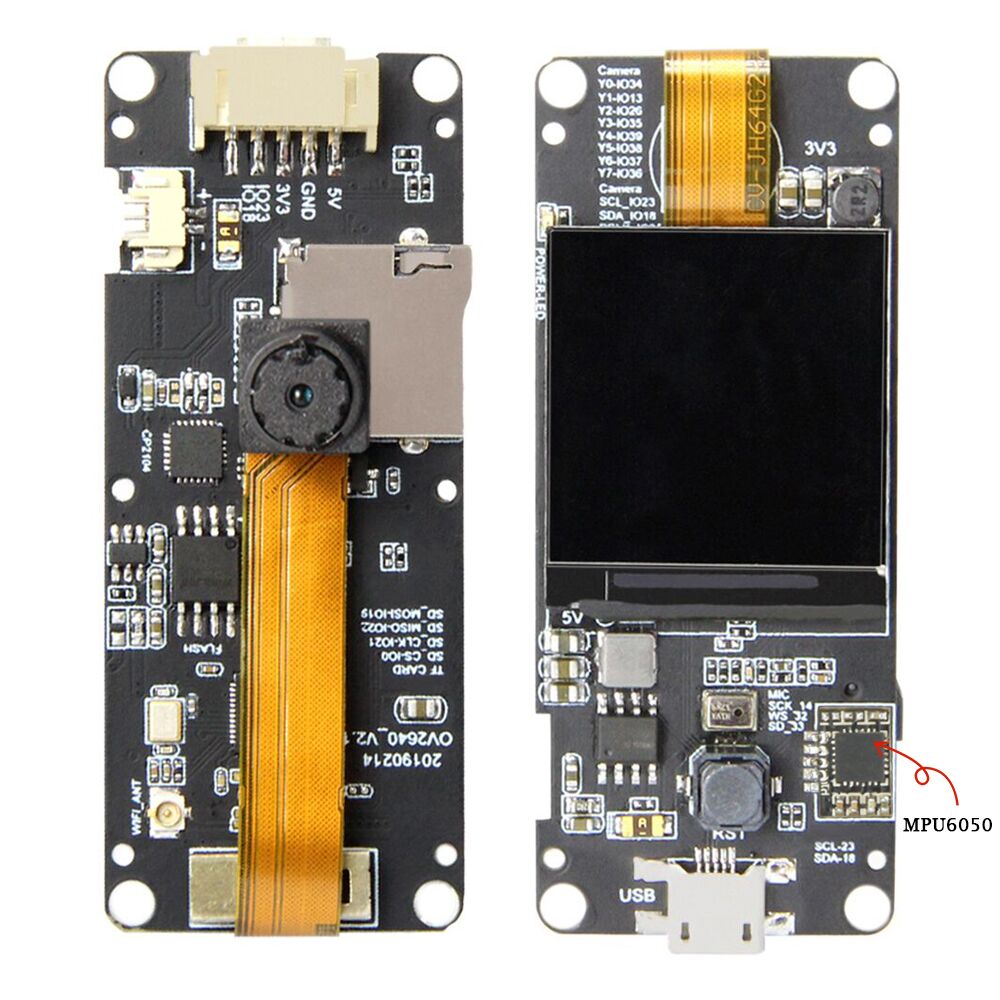

MPU6050標準接線加長版

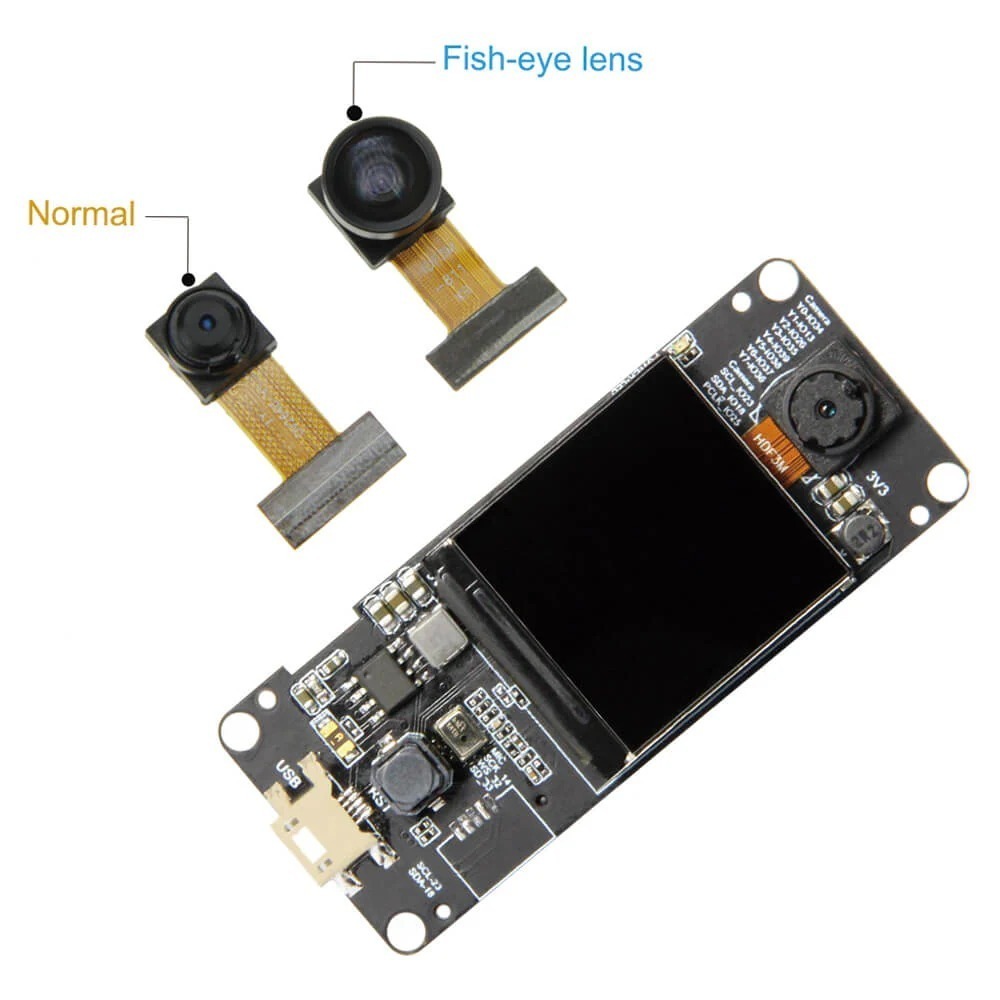

標準版鏡頭:廣角120度

魚眼鏡頭:廣角160度
